Lexmark MX632adwe Mono Laser Multifunction Printer
PRODUCT DESCRIPTION
Lexmark MX632adwe A4 Mono Laser Multifunction Printer, 47 ppm (38S0947) - 1 Year Local Onsite Warranty
Performance for Busy Workgroups
The Lexmark MX632adwe is a monochrome laser multifunction printer for medium workgroups, printing at up to 47 pages per minute on A4 with the first page out as fast as 6 seconds. Lexmark recommends a monthly volume of 2000 - 20000 pages.
Processing and Controls

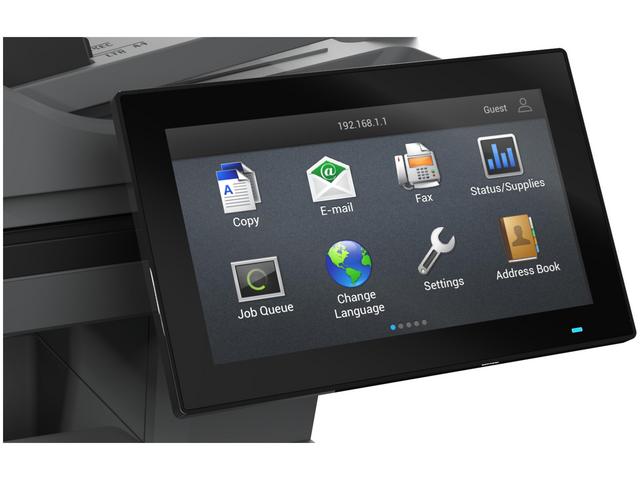

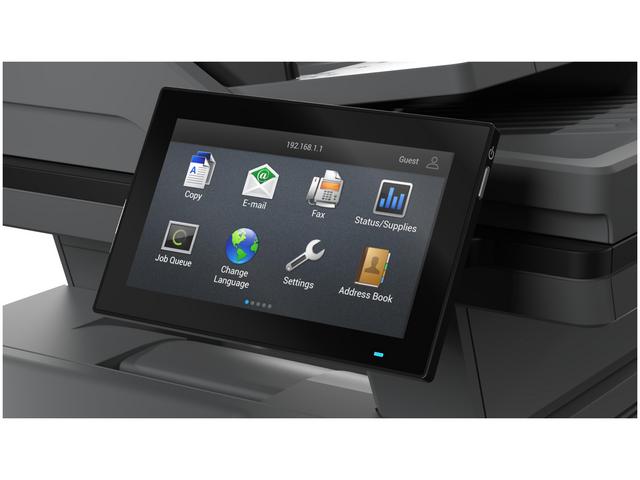

A Quad Core, 1.2 GHz processor with 2048 MB of memory keeps complex jobs moving; it is operated from the Lexmark e-Task 7-inch (17.8 cm) colour touch screen. Two-sided printing is built in.
Paper Handling
Standard input is 650 pages 75 gsm bond, expandable to 2300 pages 75 gsm bond. The output bin holds 250 pages 75 gsm bond.
Copy, Scan and Fax
It copies at up to 47 cpm (A4). A flatbed scanner with a 100-sheet automatic document feeder scans both sides of a page in a single pass. Fax is standard.
Connectivity and Security
Standard ports: Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), 802.11a/b/g/n/ac + Apple iBeacon, USB 2.0 Specification Hi-Speed Certified (Type B). Wi-Fi is built in (802.11a/b/g/n/ac). Security: Trusted Platform Module (TPM).
Need help choosing? Email sales@sourceit.com.sg with your monthly volume, paper sizes and whether you need copy, scan or fax, and we will size it for you.
Lexmark MX632adwe Datasheet — Technical Specifications
General
| Product Name | Lexmark MX632adwe Mono Laser Multifunction Printer |
| Part Number | 38S0947 |
| Series | Lexmark MS521 / MX622 / MX632 Mono Series |
| Device Type | Black & White Laser Printer (multifunction) |
| Functions | Analogue Fax, Copying, Colour Scanning, Printing, Trusted Platform Module (TPM) |
| Workgroup Size | Medium Workgroup |
| Local Warranty (Singapore) | 1-year onsite repair, next business day response, supplied by SourceIT with a GST invoice |
Printing
| Print Speed | Up to Black: 47 ppm (A4) |
| Two-sided Print Speed | Up to Black: 24 spm (A4) |
| Time to First Page | As fast as Black: 6 seconds |
| Print Resolution | Black: 1200 x 1200 dpi, 1200 IQ (1200 x 600 dpi) |
| Two-sided Printing | 2-sided Integrated Duplex |
| Printable Area | 4.2 mm of the top, bottom, right and left edges (within) |
| Print Languages | PCL 5, PCLm, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image |
Copying
| Copy Speed | Up to Black: 47 cpm (A4) |
| Two-sided Copy Speed | Up to Black: 24 spm (A4) |
| Time to First Copy | As fast as Black: 6.5 seconds |
| Reduce / Enlarge | 25 - 400 % |
Scanning
| Scanner Type | DADF (single pass Duplex) |
| Automatic Document Feeder | 100-Sheet Automatic Document Feeder; input/output up to 100 pages 75 gsm bond |
| Scan Speed (Single-sided) | A4/Ltr: Up to Black: 49/52 sides per minute; Colour: 39.9/42 sides per minute |
| Scan Speed (Two-sided) | A4/Ltr: Up to Black: 98/104 sides per minute; Colour: 79.8/84 sides per minute |
| Scan Resolution | Enhanced: Up to 600 x 600 dpi, Optical: Up to 600 dpi |
| Scan File Formats | Send as XPS, TIFF, Searchable PDF (optional OCR and ISD or hard drive required), Archival PDF (A-1a, A-1b), Secure PDF, PDF, JPEG, JPG |
| Scan Destinations | e-mail, USB or Network connected computer, USB Flash drive, FTP |
Fax
| Fax | ITU T.30, V.34 Half-Duplex, 33.6 Kbps; < 3 seconds per page |
Processor, Memory & Display
| Processor | Quad Core, 1.2 GHz |
| Memory (Standard) | 2048 MB |
| Memory (Maximum) | 2048 MB |
| Storage | Intelligent Storage Drive (optional); Magnetic Hard Disk (optional) |
| Display | Lexmark e-Task 7-inch (17.8 cm) colour touch screen |
Paper Handling
| Paper Handling Included | 100-Sheet Multipurpose Feeder, 250-Sheet Output Bin, Integrated Duplex, 550-Sheet Input |
| Input Capacity (Standard) | 650 pages 75 gsm bond |
| Input Capacity (Maximum) | 2300 pages 75 gsm bond |
| Paper Inputs | Standard: 2, Maximum: 5 |
| Output Capacity (Standard) | 250 pages 75 gsm bond |
| Output Capacity (Maximum) | 250 pages 75 gsm bond |
| Multipurpose Feeder | 100-Sheet Multipurpose Feeder |
| Optional Paper Handling | 550-Sheet Lockable Tray, 250-Sheet Tray, 550-Sheet Tray |
| Media Types | Paper Labels, Card Stock, Plain Paper, Envelopes, Refer to the Paper & Specialty Media Guide |
| Media Sizes | A6, Oficio, 7 3/4 Envelope, 9 Envelope, JIS-B5, A4, Legal, A5, Hagaki Card, Letter, B5 Envelope, Statement, C5 Envelope, Executive, DL Envelope, Folio, 10 Envelope |
| Media Weights | 60 - 120 gsm (Standard Tray), 60 - 220 gsm (Multipurpose Feeder) |
Usage
| Recommended Monthly Page Volume | 2000 - 20000 pages |
| Maximum Monthly Duty Cycle | Up to 175000 pages per month |
Connectivity
| Standard Ports | Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), 802.11a/b/g/n/ac + Apple iBeacon, USB 2.0 Specification Hi-Speed Certified (Type B) |
| Network | Ethernet Network: Yes |
| Wireless | Yes (standard: 802.11a/b/g/n/ac + Apple iBeacon) |
| Optional Network Ports | MarkNet N8230 Fiber Ethernet Print Server |
| Optional Local Ports | Internal 1284-B Bidirectional Parallel, Internal RS-232C serial |
| Network Printing Methods | FTP, Pull Printing, Thin Print, Microsoft Web Services WSD, Telnet, IPP 1.0, 1.1, 2.0 (Internet Printing Protocol) |
| Mobile Printing | Apple support through AirPrint and AirScan; Android through Mopria® Print Service and Mopria Scan |
Security
| Security Features | Trusted Platform Module (TPM) |
| Network Security | SSL Cipher Configuration, SNMPv3, Certificate Management, TCP Restricted Server List, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS, IPSEC Support (IPv4/IPv6), TCP/UDP Port Access Control, Security Port Lockdown |
| Wireless Security | WEP Encryption (64- and 128-bit key), 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS, WPA2™ - Personal |
Supplies
| Starter Toner (in box) | 5,000-page Return Program Toner Cartridge |
| Replacement Cartridge Yields | up to 31,000-page Black Cartridge |
| Imaging Unit Yield | Up to 75,000 pages |
Physical & Environmental
| Dimensions (H x W x D) | 513.7 x 479 x 452.1 mm |
| Weight | 21.3 kg |
| Packaged Dimensions | 659 x 584 x 559 mm |
| Packaged Weight | 25.1 kg |
| Noise Level | 15 dBA (Idle), 55 dBA (Print), 57 dBA (Copy), 52 dBA (Scan); Duplex print 54 dBA |
| Power Consumption | 0.1 watts (Hibernate Mode), 1.1 watts (Sleep Mode), 15.3 watts (Ready Mode), 662 watts (Printing) |
| ENERGY STAR TEC | 0.64 kilowatt-hours per week |
| Operating Environment | Temperature: 10 to 32°C, Altitude: 0 - 2896 metres, Humidity: 15 to 80% Relative Humidity |
| Certifications | ENERGY STAR, ICES-003 Class A, BSMI Class A, VCCI Class A, US FDA, UL 60950-1, FCC Class A, cUL CAN/CSA-C22.2 60950-1, NOM, CB EN/IEC 60950-1, CB EN/IEC 60825-1, CE DoC, EFTA (CE), KCC, CCC, CECP, CEL, A-tick DoC, UL-AR, KC mark, UL GS mark, EC 1275, ISO 532B, ECMA-370, TED, SII, TER, Mopria Certified, Blue Angel / DE-UZ 219 |
| Country of Origin | Rest of World - PRC, North America & TAA Compliant - Mexico |
Compatibility & Software Support
Operating Systems
| Windows | Windows Server 2019, Windows 11, Windows 10, Windows 8.1, Windows Server 2022, Windows 8, Windows 8 x64, Windows 7 x64, Windows Server 2012, Windows Server 2016, Windows Server 2012 R2, Windows 7 |
| Apple / macOS | Support is provided through AirPrint and AirScan only |
| Linux | Ubuntu 22.04, Fedora 36, Debian 11, SUSE Linux Enterprise Server 12 SP5, Debian 10, Red Hat Linux 9.1, Ubuntu 20.04, OpenSUSE 15.4, OpenSUSE 15.2, Red Hat Linux 8.7, Fedora 37, SUSE Linux Enterprise Server 15 SP4 |
| Android | Support is provided through Mopria® Print Service and Mopria Scan. |
| Other | Virtually any platform supporting TCP/IP |
Mobile Printing
Apple support through AirPrint and AirScan; Android through Mopria® Print Service and Mopria Scan
Print Languages
PCL 5, PCLm, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image
Optional Paper Handling (per Lexmark)
550-Sheet Lockable Tray, 250-Sheet Tray, 550-Sheet Tray
Compatible Supplies (per Lexmark)
Toner 66S3X00 (31K Return Programme), 66S3000 (5K Return Programme), 66S0XA0 (31K regular); Imaging unit 66S0ZA0 / 66S0Z00 (75K); Staples 35S8500
Supplies and options for this printer can be ordered through SourceIT — email sales@sourceit.com.sg with the part numbers you need.
Package Contents & Lexmark MS521 / MX622 / MX632 Mono Series Ordering Information
Lexmark MS521 / MX622 / MX632 Mono Series
| Model | Type | A4 Speed | Part No. |
| MS521dn | A4 Mono Laser Printer | 44 ppm | 36S0319 |
| MX622ade | A4 Mono Laser Multifunction Printer | 47 ppm | 36S0919 |
| MX632adwe (this listing) | A4 Mono Laser Multifunction Printer | 47 ppm | 38S0947 |
In the Box
Printer with starter supplies: 5,000-page Return Program Toner Cartridge. Lexmark notes that box contents may vary by country — ask us to confirm before ordering.
Datasheet & Downloads
| Lexmark product page | MX632adwe on lexmark.com |
| Lexmark brochure | MX632adwe Brochure (PDF) |
| User guide | Online User Guide |
| Drivers & downloads | Lexmark Drivers & Downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 38S0947.
Frequently Asked Questions — Lexmark MX632adwe
How fast is the Lexmark MX632adwe?
Up to 47 pages per minute on A4, with the first page out as fast as 6 seconds.
Does it fax?
Yes, fax is standard on this model.
Does it have Wi-Fi?
Yes, Wi-Fi is built in (802.11a/b/g/n/ac).
Can it print on A3?
No. It is an A4 device (maximum sizes up to Legal / Oficio).
How much paper can it hold?
Standard input is 650 pages 75 gsm bond, expandable to 2300 pages 75 gsm bond with optional trays.
What warranty do I get?
1-year onsite repair with next business day response in Singapore, supplied by SourceIT with a GST invoice.
