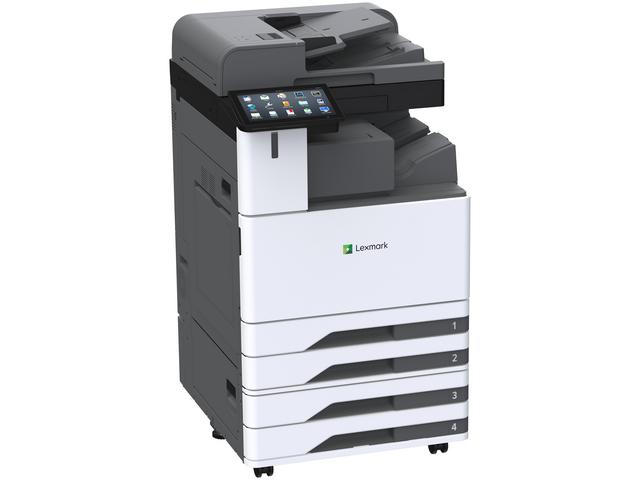

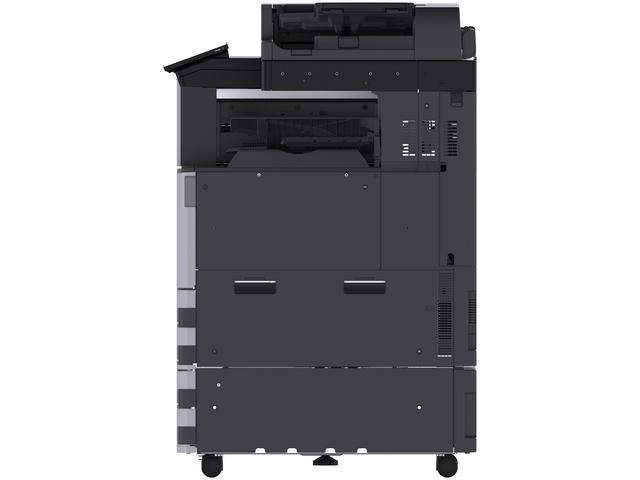

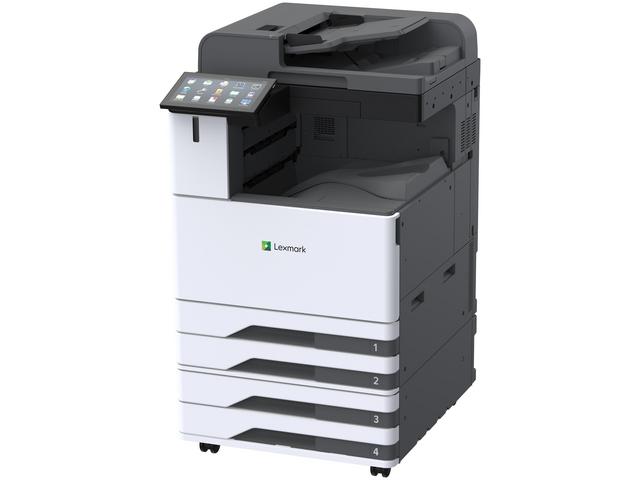

Lexmark CX943adtse A3 Colour Laser Multifunction Printer
PRODUCT DESCRIPTION
Lexmark CX943adtse A3 Colour Laser Multifunction Printer, 55 ppm (32D0365) - 1 Year Local Onsite Warranty
Performance for Busy Workgroups
The Lexmark CX943adtse is an A3-capable colour laser multifunction printer for large workgroups, printing at up to 55 pages per minute on A4 with the first page out as fast as 4.9 seconds in black or colour. Lexmark recommends a monthly volume of 7,000 - 50,000 pages.
Processing and Controls
A Quad Core 1.2 GHz processor with 4096 MB of memory keeps complex jobs moving; it is operated from the Lexmark e-Task 10-inch (25 cm) class colour touch screen. Two-sided printing is built in.
Paper Handling
Standard input is 2180 pages 75 gsm bond, expandable to 4180 pages 75 gsm bond. The output bin holds 400 pages 75 gsm bond. Finishing options: Offset stacking, Stapling, Hole punching, Booklet fold and saddle stapling.
Copy, Scan and Fax
It copies at up to 55 cpm (A4) in black and colour. A flatbed scanner with a 130-sheet automatic document feeder scans both sides of a page in a single pass. Fax is standard.
Connectivity and Security
Standard ports: Gigabit Ethernet (10/100/1000), Front USB 2.0 Hi-Speed (Type A), Rear USB 2.0 Hi-Speed (Type A), USB 2.0 Hi-Speed (Type B), One Internal Card Slot. Wi-Fi is optional with the Lexmark MarkNet N8372 (27X6410). Security: Trusted Platform Module (TPM), SSL Cipher Configuration, SNMPv3, Certificate Management, TCP Restricted Server List, 802.1x Authentication (MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS), IPSEC Support (IPv4/IPv6), TCP/UDP Port Access Control, Security Port Lockdown.
Need help choosing? Email sales@sourceit.com.sg with your monthly volume, paper sizes and whether you need copy, scan or fax, and we will size it for you.
Lexmark CX943adtse Datasheet — Technical Specifications
General
| Product Name | Lexmark CX943adtse A3 Colour Laser Multifunction Printer |
| Part Number | 32D0365 |
| Series | Lexmark A3 9-Series |
| Device Type | Colour Laser multifunction (Print Technology: Colour Laser), A3 |
| Functions | Colour Copying, Colour Faxing, Colour Printing, Colour Scanning, Colour Network Scanning, Trusted Platform Module (TPM) |
| Workgroup Size | Large Workgroup |
| Local Warranty (Singapore) | 1-year onsite repair, next business day response, supplied by SourceIT with a GST invoice |
Printing
| Print Speed | Up to Black: 55 ppm (A4), Colour: 55 ppm (A4) |
| Two-sided Print Speed | Up to Black: 55 spm (A4), Colour: 55 spm (A4) |
| Time to First Page | Black: 4.9 seconds, Colour: 4.9 seconds |
| Print Resolution | Black: 1200 x 1200 dpi, 2400 IQ (2400 x 600 dpi); Colour: 1200 x 1200 dpi, 2400 IQ (2400 x 600 dpi) |
| Two-sided Printing | 2-sided: Integrated Duplex |
| Printable Area | 4.2 mm from top, bottom, right and left edges |
| Print Languages | PCL 5, PCLm, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image |
Copying
| Copy Speed | Up to Black: 55 cpm (A4), Colour: 55 cpm (A4); Duplex 55 spm |
| Time to First Copy | Black: 6.8 seconds, Colour: 6.4 seconds |
| Reduce / Enlarge | 25 - 400% |
Scanning
| Scanner Type | Flatbed scanner with automatic document feeder DADF (single pass Duplex) |
| Automatic Document Feeder | 130-Sheet Automatic Document Feeder; Input/Output: Up to 130 pages 75 gsm bond |
| Scan Speed | Simplex A4/Ltr: Up to 73.5/72 sides per minute black and colour; Duplex A4/Ltr: Up to 146/144 sides per minute black and colour |
| Scan Resolution | Enhanced: Up to 600 x 600 dpi; Optical: Up to 600 dpi |
| Maximum Scan Area | 297 x 432 mm (Maximum) |
| Scan File Formats | TIFF, Archival PDF (A-1a, A-1b), Secure PDF, PDF, JPEG, JPG, Searchable PDF |
| Scan Destinations | e-mail, USB or Network connected computer, USB Flash drive, FTP |
Fax
| Fax | Modem Speed: ITU T.30, V.34 Half-Duplex, 33.6 Kbps; Fax Transmission Speed: < 3 seconds per page |
Processor, Memory & Display
| Processor | Quad Core 1.2 GHz |
| Memory (Standard) | 4096 MB |
| Memory (Maximum) | 4096 MB |
| Storage | Intelligent Storage Drive included; Magnetic Hard Disk (optional) |
| Display | Lexmark e-Task 10-inch (25 cm) class colour touch screen |
Paper Handling
| Paper Handling Included | 100-Sheet Multipurpose Feeder, 2 x 520-Sheet Tray, 400-Sheet Output Bin, 2 x 520-Sheet Tray/Caster |
| Input Capacity (Standard) | 2180 pages 75 gsm bond |
| Input Capacity (Maximum) | 4180 pages 75 gsm bond |
| Paper Inputs | Standard: 5, Maximum: 6 |
| Output Capacity (Standard) | 400 pages 75 gsm bond |
| Output Capacity (Maximum) | 2,000 pages 75 gsm bond |
| Multipurpose Feeder | 100-Sheet Multipurpose Feeder |
| Optional Paper Handling | Booklet staple hole punch finisher, Inline Stapler, Dual Catch Bin, Envelope Tray, Caster spacer, Tri-fold/Z-fold booklet finisher, Staple Punch Finisher, Work table, 2000-Sheet Tray, 2000-Sheet Tandem Tray/Caster |
| Finishing Functions | Offset stacking, Stapling, Hole punching, Booklet fold and saddle stapling |
| Media Types | Labels, Card Stock, Plain Paper, Envelopes, Glossy paper |
| Media Sizes | A6, Oficio, 7 3/4 Envelope, JIS-B4, 9 Envelope, B5, JIS-B5, A3, Ledger, A4, Legal, SRA3, A5, Hagaki Card, Letter, B5 Envelope, C4 Envelope, Statement, C5 Envelope, Executive, DL Envelope, Folio, 10 Envelope |
| Media Weights | 52 - 300 gsm (Standard Tray), 52 - 300 gsm (Multipurpose Feeder) |
Usage
| Recommended Monthly Page Volume | 7,000 - 50,000 pages |
| Maximum Monthly Duty Cycle | Up to 270,000 pages per month |
Connectivity
| Standard Ports | Gigabit Ethernet (10/100/1000), Front USB 2.0 Hi-Speed (Type A), Rear USB 2.0 Hi-Speed (Type A), USB 2.0 Hi-Speed (Type B), One Internal Card Slot |
| Network | Gigabit Ethernet (10/100/1000) |
| Wireless | Optional: MarkNet N8372 WiFi Option (27X6410) |
| Optional Ports | Internal RS-232C serial; MarkNet N8230 Fiber Ethernet Print Server |
| Network Printing Methods | Pull Printing, Microsoft Web Services WSD, Enhanced IP (Port 9400), IPP 1.0, 1.1, 2.0 |
| Mobile Printing | Apple support via AirPrint and AirScan; Android via Mopria Print Service and Mopria Scan; Mopria Certified |
Security
| Security Features | Trusted Platform Module (TPM), SSL Cipher Configuration, SNMPv3, Certificate Management, TCP Restricted Server List, 802.1x Authentication (MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS), IPSEC Support (IPv4/IPv6), TCP/UDP Port Access Control, Security Port Lockdown |
Supplies
| Starter Toner (in box) | 18,500-page Black Toner Cartridge, 11,500-page Colour (CMY) Toner Cartridges |
| Replacement Cartridge Yields | Up to 22,000-page Colour (CMY) Cartridges, 45,000-page Black Cartridge |
| Photoconductor Yield | Black: Up to 165,000 pages; CMY: Up to 165,000 pages (based on 5 average letter/A4-size pages per print job) |
Physical & Environmental
| Dimensions (H x W x D) | 1141 x 620 x 754 mm |
| Weight | 115.5 kg |
| Packaged Dimensions | 1326 x 751 x 849 mm |
| Packaged Weight | 156.6 kg |
| Noise Level | Idle: 29 dBA; Print: 49 dBA; Copy: 57 dBA; Scan: 56 dBA; Duplex print: 51 dBA |
| Power Consumption | Hibernate: 0.1 watts; Sleep: 1.2 watts; Ready: 88 watts; Printing: 790 watts |
| Operating Environment | Humidity: 8 to 80% RH; Altitude: 0 - 2,500 metres; Temperature: 10 to 32°C |
| Certifications | ENERGY STAR, ICES-003 Class A, BSMI Class A, VCCI Class A, FCC Class A, NOM-032, UL, cUL, NOM, US FDA/CDRH, IEC 60825-1, CB Report, ISO-532B, CE (EU) DoC, EFTA (CE), KC logo, CCC, C-tick DoC, EuP, CECP, CEL, EC 1275/2008, ECMA-370, TED, SII, TER, SABS, UL-AR, GS Mark, Green Dot, ISO-9296, COC, CCD-035 EcoLogo, Green Mark, EPEAT, China Green Product (CGP), Mopria Certified |
| Country of Origin | Rest of World - Vietnam; North America & TAA Compliant - Mexico |
Compatibility & Software Support
Mobile Printing
Apple support via AirPrint and AirScan; Android via Mopria Print Service and Mopria Scan; Mopria Certified
Print Languages
PCL 5, PCLm, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image
Optional Paper Handling (per Lexmark)
Booklet staple hole punch finisher, Inline Stapler, Dual Catch Bin, Envelope Tray, Caster spacer, Tri-fold/Z-fold booklet finisher, Staple Punch Finisher, Work table, 2000-Sheet Tray, 2000-Sheet Tandem Tray/Caster
Replacement Toner
Up to 22,000-page Colour (CMY) Cartridges, 45,000-page Black Cartridge
Supplies and options for this printer can be ordered through SourceIT — email sales@sourceit.com.sg with the part numbers you need.
Package Contents & Lexmark A3 9-Series Ordering Information
Lexmark A3 9-Series
| Model | Type | A4 Speed | Part No. |
| MX931dse | A3 Mono Laser Multifunction Printer | 35 ppm | 32D0065 |
| CX942adse | A3 Colour Laser Multifunction Printer | 45 ppm | 32D0315 |
| CX943adtse (this listing) | A3 Colour Laser Multifunction Printer | 55 ppm | 32D0365 |
| MX953se | A3 Mono Laser Multifunction Printer | 55 ppm | 20L8375 |
| CX950se | A3 Colour Laser Multifunction Printer | 25 ppm | 20L8125 |
| CX951se | A3 Colour Laser Multifunction Printer | 35 ppm | 20L8175 |
| CX952se | A3 Colour Laser Multifunction Printer | 45 ppm | 20L8726 |
| CX953se | A3 Colour Laser Multifunction Printer | 55 ppm | 20L8776 |
| CX961se | A3 Colour Laser Multifunction Printer | 35 ppm | 20L8225 |
| CX962se | A3 Colour Laser Multifunction Printer | 45 ppm | 20L8275 |
| CX963se | A3 Colour Laser Multifunction Printer | 55 ppm | 20L8325 |
In the Box
Printer with starter supplies: 18,500-page Black Toner Cartridge, 11,500-page Colour (CMY) Toner Cartridges. Lexmark notes that box contents may vary by country — ask us to confirm before ordering.
Datasheet & Downloads
| Lexmark product page | CX943adtse on lexmark.com |
| Lexmark brochure | CX943adtse Brochure (PDF) |
| User guide | Online User Guide |
| Drivers & downloads | Lexmark Drivers & Downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 32D0365.
Frequently Asked Questions — Lexmark CX943adtse
How fast is the Lexmark CX943adtse?
Up to 55 pages per minute on A4, with the first page out as fast as 4.9 seconds in black or colour.
Does it fax?
Yes, fax is standard on this model.
Does it have Wi-Fi?
Not built in. Wi-Fi can be added with the optional Lexmark MarkNet N8372 (27X6410).
Can it print on A3?
Yes, it accepts A3 media. Supported sizes include: A6, Oficio, 7 3/4 Envelope, JIS-B4, 9 Envelope, B5, JIS-B5, A3, Ledger, A4, Legal, SRA3, A5, Hagaki Card, Letter, B5 Envelope, C4 Envelope, Statement, C5 Envelope, Executive, DL Envelope, Folio, 10 Envelope.
How much paper can it hold?
Standard input is 2180 pages 75 gsm bond, expandable to 4180 pages 75 gsm bond with optional trays.
What warranty do I get?
1-year onsite repair with next business day response in Singapore, supplied by SourceIT with a GST invoice.
