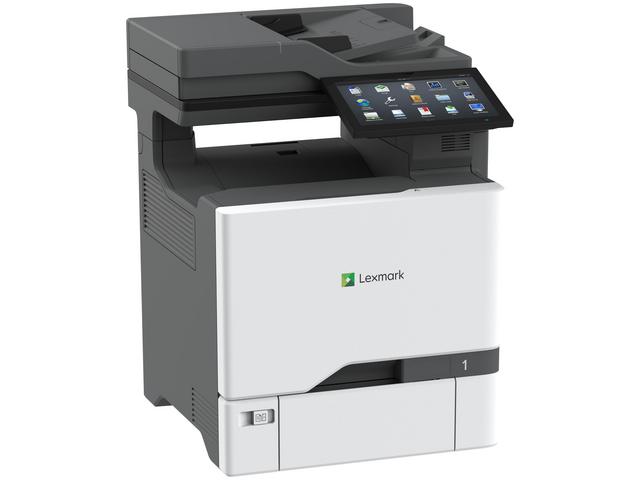

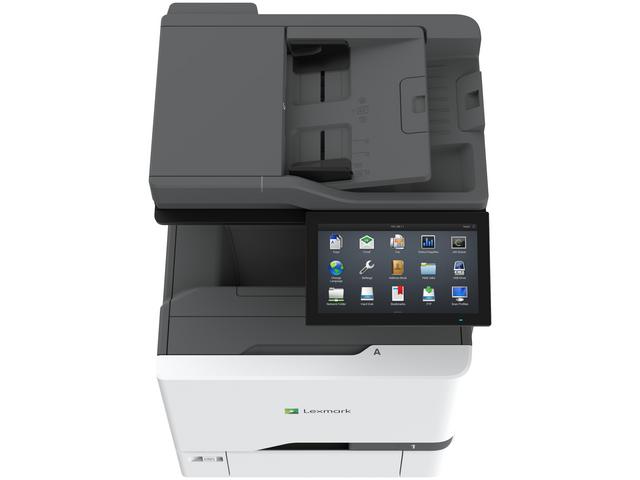

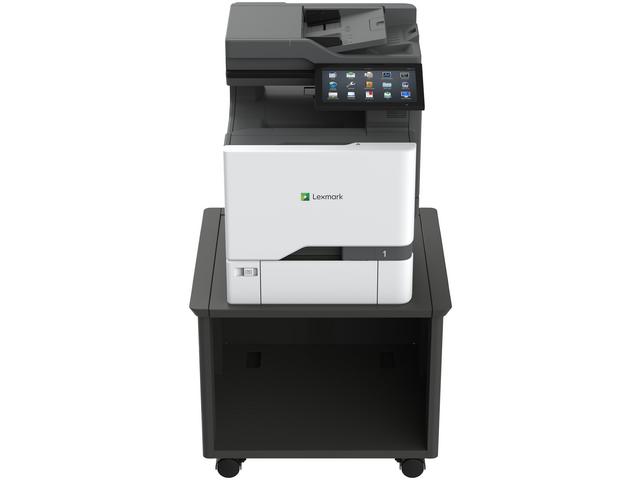

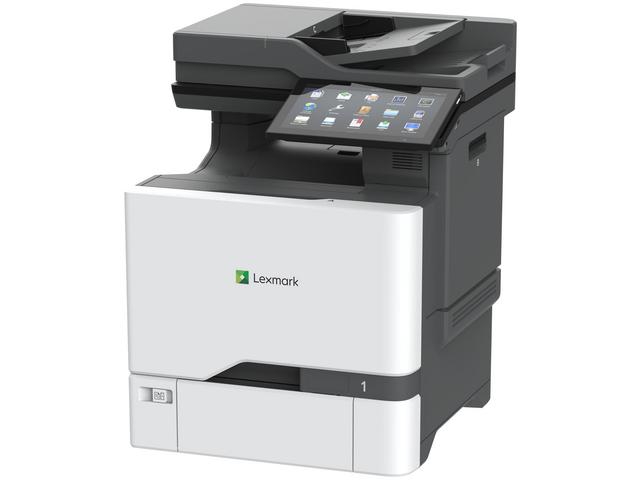

Lexmark CX735adse Colour Laser Multifunction Printer
PRODUCT DESCRIPTION
Lexmark CX735adse A4 Colour Laser Multifunction Printer, 50 ppm (47C9634) - 1 Year Local Onsite Warranty
Performance for Busy Workgroups
The Lexmark CX735adse is a colour laser multifunction printer for medium-large workgroups, printing at up to 50 pages per minute on A4 with the first page out as fast as 5.6 seconds in black and 6.1 seconds in colour. Lexmark recommends a monthly volume of 2000 - 20000 pages.
Processing and Controls

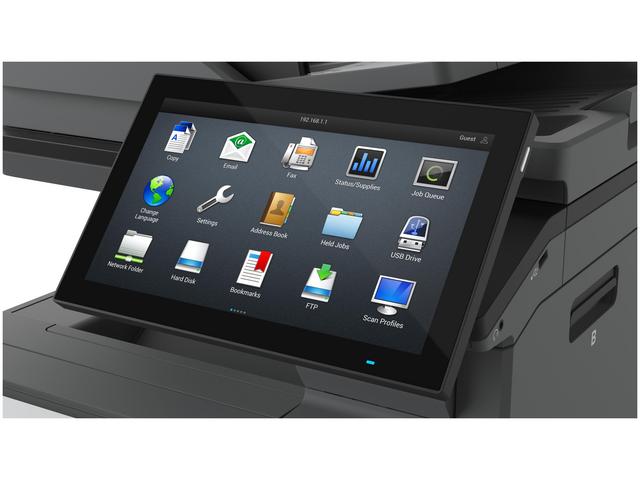

A Quad Core 1.2 GHz processor with 2048 MB of memory keeps complex jobs moving; it is operated from the Lexmark e-Task 10.1-inch (25.6 cm) colour touch screen. Two-sided printing is built in.
Paper Handling
Standard input is 650 pages 75 gsm bond, expandable to 2850 pages 75 gsm bond. The output bin holds 300 pages 75 gsm bond.
Copy, Scan and Fax
It copies at up to 50 cpm (A4) in black and colour. A flatbed scanner with a 100-sheet automatic document feeder scans both sides of a page in a single pass. Fax is standard.
Connectivity and Security
Standard ports: Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), Rear Hi-Speed USB port Compatible with USB 2.0 Specification (Type A), USB 2.0 Specification Hi-Speed Certified (Type B), One Internal Card Slot. Wi-Fi is optional with the Lexmark MarkNet N8370. Security: Trusted Platform Module (TPM); Intelligent Storage Drive standard.
Need help choosing? Email sales@sourceit.com.sg with your monthly volume, paper sizes and whether you need copy, scan or fax, and we will size it for you.
Lexmark CX735adse Datasheet — Technical Specifications
General
| Product Name | Lexmark CX735adse Colour Laser Multifunction Printer |
| Part Number | 47C9634 |
| Series | Lexmark CS725 / CS730 / CX735 Colour Series |
| Device Type | Colour Laser (Multifunction Color Laser) |
| Functions | ISD Standard, Analogue Fax Standard, Colour Copying, Colour Faxing, Colour Printing, Colour Scanning, Colour Network Scanning, Trusted Platform Module (TPM) |
| Workgroup Size | Medium-Large Workgroup |
| Local Warranty (Singapore) | 1-year onsite repair, next business day response, supplied by SourceIT with a GST invoice |
Printing
| Print Speed | Up to Black: 50 ppm (A4), Colour: 50 ppm (A4) |
| Two-sided Print Speed | Up to Black: 38 spm (A4) |
| Time to First Page | as fast as Black: 5.6 seconds, Colour: 6.1 seconds |
| Print Resolution | Black: 1200 x 1200 dpi, 4800 CQ (2400 x 600 dpi); Colour: 4800 CQ (2400 x 600 dpi), 1200 x 1200 dpi |
| Two-sided Printing | Integrated Duplex |
| Printable Area | 4.2 mm of the top, bottom, right and left edges (within) |
| Print Languages | PCL 5, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image |
Copying
| Copy Speed | Up to Black: 50 cpm (A4), Colour: 50 cpm (A4) |
| Time to First Copy | as fast as Black: 5.7 seconds, Colour: 6.3 seconds |
| Reduce / Enlarge | 25 - 400 % |
Scanning
| Scanner Type | Flatbed scanner with ADF, ADF (single pass Duplex) |
| Scan Technology | Trilinear CIS |
| Automatic Document Feeder | 100-Sheet Automatic Document Feeder; input/output up to 100 pages 75 gsm bond |
| Scan Speed | A4/Ltr Simplex: Up to Black: 49 / 52 sides per minute, Colour: 49 / 52 sides per minute; A4/Ltr Duplex: Up to Black: 98 / 104 sides per minute, Colour: 98 / 104 sides per minute |
| Scan Resolution | Enhanced: Up to 600 X 600 dpi, Optical: Up to 600 dpi |
| Maximum Scan Area | 216 x 356 mm (Maximum) |
| Scan File Formats | TIFF, Archival PDF (A-1a, A-1b), Highly compressed PDF, Secure PDF, PDF, JPEG, JPG, Searchable PDF |
| Scan Destinations | e-mail, Lexmark Document Solutions Suite (LDSS), USB or Network connected computer, USB Flash drive, FTP |
Fax
| Fax | Modem Speed: ITU T.30, V.34 Half-Duplex, 33.6 Kbps; Fax Transmission Speed: < 3 seconds per page |
Processor, Memory & Display
| Processor | Quad Core 1.2 GHz |
| Memory (Standard) | 2048 MB |
| Memory (Maximum) | 2048 MB |
| Storage | Intelligent Storage Drive included; Magnetic Hard Disk (optional) |
| Display | Lexmark e-Task 10.1-inch (25.6 cm) colour touch screen |
Paper Handling
| Paper Handling Included | 100-Sheet Multipurpose Feeder, Integrated Duplex, 300-Sheet Output Bin, 550-Sheet Input |
| Input Capacity (Standard) | 650 pages 75 gsm bond |
| Input Capacity (Maximum) | 2850 pages 75 gsm bond |
| Paper Inputs | Standard: 2, Maximum: 6 |
| Output Capacity (Standard) | 300 pages 75 gsm bond |
| Output Capacity (Maximum) | 300 pages 75 gsm bond |
| Multipurpose Feeder | 100-Sheet Multipurpose Feeder |
| Optional Paper Handling | 550-Sheet Tray (40C2100) |
| Media Types | Vinyl Labels, Banner Paper, Paper Labels, Card Stock, Plain Paper, Envelopes |
| Media Sizes | A6, Oficio, 7 3/4 Envelope, 9 Envelope, JIS-B5, A4, Legal, A5, Letter, B5 Envelope, Statement, C5 Envelope, Executive, Universal, DL Envelope, Folio, 10 Envelope |
| Media Weights | 60 - 218 gsm (Standard Tray), 60 - 218 gsm (Multipurpose Feeder) |
Usage
| Recommended Monthly Page Volume | 2000 - 20000 pages |
| Maximum Monthly Duty Cycle | Up to 150000 pages per month |
Connectivity
| Standard Ports | Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), Rear Hi-Speed USB port Compatible with USB 2.0 Specification (Type A), USB 2.0 Specification Hi-Speed Certified (Type B), One Internal Card Slot |
| Wireless | Wireless Option: Internal MarkNet N8370 802.11b/g/n/a Wireless, NFC |
| Network Protocols | TCP/IP IPv6, IPSEC w/ IPv4, IPSEC w/ IPv6, TCP/IP IPv4, ICMP, TCP, IGMP, UDP |
| Mobile Printing | Apple via AirPrint/AirScan; Android via Mopria Print Service and Mopria Scan; Mopria Certified |
Security
| Security Features | Trusted Platform Module (TPM); Intelligent Storage Drive standard |
| Network Security | IPSec, SSL Cipher Configuration, SNMPv3, Certificate Management, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS, TCP/UDP Port Access Control, Security Port Lockdown |
Supplies
| Starter Toner (in box) | 5,000 5-page Black and Colour (CMYK) Return Programme Toner Cartridges |
| Replacement Cartridge Yields | up to 28,000 5-page Black Extra High Yield Cartridge, 16,200 5-page Colour (CMY) Extra High Yield Cartridges |
| Imaging Unit Yield | Up to 150000 pages |
Physical & Environmental
| Dimensions (H x W x D) | 621 x 479 x 533 mm |
| Weight | 39.5 kg |
| Packaged Dimensions | 838 x 700 x 735 mm |
| Packaged Weight | 53 kg |
| Noise Level | 14 dBA (Idle), 53 dBA (Print), 56 dBA (Copy), 51 dBA (Scan); Duplex print 55 dBA |
| Power Consumption | 0.1 watts (Hibernate), 1.2 watts (Sleep), 66 watts (Ready), 760 watts (Printing), 800 watts (Copying), 45 watts (Scanning); ENERGY STAR TEC 0.69 kWh per week |
| Operating Environment | 8 to 80% Relative Humidity; 10 to 32°C; Altitude 0 - 2896 metres |
| Certifications | ENERGY STAR, ICES-003 Class A, BSMI Class A, VCCI Class A, FCC Class A, NOM-032, UL, cUL, NOM, US FDA/CDRH, IEC 60825-1, CB Report, ISO-532B, CE (EU) DoC, EFTA (CE), KC logo, CCC, C-tick DoC, EuP, CECP, CEL, EC 1275/2008, ECMA-370, TED, SII, TER, SABS, UL-AR, GS Mark, Green Dot, ISO-9296, COC, EPEAT, China Green Product (CGP), Mopria Certified, Blue Angel / RAL-UZ 219 |
| Country of Origin | China (PRC), Mexico |
Compatibility & Software Support
Mobile Printing
Apple via AirPrint/AirScan; Android via Mopria Print Service and Mopria Scan; Mopria Certified
Print Languages
PCL 5, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image
Optional Paper Handling (per Lexmark)
550-Sheet Tray (40C2100)
Replacement Toner
up to 28,000 5-page Black Extra High Yield Cartridge, 16,200 5-page Colour (CMY) Extra High Yield Cartridges
Supplies and options for this printer can be ordered through SourceIT — email sales@sourceit.com.sg with the part numbers you need.
Package Contents & Lexmark CS725 / CS730 / CX735 Colour Series Ordering Information
Lexmark CS725 / CS730 / CX735 Colour Series
| Model | Type | A4 Speed | Part No. |
| CS725de | A4 Colour Laser Printer | 47 ppm | 40C9032 |
| CS730de | A4 Colour Laser Printer | 40 ppm | 47C9034 |
| CX735adse (this listing) | A4 Colour Laser Multifunction Printer | 50 ppm | 47C9634 |
In the Box (per Lexmark)
Printer with ISD, up to 5,000-page CMYK toner cartridges, up to 150,000-page return programme imaging unit, power cord(s), Software and Documentation CD, statement of limited warranty, setup guides, RJ-11 phone cable (country dependent)
Datasheet & Downloads
| Lexmark product page | CX735adse on lexmark.com |
| Lexmark brochure | CX735adse Brochure (PDF) |
| User guide | Online User Guide |
| Drivers & downloads | Lexmark Drivers & Downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 47C9634.
Frequently Asked Questions — Lexmark CX735adse
How fast is the Lexmark CX735adse?
Up to 50 pages per minute on A4, with the first page out as fast as 5.6 seconds in black and 6.1 seconds in colour.
Does it fax?
Yes, fax is standard on this model.
Does it have Wi-Fi?
Not built in. Wi-Fi can be added with the optional Lexmark MarkNet N8370.
Can it print on A3?
No. It is an A4 device (maximum sizes up to Legal / Oficio).
How much paper can it hold?
Standard input is 650 pages 75 gsm bond, expandable to 2850 pages 75 gsm bond with optional trays.
What warranty do I get?
1-year onsite repair with next business day response in Singapore, supplied by SourceIT with a GST invoice.
