Lexmark CS632dwe Colour Laser Printer
PRODUCT DESCRIPTION
Lexmark CS632dwe A4 Colour Laser Printer, 40 ppm (50M0065) - 1 Year Local Onsite Warranty
Performance for Everyday Office Printing
The Lexmark CS632dwe is a colour laser printer for medium workgroups, printing at up to 40 pages per minute on A4 with the first page out as fast as 6.5 seconds in black and 6.7 seconds in colour. Lexmark recommends a monthly volume of 1500 - 10000 pages.
Processing and Controls
A Dual Core, 1 GHz processor with 1024 MB of memory keeps complex jobs moving; it is operated from the Lexmark e-Task 10.9 cm colour touch screen with audible feedback. Two-sided printing is built in.
Paper Handling
Standard input is 251 pages 75 gsm bond (250-Sheet Tray + single sheet multipurpose feeder), expandable to 2001 pages 75 gsm bond. The output bin holds 170 pages 75 gsm bond.
Connectivity and Security
Standard ports: Gigabit Ethernet (10/100/1000), Front USB 2.0 Hi-Speed Certified (Type A), Rear USB 2.0 Hi-Speed Certified (Type A), 802.11a/b/g/n/ac + Apple iBeacon, USB 2.0 Hi-Speed Certified (Type B). Wi-Fi is built in (802.11a/b/g/n/ac). Security: Trusted Platform Module (TPM).
Need help choosing? Email sales@sourceit.com.sg with your monthly volume, paper sizes and whether you need copy, scan or fax, and we will size it for you.
Lexmark CS632dwe Datasheet — Technical Specifications
General
| Product Name | Lexmark CS632dwe Colour Laser Printer |
| Part Number | 50M0065 |
| Series | Lexmark CX522 / CX622 / CS632 / CX532 / CX635 Colour Series |
| Device Type | Colour Laser Printer |
| Functions | Colour Printing, Trusted Platform Module (TPM) |
| Workgroup Size | Medium Workgroup |
| Local Warranty (Singapore) | 1-year onsite repair, next business day response, supplied by SourceIT with a GST invoice |
Printing
| Print Speed | Up to Black: 40 ppm (A4), Colour: 40 ppm (A4) |
| Two-sided Print Speed | Up to Black: 20 spm (A4), Colour: 20 spm (A4) |
| Time to First Page | Black: 6.5 seconds, Colour: 6.7 seconds |
| Print Resolution | Black: 1200 x 1200 dpi, 4800 Colour Quality; Colour: 4800 Colour Quality, 1200 x 1200 dpi |
| Two-sided Printing | Integrated Duplex |
| Printable Area | 4.2 mm from top, bottom, right and left edges |
| Print Languages | PCL 5, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image |
Processor, Memory & Display
| Processor | Dual Core, 1 GHz |
| Memory (Standard) | 1024 MB |
| Memory (Maximum) | 1024 MB |
| Storage | Intelligent Storage Drive (optional); Magnetic Hard Disk (optional) |

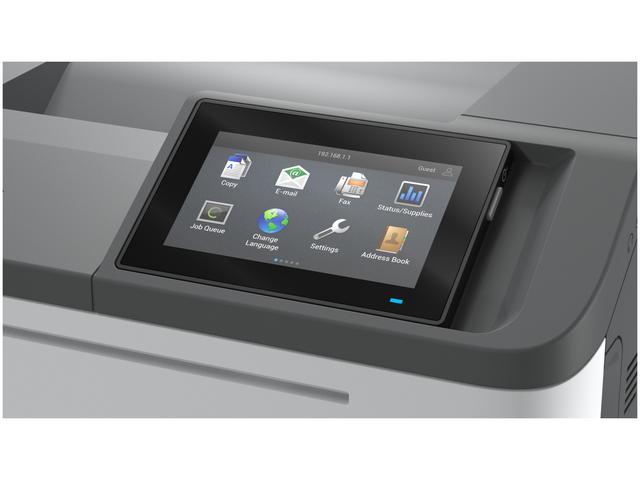

| Display | Lexmark e-Task 10.9 cm colour touch screen with audible feedback |
Paper Handling
| Paper Handling Included | 170-Sheet Output Bin, Integrated Duplex, Single sheet multipurpose feeder, 250-Sheet Tray |
| Input Capacity (Standard) | 251 pages 75 gsm bond (250-Sheet Tray + single sheet multipurpose feeder) |
| Input Capacity (Maximum) | 2001 pages 75 gsm bond |
| Paper Inputs | Standard: 2, Maximum: 6 |
| Output Capacity (Standard) | 170 pages 75 gsm bond |
| Multipurpose Feeder | Single sheet multipurpose feeder |
| Optional Paper Handling | 650-Sheet Duo Tray (50M7650), 550-Sheet Tray (50M7550) |
| Media Types | Vinyl Labels, Paper Labels, Card Stock, Plain Paper, Envelopes |
| Media Sizes | A6, Oficio, 7 3/4 Envelope, 9 Envelope, JIS-B5, A4, Legal, A5, Hagaki Card, Letter, B5 Envelope, Statement, C5 Envelope, Executive, Universal, DL Envelope, Folio, 10 Envelope |
| Media Weights | 60 - 220 gsm (Standard Tray), 60 - 176 gsm (Multipurpose Feeder) |
Usage
| Recommended Monthly Page Volume | 1500 - 10000 pages |
| Maximum Monthly Duty Cycle | Up to 125000 pages per month |
Connectivity
| Standard Ports | Gigabit Ethernet (10/100/1000), Front USB 2.0 Hi-Speed Certified (Type A), Rear USB 2.0 Hi-Speed Certified (Type A), 802.11a/b/g/n/ac + Apple iBeacon, USB 2.0 Hi-Speed Certified (Type B) |
| Wireless | Standard: 802.11a/b/g/n/ac + Apple iBeacon |
| Network Protocols | IPSEC w/ IPv4, IPSEC w/ IPv6, IPv6, IPv4, ICMP, TCP, IGMP, UDP |
| Mobile Printing | Apple support through AirPrint; Android through Mopria Print Service; Mopria Certified |
Security
| Security Features | Trusted Platform Module (TPM) |
| Network Security | SSL Cipher Configuration, Certificate Management, TCP Restricted Server List, IPSEC Support (IPv4/IPv6), TCP/UDP Port Access Control, Security Port Lockdown |
Supplies
| Starter Toner (in box) | 3,000-page Black Return Program Toner Cartridge, 2,000-page Colour (CMY) Return Program Toner Cartridges; in box also up to 150,000 pages black and colour return programme imaging kit |
| Replacement Cartridge Yields | Up to 20,000-page Black Cartridge, 11,700-page Colour (CMY) Cartridges |
Physical & Environmental
| Dimensions (H x W x D) | 318.30 x 455 x 422.50 mm |
| Weight | 20.55 kg |
| Packaged Dimensions | 402 x 595 x 495 mm |
| Packaged Weight | 23.9 kg |
| Noise Level | 14 dBA (Idle), 52 dBA (Print); Duplex print 54 dBA |
| Power Consumption | 0.2 watts (Hibernate), 1 watts (Sleep), 21.3 watts (Ready), 574 watts (Printing); ENERGY STAR TEC 0.52 kWh per week |
| Operating Environment | Altitude 0 - 2900 metres; 15 to 80% Relative Humidity; 10 to 32.2°C |
| Certifications | ENERGY STAR, Blue Angel RAL-UZ 219, ICES-003 Class A, BSMI Class A, VCCI Class A, US FDA, UL 60950-1, FCC Class A, cUL, CB, CE DoC, EFTA (CE), KCC, CCC, CECP, CEL, UL-AR, KC mark, UL GS mark, UCRF, EC 1275, Mopria Certified |
| Country of Origin | China (PRC), Mexico |
Compatibility & Software Support
Mobile Printing
Apple support through AirPrint; Android through Mopria Print Service; Mopria Certified
Print Languages
PCL 5, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image
Optional Paper Handling (per Lexmark)
650-Sheet Duo Tray (50M7650), 550-Sheet Tray (50M7550)
Replacement Toner
Up to 20,000-page Black Cartridge, 11,700-page Colour (CMY) Cartridges
Supplies and options for this printer can be ordered through SourceIT — email sales@sourceit.com.sg with the part numbers you need.
Package Contents & Lexmark CX522 / CX622 / CS632 / CX532 / CX635 Colour Series Ordering Information
Lexmark CX522 / CX622 / CS632 / CX532 / CX635 Colour Series
| Model | Type | A4 Speed | Part No. |
| CX522ade | A4 Colour Laser Multifunction Printer | 33 ppm | 42C7364 |
| CX622ade | A4 Colour Laser Multifunction Printer | 38 ppm | 42C7384 |
| CS632dwe (this listing) | A4 Colour Laser Printer | 40 ppm | 50M0065 |
| CX532adwe | A4 Colour Laser Multifunction Printer | 33 ppm | 50M7045 |
| CX635adwe | A4 Colour Laser Multifunction Printer | 40 ppm | 50M7085 |
In the Box
Printer with starter supplies: 3,000-page Black Return Program Toner Cartridge, 2,000-page Colour (CMY) Return Program Toner Cartridges; in box also up to 150,000 pages black and colour return programme imaging kit. Lexmark notes that box contents may vary by country — ask us to confirm before ordering.
Datasheet & Downloads
| Lexmark product page | CS632dwe on lexmark.com |
| Lexmark brochure | CS632dwe Brochure (PDF) |
| User guide | Online User Guide |
| Drivers & downloads | Lexmark Drivers & Downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 50M0065.
Frequently Asked Questions — Lexmark CS632dwe
How fast is the Lexmark CS632dwe?
Up to 40 pages per minute on A4, with the first page out as fast as 6.5 seconds in black and 6.7 seconds in colour.
Can it copy or scan?
No. This is a print-only model; see the multifunction models in the ordering table if you need copy and scan.
Does it have Wi-Fi?
Yes, Wi-Fi is built in (802.11a/b/g/n/ac).
Can it print on A3?
No. It is an A4 device (maximum sizes up to Legal / Oficio).
How much paper can it hold?
Standard input is 251 pages 75 gsm bond (250-Sheet Tray + single sheet multipurpose feeder), expandable to 2001 pages 75 gsm bond with optional trays.
What warranty do I get?
1-year onsite repair with next business day response in Singapore, supplied by SourceIT with a GST invoice.
