Lexmark CX622ade Colour Laser Multifunction Printer
PRODUCT DESCRIPTION
Lexmark CX622ade A4 Colour Laser Multifunction Printer, 38 ppm (42C7384) - 1 Year Local Onsite Warranty
Performance for Everyday Office Printing
The Lexmark CX622ade is a colour laser multifunction printer for small-medium workgroups, printing at up to 38 pages per minute on A4 with the first page out under 8 seconds in black or colour. Lexmark recommends a monthly volume of 1500 - 10000 pages.
Processing and Controls

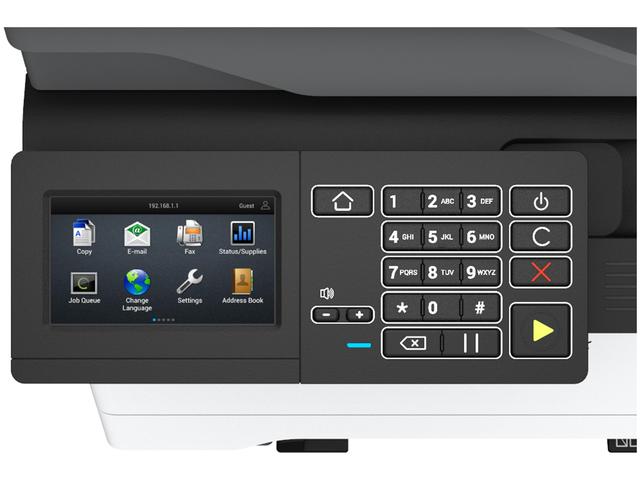

A Quad Core, 1.2 GHz processor with 2048 MB of memory keeps complex jobs moving; it is operated from the Lexmark e-Task 4.3-inch (10.9 cm) colour touch screen. Two-sided printing is built in.
Paper Handling
Standard input is 250+1 pages 75 gsm bond, expandable to 1450+1 pages 75 gsm bond. The output bin holds 150 pages 75 gsm bond.
Copy, Scan and Fax
It copies at up to 38 cpm (A4) in black and colour. A flatbed scanner with a 100-sheet automatic document feeder scans both sides of a page in a single pass. Fax is standard.
Connectivity and Security
Standard ports: Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), Rear USB 2.0 Specification Hi-Speed Certified port (Type A), USB 2.0 Specification Hi-Speed Certified (Type B). Wi-Fi is optional with the Lexmark MarkNet N8372. Security: IPSec, SNMPv3, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS.
Need help choosing? Email sales@sourceit.com.sg with your monthly volume, paper sizes and whether you need copy, scan or fax, and we will size it for you.
Lexmark CX622ade Datasheet — Technical Specifications
General
| Product Name | Lexmark CX622ade Colour Laser Multifunction Printer |
| Part Number | 42C7384 |
| Series | Lexmark CX522 / CX622 / CS632 / CX532 / CX635 Colour Series |
| Device Type | Colour Laser (Multifunction Color Laser) |
| Functions | Colour Copying, Colour Faxing, Colour Printing, Colour Scanning |
| Workgroup Size | Small-Medium Workgroup |
| Local Warranty (Singapore) | 1-year onsite repair, next business day response, supplied by SourceIT with a GST invoice |
Printing
| Print Speed | Up to Black: 38 ppm (A4), Colour: 38 ppm (A4) |
| Two-sided Print Speed | Up to Black: 19 spm (A4), Colour: 19 spm (A4) |
| Time to First Page | Black: <8 seconds, Colour: <8 seconds |
| Print Resolution | Black: 1200 x 1200 dpi, 4800 CQ (2400 x 600 dpi); Colour: 4800 CQ (2400 x 600 dpi), 1200 x 1200 dpi |
| Two-sided Printing | Integrated Duplex |
| Printable Area | 4.2 mm of the top, bottom, right and left edges (within) |
| Print Languages | PCL 5c Emulation, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image, AirPrint |
Copying
| Copy Speed | Up to Black: 38 cpm (A4), Colour: 38 cpm (A4) |
| Two-sided Copy Speed | Up to Black: 19 spm (A4), Colour: 19 spm (A4) |
| Time to First Copy | Black: 8 seconds, Colour: 9 seconds |
| Reduce / Enlarge | 25 - 400 % |
Scanning
| Scanner Type | Flatbed scanner with ADF, ADF (single pass Duplex) |
| Scan Technology | CIS |
| Automatic Document Feeder | 100-Sheet Automatic Document Feeder; up to 100 pages 75 gsm bond |
| Scan Speed | A4/Ltr Simplex: Up to Black: 47 / 50 sides per minute, Colour: 30 / 32 sides per minute; A4/Ltr Duplex: Up to Black: 94 / 100 sides per minute, Colour: 60 / 64 sides per minute |
| Scan Resolution | 600 X 600 dpi (black), up to 600 X 600 dpi (colour) |
| Maximum Scan Area | 216 x 297 mm (Maximum) |
| Scan File Formats | TIFF, Highly compressed PDF, Archival PDF (A-1a, A-1b), Secure PDF, Searchable PDF, PDF, JPEG, JPG |
| Scan Destinations | e-mail, Lexmark Document Solutions Suite (LDSS), USB or Network connected computer, USB Flash drive, FTP |
Fax
| Fax | Modem Speed: Max is 33,600 bps, V.34 Half-Duplex; Fax Transmission Speed: < 3 seconds per page |
Processor, Memory & Display
| Processor | Quad Core, 1.2 GHz |
| Memory (Standard) | 2048 MB |
| Memory (Maximum) | 6144 MB |
| Storage | Hard Disk: Option available |
| Display | Lexmark e-Task 4.3-inch (10.9 cm) colour touch screen |
Paper Handling
| Paper Handling Included | Integrated Duplex, Single-Sheet Manual Feed, 150-Sheet Output Bin, 250-Sheet Input |
| Input Capacity (Standard) | 250+1 pages 75 gsm bond |
| Input Capacity (Maximum) | 1450+1 pages 75 gsm bond |
| Paper Inputs | Standard: 2, Maximum: 5 |
| Output Capacity (Standard) | 150 pages 75 gsm bond |
| Output Capacity (Maximum) | 150 pages 75 gsm bond |
| Multipurpose Feeder | Single-Sheet Manual Feed |
| Optional Paper Handling | 650-Sheet Duo Tray (50M7650), 550-Sheet Tray (50M7550) |
| Media Types | Vinyl Labels, Paper Labels, Card Stock, Plain Paper |
| Media Sizes | A6, Oficio, 7 3/4 Envelope, 9 Envelope, JIS-B5, A4, Legal, A5, Hagaki Card, Letter, B5 Envelope, Statement, C5 Envelope, Executive, Universal, DL Envelope, Folio, 10 Envelope |
| Media Weights | 60 - 200 gsm (Standard Tray) |
Usage
| Recommended Monthly Page Volume | 1500 - 10000 pages |
| Maximum Monthly Duty Cycle | Up to 100000 pages per month |
Connectivity
| Standard Ports | Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), Rear USB 2.0 Specification Hi-Speed Certified port (Type A), USB 2.0 Specification Hi-Speed Certified (Type B) |
| Wireless | Optional: Marknet N8372 WiFi Option |
| Network Protocols | TCP/IP IPv6, TCP/IP IPv4, TCP, UDP |
| Mobile Printing | AirPrint, Mopria, Lexmark Mobile Print |
Security
| Network Security | IPSec, SNMPv3, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS |
Supplies
| Starter Toner (in box) | 3,000-page Black Return Program Toner Cartridge, 2,000-page Colour (CMY) Return Program Toner Cartridges |
| Replacement Cartridge Yields | Up to 1,400-page CMY, 2,000-page Black, 5,000-page CMY Extra High Yield, 8,500-page Black Extra High Yield, 7,000-page CMY Ultra High Yield, 10,500-page Black Ultra High Yield |
Physical & Environmental
| Dimensions (H x W x D) | 462 x 442 x 588 mm |
| Weight | 27.1 kg |
| Packaged Dimensions | 570 x 558 x 594 mm |
| Packaged Weight | 31.2 kg |
| Noise Level | Inaudible dBA (Idle), 52 dBA (Print), 55 dBA (Copy), 51 dBA (Scan); Duplex print 54 dBA |
| Power Consumption | 0.2 watts (Hibernate), 1.72 watts (Sleep), 37.5 watts (Ready), 580 watts (Printing), 560 watts (Copying), 29.5 watts (Scanning); ENERGY STAR TEC 0.61 kWh per week |
| Operating Environment | 8 to 80% Relative Humidity; 10 to 32°C; Altitude 0 - 2896 metres |
| Certifications | ENERGY STAR, Blue Angel RAL-UZ 205, ICES-003 Class A, BSMI Class A, VCCI Class A, US FDA, UL 60950-1, FCC Class A, cUL, CB, CE DoC, EFTA (CE), KCC, CCC, CECP, CEL, C-tick DoC, UL-AR, KC mark, UL GS mark, EC 1275, MET-I, ISO 532B, ECMA-370, GOST-R, SII, TER, China Green Product (CGP) |
| Country of Origin | China (PRC) |
Compatibility & Software Support
Mobile Printing
AirPrint, Mopria, Lexmark Mobile Print
Print Languages
PCL 5c Emulation, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image, AirPrint
Optional Paper Handling (per Lexmark)
650-Sheet Duo Tray (50M7650), 550-Sheet Tray (50M7550)
Replacement Toner
Up to 1,400-page CMY, 2,000-page Black, 5,000-page CMY Extra High Yield, 8,500-page Black Extra High Yield, 7,000-page CMY Ultra High Yield, 10,500-page Black Ultra High Yield
Supplies and options for this printer can be ordered through SourceIT — email sales@sourceit.com.sg with the part numbers you need.
Package Contents & Lexmark CX522 / CX622 / CS632 / CX532 / CX635 Colour Series Ordering Information
Lexmark CX522 / CX622 / CS632 / CX532 / CX635 Colour Series
| Model | Type | A4 Speed | Part No. |
| CX522ade | A4 Colour Laser Multifunction Printer | 33 ppm | 42C7364 |
| CX622ade (this listing) | A4 Colour Laser Multifunction Printer | 38 ppm | 42C7384 |
| CS632dwe | A4 Colour Laser Printer | 40 ppm | 50M0065 |
| CX532adwe | A4 Colour Laser Multifunction Printer | 33 ppm | 50M7045 |
| CX635adwe | A4 Colour Laser Multifunction Printer | 40 ppm | 50M7085 |
In the Box
Printer with starter supplies: 3,000-page Black Return Program Toner Cartridge, 2,000-page Colour (CMY) Return Program Toner Cartridges. Lexmark notes that box contents may vary by country — ask us to confirm before ordering.
Datasheet & Downloads
| Lexmark product page | CX622ade on lexmark.com |
| Lexmark brochure | CX622ade Brochure (PDF) |
| User guide | Online User Guide |
| Drivers & downloads | Lexmark Drivers & Downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 42C7384.
Frequently Asked Questions — Lexmark CX622ade
How fast is the Lexmark CX622ade?
Up to 38 pages per minute on A4, with the first page out under 8 seconds in black or colour.
Does it fax?
Yes, fax is standard on this model.
Does it have Wi-Fi?
Not built in. Wi-Fi can be added with the optional Lexmark MarkNet N8372.
Can it print on A3?
No. It is an A4 device (maximum sizes up to Legal / Oficio).
How much paper can it hold?
Standard input is 250+1 pages 75 gsm bond, expandable to 1450+1 pages 75 gsm bond with optional trays.
What warranty do I get?
1-year onsite repair with next business day response in Singapore, supplied by SourceIT with a GST invoice.
