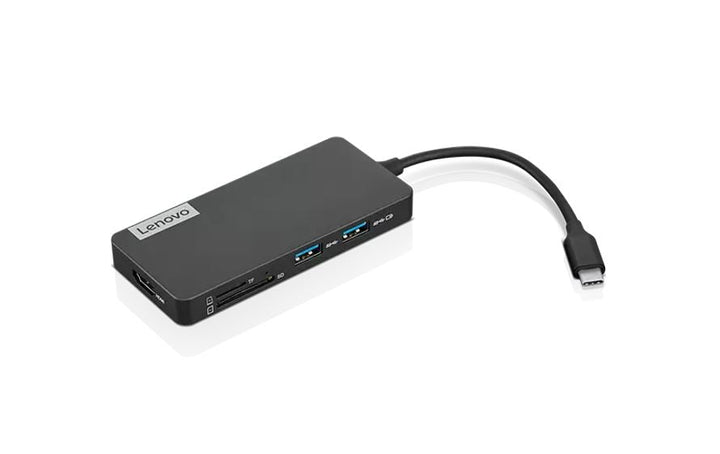

Lenovo USB-C 7-in-1 Hub
PRODUCT DESCRIPTION
Lenovo USB-C 7-in-1 Hub (4X90V55523) - Local Warranty
Seven Ports Including SD and microSD Card Readers
The Lenovo USB-C 7-in-1 Hub carries three USB-A ports, an SD card reader, a microSD reader, HDMI and a USB-C charging port that passes power through to the laptop. The card readers are what make it different from Lenovo's other travel hubs — neither of them has one.
Read the Gaps Before You Order
Two things this hub does not have, both of which its siblings do. There is no Ethernet port — the Powered USB-C Travel Hub and the Travel Hub Gen 2 both have gigabit RJ45, and this one does not. And the HDMI is 1.4, so 4K runs at 30 Hz, which is fine for a slide deck and unpleasant for a working desktop.
The USB-C Port Is for Charging Only
It accepts a Lenovo 45 W or 65 W USB-C adapter and passes charge to the laptop. It carries no video and no data. Note also that Lenovo publishes the hub's own 15 W consumption but does not publish how many watts actually reach the laptop — the Powered hub publishes 52 W; this one publishes nothing, so we quote nothing.
Please Note: Lenovo Appears to Have Withdrawn It
Lenovo's product page for this part number now redirects to a category landing page, though Lenovo still hosts a firmware update for it. Lenovo has issued no formal end-of-life notice. Ask us about supply before ordering.
Lenovo USB-C 7-in-1 Hub Datasheet — Technical Specifications
General
| Product | Lenovo USB-C 7-in-1 Hub |
| Part Number | 4X90V55523 |
| Type | Bus-powered USB-C hub with card readers and power pass-through |
| Manufacturer Warranty | 1 year, customer-replaceable unit (CRU) |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Lifecycle
| Availability | Lenovo's product page for this part number redirects to a category landing page. Lenovo continues to host a firmware update for it and has issued no formal end-of-life notice |
| Before You Order | Ask us to confirm current stock, particularly for quantity |
Connection
| Host | USB-C, on a captive 140 mm cable including the connector |
| Supported Hosts | USB-C, USB4, Thunderbolt 3 and Thunderbolt 4 laptops |
| Operating Systems | Windows 10 and Windows 11 |
The Seven Ports
| USB Type-A | 2 x USB 3.2 Gen 1 (5 Gbps) and 1 x USB 2.0 |
| SD Card Reader | 1 |
| microSD (TF) Card Reader | 1 |
| Card Reader Speed Class | Not published by Lenovo for this part number |
| HDMI | 1 x HDMI 1.4, maximum 3840 x 2160 at 30 Hz |
| Maximum Displays | 1 |
| USB-C | 1 x USB-C, charging pass-through only — no video, no data |
| Ethernet | None. This hub has no RJ45 port |
Power
| Pass-Through | Yes — Lenovo states it accepts Lenovo 45 W and 65 W USB-C power adapters |
| Wattage Delivered to the Laptop | Not published by Lenovo. Lenovo publishes a figure for its Powered USB-C Travel Hub (52 W) but not for this one, so we do not estimate it |
| Hub's Own Consumption | Maximum 15 W at 5 V / 3 A |
| Power Adapter Included | Not listed in Lenovo's box contents — treat it as not included and budget for one |
Physical
| Dimensions | 247 x 49.6 x 14 mm (9.72 x 1.95 x 0.55 in) — noticeably longer than Lenovo's other travel hubs |
| Weight | From 92 g (0.2 lb) |
| Colour | Iron grey |
Compatibility & Fit
Buy this one for the card readers. SD and microSD slots are the only reason to choose it over Lenovo's other two travel hubs, and for a photographer, a videographer, anyone working with dashcams or drones, or an IT technician handling machine images, they are a good reason. Neither of the other hubs has one.
Buy one of the others if you need Ethernet. This is the largest of Lenovo's three travel hubs and the only one without a network port. If wired networking is part of what you need on the road — and in hotels and conference venues it usually is — the Powered USB-C Travel Hub gives you Ethernet, 4K at 60 Hz and published 52 W charging, and the Travel Hub Gen 2 gives you Ethernet in a much smaller body. Both are in the ordering table.
On the unpublished charging figure. Lenovo says the USB-C port accepts 45 W and 65 W adapters but never states how much reaches the laptop. Its sibling publishes 52 W from a 65 W adapter, and this hub has the same 15 W self-consumption — but Lenovo has not published the number for this product and we are not going to infer it. If charging speed matters, ask us and we will get it confirmed.
247 mm is long. This hub is nearly twice the length of the Powered hub and more than three times the length of the Gen 2. That is the price of seven ports in a single row. It still weighs only 92 grams, but it will not disappear into a shirt pocket.
Package Contents & Lenovo Accessory Ordering Information
In the box, per Lenovo PSREF:
- Lenovo USB-C 7-in-1 Hub
- Publication — warranty and user manual
No power adapter is included. Pass-through charging needs a Lenovo 45 W or 65 W USB-C adapter, sold separately. Ask us to quote one alongside.
Lenovo Cables, Adapters and Security Ordering Information
| 4X90S92381 | Lenovo Powered USB-C Travel Hub — HDMI 4K60, VGA, GbE, 2 x USB-A, 52 W pass-through |
| 4X91A30366 | Lenovo USB-C Travel Hub Gen 2 — HDMI, VGA, GbE, USB-A — no power pass-through |
| 4X90V55523 (this listing) | Lenovo USB-C 7-in-1 Hub — HDMI, 3 x USB-A, SD and microSD, charging — no Ethernet |
| 4X90S91831 | Lenovo USB-C to Ethernet Adapter — Gigabit Ethernet from a USB-C port, PXE boot and Wake-on-LAN |
| 0B47069 | Lenovo HDMI to VGA Monitor Adapter — HDMI to VGA at 1080p60, 20 cm — video only, no audio |
| 4X20M26276 | Lenovo 65W Standard AC Adapter USB Type-C — 65 W USB-C PD 3.0 replacement charger, UK plug |
| 40AW0065WW | Lenovo 65W USB-C AC Travel Adapter — 65 W with four interchangeable plugs and a pouch |
| 4XE1F30276 | Lenovo NanoSaver Essential Cable Lock — Keyed, 2 keys, 1.5 m x 4.5 mm — Nano slot only |
| 4XE1F30277 | Lenovo NanoSaver Combination Cable Lock — 4-dial combination, 1.8 m x 5 mm — Nano slot only |
Datasheet & Downloads
Lenovo publishes a datasheet for this hub on its own accessory CDN, linked above, and it is the source for every figure on this page. Lenovo publishes no PSREF specification for it, and no figure at all for how much power the hub passes through to a laptop.
Frequently Asked Questions — Lenovo USB-C 7-in-1 Hub
Does it have an Ethernet port?
No. Despite being the largest of Lenovo's three travel hubs, this one has no RJ45 port. Both the Powered USB-C Travel Hub and the USB-C Travel Hub Gen 2 do — they are in the ordering table above.
How much will it charge my laptop?
Lenovo does not publish a figure. It states the hub accepts Lenovo 45 W and 65 W USB-C adapters and that the hub itself consumes up to 15 W, but never says how much reaches the laptop. Its sibling publishes 52 W; we are not going to assume this one matches. Ask us and we will get it confirmed.
What resolution will the HDMI drive?
Up to 3840 x 2160 at 30 Hz — it is HDMI 1.4. Fine for presentations, poor for a working desktop or video. If 4K at 60 Hz matters, the Powered USB-C Travel Hub is the model with HDMI 2.0.
What card formats does it read?
Lenovo publishes an SD reader and a microSD (TF) reader. It does not publish a speed class — no UHS-I or UHS-II rating — so we cannot tell you how fast they are. If transfer speed matters for large video files, ask us and we will try to get it confirmed.
Is it still available?
Lenovo's product page for this part number redirects to a category landing page, though Lenovo still hosts firmware for it and has issued no end-of-life notice. Ask us to confirm stock before ordering.
What warranty applies in Singapore?
Lenovo publishes a 1-year CRU warranty. Every unit SourceIT sells also carries local Singapore warranty support and a GST invoice.
