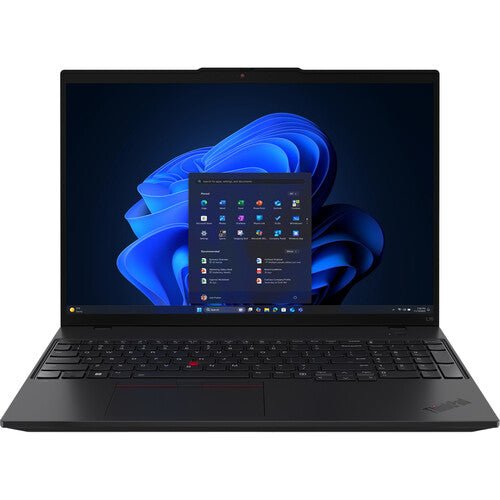

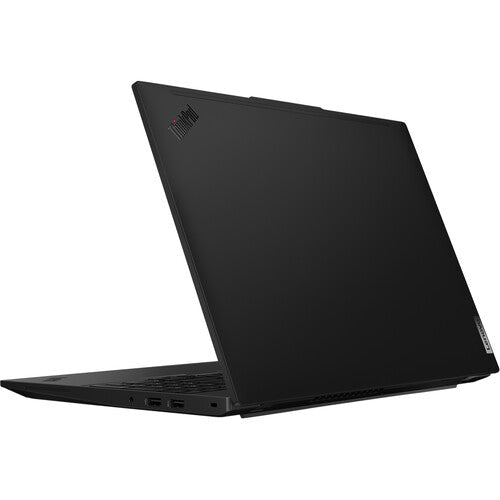

Lenovo ThinkPad L16 G2 U7-255U/ 16GB/ 512GB SSD Laptop
PRODUCT DESCRIPTION
Lenovo ThinkPad L16 Gen 2 (Intel), Intel Core Ultra 7 255H, 16GB SO-DIMM DDR5-5600, 512GB SSD M.2 2280 (21SACTO1WW-TD) — 3 Years Onsite, Singapore Local Warranty
Stock status. This exact part number is currently at zero inventory. It is still active while stock lasts, and we can offer a closely matching current-generation configuration on request.
About the ThinkPad L16 Gen 2 (Intel)
The ThinkPad L16 Gen 2 (Intel) is a Lenovo ThinkPad built to the range's usual Singapore-market brief: MIL-STD-810H tested, discrete TPM 2.0 hardware security, and Lenovo's ThinkPad keyboard and TrackPoint layout. This exact part number is a specific factory build; the full option matrix Lenovo publishes for the machine type is in the Chassis and Platform section below.
Where this configuration sits in the range
The ThinkPad L16 Gen 2 (Intel) runs on the ThinkPad L16 Gen 2 (Intel), Intel Core Ultra Series 2 platform. Lenovo classifies this machine type as an AI PC. Memory is on SO-DIMM slots, so it can be upgraded. One M.2 2280 slot, PCIe 4.0 x4, Opal 2.0; up to 2TB. It has an onboard Gigabit Ethernet (RJ-45) port.
Who this configuration suits
Fleet buyers who need this specific historically-stocked configuration for parts continuity, image compatibility or a like-for-like replacement. For fresh purchases we usually recommend the current generation of the same chassis line — ask us and we will quote both.
ThinkPad L16 Gen 2 (Intel) 21SACTO1WW-TD — Full Specifications
This Configuration
The fields below come from the distributor build sheet for this exact part number. Lenovo's published chassis facts for the whole machine type follow underneath.
| Part number | 21SACTO1WW-TD |
| Machine type | 21SA |
| Model | ThinkPad L16 Gen 2 (Intel) |
| Processor | Intel Core Ultra 7 255H (build sheet; the store title says 255U — both are published for this machine type) |
| Graphics | Not stated for this configuration — Lenovo publishes “Intel Graphics” for the U-series parts in this book and “Intel Arc 130T GPU” or “Intel Arc 140T GPU” for the H-series parts, and this listing’s title and build sheet disagree on which processor is fitted (see the processor note on this page). |
| Memory | 16GB SO-DIMM DDR5-5600 |
| Storage | 512GB SSD M.2 2280 PCIe 4.0 x4 TLC Opal |
| Display | 16in WUXGA (1920x1200) IPS antiglare, non-touch, 100% sRGB, 500 nits, 60Hz, low power |
| Camera | 5MP RGB + IR with dual microphone |
| Battery | 3-cell 57Wh |
| AC adapter | 65W USB-C Slim GaN (build sheet specifies a UK 3-pin plug) |
| Wireless | Intel Wi-Fi 7 BE201 + Bluetooth 5.4 |
| Keyboard | Backlit, with numeric keypad, English (US) |
| Operating system | Windows 11 Pro |
| Also included | Documented upgrade: 3-year onsite service — the service upgrade the build sheet records (distributor build sheet, Lenovo Services SKU 5WS1L39383) |
| Also included | Lenovo Business Casual 17-inch backpack (4X40X54260) |
Chassis and Platform — Lenovo published specifications for machine type 21SA
| Machine type | 21SA |
| Chassis | ThinkPad L16 Gen 2 (Intel), Intel Core Ultra Series 2 platform |
| Processor family | Intel Core Ultra 5 / 7 U-series and H-series (Series 2) — Ultra 5 225U/225H/235U/235H, Ultra 7 255U/255H/265U (both 255U and 255H are published for this machine type) |
| Graphics options | Integrated Intel Graphics |
| AI PC category | AI PC |
| NPU | Intel AI Boost, up to 12 TOPS |
| Memory topology | DDR5-5600, two SO-DIMM slots, dual-channel capable |
| Memory ceiling | up to 64GB (2x 32GB) |
| Storage | One M.2 2280 slot, PCIe 4.0 x4, Opal 2.0; up to 2TB |
| Display panels published | 16in WUXGA (1920x1200) IPS 500 nits 100% sRGB low-power Eyesafe; and 16in WUXGA IPS 400 nits 45% NTSC |
| Wireless options | Intel Wi-Fi 6E AX211 + Bluetooth 5.3, or Intel Wi-Fi 7 BE201 + Bluetooth 5.4 |
| WWAN options | Optional 4G LTE |
| Battery | Integrated 46.5Wh or 57Wh, Rapid Charge |
| AC adapter | 65W USB-C only |
| Audio | Stereo speakers 2Wx2 Dolby Atmos; far-field microphones |
| Security | Discrete TPM 2.0, TCG certified, FIPS 140-3; Kensington Nano Security Slot 2.5x6 mm |
| Chassis dimensions | approx. 357 x 253 mm; starting at 1.79 kg; MIL-STD-810H tested; numeric keypad |
| Lifecycle | Current |
Sources: Lenovo PSREF (book dated 27 July 2026).
Worth knowing about this configuration
Processor: the store title says Core Ultra 7 255U while the build sheet says 255H. Lenovo publishes both for this machine type, so both are legitimate configurations — confirm which is being quoted.
21SACTO1WW is Lenovo’s configure-to-order bucket identifier for the machine type rather than a finished-goods part number.
Why This Page Shows Two Specification Groups
The This Configuration block lists what the store title and the distributor build sheet assert for this exact part number: processor, memory, storage and the per-unit options. The Chassis and Platform block underneath quotes what Lenovo publishes for the whole machine type — the panels, ports, wireless cards, adapters and warranty terms the chassis is capable of — without claiming any single row was fitted to this particular unit.
Reading them side by side is how the storefront tells a part-specific fact apart from a chassis-wide capability. Where the two sources disagree, both are shown and attributed. If you need us to confirm a specific option on this exact part number, ask and we will check with the distributor.
Warranty and Service Cover
Every SourceIT unit is supplied with Singapore local warranty.
The distributor build sheet for this configuration documents a 3-year onsite service level. Lenovo's own base term for this machine type differs — Lenovo publishes a 3-year onsite option qualified (1-yr battery): the system is covered for three years, the battery for one.
Base warranty terms Lenovo publishes for the ThinkPad L16 Gen 2 (Intel):
- 1-year courier or carry-in service
- 1-year courier or carry-in with 2-year system board service (Korea only)
- 1-year limited onsite service
- 3-year (1-yr battery) courier or carry-in service
- 3-year (1-yr battery) limited onsite service
- No base warranty
PSREF does not enumerate Premier Support for this chassis; Premier Support and warranty upgrades come from separate Lenovo Services SKUs and are quoted on request. Register the serial number on Lenovo Support after purchase to activate Singapore-region cover.
Ports, Docking and Other Configurations We Stock
Ports on this chassis
- 2x USB-C Thunderbolt 4 / USB4 40Gbps
- 3x USB-A
- 1x HDMI 2.1, up to 4K/60Hz
- 3.5 mm headphone / microphone combo jack
- 1x Gigabit Ethernet (RJ-45)
- No SD or microSD reader
- Optional smart card reader
Docking is over the USB-C / Thunderbolt port. Lenovo ThinkPad USB-C and Thunderbolt docks work on this chassis.
Other configurations of this machine
This part number is at zero inventory. Ask us for a like-for-like quote on a closely matching current-generation configuration, or on another variant of the same machine type in the distributor channel.
Questions We Get Asked About This Machine
Is this an AI PC or a Copilot+ PC?
Lenovo classifies this machine type as an AI PC (Intel AI Boost, up to 12 TOPS). It is not a Copilot+ PC — that classification needs a 40+ TOPS NPU, which this platform does not reach.
Can the memory be upgraded?
Yes. Memory is on SO-DIMM slots (up to 64GB (2x 32GB)), so it can be upgraded later.
Is the three-year cover real?
Yes — it is documented on the distributor build sheet for this configuration. See the Warranty and Service Cover section for exactly what Lenovo publishes as the base term versus the configured upgrade.
