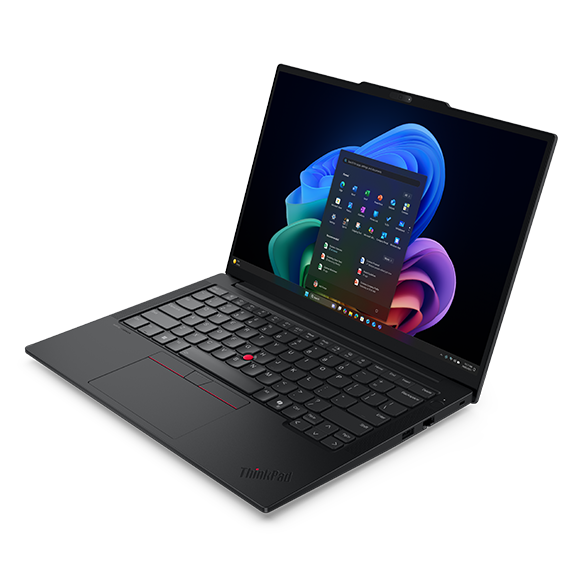

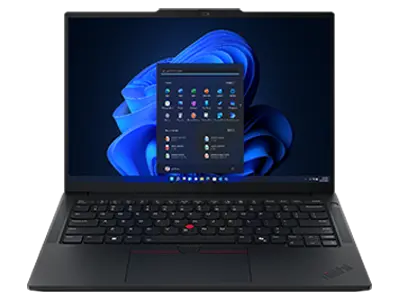

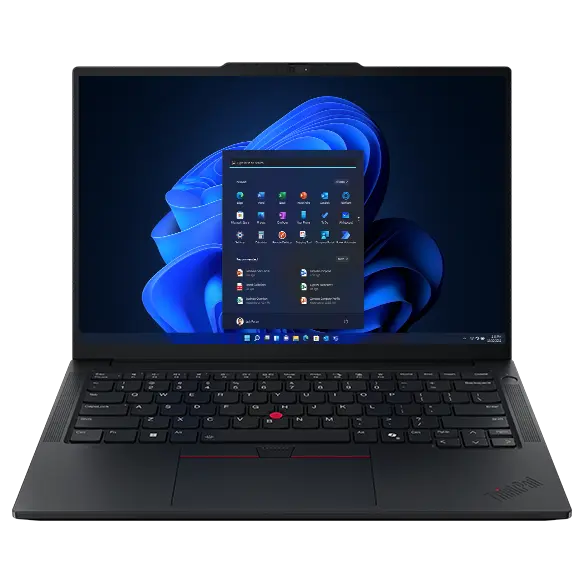

Lenovo ThinkPad E14 Gen 7 Intel U7-258V/ 32GB/ 1TB SSD/ 3Y Premier Support Plus
PRODUCT DESCRIPTION
Lenovo ThinkPad E14 Gen 7 (Intel), Core Ultra 7 258V / 32GB / 1TB SSD (21U2009LSG) - 3 Years Premier Support Plus, Singapore Local Warranty
A Copilot+ PC Built for Everyday Business
This ThinkPad E14 Gen 7 runs the Intel Core Ultra 7 258V (8 cores / 8 threads, up to 4.8GHz, 12MB Intel Smart Cache) with Intel Arc Graphics 140V. Lenovo rates its Intel AI Boost NPU at up to 47 TOPS, with up to 115 TOPS across the platform, so on-device AI features, live captions and video-call effects run locally without loading the CPU.
32GB of Fast LPDDR5X and a 1TB SSD
Memory is 32GB LPDDR5X-8533 on the processor package, the maximum this platform offers, paired with a 1TB PCIe 4.0 x4 NVMe SSD with Opal 2.0 self-encryption. Plenty of headroom for heavy browser, Office and Teams multitasking over a full refresh cycle.
Sign In With Your Face or Fingerprint
An FHD 1080p + IR hybrid camera with a physical privacy shutter supports Windows Hello face sign-in, and a match-on-chip fingerprint reader is built into the power button. Underneath, a discrete TPM 2.0 (FIPS 140-3 certified) protects keys and credentials.
Ready for the Office and the Road
The 14-inch WUXGA 1920 x 1200 16:10 anti-glare IPS panel, backlit keyboard with TrackPoint, Wi-Fi 6E and Bluetooth 5.3, plus gigabit RJ-45, HDMI 2.1 and Thunderbolt 4 / USB4, cover desk and travel. Lenovo states the E14 Gen 7 passed MIL-STD-810H military tests, and this configuration ships with a Lenovo BISmart Carry Case and 3 Years Premier Support Plus.
Lenovo ThinkPad E14 Gen 7 (Intel) Datasheet — Technical Specifications
General
| Product | Lenovo ThinkPad E14 Gen 7 (Intel) |
| Part Number | 21U2009LSG |
| Machine Type | 21U2 |
| Manufacturer Warranty | 3 Years Premier Support Plus (per the distributor build sheet for this part number) |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
This Configuration — From the Distributor Build Sheet for 21U2009LSG
| Processor | Intel Core Ultra 7 258V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.8GHz, 12MB Intel Smart Cache |
| Memory | 32GB soldered LPDDR5X-8533, memory on package (MoP) |
| Storage | 1TB SSD M.2 2242 PCIe 4.0 x4 NVMe, Opal 2.0 |
| Graphics | Integrated Intel Arc Graphics 140V |
| Display | 14" WUXGA (1920 x 1200) IPS, 300 nits, anti-glare, 45% NTSC, 60Hz |
| Camera | FHD 1080p + IR hybrid with privacy shutter |
| Fingerprint Reader | Touch style, match-on-chip, integrated in power button |
| Keyboard | Backlit, English |
| Wireless | Wi-Fi 6E 802.11ax 2x2 + Bluetooth 5.3 |
| Battery | Not stated on the build sheet (Lenovo offers 48Wh or 64Wh for this model) |
| Operating System | Windows 11 Pro, English (US) / English (UK) |
| Bundled Accessory | Lenovo BISmart Carry Case |
| Warranty | 3Y Premier Support Plus |
Chassis and Platform — From Lenovo PSREF
| NPU | Intel AI Boost, up to 47 TOPS (platform up to 115 TOPS) |
| Memory Architecture | Soldered to the system board, no slots, dual-channel; not upgradable |
| Storage Slot | One M.2 SSD slot, PCIe 4.0 x4; one drive only on Core Ultra (Series 2) V-series models, up to 1TB |
| USB-C | 1x Thunderbolt 4 / USB4 40Gbps, USB PD 15-65W, DisplayPort 2.1 (a second Thunderbolt 4 port is fitted on some configurations) |
| USB-A | 1x USB 5Gbps (USB 3.2 Gen 1); 1x USB 10Gbps (USB 3.2 Gen 2), Always On |
| Video Out | 1x HDMI 2.1, up to 4K/60Hz |
| Ethernet | 1x Gigabit RJ-45 |
| Audio Jack | 1x 3.5mm headphone / microphone combo |
| Keyboard and Pointing | 6-row spill-resistant keyboard with Copilot key; TrackPoint; Mylar multi-touch touchpad, 60 x 115 mm |
| Security | Discrete TPM 2.0, TCG certified, FIPS 140-3 certified; self-healing BIOS |
| Lock Slot | Kensington Nano Security Slot, 2.5 x 6 mm |
| Dimensions (W x D x H) | 313 x 220.3 x 10.1 / 15.25 mm (front / rear); 19.7 mm maximum with aluminium bottom, 20.5 mm with PC-ABS bottom |
| Weight | Starting at 1.32 kg (Core Ultra V-series models) |
| Case Material | Aluminium top; PC-ABS or aluminium bottom |
| Colour | Black |
| AC Adapter | 65W USB-C (country-dependent) |
| Durability | MIL-STD-810H military test passed |
Compatibility & Fit
Memory Is Fixed at 32GB
On this Core Ultra 7 258V platform the memory sits on the processor package. There are no memory slots and it cannot be upgraded later, so 32GB, the highest capacity Lenovo offers here, is the right choice for a long service life.
Docking and Displays
Thunderbolt 4 / USB4 with DisplayPort 2.1 and 65W charging suits USB-C and Thunderbolt docks such as the ThinkPad USB4 Dock 5000 (40BF0100UK), while HDMI 2.1 drives a 4K/60Hz display directly.
Use a Nano-Slot Lock
The E14 Gen 7 has the smaller Kensington Nano Security Slot (2.5 x 6 mm). Standard Kensington MicroSaver locks do not fit; choose a NanoSaver lock.
Storage Form Factor
The build sheet specifies an M.2 2242 SSD. If you plan to replace the drive yourself, check the length against Lenovo's parts list for this machine type first.
Package Contents & Lenovo Ordering Information
In the box:
- ThinkPad E14 Gen 7 laptop
- Lenovo BISmart Carry Case (listed on the build sheet)
- USB-C AC adapter (regional pack; ask us to confirm)
- Documentation
Lenovo ThinkPad E14 Gen 7 Ordering Information
| 21U2009LSG (this listing) | ThinkPad E14 Gen 7 (Intel), Core Ultra 7 258V, 32GB, 1TB SSD, Windows 11 Pro, 3Y Premier Support Plus |
Datasheet & Downloads
- Lenovo PSREF specification — ThinkPad E14 Gen 7 (Intel) (PDF)
- Lenovo product page — ThinkPad E14 Gen 7 (14" Intel)
The PSREF book covers the whole ThinkPad E14 Gen 7 (Intel) range; the build-sheet table above is specific to this part number.
Frequently Asked Questions — Lenovo ThinkPad E14 Gen 7 (Intel)
Is this a Copilot+ PC?
Yes. The Core Ultra 7 258V's Intel AI Boost NPU is rated by Lenovo at up to 47 TOPS, above Microsoft's 40 TOPS requirement for Copilot+ PCs.
Can I add more memory later?
No. The 32GB LPDDR5X is soldered on the processor package with no slots. It is the maximum Lenovo offers on this platform.
Does it support Windows Hello face sign-in?
Yes. The FHD 1080p + IR hybrid camera supports face sign-in, and there is also a fingerprint reader in the power button. The camera has a physical privacy shutter.
What warranty is included?
The distributor build sheet for this part number states 3 Years Premier Support Plus, and every SourceIT purchase includes Singapore local warranty with a GST invoice.
Can it drive two external monitors?
Yes. Use HDMI 2.1 (up to 4K/60Hz) plus the Thunderbolt 4 / USB4 port with DisplayPort 2.1, or a Thunderbolt / USB4 dock.
