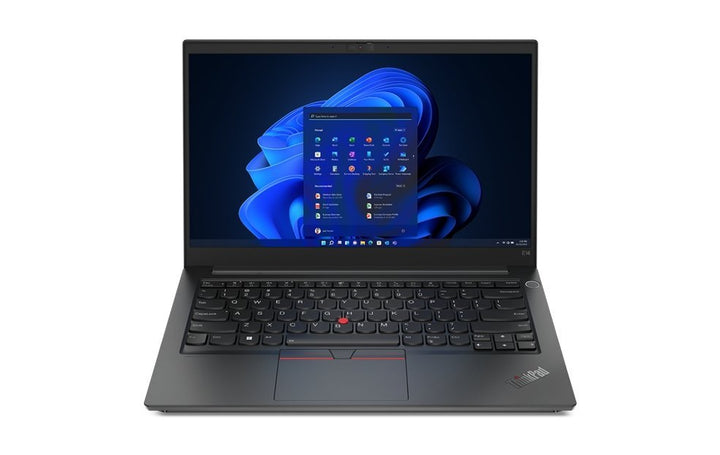

Lenovo ThinkPad E14 Gen 5 i5-1335U/8GB/512GB SSD
PRODUCT DESCRIPTION
Lenovo ThinkPad E14 Gen 5, Intel Core i5-1335U, 8GB, 512GB SSD (21JK0066SG) — Singapore Local Warranty
Stock status. This exact part number is currently at zero inventory. It is still active while stock lasts, and we can offer a closely matching current-generation configuration on request.
About the ThinkPad E14 Gen 5
The ThinkPad E14 Gen 5 is a Lenovo ThinkPad chassis built to the range's usual Singapore-market brief: MIL-STD-810H tested, discrete TPM 2.0, and Lenovo's ThinkPad keyboard and trackpoint layout. This exact part number is a specific factory build; the full option matrix Lenovo publishes for the machine type is in the Chassis and Platform section below.
Where this configuration sits in the range
The E14 Gen 5 is a 14 inch E-series business laptop on the Raptor Lake platform. This factory build pairs an i5-1335U CPU with 8GB soldered DDR4-3200 and a 512GB M.2 2242 NVMe SSD. Note: Lenovo publishes only 1-year base warranty terms for MT 21JK.
Who this configuration suits
Fleet buyers who need a specific, historically stocked configuration for parts continuity, image compatibility or a like-for-like replacement. For fresh purchases we usually recommend the current generation of the same chassis line — ask us for the equivalent and we will quote both.
ThinkPad E14 Gen 5 21JK0066SG — Full Specifications
This Configuration
| Part number | 21JK0066SG |
| Machine type | 21JK |
| Model | ThinkPad E14 Gen 5 |
| Processor | Intel Core i5-1335U (10 cores / 12 threads, P-core up to 4.6GHz) |
| Memory | 8GB soldered DDR4-3200 |
| Storage | 512GB M.2 2242 NVMe SSD, PCIe 4.0 x4, Opal 2.0 |
| Graphics | Integrated Intel Iris Xe (functions as UHD Graphics) |
| Display | 14 inch WUXGA (1920x1200) IPS 300 nits anti-glare, 45% NTSC |
| Camera | HD 720p with Privacy Shutter |
| Fingerprint | Fingerprint reader integrated in power button |
| Battery | Integrated Li-Polymer 47Wh, Rapid Charge to 80% in 1 hour |
| Wireless | Intel Wi-Fi 6E AX211 + Bluetooth 5.1 |
| Keyboard | Backlit, English layout |
| Operating system | Windows 11 Pro (English), no recovery media |
Chassis and Platform — Lenovo published specifications for machine type 21JK
| Machine type | 21JK (sibling 21JL) |
| Chassis | ThinkPad E14 Gen 5 (Intel), Raptor Lake platform |
| Processor family | 13th Gen Intel Core i3/i5/i7 U/P/H — i3-1315U up to i7-13700H |
| Graphics options | Intel UHD Graphics; Intel Iris Xe Graphics; NVIDIA GeForce MX550 (discrete option) |
| Memory topology | 1x soldered DDR4-3200 + 1x DDR4 SO-DIMM slot, dual-channel capable |
| Memory ceiling | Up to 40GB (8GB soldered + 32GB SO-DIMM) or 48GB (16GB soldered + 32GB SO-DIMM), per PSREF |
| Storage | Two M.2 2242 slots: one PCIe 3.0 x4, one PCIe 4.0 x4; Opal 2.0; up to 1TB per drive |
| Display panels published | 14 inch WUXGA (1920x1200) IPS non-touch / multi-touch 300 nits 45% NTSC; 14 inch 2.2K (2240x1400) IPS non-touch 300 nits 100% sRGB |
| Wireless options | Realtek or Intel Wi-Fi 6 / Wi-Fi 6E, all with Bluetooth 5.1 |
| WWAN | No support (per PSREF) |
| Battery | 47Wh or 57Wh Rechargeable Li-ion, Rapid Charge |
| AC adapter | 65W USB-C only (2-pin and 3-pin variants) — no 45W or 100W published |
| Audio | Stereo speakers 2Wx2, Dolby Atmos; Dual-microphone array, Dolby Voice |
| Security | Discrete or firmware TPM 2.0; Kensington Nano Security Slot 2.5x6 mm; optional IR camera |
| Chassis dimensions | 313 x 219.3 x 17.99 mm; starting at 1.41 kg (Al top / PC-ABS bottom) |
| MIL-STD | MIL-STD-810H military test passed |
| Copilot / AI PC | Not stated — pre-AI-PC generation |
Why This Page Shows Two Specification Groups
The This Configuration block above is drawn from the distributor build sheet for this exact part number — the panel, processor, memory, storage, wireless card and adapter actually fitted.
The Chassis and Platform block underneath quotes what Lenovo publishes for machine type 21JK as a whole. It tells you what the chassis is capable of — the panels, ports, wireless cards, adapters and warranty terms that Lenovo enumerates — without asserting each row is fitted to this unit.
Reading them side by side lets you tell what the shipped part number actually is apart from what the chassis supports as an option. If a spec you need is in the chassis list but not the configuration list, ask us and we will check the distributor.
Warranty and Service Cover
Every SourceIT unit is supplied with Singapore local warranty. For this machine type Lenovo publishes only 1-year base warranty options in PSREF, so the h2 above does not carry a 3 Years Onsite duration for this chassis.
Base warranty terms Lenovo publishes for ThinkPad E14 Gen 5 (21JK):
- 1-year mail-in service
- 1-year courier or carry-in service
- 1-year courier or carry-in with 2-year system board service (Korea only)
- 1-year limited onsite service
- No base warranty
No 3-year onsite base term exists for this machine type. Lenovo publishes only 1-year terms. Any longer cover is a paid Lenovo Services upgrade, not a base term.
PSREF does not enumerate Premier Support for this chassis. Premier Support and warranty upgrades come from separate Lenovo Services SKUs and are quoted on request.
Register the serial number on Lenovo Support after purchase to activate the Singapore-region base cover.
Ports, Docking and Other Configurations We Stock
Ports on this chassis
- 1x USB-C 3.2 Gen 2
- 1x Thunderbolt 4 / USB4
- 1x USB 2.0 (Type-A)
- 1x USB 3.2 Gen 1 (Type-A)
- 1x HDMI 2.1, up to 4K/60Hz
- 1x Ethernet (RJ-45) — Intel I219-V
- 1x 3.5 mm headphone / microphone combo jack
- No SD or microSD card reader; no smart card reader
Docking is via the Thunderbolt 4 / USB4 port. Lenovo ThinkPad USB-C and Thunderbolt docks work on this chassis; ask us for a matching dock recommendation.
Other configurations of this machine
This part number is at zero inventory. Ask us for a like-for-like quote on a closely matching current-generation configuration, or on a different variant of the same machine type if any remain in the distributor channel.
Questions We Get Asked About This Machine
Is this a Copilot+ PC or AI PC?
No. This machine type predates Lenovo's AI PC and Copilot+ PC classifications. Lenovo's PSREF book for this chassis does not publish an AI PC category field or an NPU TOPS figure.
Does this machine have a 3-year onsite base term?
No. Lenovo publishes only 1-year base terms for this machine type. A 3-year onsite claim on this chassis would not match Lenovo's own PSREF. See the Warranty and Service Cover accordion for the exact term list.
Is this the current generation?
No. This part number is at zero inventory and the chassis is past its launch generation. Ask us for a closely matching current-generation configuration.
