J5Create JTSA302 Ergonomic Dual-Monitor Mount with Docking Station
Shipping calculated at checkout.
PRODUCT DESCRIPTION
J5Create JTSA302 Ergonomic Dual-Monitor Mount with Docking Station - 2 Years Local Warranty
A dual-monitor desk mount with built-in docking, combining ergonomic screen positioning with laptop connectivity.
Key Features

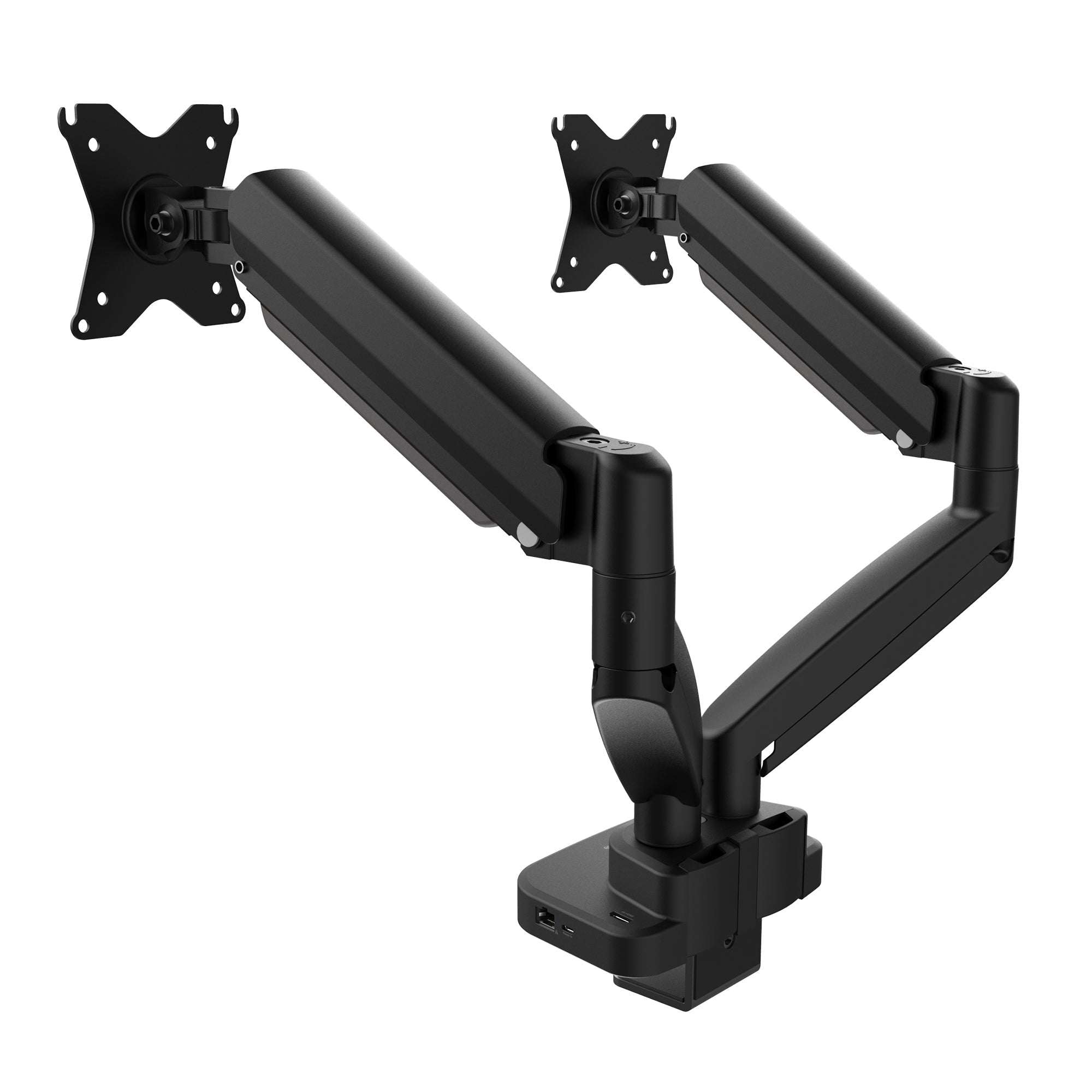

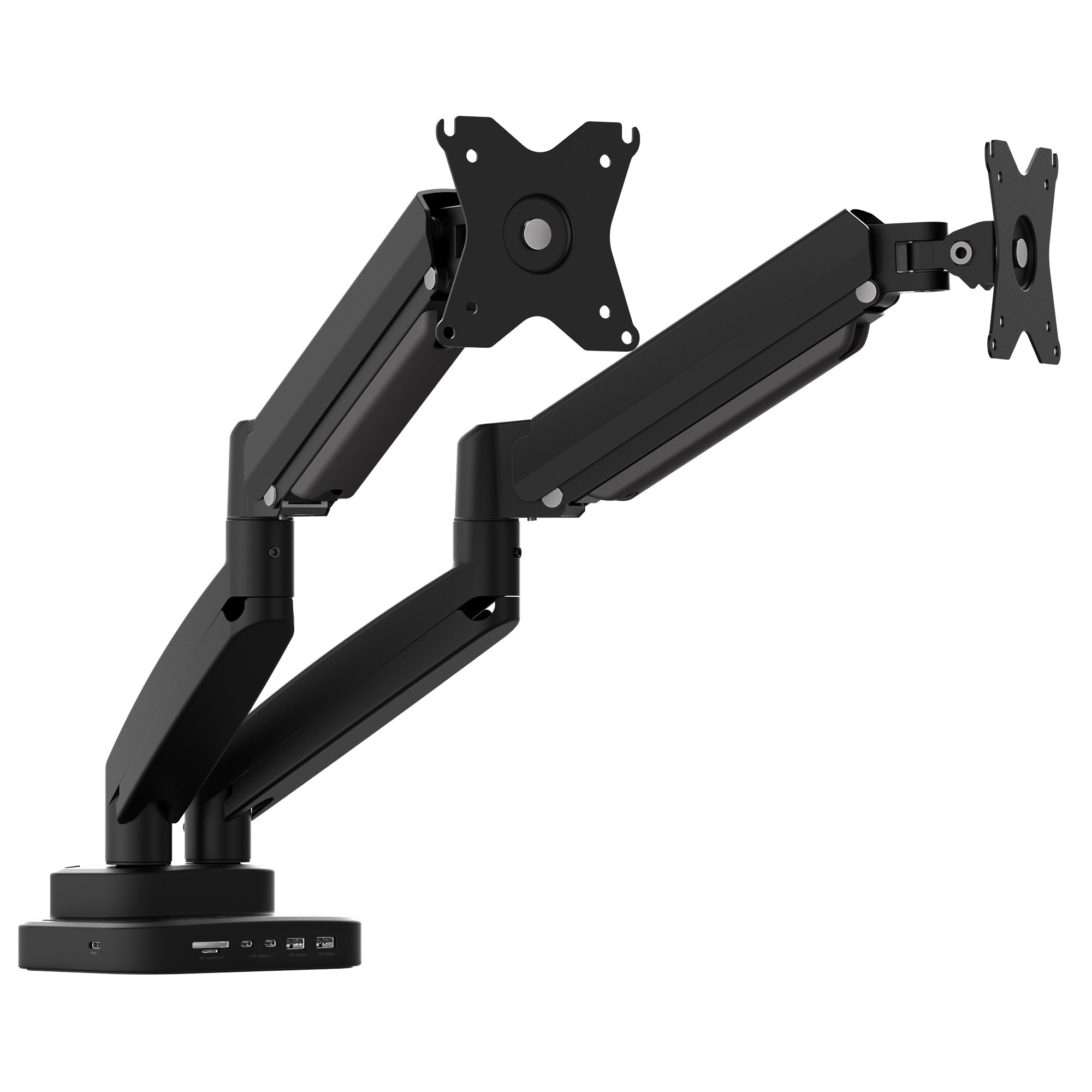

- Dual-arm mount for two 17-32 in. monitors, up to 8 kg per arm, VESA 75/100

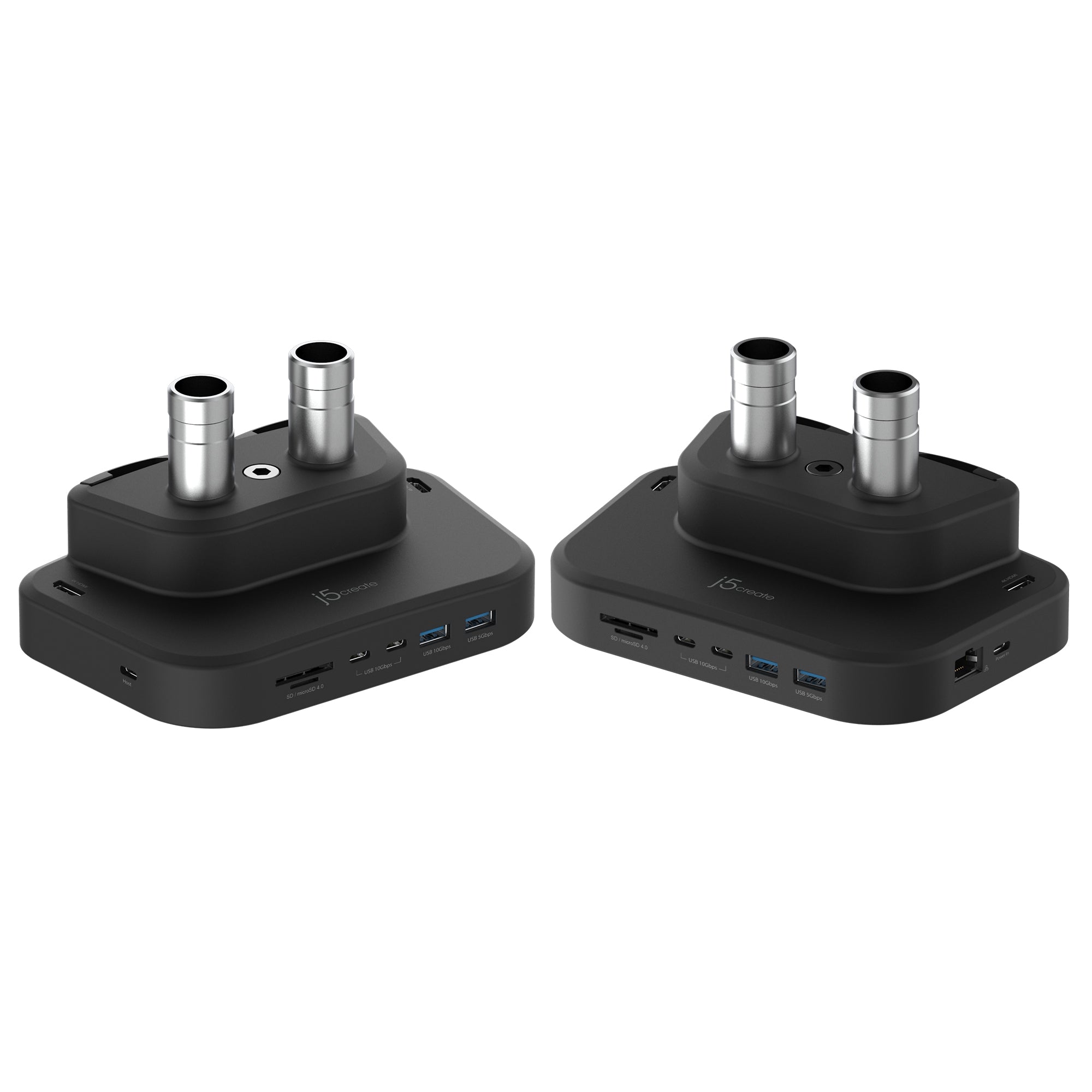

- Built-in 10-in-1 USB-C dock with two HDMI outputs (MST dual 4K60)
- 100W Power Delivery pass-through, Gigabit Ethernet and SD/microSD 4.0 card reader
- Tilt, swivel and 360° rotation; clamp or grommet desk mounting
- Integrated cable management
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JTSA302 Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 2-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JTSA302 |
| Product Name | Ergonomic Dual-Monitor Mount with Docking Station |

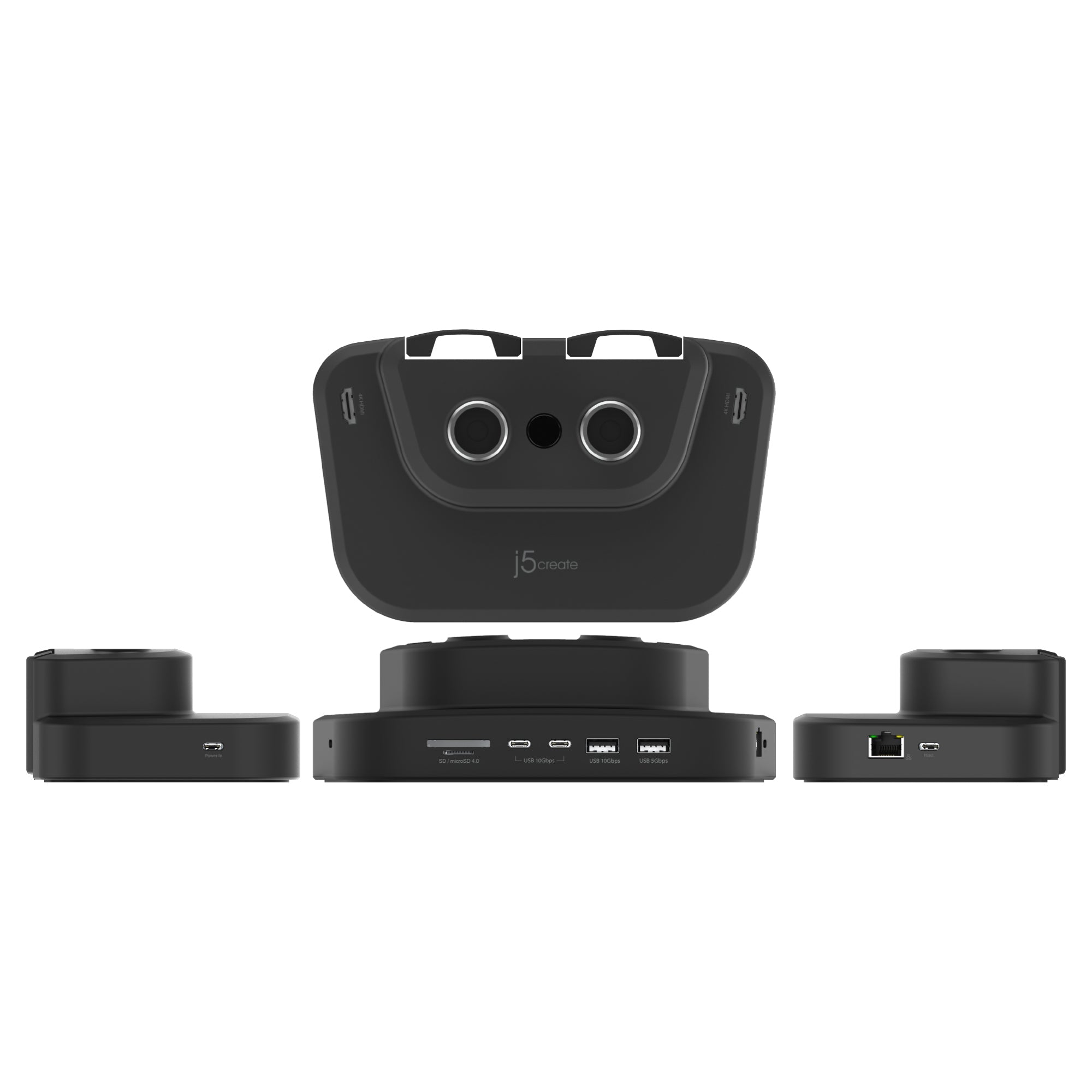

Ports
| Host Connector | 1 x USB-C (female) |
| HDMI | 2 x 4K60 HDMI (MST dual 4K60) |
| USB-C | 2 x USB-C 10Gbps |
| USB-A | 1 x USB Type-A 5Gbps, 1 x USB Type-A 10Gbps |
| Power Delivery | Accepts up to 100W USB-C PD input; up to 85W pass-through to the laptop |
| Card Reader | 1 x SD / microSD 4.0 (up to 312 MB/s) |
| Network | 1 x Gigabit Ethernet |
Video & Audio
| Displays Supported | 2 |
| Max Resolution | 3840 x 2160 |
| Max Refresh Rate | 4K @ 60Hz |
| Audio | 2.1 via HDMI |
Power
| Power Delivery | Accepts up to 100W USB-C PD input; up to 85W pass-through to the laptop |
| Input | Up to 20V / 5A |
| Output | Up to 20V / 4.25A |
| Power Consumption | ≤ 900 mA |
| Power Source | Bus-powered or self-powered |
Mount
| Monitor Size | 17 in. to 32 in. |
| Load Capacity | 8 kg (17.6 lbs) per arm |
| VESA | 75 x 75 / 100 x 100 mm |

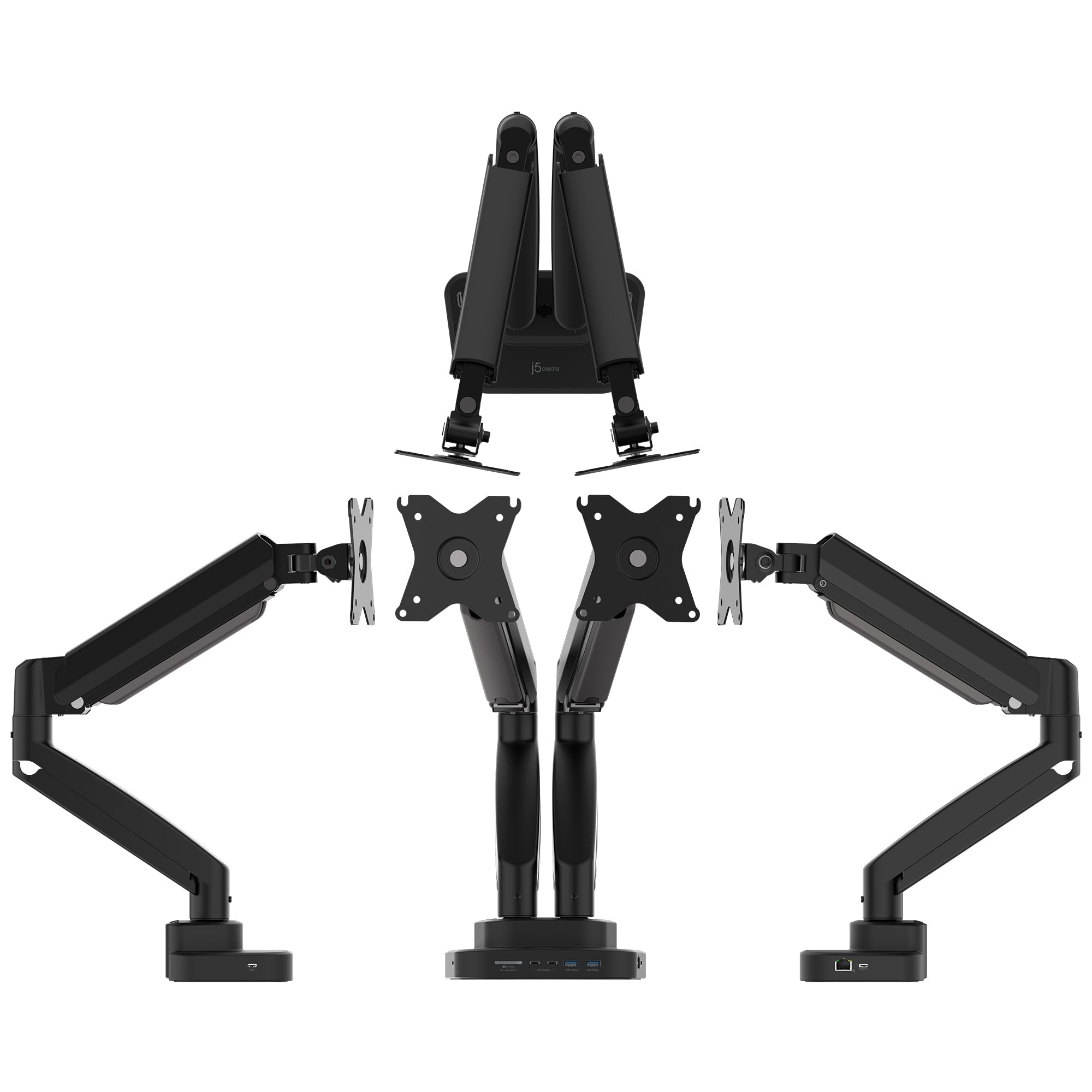

| Screen Tilt | -45° to +90° |
| Arm Swivel | -180° to +180° |
| Screen Swivel | -90° to +90° |
| Screen Rotation | 360° |

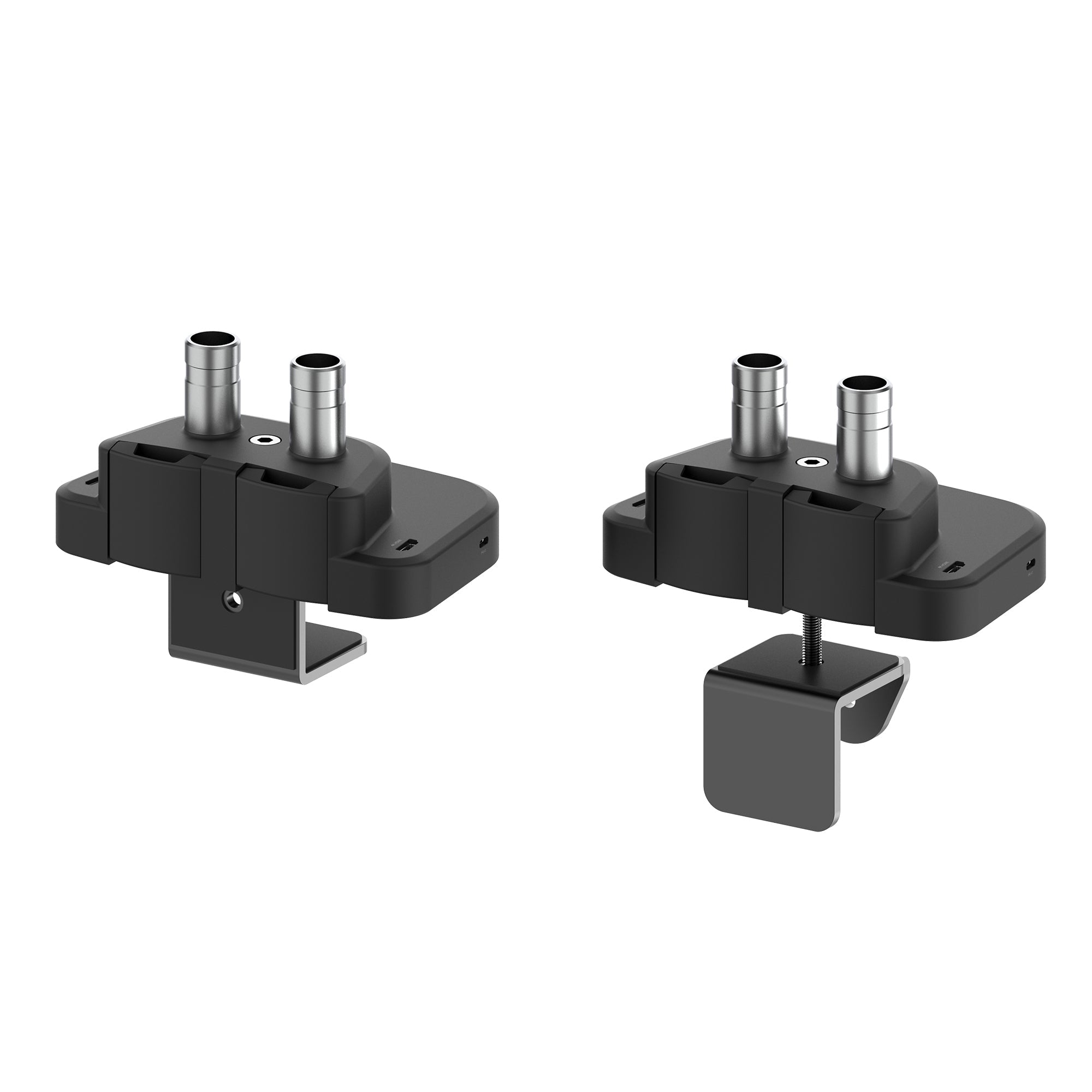

| C-Clamp Base | Yes (10-50 mm desk thickness) |
| Grommet Base | Yes (10-50 mm) |
| Assembly Required | Yes |
Physical
| Colour | Black |
| Material | Aluminum / Steel / Plastic |
| Dimensions (H x W x D) | 320 x 180 x 465 mm |
| Weight | approx. 4 kg (8.82 lbs) |
Environmental
| Operating Temperature | 0 to 30°C |
| Storage Temperature | -10 to 65°C |
| Humidity | < 85% non-condensing |
Compatibility
| OS | Windows, macOS |
Compatibility & System Requirements
System Requirements
- Host must support MST and DisplayPort 1.4 for dual 4K monitors
- Supports 17-32 in. monitors up to 8 kg / 17.6 lbs
- Windows and macOS compatible

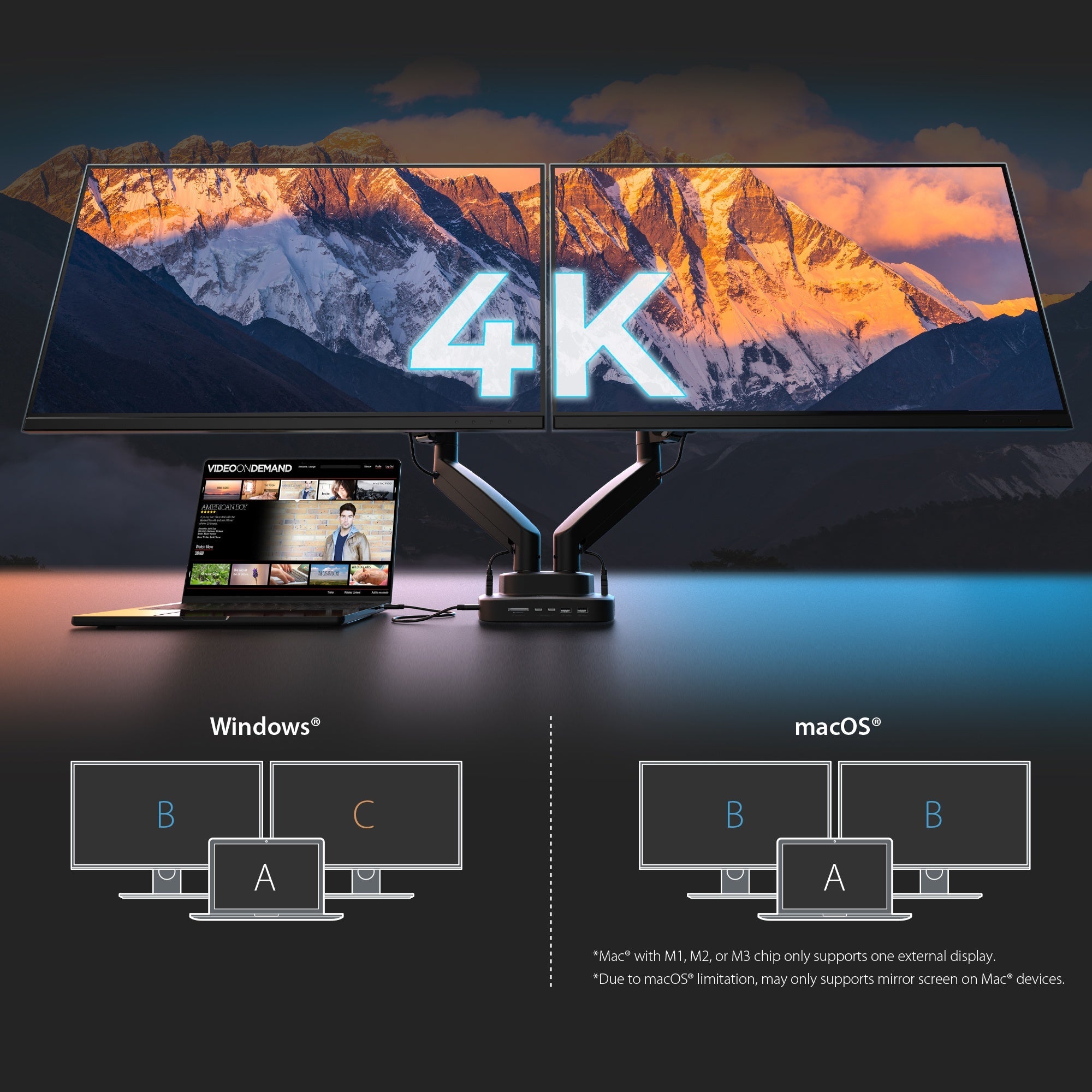

- macOS does not support MST - two monitors will mirror
Compatibility
| OS | Windows, macOS |
Package Contents & j5create Laptop & Monitor Stands Ordering Information
In the Box
- 1 x JTSA302 Ergonomic Dual-Monitor Mount with Docking Station
- 1 x USB-C 10Gbps male-to-male host cable (100 cm / 3.3 ft)
- 1 x Installation tools & accessories
- 1 x Quick Installation Guide
j5create Laptop & Monitor Stands at SourceIT
| Model | Product |
| JTS223 | Laptop Stand with USB 4-Port Hub |
| JTS127 | Multi-Angle Laptop Stand |
| JTS427 | Multi-Angle Dual HDMI Docking Stand |
| JTSA302 (this listing) | Ergonomic Dual-Monitor Mount with Docking Station |
| JCT425 | Wood Monitor Stand with Docking Station |
Datasheet & Downloads
| j5create product page | JTSA302 on j5create.com |
| Quick Install Guide (JTSA102/302) | Quick Install Guide (JTSA102/302) (PDF) |
| Assembly Instructions | Assembly Instructions (PDF) |
| Downloads & Drivers page | Downloads & Drivers page |
Need a document sent directly? Email sales@sourceit.com.sg quoting JTSA302.
Frequently Asked Questions — j5create JTSA302
How many external displays does it support?
2. Actual output depends on your laptop's USB-C / Thunderbolt video support; see the Compatibility section.
How much charging power reaches my laptop?
Up to about 85W, based on j5create’s published output rating, when a suitable USB-C PD power adapter is connected (adapter sold separately unless listed in the box).
What warranty do I get?
2-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JTSA302 and the quantity for volume pricing and delivery lead time.
