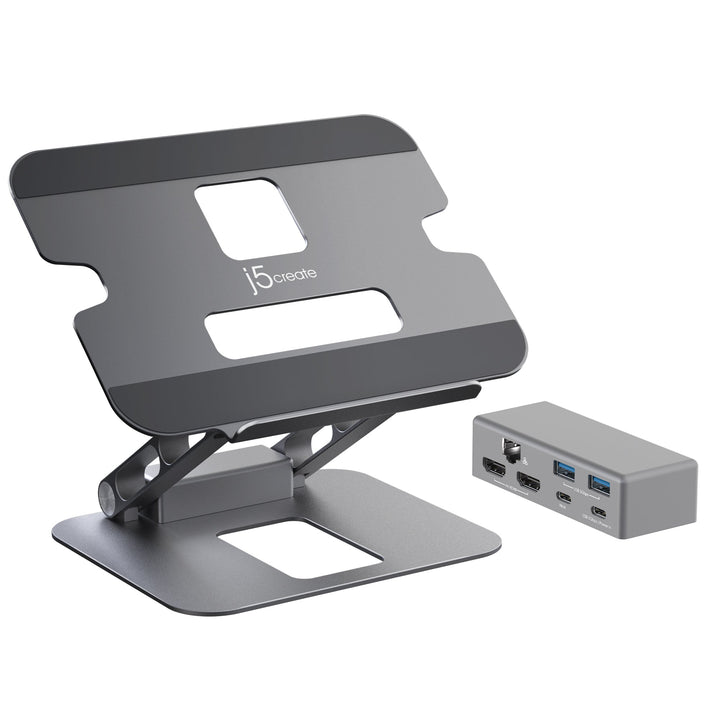

J5Create JTS427 Multi-Angle Dual HDMI Docking Stand
Shipping calculated at checkout.
PRODUCT DESCRIPTION
J5Create JTS427 Multi-Angle Dual HDMI Docking Stand - 2 Years Local Warranty
An ergonomic stand that lifts the laptop screen closer to eye level and frees up desk space.
Key Features

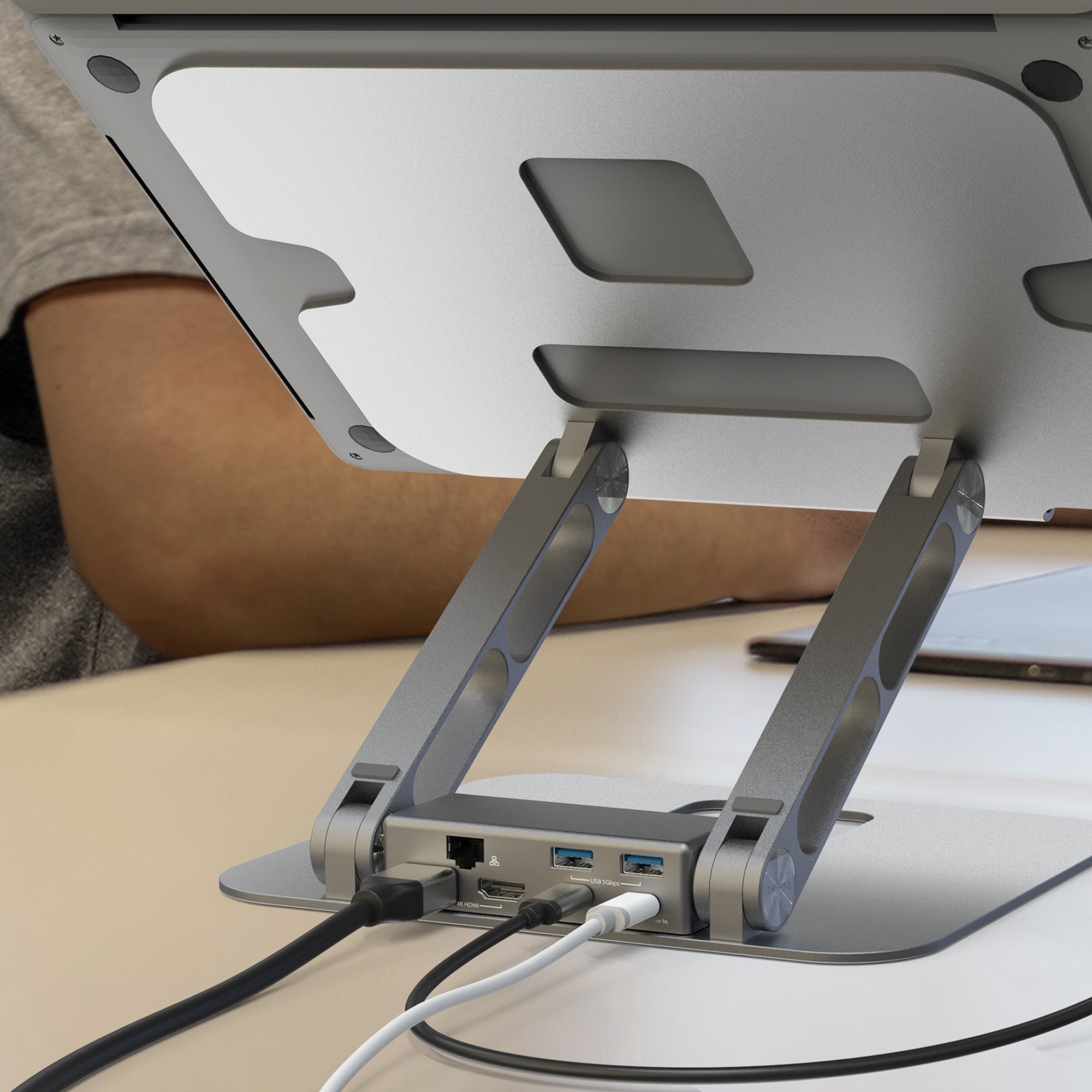

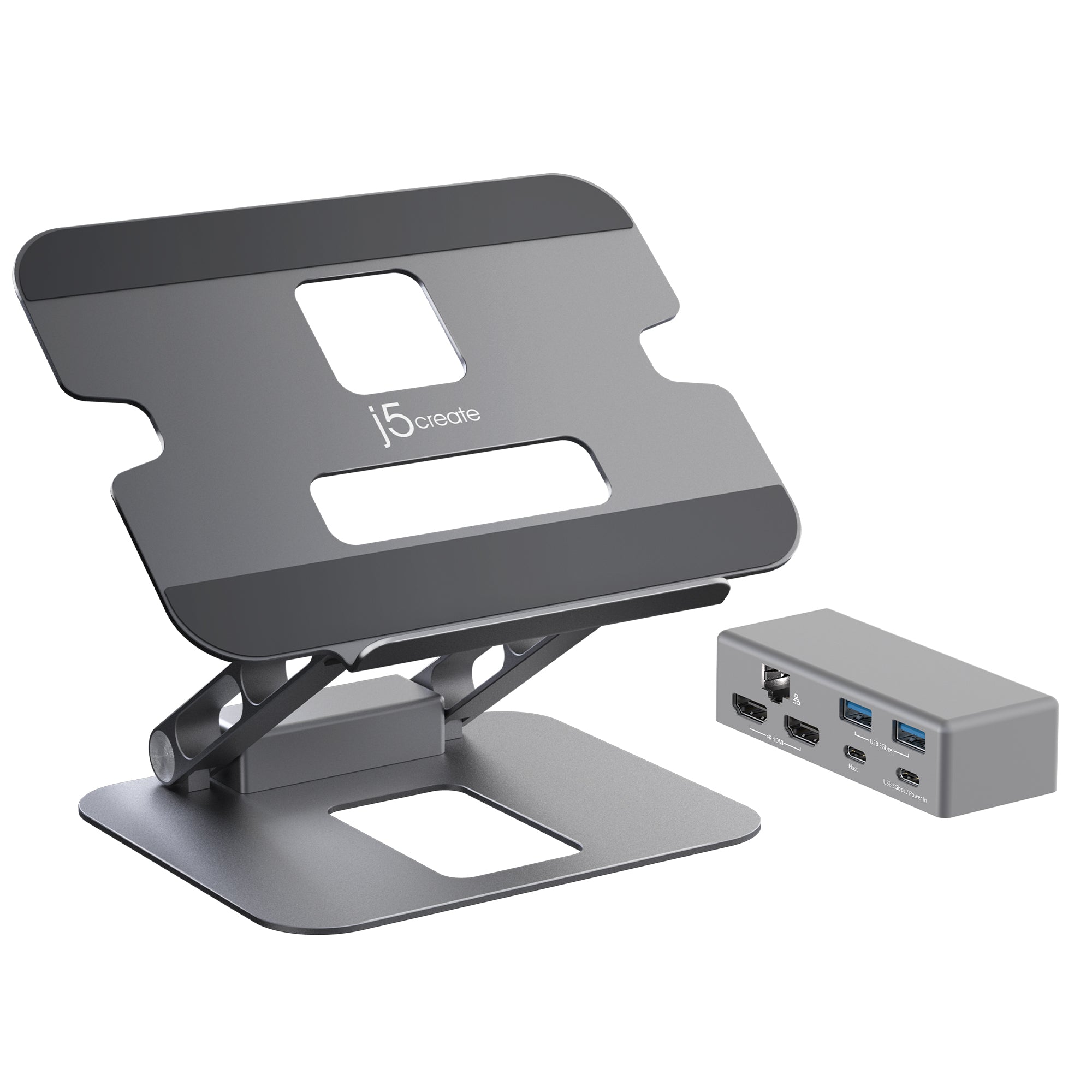

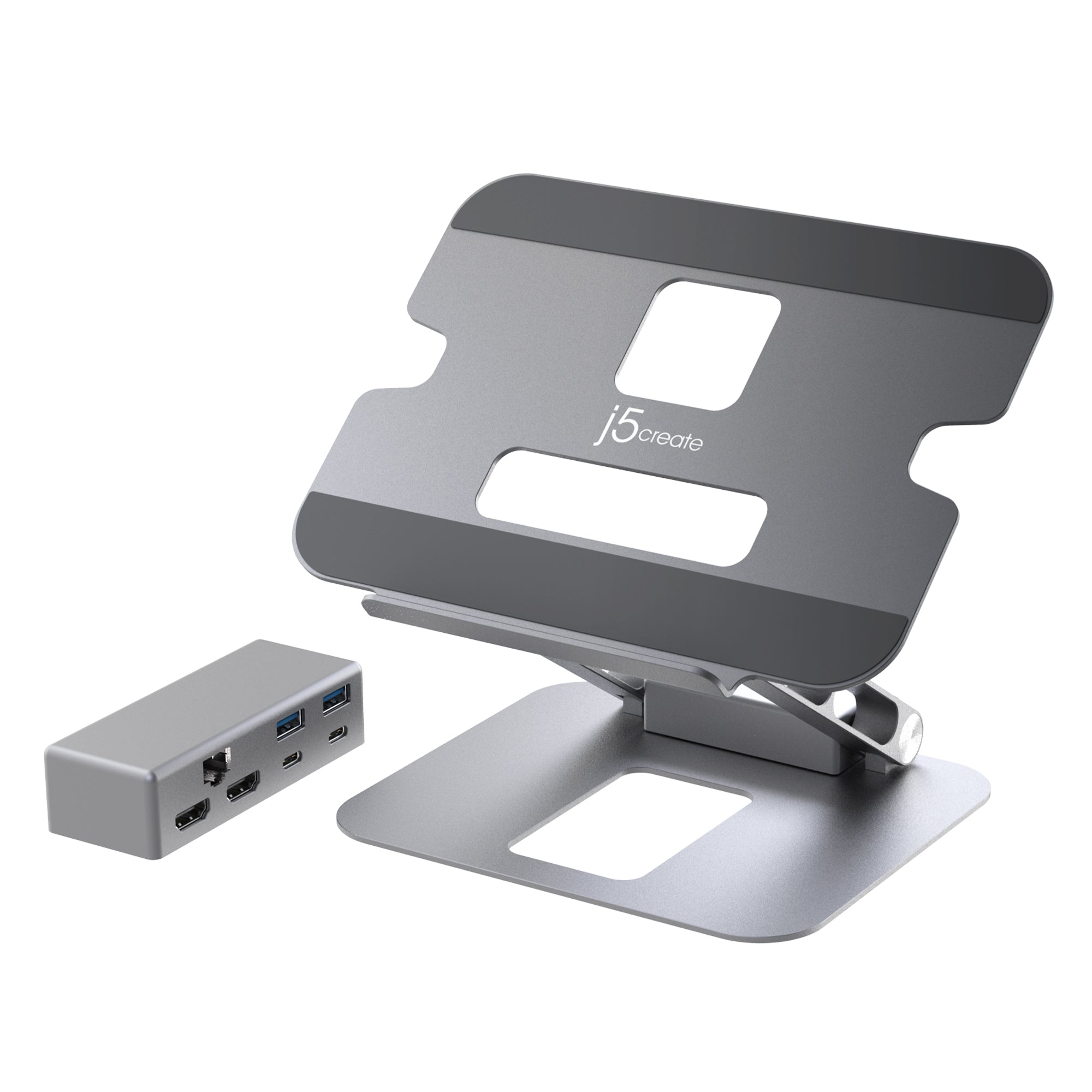

- Aluminium laptop stand with a USB-C mini dock that attaches magnetically and can also be used on its own

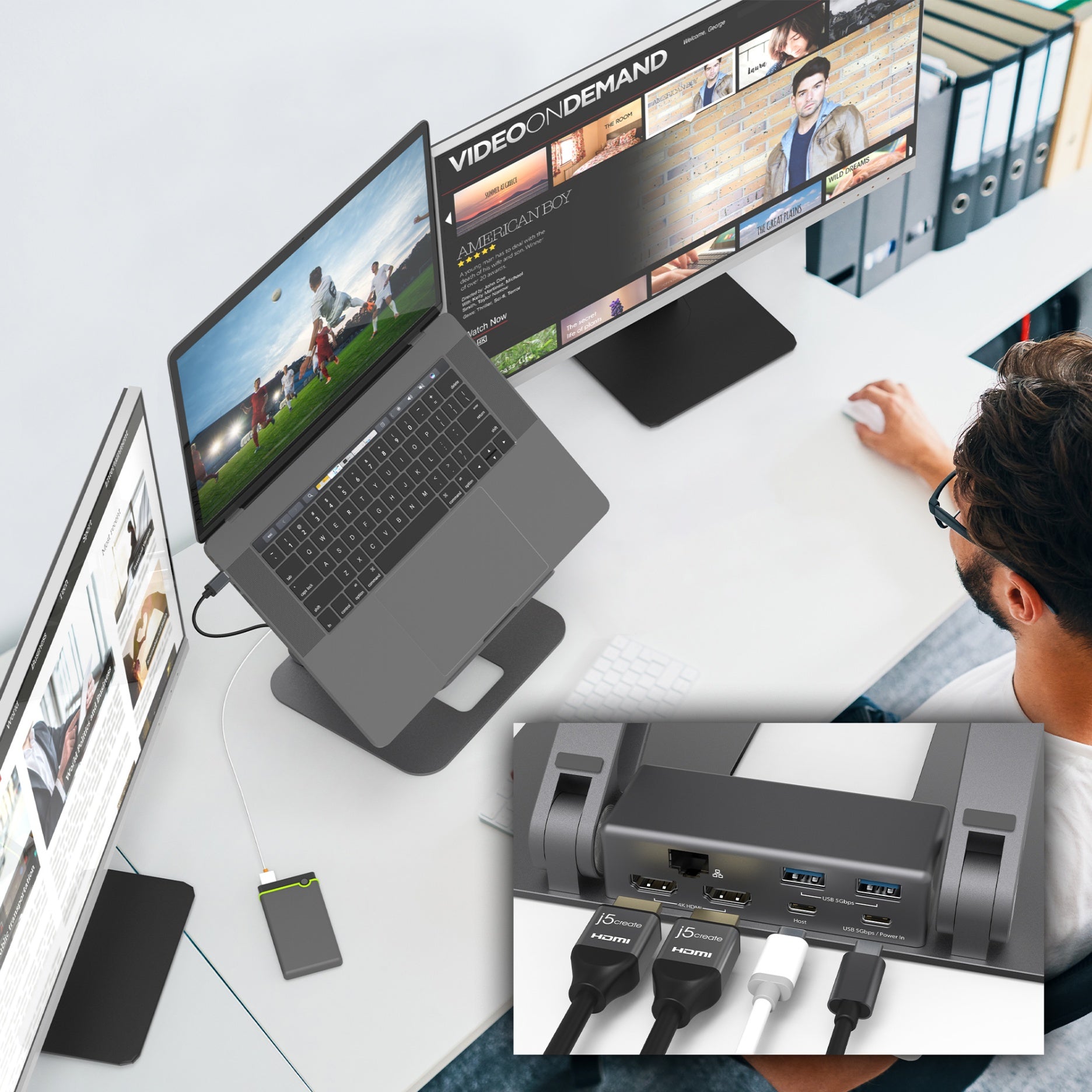

- Two HDMI outputs: single display up to 4K 30Hz, or dual displays at 1080p
- Up to 100W USB Power Delivery pass-through charging
- Gigabit Ethernet plus 5Gbps USB-A and USB-C ports
- Adjustable angle and height; supports laptops up to 16 in. and 4 kg
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JTS427 Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 2-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JTS427 |
| Product Name | Multi-Angle Dual HDMI Docking Stand |
| EAN | 4712795086447 |
Ports
| Host Connector | USB-C (female) |
| Video Output | 2 x HDMI (4K single display / 1080p dual display) |
| USB-C | 1 x USB-C 5Gbps (data + Power Delivery 3.0) |
| USB-A | 2 x USB Type-A 5Gbps |
| Network | 1 x Gigabit Ethernet |
Video & Audio
| Displays Supported | 2 |
| Max Resolution | 3840 x 2160 |
| Max Refresh Rate | 4K @ 30Hz |
| Audio | 2.1 via HDMI |
Power
| Power Delivery | Accepts up to 100W USB-C PD input; up to 90W pass-through to the laptop |
| Input | Up to 20V / 5A |
| Output | Up to 20V / 4.5A |
| Power Consumption | ≤ 900 mA |
| Power Source | Bus-powered or self-powered |
Physical
| Colour | Space Grey |
| Material | Aluminum enclosure and stand |
| Dimensions (H x W x D) | 290 x 226 x 53 mm |
| Weight | approx. 1.31 kg (2.89 lbs) incl. cable |
| Cable Length | 60 cm (23.6 in) |
| Maximum Weight Capacity | 4 kg (9 lbs) |
| Laptop Compatibility | Most laptops up to 16 in. |
| Assembly Required | No |
Environmental
| Operating Temperature | 0 to 30°C |
| Storage Temperature | -10 to 65°C |
| Humidity | < 85% non-condensing |
Compatibility
| Host | Thunderbolt 3/4 or USB-C laptop with DP Alt Mode |
Compatibility & System Requirements
System Requirements
- Available USB-C port supporting DisplayPort Alt Mode and USB Power Delivery 2.0 or 3.0
- DisplayPort 1.2 on the video source for 4K @ 30Hz
- Dual extended displays require a host supporting MST and DisplayPort 1.2
- macOS does not support MST - multiple monitors will mirror
- 4K-capable display and cable required for 3840 x 2160
Compatibility
| Host | Thunderbolt 3/4 or USB-C laptop with DP Alt Mode |
Package Contents & j5create Laptop & Monitor Stands Ordering Information
In the Box
- 1 x JTS427 Multi-Angle Dual HDMI Docking Stand
- 1 x USB-C 3.2 male-to-male host cable
- 1 x Quick Installation Guide
j5create Laptop & Monitor Stands at SourceIT
| Model | Product |
| JTS223 | Laptop Stand with USB 4-Port Hub |
| JTS127 | Multi-Angle Laptop Stand |
| JTS427 (this listing) | Multi-Angle Dual HDMI Docking Stand |
| JTSA302 | Ergonomic Dual-Monitor Mount with Docking Station |
| JCT425 | Wood Monitor Stand with Docking Station |
Datasheet & Downloads
| j5create product page | JTS427 on j5create.com |
| Quick Install Guide (JTS127/327/427) | Quick Install Guide (JTS127/327/427) (PDF) |
| Downloads & Drivers page | Downloads & Drivers page |
Need a document sent directly? Email sales@sourceit.com.sg quoting JTS427.
Frequently Asked Questions — j5create JTS427
How many external displays does it support?
2. Actual output depends on your laptop's USB-C / Thunderbolt video support; see the Compatibility section.
How much charging power reaches my laptop?
Up to about 90W, based on j5create’s published output rating, when a suitable USB-C PD power adapter is connected (adapter sold separately unless listed in the box).
What warranty do I get?
2-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JTS427 and the quantity for volume pricing and delivery lead time.
