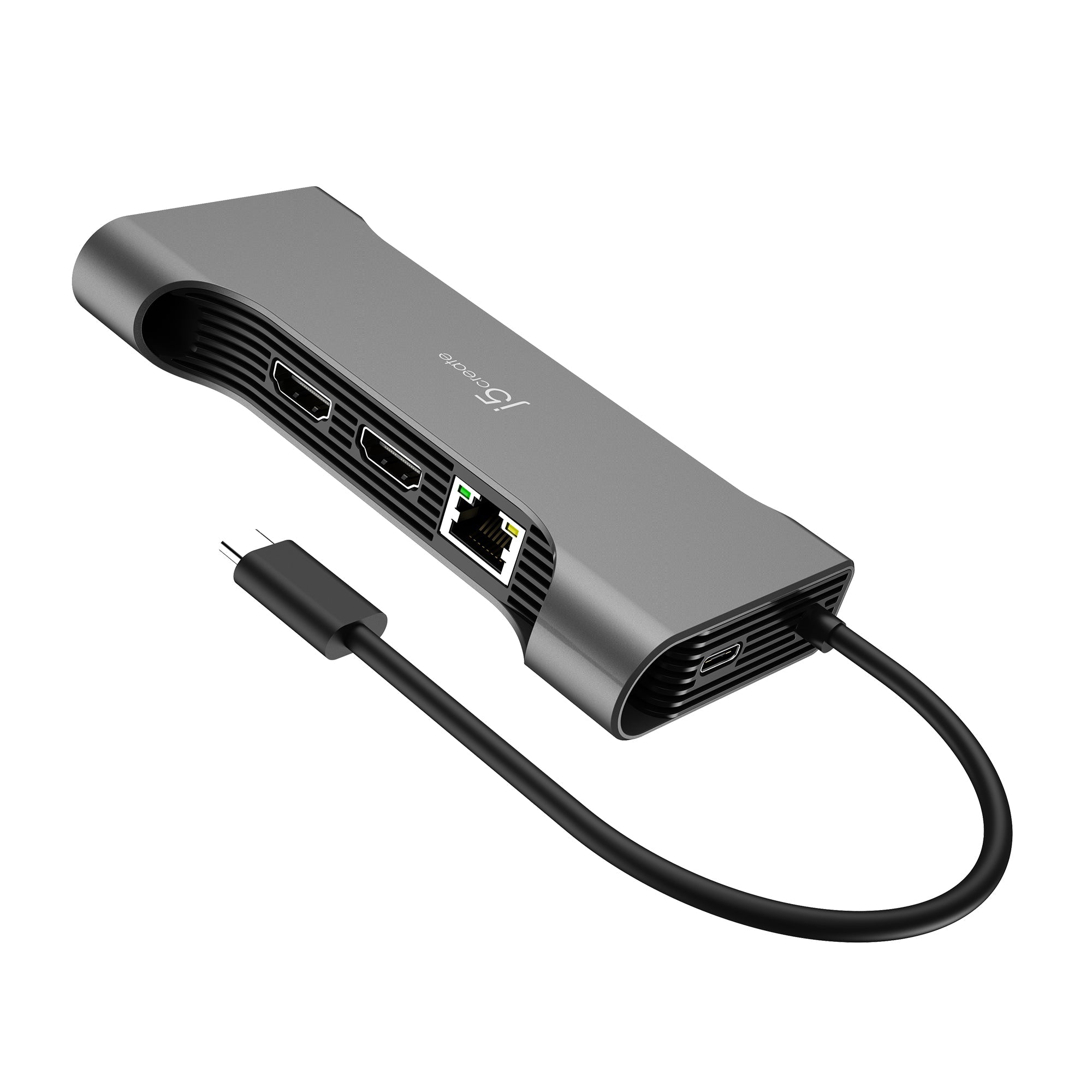

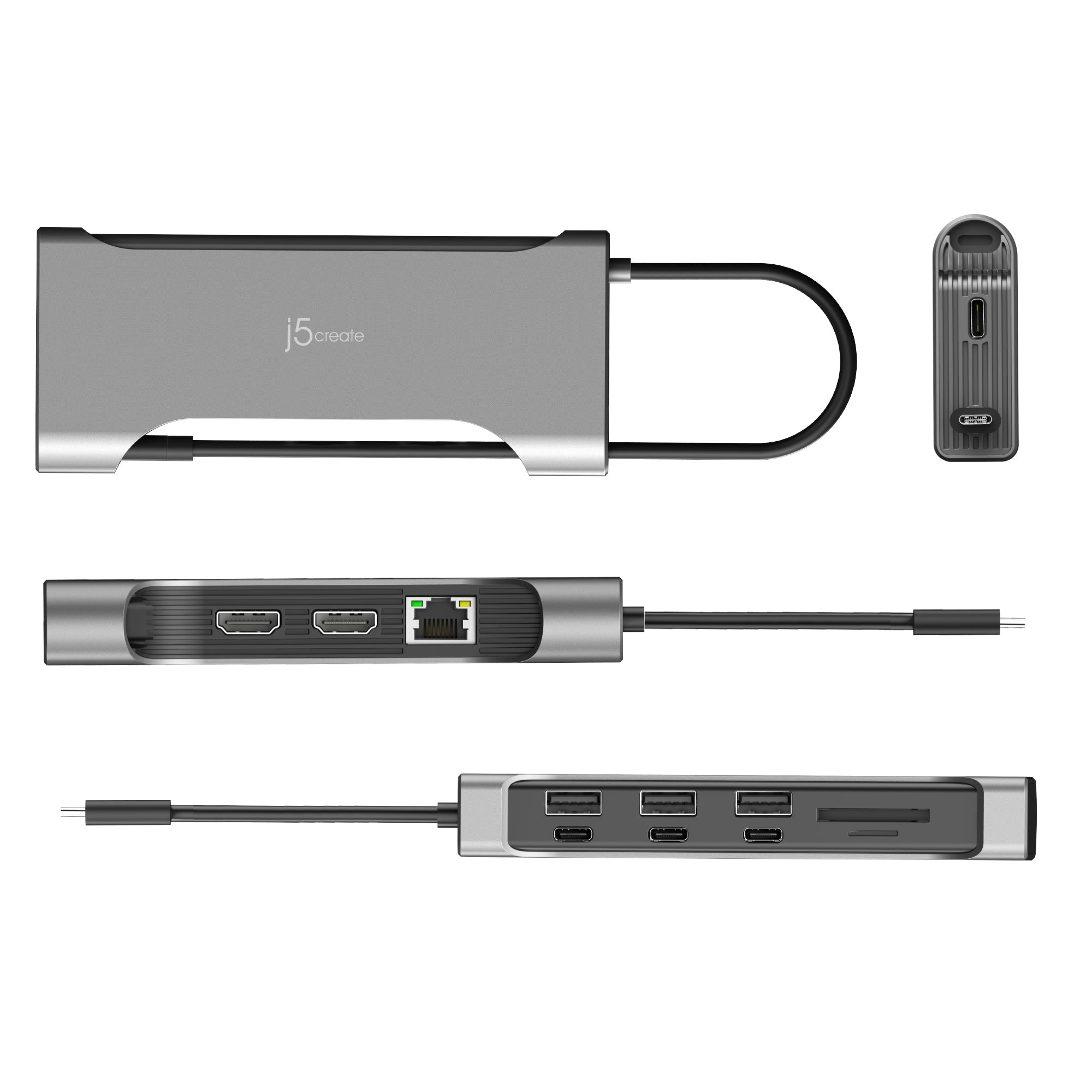

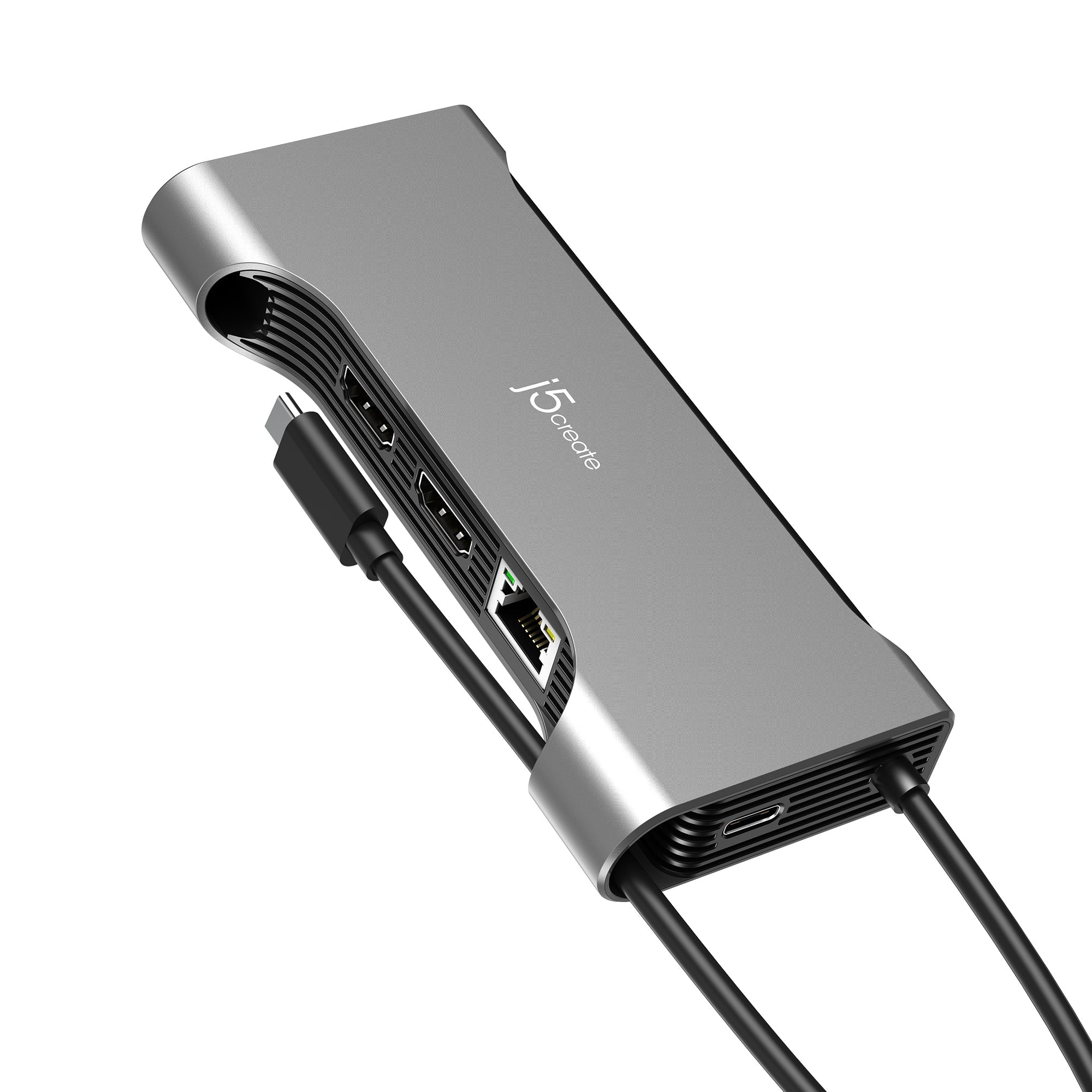

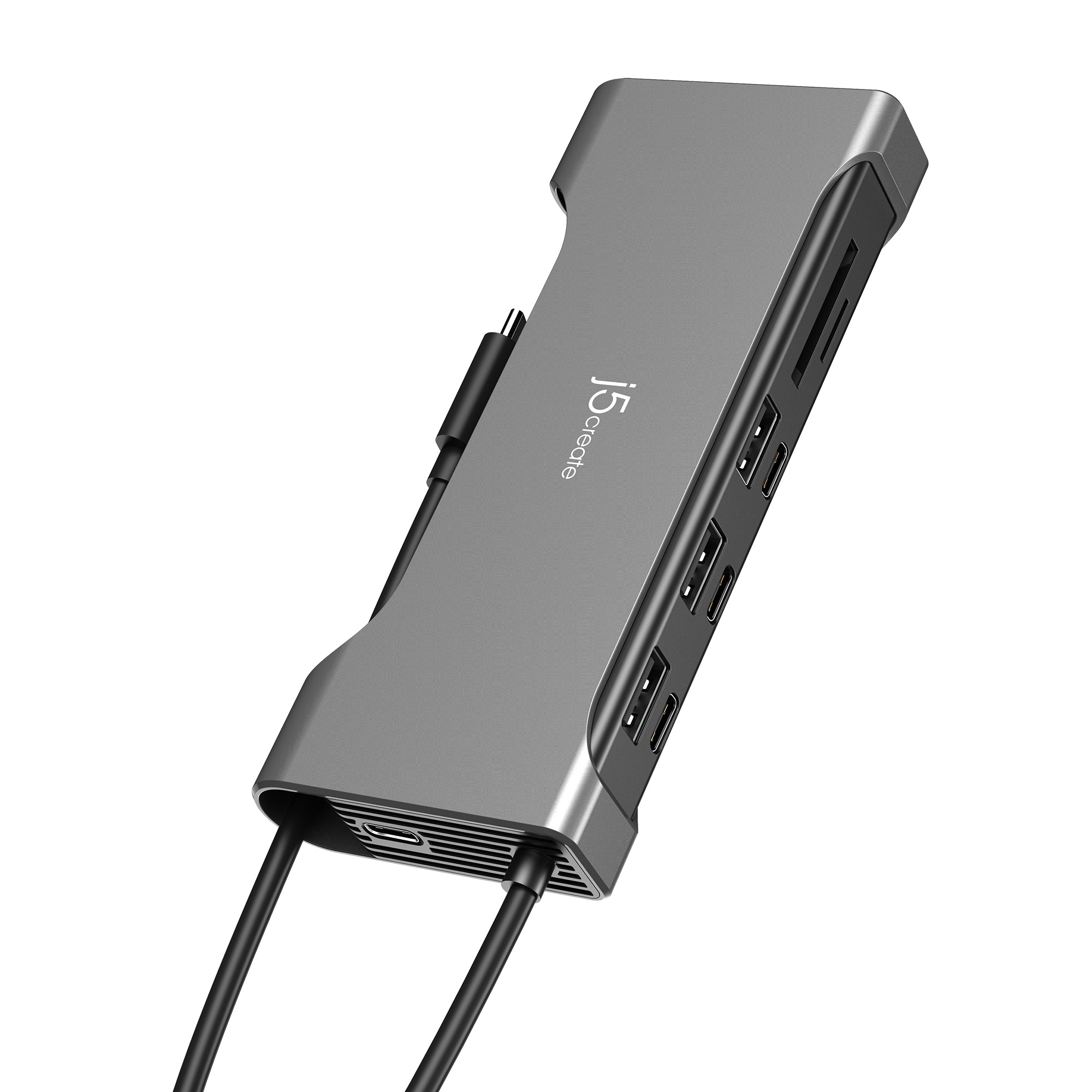

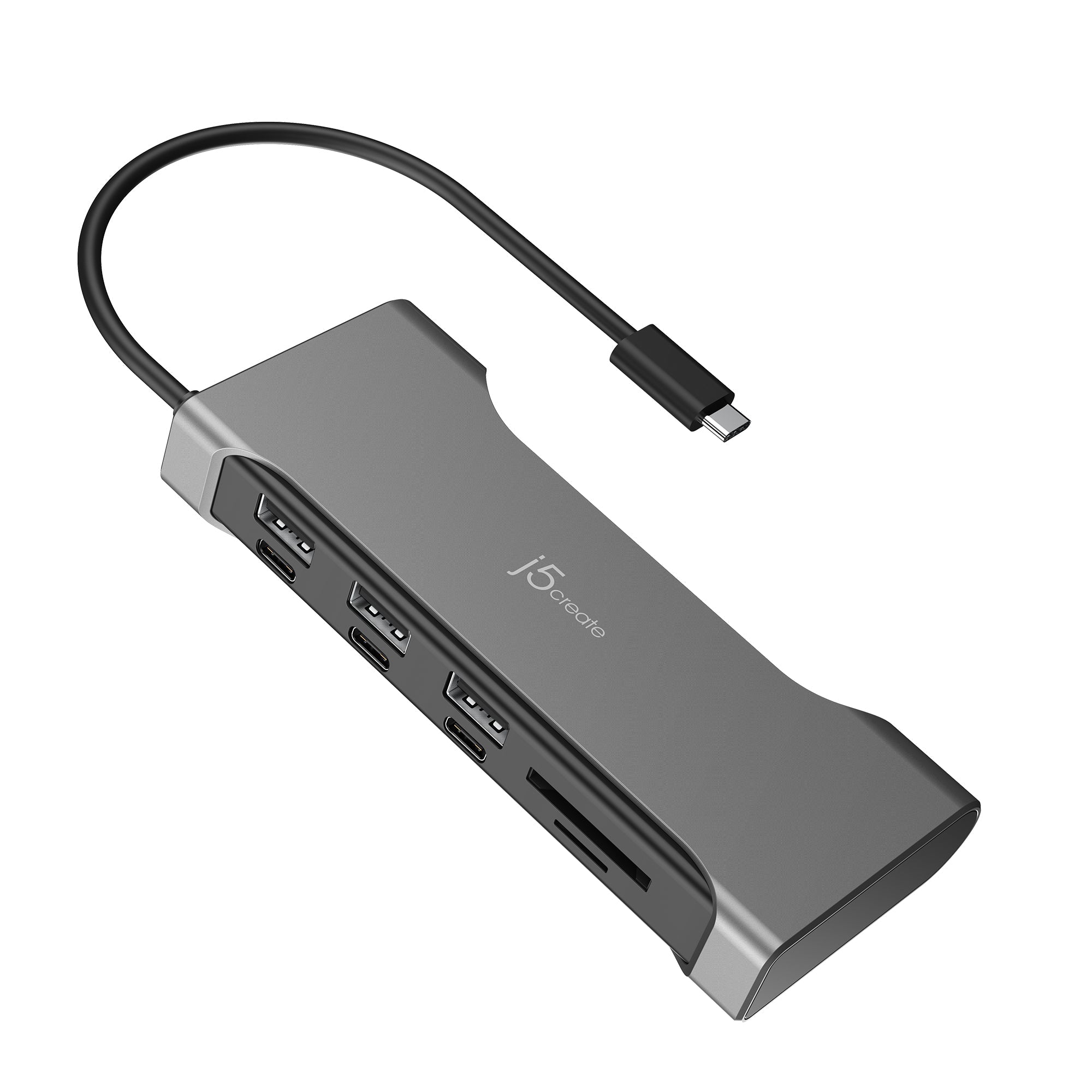

J5Create JCD367 Flexible Ports USB-C Dual 4K60 HDMI Hub - Pro 12-in-1
Shipping calculated at checkout.
PRODUCT DESCRIPTION
J5Create JCD367 Flexible Ports USB-C Dual 4K60 HDMI Hub - Pro 12-in-1 - 2 Years Local Warranty
A slim USB-C hub that turns one laptop port into display output, USB connectivity and pass-through charging.
Key Features
- Two HDMI outputs, each up to 4K at 60Hz (dual extended on Windows via MST)
- Gigabit Ethernet plus SD/microSD 3.0 card slots
- Six USB ports across USB-C and USB-A
- USB-C PD pass-through charging up to 100W
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JCD367 Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 2-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JCD367 |
| Product Name | Flexible Ports USB-C Dual 4K60 HDMI Hub - Pro 12-in-1 |
| EAN | 4711704920001 |
Video Output
| HDMI | 2x HDMI, 4K @ 60Hz (or 1080p @ 144Hz) |
| Multi-Display | Windows: dual HDMI via MST; macOS: mirror mode only (MST not supported by macOS) |
| Audio Channel | 2.1 via HDMI |
Ports
| Host Connector | 1x USB-C male, PD 3.0 up to 100W |
| USB-C | 3x USB-C 3.2 Gen 1 (5Gbps) |
| USB-A | 3x USB Type-A (480Mbps) |
| Card Reader | SD and microSD 3.0 (UHS-I, up to 104 MB/s) |
| Ethernet | 1x Gigabit Ethernet (1000Mbps) |
| USB-C PD In | 1x USB-C PD, up to 100W |
| Max Data Transfer Rate | 5 Gbps |
Power
| Power Delivery | Accepts up to 100W USB-C PD input; up to 85W pass-through to the laptop |
| Input | Up to 20V / up to 5A |
| Output | Up to 20V / up to 4.25A |
| Power Consumption | ≤ 400 mA |
Compatibility
| Host | USB-C laptops supporting DisplayPort Alt Mode |
| Driver | Plug-and-play, no driver installation required |
Physical
| Dimensions (W x D x H) | 118 x 47 x 19 mm (4.65 x 1.85 x 0.74 in) |
| Weight | 167 g (5.89 oz) |
| Cable Length | 200 mm (7.87 in) |
| Colour | Space Grey |
| Enclosure | Aluminium, ABS plastic |
| Operating Temperature | -1 to 41°C (30 to 116°F) |
| Storage Temperature | -17 to 68°C (0 to 155°F) |
| Operating / Storage Humidity | < 85% non-condensing |
Compatibility & System Requirements
System Requirements
- Available DisplayPort Alt Mode over USB-C port
- USB Power Delivery 2.0/3.0 compatible for upstream charging
Compatibility
| Host | USB-C laptops supporting DisplayPort Alt Mode |
| Driver | Plug-and-play, no driver installation required |
Package Contents & j5create USB-C Hubs Ordering Information
In the Box
- 1x Flexible Ports USB-C Dual 4K60 HDMI Hub - Pro 12-in-1 (JCD367)
- 1x Quick Installation Guide
j5create USB-C Hubs at SourceIT
| Model | Product |
| JCD3002 | USB-C 7-in-1 4K Multi-Port Hub with Screen-Off Control (PD) |
| JCD3006 | USB-C 7-in-1 4K Multi-Port Hub (PD) |
| JCD361 | Flexible Ports USB-C 4K144 HDMI Hub - Cube Plus 6 in 1 |
| JCD362 | Flexible Ports USB-C 4K144 HDMI Hub - Slim 8 in 1 |
| JCD367 (this listing) | Flexible Ports USB-C Dual 4K60 HDMI Hub - Pro 12-in-1 |
Datasheet & Downloads
| j5create product page | JCD367 on j5create.com |
| Quick Install Guide (PDF) | Quick Install Guide (PDF) (PDF) |
| Downloads & Drivers (general) | Downloads & Drivers (general) |
Need a document sent directly? Email sales@sourceit.com.sg quoting JCD367.
Frequently Asked Questions — j5create JCD367
Does it need a driver?
Plug-and-play, no driver installation required
How much charging power reaches my laptop?
Up to about 85W, based on j5create’s published output rating, when a suitable USB-C PD power adapter is connected (adapter sold separately unless listed in the box).
What warranty do I get?
2-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JCD367 and the quantity for volume pricing and delivery lead time.
