J5Create JCD3006 USB-C 7-in-1 4K Multi-Port Hub (PD)
PRODUCT DESCRIPTION
J5Create JCD3006 USB-C 7-in-1 4K Multi-Port Hub (PD) - 2 Years Local Warranty
A slim USB-C hub that turns one laptop port into display output, USB connectivity and pass-through charging.

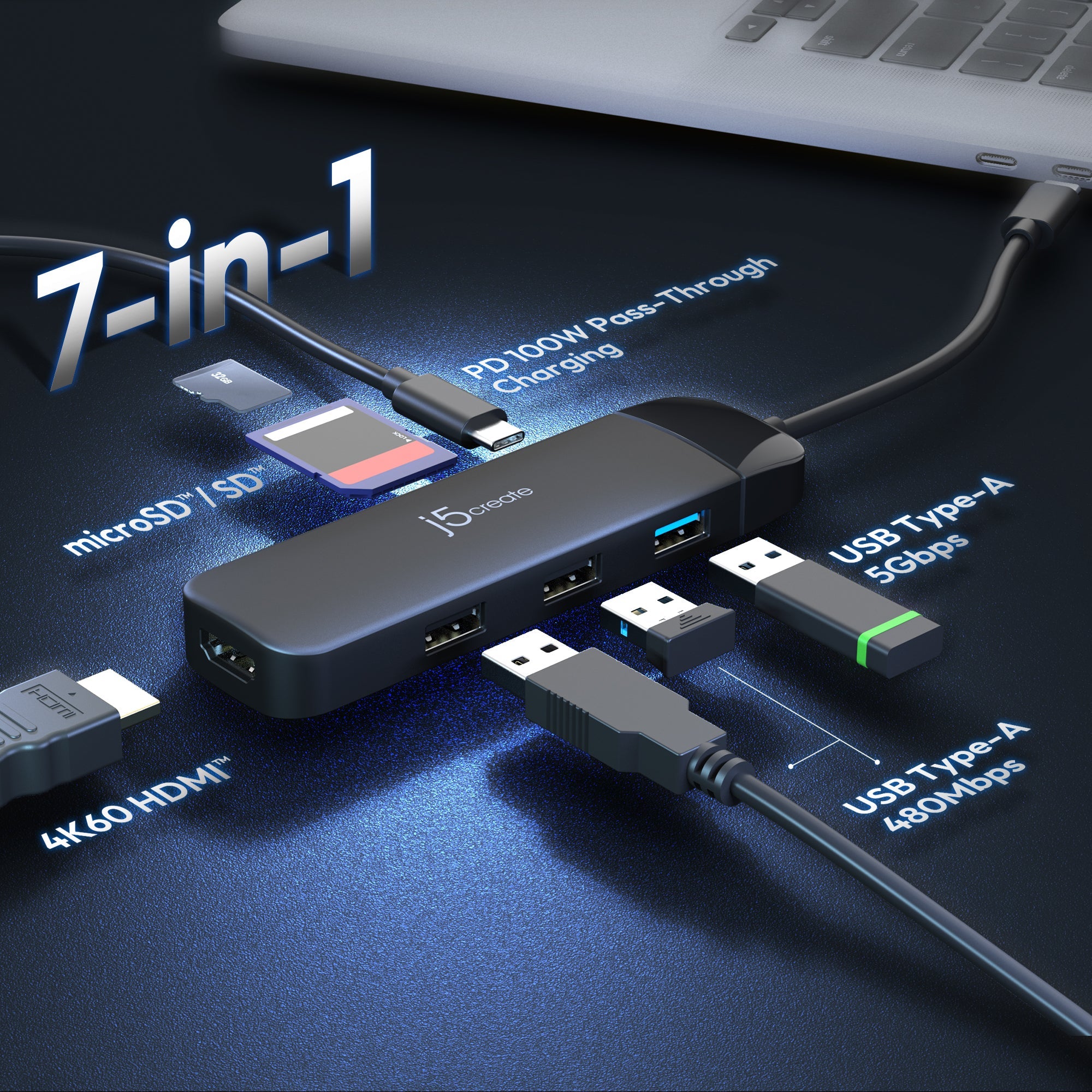

Key Features
- Single HDMI output up to 4K at 60Hz
- USB-C Power Delivery 3.0 pass-through charging up to 100W
- SD / microSD 2.0 card reader plus USB-A expansion
- Driver-free plug-and-play over one USB-C cable
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JCD3006 Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 2-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JCD3006 |
| Product Name | USB-C 7-in-1 4K Multi-Port Hub (PD) |
| EAN | 4711704920209 |
Video Output
| HDMI | 1x HDMI female, 4K @ 60Hz |
| Max Resolution | 3840 x 2160 |
| Max Refresh Rate | 60 Hz |
| Displays Supported | 1 |
| Audio | Supported |
Ports
| Host Connector | 1x USB-C 3.2 male |
| USB-A | 1x USB Type-A 3.2 (5Gbps), 2x USB Type-A (480Mbps) |
| Card Reader | 1x microSD / SD 2.0 |
| USB-C PD | 1x USB-C PD 3.0, up to 100W |
| Max Data Transfer Rate | 5 Gbps |
Power
| Power Source | Bus-powered or self-powered |
| Power Delivery | Accepts up to 100W USB-C PD input; up to 85W pass-through to the laptop |
| Input | Up to 20V / up to 5A |
| Output | Up to 20V / up to 4.25A |
| Power Consumption | ≤ 400 mA |
Physical
| Dimensions (W x H x D) | 34.4 x 120.4 x 15 mm (1.35 x 4.74 x 0.59 in) |
| Weight | 50.5 g (1.78 oz) |
| Cable Length | 170 mm (6.69 in) |
| Colour | Black |
| Enclosure | ABS plastic |
| Operating Temperature | -1 to 41°C (30 to 116°F) |
| Storage Temperature | -17 to 68°C (0 to 155°F) |
| Operating / Storage Humidity | < 85% non-condensing |
Compatibility & System Requirements
System Requirements
- Available DisplayPort Alt Mode over USB-C port
- Available USB Power Delivery over USB-C to support upstream charging
Package Contents & j5create USB-C Hubs Ordering Information
In the Box
- 1x USB-C 7-in-1 4K Multi-Port Hub (PD) (JCD3006)
- 1x Quick Installation Guide
j5create USB-C Hubs at SourceIT
| Model | Product |
| JCD3002 | USB-C 7-in-1 4K Multi-Port Hub with Screen-Off Control (PD) |
| JCD3006 (this listing) | USB-C 7-in-1 4K Multi-Port Hub (PD) |
| JCD361 | Flexible Ports USB-C 4K144 HDMI Hub - Cube Plus 6 in 1 |
| JCD362 | Flexible Ports USB-C 4K144 HDMI Hub - Slim 8 in 1 |
| JCD367 | Flexible Ports USB-C Dual 4K60 HDMI Hub - Pro 12-in-1 |
Datasheet & Downloads
| j5create product page | JCD3006 on j5create.com |
| Downloads & Drivers (general) | Downloads & Drivers (general) |
Need a document sent directly? Email sales@sourceit.com.sg quoting JCD3006.
Frequently Asked Questions — j5create JCD3006
How many external displays does it support?
1. Actual output depends on your laptop's USB-C / Thunderbolt video support; see the Compatibility section.
How much charging power reaches my laptop?
Up to about 85W, based on j5create’s published output rating, when a suitable USB-C PD power adapter is connected (adapter sold separately unless listed in the box).
What warranty do I get?
2-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JCD3006 and the quantity for volume pricing and delivery lead time.
