J5Create JCD3002 USB-C 7-in-1 4K Multi-Port Hub with Screen-Off Control (PD)
Shipping calculated at checkout.
PRODUCT DESCRIPTION
J5Create JCD3002 USB-C 7-in-1 4K Multi-Port Hub with Screen-Off Control (PD) - 2 Years Local Warranty
A slim USB-C hub that turns one laptop port into display output, USB connectivity and pass-through charging.

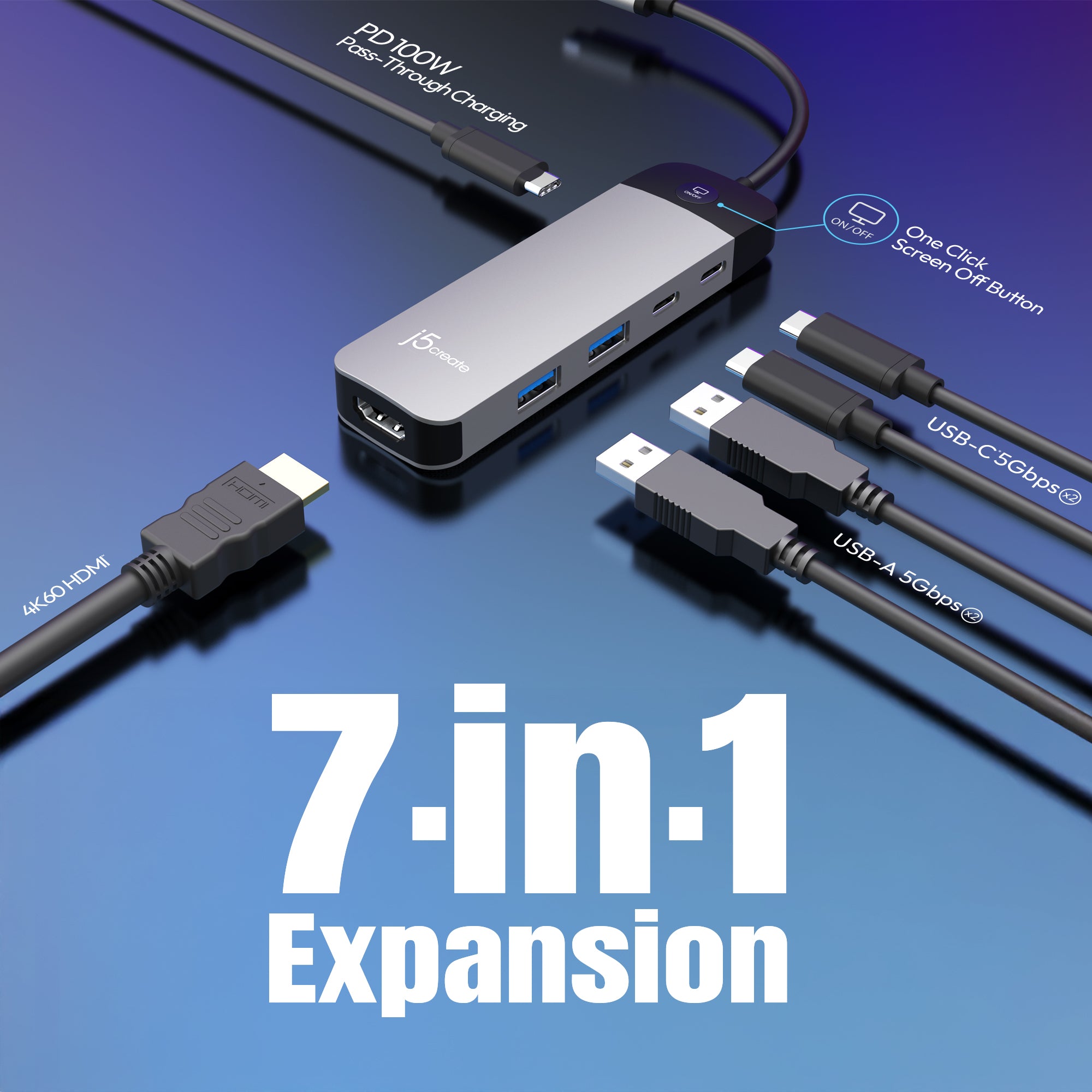

Key Features
- Single HDMI output at 4K 60Hz via USB-C DisplayPort Alt Mode

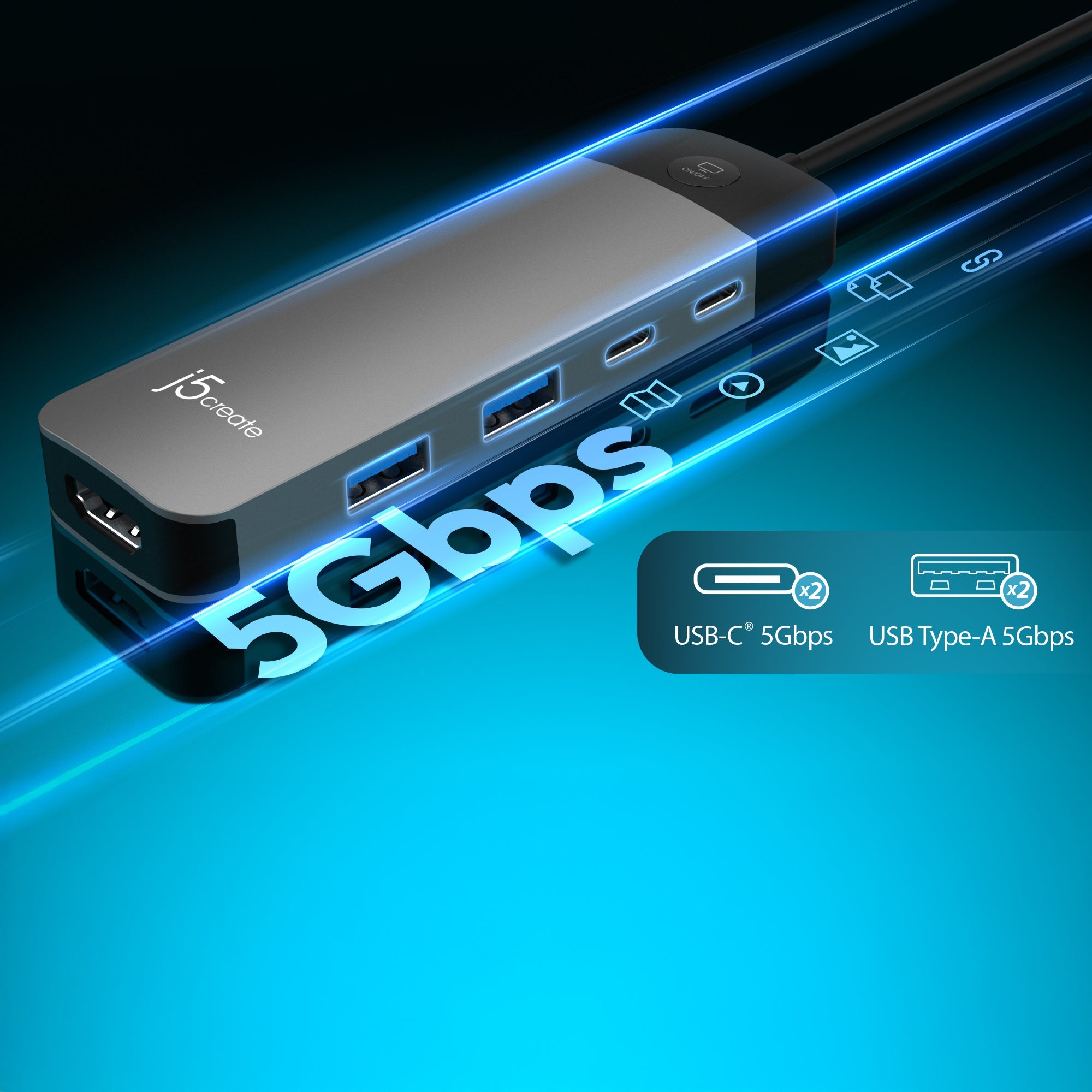

- Two USB-C and two USB-A data ports at 5Gbps

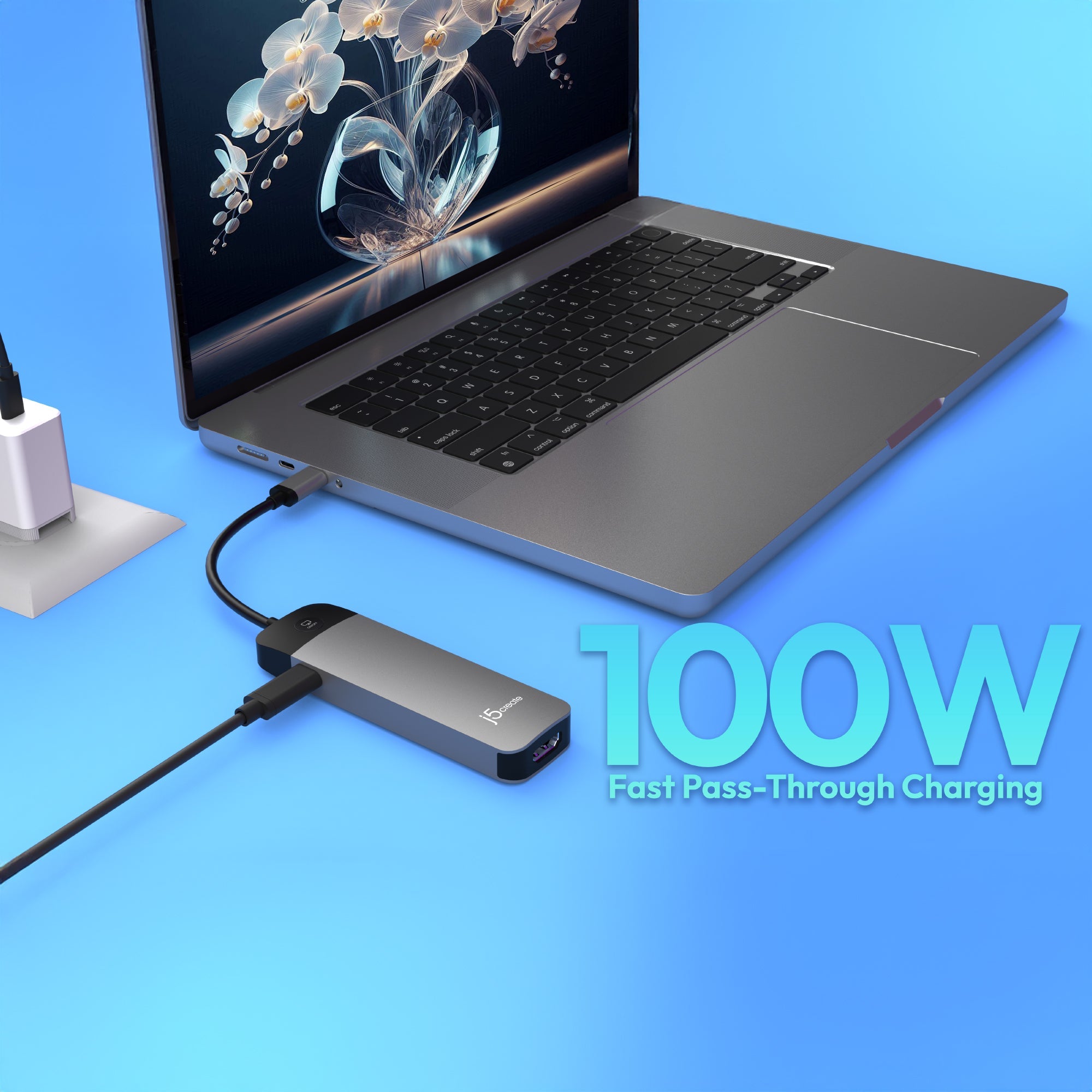

- USB-C PD 3.0 pass-through charging up to 100W

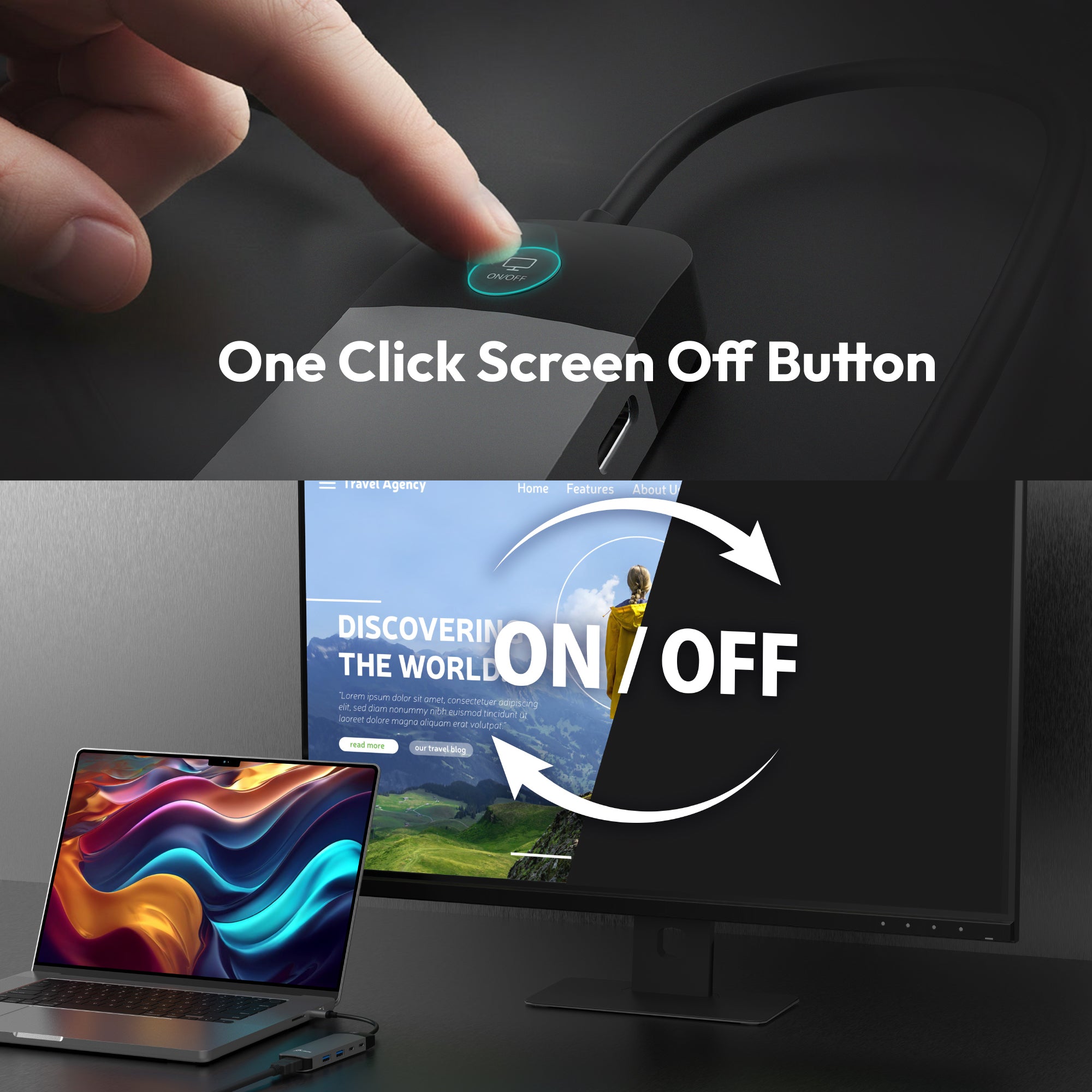

- Screen-Off Control button; plug and play with no drivers
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JCD3002 Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 2-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JCD3002 |
| Product Name | USB-C 7-in-1 4K Multi-Port Hub with Screen-Off Control (PD) |
| EAN | 4711704920100 |
Ports
| HDMI | 1 x HDMI 4K @ 60Hz |
| USB-C Data | 2 x USB-C 3.2 5Gbps |
| USB-A Data | 2 x USB Type-A 3.2 5Gbps |
| Power Delivery | 1 x USB-C PD 3.0 up to 100W |
| Host Connector | USB-C male |
Video
| Max Resolution | 3840 x 2160 @ 60Hz |
| Displays Supported | 1 |
| Audio Channel | 2.1 via HDMI |
Power
| Power Source | Bus-powered |
| Power Consumption | <= 500 mA |
| PD Pass-through | Up to 100W |
Performance
| Max Data Rate | 5 Gbps |
| Drivers | Plug and play, no driver required |
Physical
| Dimensions (D x H x W) | 15 x 115 x 34 mm (0.59 x 4.53 x 1.33 in) |
| Weight | 51 g (1.69 oz) |
| Cable Length | 100 mm (3.94 in) |
| Colour | Space Grey |
| Enclosure | Aluminium, ABS plastic |
| Operating Temperature | -1 to 41 C (30 to 106 F) |
| Storage Temperature | -17 to 68 C (0 to 155 F) |
| Humidity | < 85% non-condensing |
Compatibility & System Requirements
System Requirements
- Available USB-C port that supports DisplayPort Alt Mode
- 4K-capable display required for 3840 x 2160
Package Contents & j5create USB-C Hubs Ordering Information
In the Box
- 1 x JCD3002 USB-C 4K60 Hub with PD and Screen-Off Control
- 1 x Quick Installation Guide
j5create USB-C Hubs at SourceIT
| Model | Product |
| JCD3002 (this listing) | USB-C 7-in-1 4K Multi-Port Hub with Screen-Off Control (PD) |
| JCD3006 | USB-C 7-in-1 4K Multi-Port Hub (PD) |
| JCD361 | Flexible Ports USB-C 4K144 HDMI Hub - Cube Plus 6 in 1 |
| JCD362 | Flexible Ports USB-C 4K144 HDMI Hub - Slim 8 in 1 |
| JCD367 | Flexible Ports USB-C Dual 4K60 HDMI Hub - Pro 12-in-1 |
Datasheet & Downloads
| j5create product page | JCD3002 on j5create.com |
| Quick Install Guide | Quick Install Guide (PDF) |
Need a document sent directly? Email sales@sourceit.com.sg quoting JCD3002.
Frequently Asked Questions — j5create JCD3002
Does it need a driver?
Plug and play, no driver required
How many external displays does it support?
1. Actual output depends on your laptop's USB-C / Thunderbolt video support; see the Compatibility section.
What warranty do I get?
2-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JCD3002 and the quantity for volume pricing and delivery lead time.
