HPE StoreEasy 1470 8TB SATA Storage with Microsoft Windows Server IoT 2022
PRODUCT DESCRIPTION
HPE StoreEasy 1470 8TB SATA Storage with Microsoft Windows Server IoT 2022 (S2A23A) - Local Warranty
Windows-native file storage in 1U

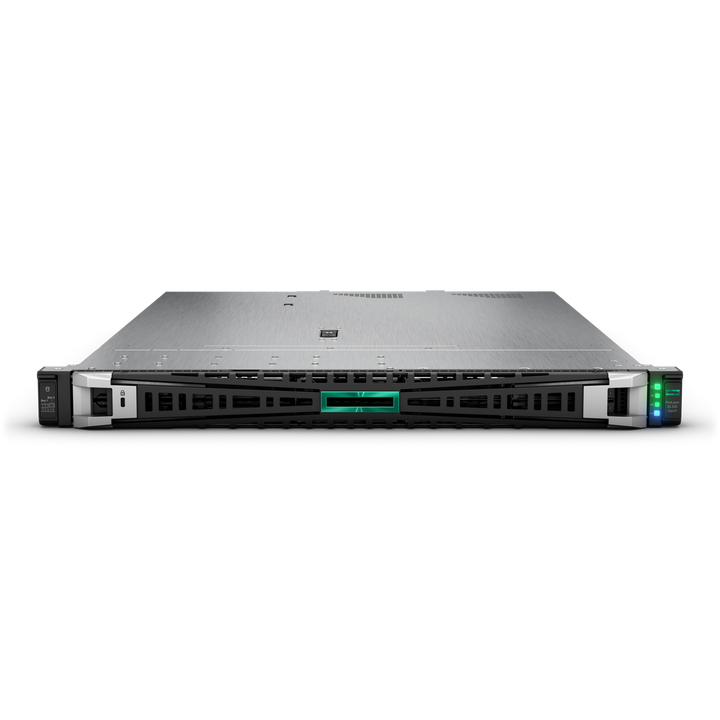

The HPE StoreEasy 1470 8TB SATA Storage with Microsoft Windows Server IoT 2022 (S2A23A) is a pre-configured HPE StoreEasy 1470 NAS built on the HPE ProLiant DL320 Gen11 platform, with 8TB of SATA capacity installed and Microsoft Windows Server IoT 2022 for Storage pre-loaded and activated.
SMB, NFS and iSCSI from one box
Serve Windows, macOS and Linux clients over SMB 3.1.1 and NFS v4.1, present iSCSI targets to application servers, and use built-in deduplication, DFS Replication and Azure File Sync without extra licences.
Simple to run, easy to protect
The HPE StoreEasy management console shows health, capacity forecasting and snapshots in one web view; HPE iLO 6 with an iLO Advanced licence handles remote management. Backed by HPE's 3-year parts, labour and onsite warranty.
HPE StoreEasy 1470 8TB SATA Storage with Microsoft Windows Server IoT 2022 Datasheet — Technical Specifications
Hardware
| Model | HPE StoreEasy 1470 8TB SATA Storage with Microsoft Windows Server IoT 2022 (S2A23A) |
| Platform | HPE ProLiant DL320 Gen11, 1U rack |
| Processor | 1 x Intel Xeon-Bronze 3408U (1.8 GHz, 8-core, 125 W) |
| Memory | 16 GB (1 x 16 GB DDR5-4800 RDIMM); 16 DIMM slots, up to 256 GB |
| Data Drives Included | 4 x 2 TB SATA 6G Midline 7.2K LFF HDD |
| Raw Capacity | 8TB |
| Drive Bays | 4 x LFF hot-plug front bays (operating system on the internal drives) |
| RAID | Intel VROC software RAID (no cache) |
| Network | 2 x 1GbE embedded (Broadcom BCM5720); optional 1/10/25GbE PCIe adapters |
| Expansion | 1 x PCIe Gen4 x16 slot; 1 x OCP 3.0 slot free |
| Power Supply | 1 x 500 W Platinum hot-plug (second redundant PSU optional) |
| Power Consumption | approx. 298 W at 100% utilisation (HPE Power Advisor) |
| Dimensions | 43 mm H x 435 mm W x 665 mm D |
| Weight | Up to 17.7 kg |
| Security | TPM 2.0; optional lockable bezel |
Software & Services
| Operating System | Microsoft Windows Server IoT 2022 for Storage, Standard Edition, pre-installed and activated (unlimited client access, up to 16 licensed cores, up to 2 Hyper-V VMs with separate VM licences) |
| File Protocols | SMB 2.0 to 3.1.1 (AES-256 encryption, SMB compression), NFS v2 / v3 / v4.1, iSCSI target, WebDAV, HTTP/HTTPS, FTP/FTPS |
| Storage Services | Data deduplication, DFS Replication, Storage Replica, Azure File Sync and Azure Backup, File Server Resource Manager (quotas, file screening), VSS snapshots, BranchCache |
| Security | Secured-core server, TPM 2.0 hardware root of trust, Windows Defender, TLS 1.3 |
| Management | HPE StoreEasy management console (health, capacity, performance, snapshots, quotas, configuration wizard), Windows Admin Center, HPE iLO 6 with iLO Advanced licence (1 year) |
| HPE Warranty | 3 years parts, 3 years labour, 3 years onsite, next business day; 1 year 9x5 HPE software support for the operating system |
What's Included & Compatible Options
- HPE StoreEasy 1470 system with the processor, memory and drives listed above, Windows Server IoT 2022 for Storage pre-installed
- Rail kit and power cord
- HPE iLO Advanced licence (1 year)
HPE StoreEasy 1000 Range — Ordering Information
Datasheet & Downloads
| HPE QuickSpecs | HPE StoreEasy 1000 Storage QuickSpecs |
| HPE product page | HPE StoreEasy 1000 Storage on hpe.com |
| User guide | HPE StoreEasy 1000 User Guide on HPE Support |
Frequently Asked Questions — HPE StoreEasy 1470 8TB SATA Storage with Microsoft Windows Server IoT 2022
Do I need Windows client licences?
No. Windows Server IoT 2022 for Storage includes unlimited client access for file services; only additional Hyper-V virtual machines need their own Windows licences.
Can I add capacity later?
The 1470 has four LFF bays, all populated in this model. For more capacity, attach an HPE MSA array or HPE D3x10 enclosure through an HPE Smart Array E208e-p controller, or step up to the 12-bay HPE StoreEasy 1670.
Is this model still current?
HPE has marked the StoreEasy 1000 Gen11 range as end-of-sale in its QuickSpecs; we supply from distributor stock while available — please check lead time with us before ordering.
