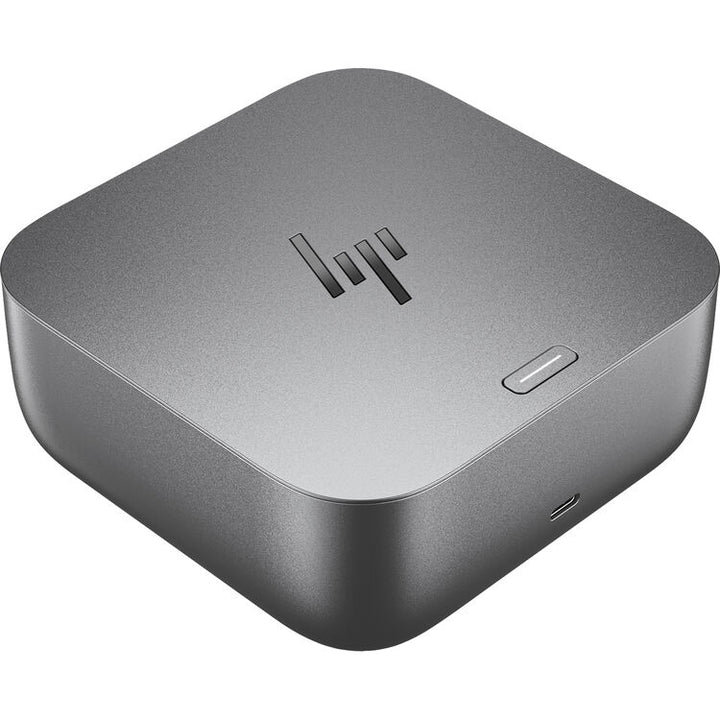

HP Thunderbolt 4 Ultra 280W G6 Dock

HP Thunderbolt 4 Ultra 280W G6 Dock (AW5M5UT) - 1 Years Local Warranty

High-Performance Thunderbolt 4 Docking Solution

HP Thunderbolt 4 Ultra 280W G6 Dock (AW5M5UT) is an enterprise-grade docking station designed to deliver advanced connectivity, high-speed data transfer, and powerful charging capabilities for modern business environments. Built with Thunderbolt 4 technology, this dock enables users to create a fully connected workstation using a single cable connection.

Ultra 280W Power Delivery for Demanding Workloads

Featuring up to 280W power capability, the HP Thunderbolt 4 Ultra G6 Dock is designed to support high-performance laptops and workstation environments. It provides reliable charging while connecting displays, storage devices, peripherals, and network resources, helping maintain productivity without multiple power adapters.

Advanced Connectivity and Multi-Display Expansion

The Thunderbolt 4 interface delivers high-speed connectivity for monitors, external drives, accessories, and enterprise peripherals. The dock helps users expand their workspace with support for multiple devices while simplifying cable management and improving efficiency in office and hybrid work setups.

Designed for Enterprise and Professional Users

Built for business professionals, creators, and enterprise users, the HP Thunderbolt 4 Ultra 280W G6 Dock is suitable for high-performance workstations, productivity environments, and collaborative workspaces. Its enterprise-ready design supports flexible workplace deployments while maintaining reliable connectivity.

Technical Specifications

General
Model: AW5M5UT
Product Name: HP Thunderbolt 4 Ultra 280W G6 Dock
Product Type: Thunderbolt Docking Station / Enterprise Dock
Form Factor: Desktop Docking Station
Color: Black / Dark Gray
Deployment: Enterprise, Hybrid Workplace, High Performance Mobile Workstations, Hot Desk Environments
Usage Mode: Single-cable docking solution for power, display, networking and peripheral connectivity

Power Specifications
Host Charging Power: Up to 280W Power Delivery (supported systems)
Power Adapter Rating: 330W External Power Adapter
Power Delivery Technology: Thunderbolt 4 + USB Power Delivery
Power Input Type: External AC Adapter
Auxiliary USB-C Charging: Up to 15W via USB-C ports

Host Connectivity
Host Interface: Thunderbolt 4
Secondary Power Connector: 4.5 mm Power Barrel Connector
Data Transfer Speed: Up to 40 Gbps
Cable Length: 1 m Integrated Cable
Connection Type: Wired Docking Station

Supported Interfaces:
• Thunderbolt 4
• USB4 Compatible
• USB-C DisplayPort Alt Mode
• USB Power Delivery

USB & Expansion Ports
Front Ports:
• 1 × USB-C 3.2 Gen 2 (10Gbps, 15W Power Delivery)

Side Ports:
• 3 × USB-A 3.2 Gen 2 (10Gbps, charging support)
• 1 × USB-C 3.2 Gen 2 (10Gbps, 15W PD)

Rear Ports:
• 2 × USB-A 3.2 Gen 1 (5Gbps, charging support)
• 1 × USB-C DisplayPort Alt Mode
• 1 × Thunderbolt 4

Total USB Ports: 8

Display & Video Output
Video Outputs:
• 2 × DisplayPort 1.4
• 1 × HDMI 2.1
• 1 × USB-C Display Output
• 1 × Thunderbolt 4 Display Support

Maximum Resolution: Up to 8K
Display Support:
• Up to 4 External Displays
• Up to 3 External + Notebook Display

Display Performance:
Single Display: Up to 8K
Multiple Displays: Up to 4 × 4K @ 60Hz
Refresh Rate Support: Up to 360Hz (supported configurations)

Networking
Ethernet Port: 1 × RJ-45
Ethernet Speed: 2.5 Gigabit Ethernet (2.5GbE)
Wake-on-LAN: Supported
MAC Address Pass-Through: Supported on compatible HP systems
PXE Boot: Supported

Management & Security Features
HP Quick Connect: Supported
HP Wolf Security: Supported
HP Sure Start: Supported
Zero Trust Framework: Supported
Poly Lens Remote Management: Supported
Firmware Self-Validation: Supported
Disconnected Firmware Updates: Supported
Remote Device Monitoring: Supported

Compatibility
Supported Operating Systems:
• Windows 10
• Windows 11
• macOS
• Linux
• HP ThinPro
• ChromeOS

Compatible Devices:
• HP EliteBook Series
• HP ZBook Series
• HP ProBook Series
• Thunderbolt 4 Laptops
• USB4 Devices
• USB-C Systems

Performance Features
Thunderbolt 4 40Gbps connectivity
Up to 280W laptop charging
4 display support capability
Multi-device workstation deployment
Enterprise remote manageability
Hybrid workplace optimization
High bandwidth workstation support

Design & Construction
Design: Compact Cube Design
LED Indicators: RGB LED Bar
Power Button LED: RGB Status Indicator
Security Slot: Nano Security Lock Support
Construction: Enterprise Grade Housing

Physical Specifications
Dimensions (W × D × H): 12.1 × 12.1 × 4.95 cm
Weight: 790 g
Color: Dark Gray / Black

Environmental Specifications
Operating Temperature: 0°C – 35°C
Operating Humidity: 10% – 90% Non-Condensing
Storage Humidity: 5% – 95% Non-Condensing

Sustainability
Post-Consumer Recycled Plastic: 35%
Plastic-Free Packaging: Supported
Serviceable Replaceable Parts Design: Supported

Package Contents
HP Thunderbolt 4 Ultra 280W G6 Dock
330W Power Adapter
Thunderbolt 4 + Power Barrel Cable (1 m)
Power Cord
Warranty Card
Documentation

Key Features
280W laptop charging
Thunderbolt 4 connectivity
40Gbps transfer speed
Up to 4 external displays
2.5GbE networking
8 USB expansion ports
HP Wolf Security
HP Quick Connect
Enterprise remote management ready

Typical Use Cases
Mobile workstation deployment
ZBook docking environments
Hot desk workspaces
Enterprise notebook deployment
Multi-monitor productivity setups
Hybrid workplace environments
Engineering and CAD users
