HP 100W USB-C G6 Dock

HP 100W USB-C G6 Dock (9X3V1UT) - 1 Years Local Warranty

Universal USB-C Docking Solution for Modern Workspaces

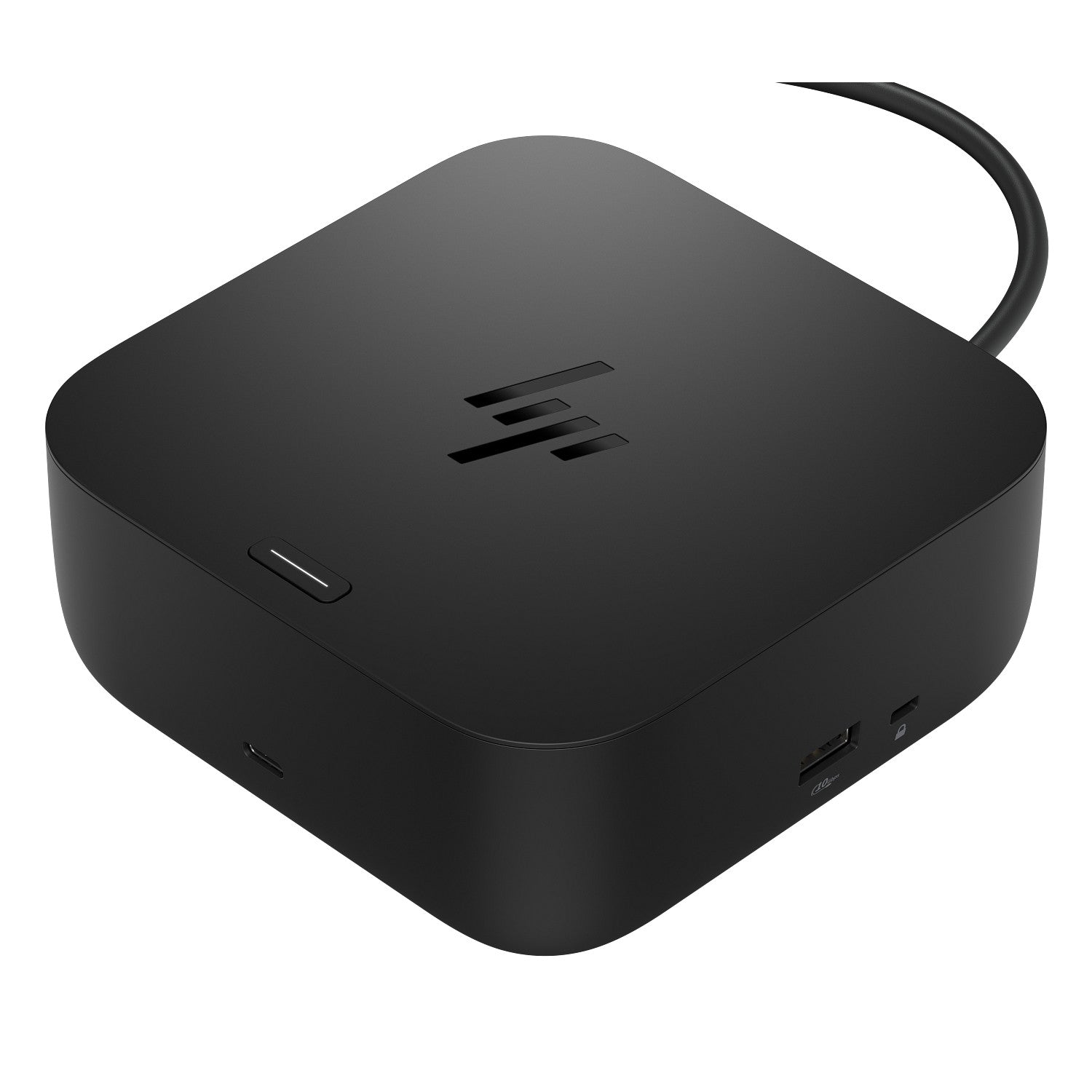

HP 100W USB-C G6 Dock (9X3V1UT) is a business-class docking station designed to simplify connectivity and improve productivity for modern work environments. With a single USB-C connection, users can expand laptop connectivity, power devices, and connect multiple peripherals, making it ideal for office, hybrid work, and enterprise deployments.

100W Power Delivery for Efficient Charging

Equipped with up to 100W USB-C power delivery, the HP G6 Dock enables compatible HP and USB-C laptops to charge while connected to displays, accessories, and network devices. This reduces cable clutter and creates a cleaner workspace while ensuring devices remain powered throughout the workday.

Expand Connectivity and Multi-Device Support

The HP USB-C G6 Dock supports various business peripherals including monitors, keyboards, mice, storage devices, and wired networks. It helps users build an efficient workstation by providing expanded ports and streamlined connectivity, improving productivity for professionals handling multitasking workloads.

Built for Enterprise and Hybrid Work Environments

Designed for businesses and enterprise users, the HP 100W USB-C G6 Dock supports flexible workplace deployments including hot desks, remote workstations, and meeting spaces. Its compact design allows easy integration into professional desktop environments while maintaining reliable performance.

Technical Specifications

General
Model: 9X3V1UT
Product Name: HP 100W USB-C G6 Dock
Product Type: USB-C Docking Station / Port Replicator
Form Factor: Desktop Docking Station
Color: Jet Black
Deployment: Enterprise, Hybrid Workplace, Hot Desk, Workstation, Office Environments
Usage Mode: Single cable docking solution for display, data, network and charging connectivity

Power Specifications
Host Charging Power: Up to 100W USB Power Delivery
Power Adapter Rating: 120W External Adapter
Power Delivery Support: USB-C PD Supported
Power Input: External AC Adapter
USB-C Auxiliary Charging: 15W via front USB-C port

Connectivity & Host Interface
Host Interface: USB-C (USB 3.2 Gen 2)
Connection Type: Wired
Cable Length: 1 m
Supported Standards: USB-C, Thunderbolt Compatible, USB4 Compatible

USB Ports & Expansion

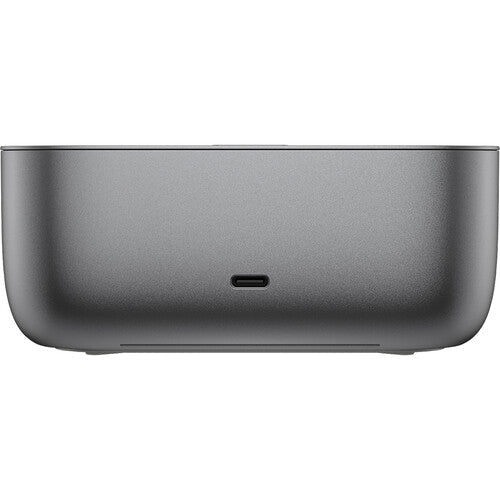

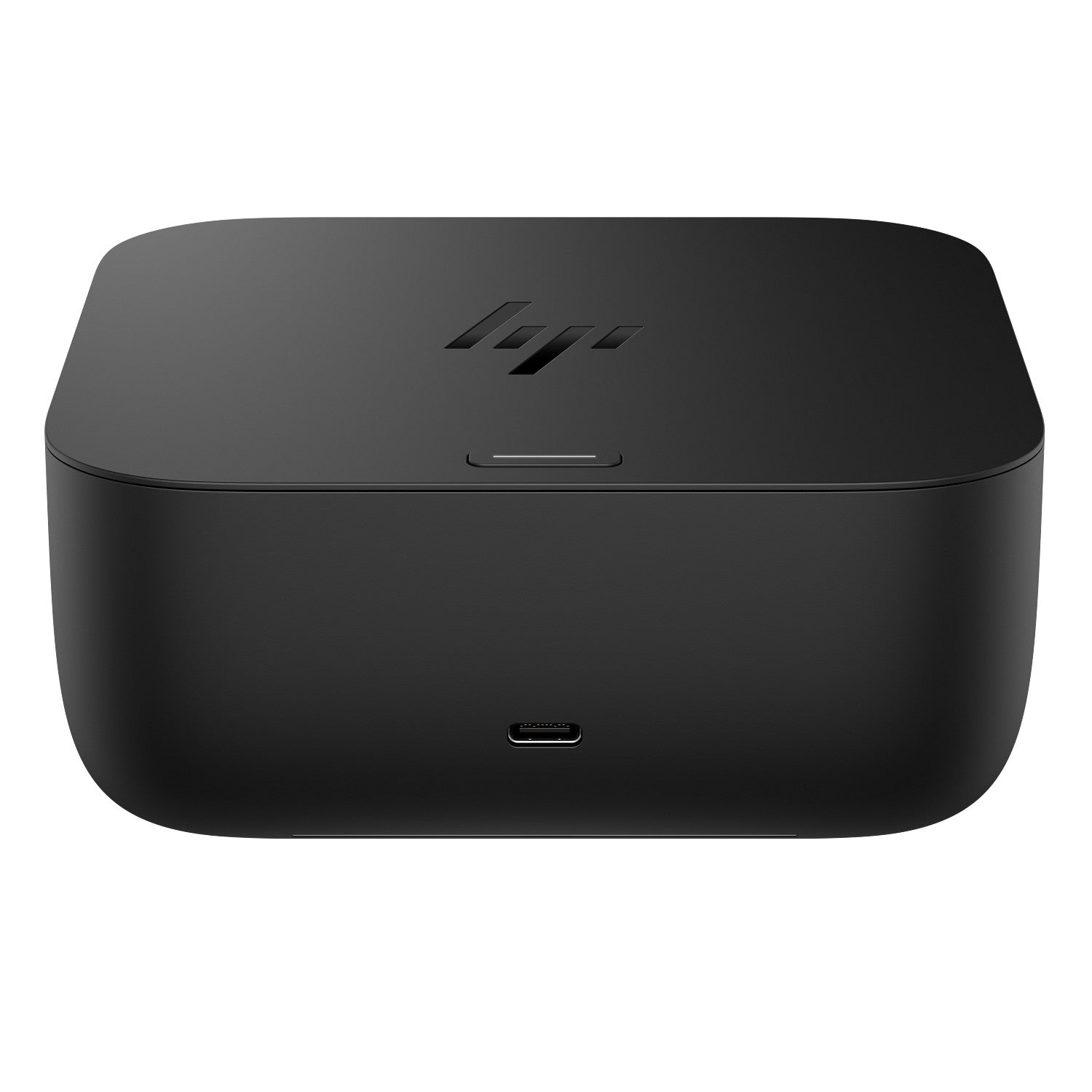

Front Ports:
• 1 × USB-C 3.2 Gen 2 (10Gbps, data + 15W PD)

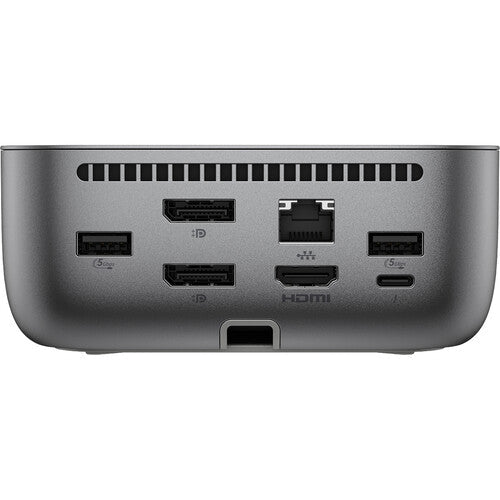

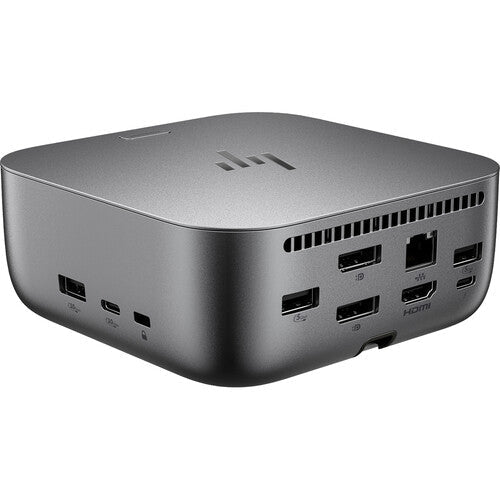

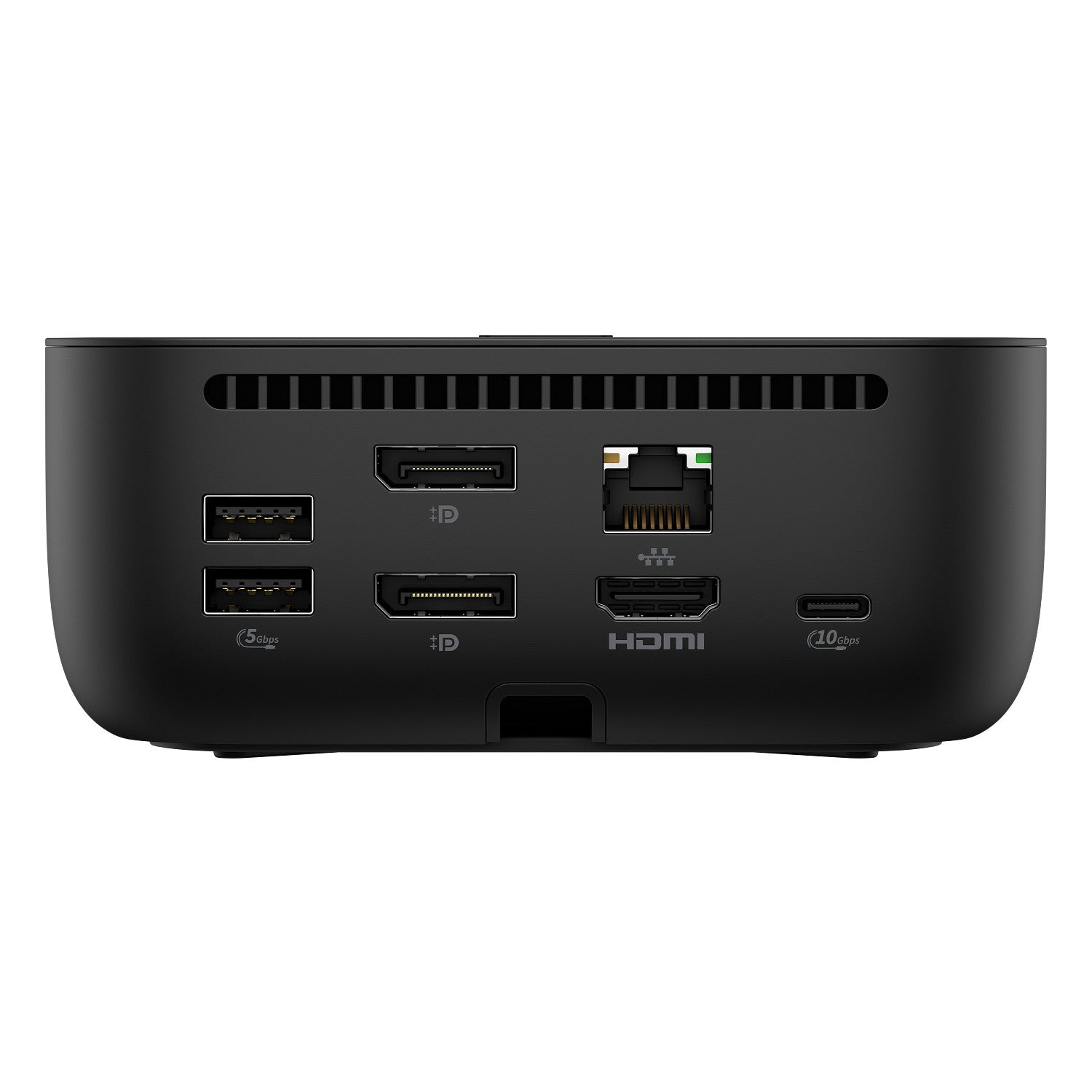

Rear Ports:
• 1 × USB-C 3.2 Gen 2 (10Gbps, data + 15W PD)
• 1 × USB-A 3.2 Gen 2 (10Gbps, charging support)
• 2 × USB-A 3.2 Gen 1 (5Gbps, charging support)

Total USB Ports: 5

Display & Video Output
Display Outputs:
• 2 × DisplayPort 1.4
• 1 × HDMI 2.1

Maximum Resolution: Up to 4K
Maximum Display Support: Up to 3 external displays
Display Technology: Multi-monitor support
Video Standards: DisplayPort Alt Mode, HDMI, USB-C Display Output

Display Performance
Single Display: Up to 4K @ 120Hz
Dual Displays: Up to QHD (2560 × 1440) @ 120Hz
Triple Displays: Up to FHD (1920 × 1080) @ 120Hz

Networking
Ethernet Port: 1 × RJ-45
Ethernet Speed: 2.5 Gigabit Ethernet (2.5GbE)
Network Support: Wired LAN
Wake-on-LAN Support: Supported on compatible HP systems

Compatibility
Supported Operating Systems:
• Windows 11
• Windows 10
• macOS
• Linux
• ChromeOS
• HP ThinPro

Compatible Devices:
• HP Commercial Notebooks
• USB-C Laptops
• Thunderbolt Laptops
• USB4 Systems
• Selected third-party notebooks

Management & Security Features
HP Quick Connect: Supported
HP Wolf Security Integration: Supported
HP Sure Start Support: Supported
Zero Trust Framework Support: Supported
Remote Manageability: Supported
MAC Address Pass-Through: Supported (HP compatible systems)
Wake-on-LAN: Supported

Design & Construction

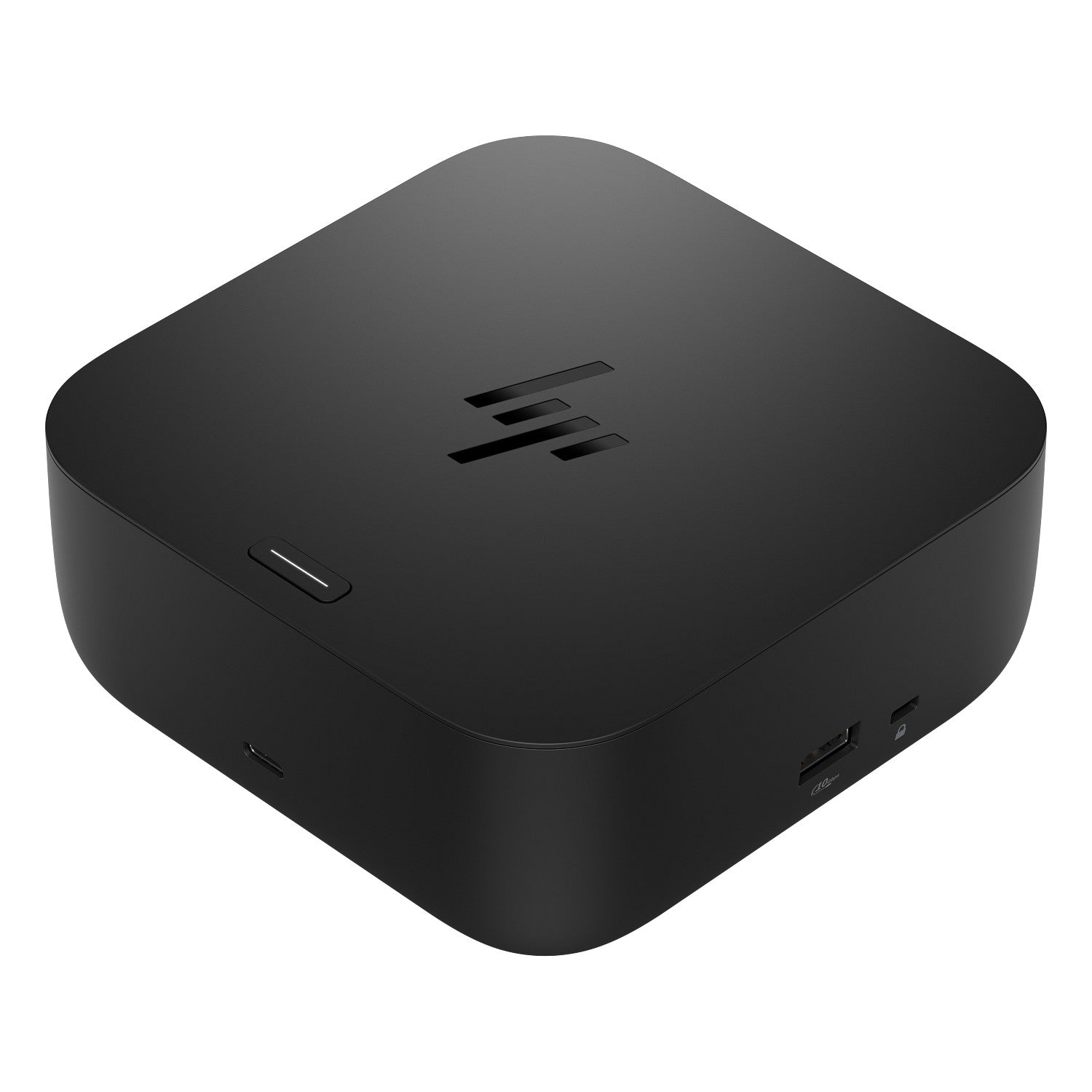

Design: Cube Modular Design
Form Factor: Compact Desktop Dock
LED Indicators: RGB Front LED Bar
Power Button LED: RGB Status Indicator
Construction: Enterprise Grade Housing

Physical Specifications
Dimensions (W × D × H): 12.1 × 12.1 × 5.1 cm
Weight: 680 g
Color: Jet Black

Environmental Specifications
Operating Temperature: 0°C to 35°C
Operating Humidity: 10% – 90% Non-Condensing
Non-Operating Humidity: 5% – 95% Non-Condensing

Sustainability
Post-Consumer Recycled Plastic: Minimum 35%
Plastic Free Packaging: Supported
Recycled Corrugated Material Packaging: Supported

Package Contents
HP USB-C 100W G6 Dock
120W Power Adapter
USB-C Cable
Warranty Card
Documentation

Key Features
100W laptop charging
USB-C single cable docking
Dual DisplayPort 1.4 outputs
HDMI 2.1 support
2.5GbE networking
5 USB expansion ports
Triple display support
Enterprise security ready
Hybrid workplace optimized

Typical Use Cases
Hot desk environments
Hybrid workstations
Corporate office deployment
Meeting room setups
Enterprise notebook docking
Multi-monitor productivity environments
Remote workforce deployment
