HP Poly Studio 7 Room Compute with Zoom Rooms
PRODUCT DESCRIPTION
HP Poly Studio 7 Room Compute with Zoom Rooms (DS1R5AW) - Local Warranty
Studio 7 Room Compute Hardware for Zoom Rooms
The HP Poly Studio 7 Room Compute with Zoom Rooms (DS1R5AW) is the Zoom Rooms edition of HP Poly’s Studio 7 meeting-room PC. The Studio 7 Room Compute hardware is built around an Intel® Core™ Ultra 7 processor with up to 50 NPU TOPS, 32 GB of memory and a 256 GB SSD, in a compact 17.7 x 18.1 x 3.4 cm jet-black chassis weighing 1.07 kg.
Designed for Straightforward Installation

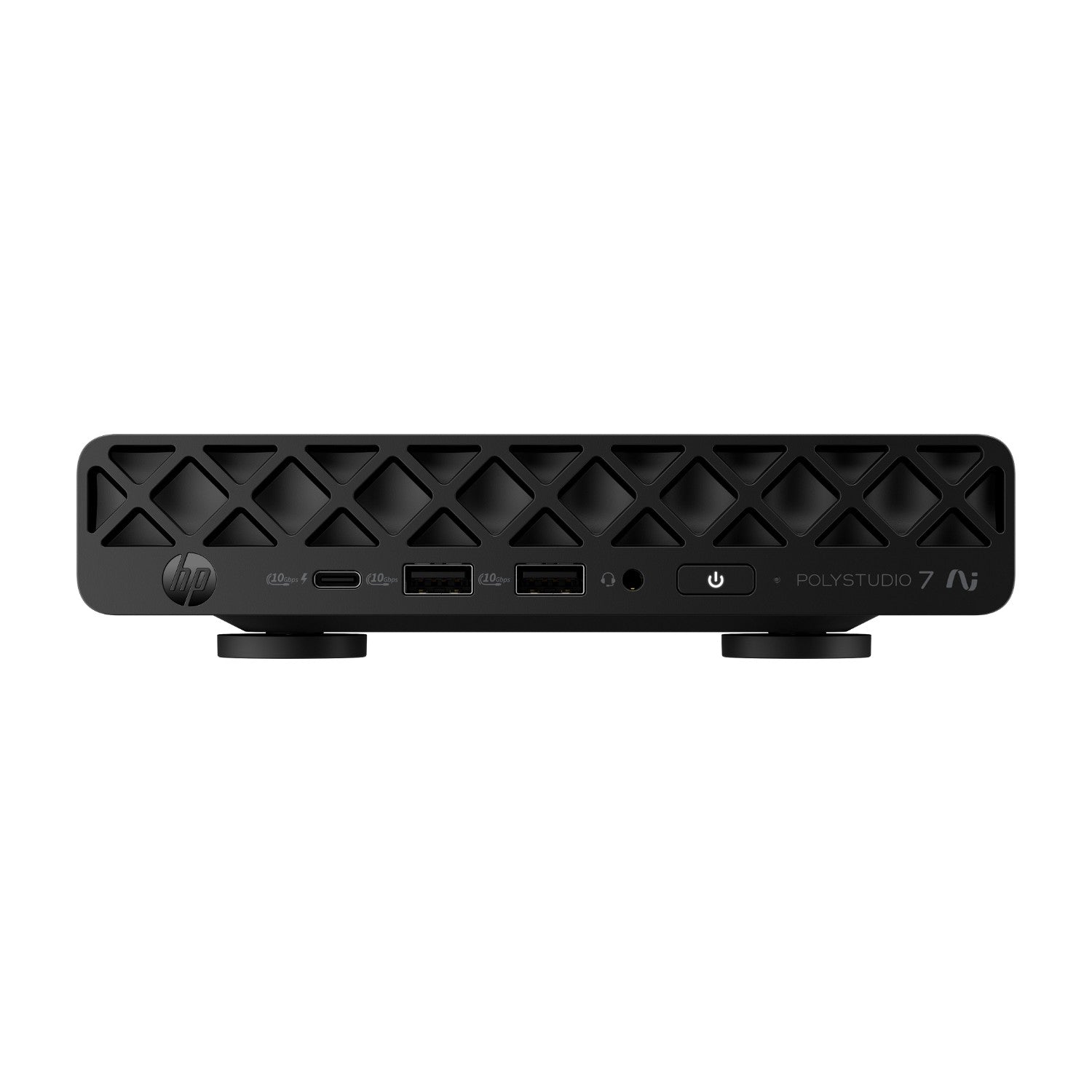

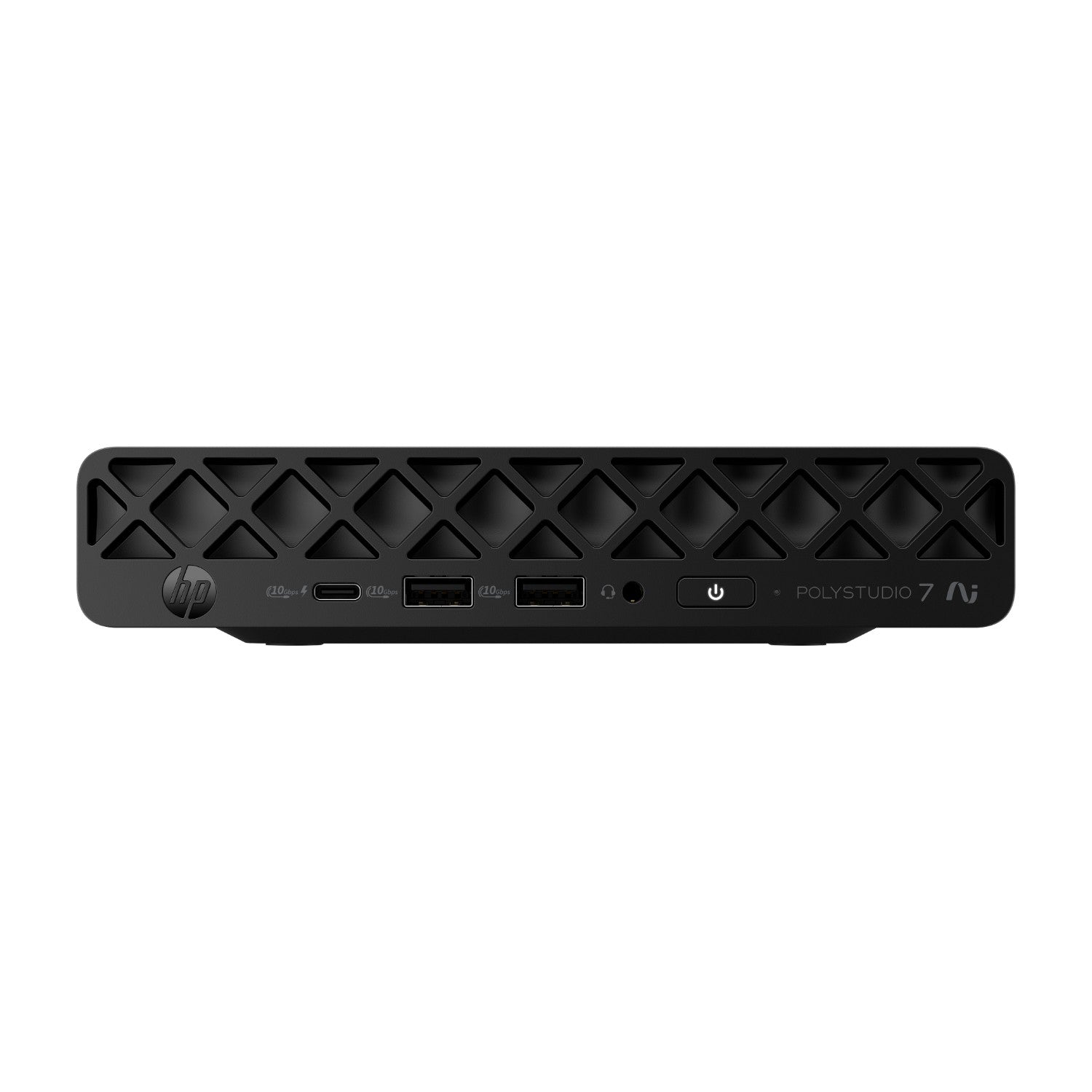

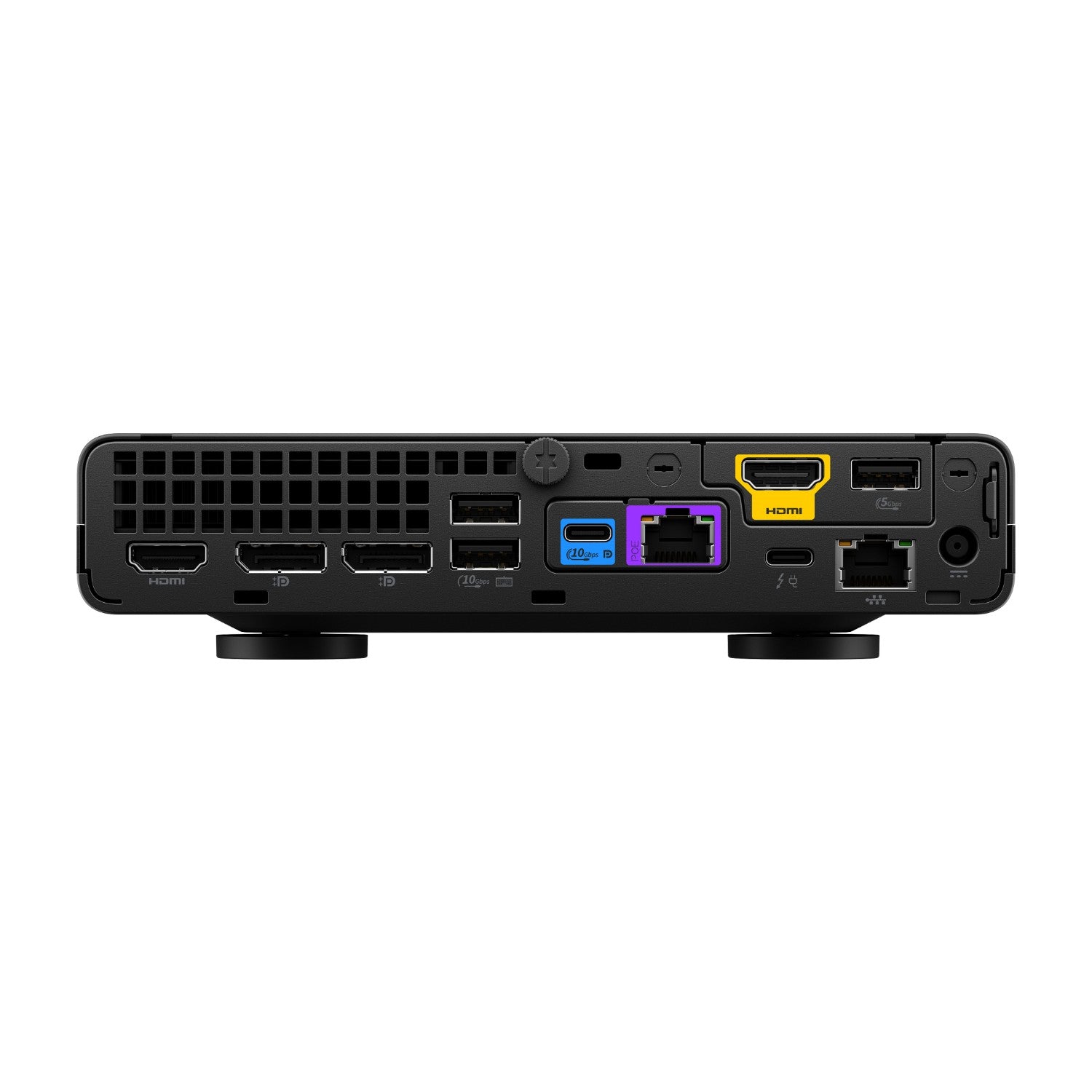

HP designed the Studio Room Compute hardware with colour-coded ports for critical connections and fast magnetic mounting, to reduce errors and speed up installation. Front-facing ports include one USB Type-C® (10Gbps signalling rate, charging), two USB Type-A (10Gbps signalling rate) and a combo audio jack.
Modular, Low-Noise and Built on Recycled Materials
The modular Studio Room Compute design lets you add or reconfigure cameras, displays and audio as your spaces evolve. The chassis carries TÜV Ultra Low Noise certification and uses at least 60% post-consumer recycled plastic. Supplied by SourceIT with local Singapore warranty and a GST invoice.
HP Poly Studio 7 Room Compute Datasheet — Technical Specifications
General
| Model | HP Poly Studio 7 Room Compute |
| Part Number / SKU | DS1R5AW |
| Product type | Meeting room compute (mini PC) for Zoom Rooms |
| Meeting platform | Zoom Rooms |
| Form factor | Mini |
| Manufacturer | HP Poly |
| Warranty | Local Warranty (Singapore) |
Performance
| Processor | Intel® Core™ Ultra 7 processor (up to 50 NPU TOPS) |
| Memory | 32 GB |
| Memory slots | 2 SODIMM |
| Internal storage | 256 GB PCIe® NVMe™ M.2 SSD |
| Expansion slots | 1 x M.2 2230; 1 x M.2 2280 |
| Graphics | Intel® UHD Graphics 4Xᵉ |
Ports & Power
| I/O port location | Front |
| Ports | 1 x USB Type-C® 10Gbps signalling rate (charging); 2 x USB Type-A 10Gbps signalling rate; 1 x combo audio jack |
| Power | 150 W external power adapter, up to 89% efficiency |
Physical & Environmental
| Colour | Jet black |
| Dimensions (W x D x H) | 17.7 x 18.1 x 3.4 cm |
| Weight | 1.07 kg |
| Package dimensions (W x D x H) | 49.2 x 25.4 x 11.4 cm |
| Package weight | 3.18 kg |
| Operating temperature | 10 to 35°C (50 to 95°F) |
| Operating humidity | 10 to 90% RH |
| Certifications | TÜV Ultra Low Noise |
| Sustainability | At least 60% post-consumer recycled plastic in the chassis; paper-based packaging derived from at least 50% recycled or certified sources |
Compatibility & Software Support
Zoom Rooms edition. This SKU (DS1R5AW) is the Studio 7 Room Compute supplied for Zoom Rooms. HP has not yet published a separate specification page for this SKU; the hardware details on this listing are taken from HP’s published specifications for the Studio 7 Room Compute (DS1G9AW), which uses the same Intel Core Ultra 7 / 32 GB / 256 GB configuration. Contact SourceIT to confirm Zoom Rooms licensing, controller and peripheral requirements for your room before ordering.
Microsoft Teams Rooms instead? Choose the Studio 7 Room Compute with Microsoft Teams Rooms (DS1G9AW) or the Studio 5 Room Compute with Microsoft Teams Rooms (DS1E8AW).
Connections. Front ports: 1 x USB Type-C® 10Gbps (charging), 2 x USB Type-A 10Gbps and 1 x combo audio jack. HP includes an HP DisplayPort to HDMI True 4K Adapter with the Studio 7 Room Compute hardware.
Package Contents & Studio Room Compute Ordering Information
What’s in the Box
- HP Poly Studio 7 Room Compute
- AC power adapter
- Power cable
- HP DisplayPort to HDMI True 4K Adapter
- Magnetic mounting kit
- Ethernet cable
- Setup sheet
- Warranty card
Box contents as published by HP for the Studio 7 Room Compute hardware (DS1G9AW); confirm with SourceIT for the Zoom Rooms SKU.
HP Poly Studio Room Compute Family
| Model | HP SKU |
| HP Poly Studio 5 Room Compute with Microsoft Teams Rooms (Intel Core Ultra 5, 16 GB) | DS1E8AW |
| HP Poly Studio 7 Room Compute with Microsoft Teams Rooms (Intel Core Ultra 7, 32 GB) | DS1G9AW |
| HP Poly Studio 7 Room Compute with Zoom Rooms (Intel Core Ultra 7, 32 GB) | DS1R5AW |
| HP Poly TC10 touch controller (black) | 875K5AA |
| HP Poly TC10 touch controller (white) | 875J5AA |
Datasheet & Downloads
Frequently Asked Questions — HP Poly Studio 7 Room Compute with Zoom Rooms
What is the Studio 7 Room Compute with Zoom Rooms?
It is the Zoom Rooms edition of HP Poly’s Studio 7 meeting-room PC (HP SKU DS1R5AW) — the dedicated room computer that your camera, audio and displays connect to.
What hardware does it use?
The Studio 7 Room Compute hardware uses an Intel Core Ultra 7 processor with up to 50 NPU TOPS, 32 GB of memory, a 256 GB PCIe NVMe M.2 SSD and Intel UHD Graphics 4Xe, powered by a 150 W external adapter.
How does it differ from DS1G9AW?
DS1G9AW is the Studio 7 Room Compute for Microsoft Teams Rooms. DS1R5AW is supplied for Zoom Rooms. HP publishes full specifications for DS1G9AW; this listing uses that hardware data.
How big is it?
17.7 x 18.1 x 3.4 cm (W x D x H) and 1.07 kg, in jet black.
Can SourceIT help plan a Zoom Rooms deployment?
Yes. Tell us your room size, display count and preferred camera and audio, and we will confirm the compatible HP Poly components before you order.
Is local Singapore warranty included?
Yes. Every HP Poly Studio 7 Room Compute with Zoom Rooms sold by SourceIT comes with local Singapore warranty and a GST invoice.
