HP Poly Studio 5 Room Compute with Microsoft Teams Rooms
PRODUCT DESCRIPTION
HP Poly Studio 5 Room Compute with Microsoft Teams Rooms (DS1E8AW) - Local Warranty
Room Compute for Microsoft Teams Rooms, Built for AI Features
The HP Poly Studio 5 Room Compute is the dedicated meeting-room PC in an HP Poly Microsoft Teams Rooms deployment. HP builds it around an Intel® Core™ Ultra 5 processor with up to 47 NPU TOPS, 16 GB of memory and a 256 GB SSD running Windows 11 IoT Enterprise — delivering reliable, efficient Teams experiences today and ready for future AI features.
Faster, Simpler Room Installation
HP designed the Studio Room Compute to take the complexity out of room setup. It auto-pairs with the HP Poly TC10 touch controller, uses colour-coded ports for critical connections, and mounts quickly with the included magnetic mounting kit to reduce installation errors. Up to four controllers can be connected via a local PoE switch, giving attendees access to meeting controls throughout the room.
Modular Design, Managed Remotely with Poly Lens
The modular design lets you add or reconfigure cameras, displays and audio as your meeting spaces evolve. IT teams can configure, monitor and update rooms remotely through Poly Lens Cloud, with device health monitoring, alerts and analytics.
HP Wolf Security and Tested for Reliability
The Studio 5 Room Compute is protected by HP Wolf Security, with hardware-enforced, always-on resilient defence, and undergoes 120,000 hours of HP’s Total Test Process plus MIL-STD 810 testing. Supplied by SourceIT with local Singapore warranty and a GST invoice.
HP Poly Studio 5 Room Compute Datasheet — Technical Specifications
General
| Model | HP Poly Studio 5 Room Compute |
| Part Number / SKU | DS1E8AW |
| Product type | Meeting room compute (mini PC) for Microsoft Teams Rooms |
| Meeting platform | Microsoft Teams Rooms |
| Form factor | Mini |
| Manufacturer | HP Poly |
| Warranty | Local Warranty (Singapore) |
Performance
| Processor | Intel® Core™ Ultra 5 processor (up to 47 NPU TOPS) |
| Memory | 16 GB |
| Memory slots | 2 SODIMM |
| Operating system | Windows 11 IoT Enterprise |
| Internal storage | 256 GB PCIe® NVMe™ SSD |
| Expansion slots | 1 x M.2 2230; 1 x M.2 2280 |
| Graphics | Intel® UHD Graphics 4Xᵉ |
Ports & Power

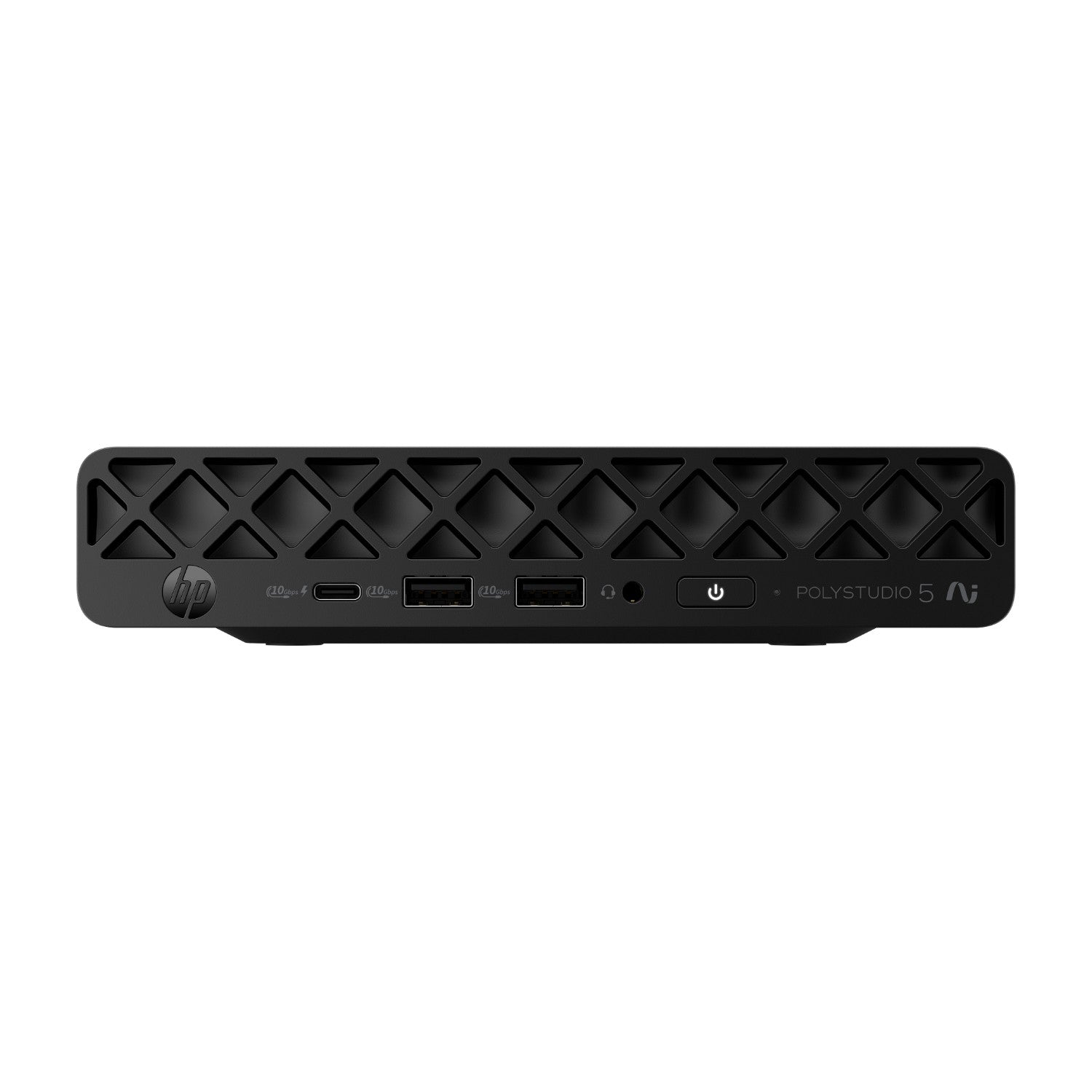

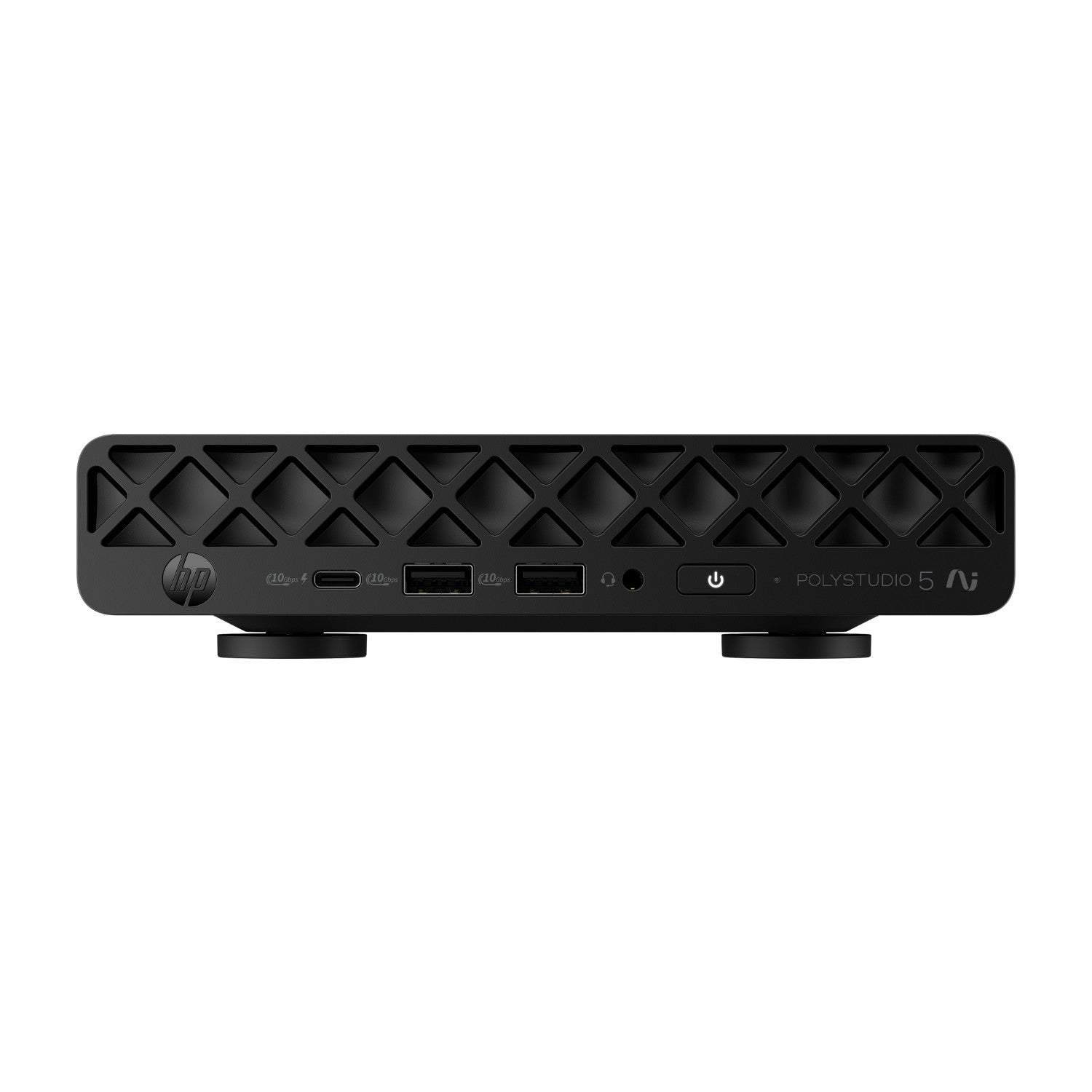

| I/O port location | Front |
| Ports | 1 x USB Type-C® 10Gbps signalling rate (charging); 2 x USB Type-A 10Gbps signalling rate; 1 x combo audio jack |
| Power | 150 W external power adapter, up to 89% efficiency |
Physical & Environmental
| Colour | Jet black |
| Dimensions (W x D x H) | 17.7 x 18.1 x 3.4 cm |
| Weight | 1.07 kg |
| Package dimensions (W x D x H) | 49.2 x 25.4 x 11.4 cm |
| Package weight | 3.18 kg |
| Operating temperature | 10 to 35°C (50 to 95°F) |
| Operating humidity | 10 to 90% RH |
| Certifications | TÜV Ultra Low Noise |
| Sustainability | At least 60% post-consumer recycled plastic in the chassis; paper-based packaging derived from at least 50% recycled or certified sources |
Compatibility & Software Support
Microsoft Teams Rooms. This SKU (DS1E8AW) is the Microsoft Teams Rooms edition and runs Windows 11 IoT Enterprise. HP describes it as delivering reliable, efficient Microsoft Teams experiences today and ready for future AI features, powered by an Intel® Core™ Ultra 5 processor with up to 47 NPU TOPS.
Touch control. The room compute auto-pairs with the HP Poly TC10 touch controller for fast installation. Up to four controllers can be connected via a local PoE switch to provide access to meeting controls throughout the room.
Cameras, displays and audio. HP describes a flexible, modular design that lets you add or reconfigure cameras, displays and audio as rooms change. An HP DisplayPort to HDMI True 4K Adapter is included in the box. Check your specific camera, audio and display combination with us before ordering.
Management and security. Rooms can be configured, monitored and updated remotely through Poly Lens Cloud (device health monitoring, alerts and analytics). The unit is protected by HP Wolf Security.
Package Contents & Studio Room Compute Ordering Information
What’s in the Box
- HP Poly Studio 5 Room Compute with Microsoft Teams Rooms
- AC power adapter
- Power cable
- HP DisplayPort to HDMI True 4K Adapter
- Magnetic mounting kit
- Ethernet cable
- Setup sheet
- Warranty card
HP Poly Studio Room Compute Family
| Model | HP SKU |
| HP Poly Studio 5 Room Compute with Microsoft Teams Rooms (Intel Core Ultra 5, 16 GB) | DS1E8AW |
| HP Poly Studio 7 Room Compute with Microsoft Teams Rooms (Intel Core Ultra 7, 32 GB) | DS1G9AW |
| HP Poly Studio 7 Room Compute with Zoom Rooms (Intel Core Ultra 7, 32 GB) | DS1R5AW |
| HP Poly TC10 touch controller (black) | 875K5AA |
| HP Poly TC10 touch controller (white) | 875J5AA |
Datasheet & Downloads
Frequently Asked Questions — HP Poly Studio 5 Room Compute with Microsoft Teams Rooms
What does the Studio 5 Room Compute do in a meeting room?
It is the dedicated room PC that runs Microsoft Teams Rooms. Your camera, audio and displays connect to it, and the meeting is controlled from a touch controller such as the HP Poly TC10 touch controller.
How is the Studio 5 different from the Studio 7 Room Compute?
Both share the same compact jet-black chassis, ports and 256 GB SSD. The Studio 5 uses an Intel Core Ultra 5 processor (up to 47 NPU TOPS) with 16 GB of memory; the Studio 7 (DS1G9AW) steps up to an Intel Core Ultra 7 processor (up to 50 NPU TOPS) with 32 GB of memory.
Which touch controller should I use?
HP states the Studio 5 Room Compute auto-pairs with the HP Poly TC10 touch controller, and up to four controllers can be connected via a local PoE switch. SourceIT stocks the TC10 in black (875K5AA) and white (875J5AA).
How is it mounted?
A magnetic mounting kit is included in the box for fast mounting. The unit measures 17.7 x 18.1 x 3.4 cm and weighs 1.07 kg.
Can IT manage it remotely?
Yes. HP supports remote configuration, monitoring and updates through Poly Lens Cloud, including device health monitoring, alerts and analytics.
Is local Singapore warranty included?
Yes. Every HP Poly Studio 5 Room Compute sold by SourceIT comes with local Singapore warranty and a GST invoice.
