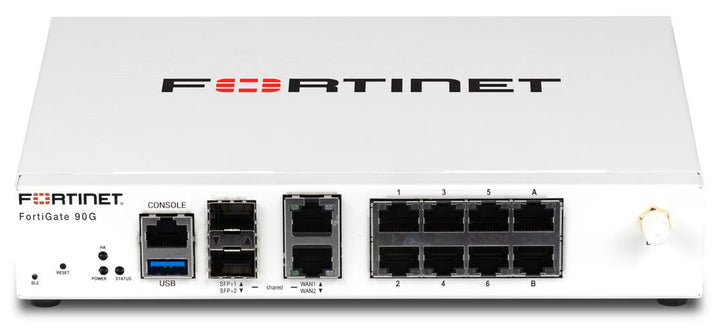

Fortinet FortiGate 90G Next-Generation Firewall, 8x GE RJ45, 2x 10GE RJ45/SFP+, Desktop
PRODUCT DESCRIPTION
Fortinet FortiGate 90G Next-Generation Firewall (FG-90G) - Local Warranty
High-Performance Desktop NGFW
The Fortinet FortiGate 90G (FG-90G) is the top G-series desktop next-generation firewall, built for larger branches and small campuses that need multi-gigabit throughput with full NGFW, SD-WAN and VPN services. It runs FortiOS, Fortinet's converged networking and security operating system.
28 Gbps Firewall, 25 Gbps IPsec VPN
Fortinet rates the FortiGate 90G at 28 Gbps firewall throughput (1518-byte UDP), 4.5 Gbps IPS, 2.5 Gbps NGFW and 2.2 Gbps threat protection, with 25 Gbps of IPsec VPN throughput. It supports up to 3 million concurrent sessions and 124,000 new sessions per second.
10GE Uplinks on RJ45 or SFP+
The FG-90G combines 8 x GE RJ45 ports with 2 x 10GE shared port pairs, each usable as either a 10GE RJ45 or a 10GE SFP+ connection, for fast WAN or FortiSwitch uplinks. A USB 3.0 port and RJ45 console port are provided, and the unit runs from a 12 V DC 3 A adapter (100–240 V AC, 50/60 Hz) with a second power input for an optional redundant adapter.
Choose Hardware Only or a UTP Bundle
Buy the appliance on its own, or bundle it with 1, 3 or 5 years of FortiGuard Unified Threat Protection (UTP). The UTP subscription covers IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam and FortiCare Premium support.
Not sure which FortiGate fits your office? Email sales@sourceit.com.sg with your user count, internet bandwidth and number of sites, and we will size it for you.
Fortinet FortiGate 90G FG-90G Datasheet — Technical Specifications
General
| Product Name | Fortinet FortiGate 90G |
| Part Number | FG-90G |
| Series | FortiGate 90G Series (G-series desktop NGFW) |
| Operating System | FortiOS |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Interfaces
| Network Ports | 8 x GE RJ45, 2 x 10GE shared port pairs (10GE RJ45 / SFP+) |
| Management | 1 x RJ45 console port |
| Other | 1 x USB 3.0; reset (BLE/reset on current hardware revisions); LINK/ACT, SPEED, POWER, STATUS and HA LEDs |
System Performance
| Firewall Throughput (1518 / 512 / 64 byte UDP) | 28 / 28 / 27.9 Gbps |
| IPS Throughput (Enterprise Mix) | 4.5 Gbps |
| NGFW Throughput (Enterprise Mix) | 2.5 Gbps |
| Threat Protection Throughput (Enterprise Mix) | 2.2 Gbps |
| IPsec VPN Throughput (512 byte) | 25 Gbps |
| Concurrent Sessions | 3 million |
| New Sessions per Second | 124,000 |
| Firewall Policies | 5,000 |
| SSL Inspection Throughput | 2.6 Gbps |
| Maximum FortiSwitches Supported | 24 |
Physical & Power
| Form Factor | Desktop |
| Power Supply | Single AC adapter, dual power inputs (optional redundant adapter available) |
| Power Input | 12 V DC 3 A, 100–240 V AC, 50/60 Hz |
| Operating Temperature | 0 °C to 40 °C |
Fortinet performance figures are measured under Fortinet test conditions and vary with configuration and traffic mix.
Compatibility & Software Support
What It Is Suited To
Larger branches, small campuses and head offices that need 10GE connectivity and high VPN throughput without moving to a rack-mount appliance. For more ports and dual built-in power supplies, step up to the FortiGate 120G.
Software & Management
Runs FortiOS and is managed through the FortiOS web GUI and CLI. The 10GE ports can serve as FortiLink uplinks, letting the FortiGate act as the switch controller for up to 24 FortiSwitch units, and FortiGate models also manage FortiAP wireless access points from the same interface. Cloud management is available separately as a FortiManagement Cloud subscription; ask us for a quote.
Security Subscriptions
The FortiGuard Unified Threat Protection (UTP) bundle adds IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam and FortiCare Premium support. Enterprise Protection and individual FortiGuard services are also available on request.
Package Contents & FortiGate Ordering Information
In the Box
Per Fortinet's FortiGate 90G Series QuickStart Guide: 1 x FortiGate device, 1 x QuickStart Guide, 1 x Ethernet cable, 1 x DC power adapter and 1 x power cable.
Bundle Options on This Listing
| Hardware only | FG-90G |
| Hardware + 1-Year UTP | FG-90G + FC-10-0090G-950-02-12 |
| Hardware + 3-Year UTP | FG-90G + FC-10-0090G-950-02-36 |
| Hardware + 5-Year UTP | FG-90G + FC-10-0090G-950-02-60 |
FortiGate G-Series Desktop & 1U Range — Ordering Information
| Model | Interfaces | Firewall (1518/512/64 B UDP) | Threat Protection | Part No. |
| FortiGate 30G | 4 x GE RJ45 | 4 / 4 / 3.9 Gbps | 500 Mbps | FG-30G |
| FortiGate 50G | 5 x GE RJ45 | 5 / 5 / 4 Gbps | 1.1 Gbps | FG-50G |
| FortiGate 70G | 10 x GE RJ45 | 10 / 10 / 10 Gbps | 1.3 Gbps | FG-70G |
| FortiGate 90G (this listing) | 8 x GE RJ45, 2 x 10GE shared port pairs | 28 / 28 / 27.9 Gbps | 2.2 Gbps | FG-90G |
| FortiGate 120G | 18 x GE RJ45, 8 x GE SFP, 4 x 10GE SFP+ | 39 / 39 / 28 Gbps | 2.8 Gbps | FG-120G |
Support Contracts
FortiCare Premium support on its own is also available for the FortiGate 90G in 1, 3 and 5-year terms. Ask us to quote it with the appliance.
Datasheet & Downloads
| Fortinet data sheet | FortiGate 90G Series Data Sheet |
| Fortinet product matrix | FortiGate Network Security Platform Product Matrix |
| QuickStart Guide | FortiGate 90G Series QuickStart Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting FG-90G.
Frequently Asked Questions — Fortinet FortiGate 90G FG-90G
Does the FortiGate 90G include security subscriptions?
The "Hardware only" option is the appliance alone. Choose a UTP bundle option to add 1, 3 or 5 years of FortiGuard Unified Threat Protection with FortiCare Premium support.
What ports does it have?
Eight Gigabit RJ45 ports plus two 10GE shared port pairs, each usable as 10GE RJ45 or 10GE SFP+.
What firewall throughput does it deliver?
Fortinet rates it at 28 Gbps firewall throughput and 2.2 Gbps threat protection throughput (Enterprise Mix).
Can I add power redundancy?
Yes. The FG-90G has a second power input; Fortinet offers an optional redundant power adapter and cable, sold separately.
What warranty do I get?
Supplied by SourceIT with local warranty support and a GST invoice. FortiCare support contracts can be added for extended coverage.
