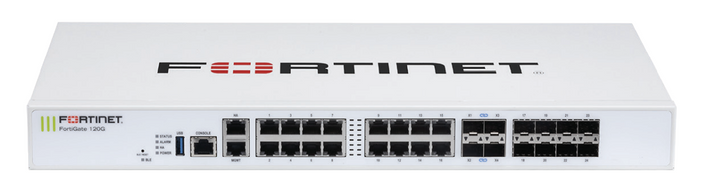

Fortinet FortiGate 120G Next-Generation Firewall, 18x GE RJ45, 8x GE SFP, 4x 10GE SFP+, 1RU
PRODUCT DESCRIPTION
Fortinet FortiGate 120G Next-Generation Firewall (FG-120G) - Local Warranty
1U NGFW for Campus Edge and Large Branches
The Fortinet FortiGate 120G (FG-120G) is a 1U rack-mount G-series next-generation firewall for campus edges, large branches and mid-sized enterprises. It brings NGFW security, SD-WAN and VPN together with high port density and runs FortiOS, Fortinet's converged networking and security operating system.
39 Gbps Firewall, 35 Gbps IPsec VPN
Fortinet rates the FortiGate 120G at 39 Gbps firewall throughput (1518-byte UDP), 5.3 Gbps IPS, 3.1 Gbps NGFW and 2.8 Gbps threat protection, with 35 Gbps of IPsec VPN throughput. It supports up to 3 million concurrent sessions and 140,000 new sessions per second.
30 Ports Including 10GE SFP+
The FG-120G provides 18 x GE RJ45 ports (including dedicated management and HA ports), 8 x GE SFP slots and 4 x 10GE SFP+ FortiLink ports, plus a USB console port and a BLE/reset button, giving plenty of room for fibre uplinks and FortiSwitch stacks.
Built-In Dual Power Supplies
Two redundant AC power supplies (100–240 V AC, 50–60 Hz, 1.5 A max each) keep the firewall running if one supply or circuit fails. Mounting brackets and screws are included for rack installation.
Choose Hardware Only or a UTP Bundle
Buy the appliance on its own, or bundle it with 1, 3 or 5 years of FortiGuard Unified Threat Protection (UTP). The UTP subscription covers IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam and FortiCare Premium support.
Not sure which FortiGate fits your office? Email sales@sourceit.com.sg with your user count, internet bandwidth and number of sites, and we will size it for you.
Fortinet FortiGate 120G FG-120G Datasheet — Technical Specifications
General
| Product Name | Fortinet FortiGate 120G |
| Part Number | FG-120G |
| Series | FortiGate 120G Series (G-series 1U NGFW) |
| Operating System | FortiOS |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Interfaces
| Network Ports | 18 x GE RJ45 (including management and HA ports), 8 x GE SFP, 4 x 10GE SFP+ (FortiLink X1–X4) |
| Management | USB console port, dedicated management port |
| Other | BLE/reset button; POWER, ALARM, HA and STATUS LEDs |
System Performance
| Firewall Throughput (1518 / 512 / 64 byte UDP) | 39 / 39 / 28 Gbps |
| IPS Throughput (Enterprise Mix) | 5.3 Gbps |
| NGFW Throughput (Enterprise Mix) | 3.1 Gbps |
| Threat Protection Throughput (Enterprise Mix) | 2.8 Gbps |
| IPsec VPN Throughput (512 byte) | 35 Gbps |
| Concurrent Sessions | 3 million |
| New Sessions per Second | 140,000 |
| Firewall Policies | 10,000 |
| SSL Inspection Throughput | 3 Gbps |
| Maximum FortiSwitches Supported | 48 |
Physical & Power
| Form Factor | 1 RU rack-mount |
| Power Supply | Dual AC power supplies (PSU1, PSU2) |
| Power Input | 100–240 V AC, 50–60 Hz, 1.5 A max |
| Operating Temperature | 0 °C to 40 °C |
Fortinet performance figures are measured under Fortinet test conditions and vary with configuration and traffic mix.
Compatibility & Software Support
What It Is Suited To
Campus edges, head offices and large branches that need rack-mount hardware, fibre connectivity, redundant power and room to manage a large FortiSwitch and FortiAP estate.
Software & Management
Runs FortiOS and is managed through the FortiOS web GUI and CLI. Four 10GE SFP+ FortiLink ports let the FortiGate act as the switch controller for up to 48 FortiSwitch units, and FortiGate models also manage FortiAP wireless access points from the same interface. Cloud management is available separately as a FortiManagement Cloud subscription; ask us for a quote.
Security Subscriptions
The FortiGuard Unified Threat Protection (UTP) bundle adds IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam and FortiCare Premium support. Enterprise Protection and individual FortiGuard services are also available on request.
Package Contents & FortiGate Ordering Information
In the Box
Per Fortinet's FortiGate 120G Series QuickStart Guide: 1 x FortiGate device, 1 x QuickStart Guide, 2 x power cables, 4 x rubber feet, 2 x mounting brackets, 8 x bracket screws and 1 x Ethernet cable.
Bundle Options on This Listing
| Hardware only | FG-120G |
| Hardware + 1-Year UTP | FG-120G + FC-10-F120G-950-02-12 |
| Hardware + 3-Year UTP | FG-120G + FC-10-F120G-950-02-36 |
| Hardware + 5-Year UTP | FG-120G + FC-10-F120G-950-02-60 |
FortiGate G-Series Desktop & 1U Range — Ordering Information
| Model | Interfaces | Firewall (1518/512/64 B UDP) | Threat Protection | Part No. |
| FortiGate 30G | 4 x GE RJ45 | 4 / 4 / 3.9 Gbps | 500 Mbps | FG-30G |
| FortiGate 50G | 5 x GE RJ45 | 5 / 5 / 4 Gbps | 1.1 Gbps | FG-50G |
| FortiGate 70G | 10 x GE RJ45 | 10 / 10 / 10 Gbps | 1.3 Gbps | FG-70G |
| FortiGate 90G | 8 x GE RJ45, 2 x 10GE shared port pairs | 28 / 28 / 27.9 Gbps | 2.2 Gbps | FG-90G |
| FortiGate 120G (this listing) | 18 x GE RJ45, 8 x GE SFP, 4 x 10GE SFP+ | 39 / 39 / 28 Gbps | 2.8 Gbps | FG-120G |
Support Contracts
FortiCare Premium support on its own is also available for the FortiGate 120G in 1, 3 and 5-year terms. Ask us to quote it with the appliance.
Datasheet & Downloads
| Fortinet data sheet | FortiGate 120G Series Data Sheet |
| Fortinet product matrix | FortiGate Network Security Platform Product Matrix |
| QuickStart Guide | FortiGate 120G Series QuickStart Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting FG-120G.
Frequently Asked Questions — Fortinet FortiGate 120G FG-120G
Does the FortiGate 120G include security subscriptions?
The "Hardware only" option is the appliance alone. Choose a UTP bundle option to add 1, 3 or 5 years of FortiGuard Unified Threat Protection with FortiCare Premium support.
What ports does it have?
18 Gigabit RJ45 ports (including management and HA), 8 GE SFP slots and 4 x 10GE SFP+ ports.
What firewall throughput does it deliver?
Fortinet rates it at 39 Gbps firewall throughput and 2.8 Gbps threat protection throughput (Enterprise Mix).
Does it have redundant power?
Yes. The FG-120G has two built-in AC power supplies, and two power cables are included.
Is it rack-mountable?
Yes. It is a 1 RU appliance and ships with two mounting brackets and eight bracket screws.
What warranty do I get?
Supplied by SourceIT with local warranty support and a GST invoice. FortiCare support contracts can be added for extended coverage.
