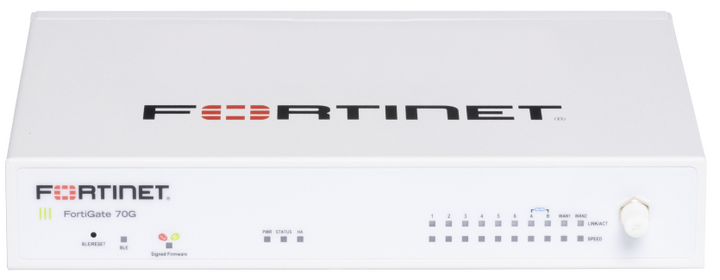

Fortinet FortiGate 70G Next-Generation Firewall, 10x GE RJ45, Desktop
PRODUCT DESCRIPTION
Fortinet FortiGate 70G Next-Generation Firewall (FG-70G) - Local Warranty
NGFW and SD-WAN for Growing Branches
The Fortinet FortiGate 70G (FG-70G) is a G-series desktop next-generation firewall for busier branch offices and mid-sized sites, combining NGFW security, SD-WAN and VPN in a single appliance running FortiOS.
10 Gbps Firewall in a Desktop Box
Fortinet rates the FortiGate 70G at 10 Gbps firewall throughput (1518-byte UDP), 2.5 Gbps IPS, 1.5 Gbps NGFW and 1.3 Gbps threat protection, with 7.1 Gbps of IPsec VPN throughput. It supports up to 1.4 million concurrent sessions and 100,000 new sessions per second.
Ten Gigabit Ports, Dual WAN
The FG-70G provides 10 x GE RJ45 ports: WAN1 and WAN2 for dual-link SD-WAN, FortiLink ports A and B for FortiSwitch management, and internal ports 1 to 6. It also has a USB 3.0 port, an RJ45 console port and a BLE/reset button, and runs from an external 12 V DC adapter (100–240 V AC, 50/60 Hz).
Choose Hardware Only or a UTP Bundle
Buy the appliance on its own, or bundle it with 1, 3 or 5 years of FortiGuard Unified Threat Protection (UTP). The UTP subscription covers IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam and FortiCare Premium support.
Not sure which FortiGate fits your office? Email sales@sourceit.com.sg with your user count, internet bandwidth and number of sites, and we will size it for you.
Fortinet FortiGate 70G FG-70G Datasheet — Technical Specifications
General
| Product Name | Fortinet FortiGate 70G |
| Part Number | FG-70G |
| Series | FortiGate / FortiWiFi 70G Series (G-series desktop NGFW) |
| Operating System | FortiOS |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Interfaces
| Network Ports | 10 x GE RJ45 (WAN1, WAN2, FortiLink A and B, internal ports 1–6) |
| Management | 1 x RJ45 console port |
| Other | 1 x USB 3.0 (Type-A); BLE/reset button; signed-firmware switch; PWR, STATUS, HA, link/activity and speed LEDs |
System Performance
| Firewall Throughput (1518 / 512 / 64 byte UDP) | 10 / 10 / 10 Gbps |
| IPS Throughput (Enterprise Mix) | 2.5 Gbps |
| NGFW Throughput (Enterprise Mix) | 1.5 Gbps |
| Threat Protection Throughput (Enterprise Mix) | 1.3 Gbps |
| IPsec VPN Throughput (512 byte) | 7.1 Gbps |
| Concurrent Sessions | 1.4 million |
| New Sessions per Second | 100,000 |
| Firewall Policies | 5,000 |
| SSL Inspection Throughput | 1.4 Gbps |
| Maximum FortiSwitches Supported | 24 |
Physical & Power
| Form Factor | Desktop |
| Power Supply | Single external AC adapter |
| Power Input | 12 V DC, 100–240 V AC, 50/60 Hz adapter |
| Operating Temperature | 0 °C to 40 °C |
Fortinet performance figures are measured under Fortinet test conditions and vary with configuration and traffic mix.
Compatibility & Software Support
What It Is Suited To
Branch offices and mid-sized sites that need dual WAN links for SD-WAN, more wired ports and headroom for a larger FortiSwitch and FortiAP estate. For multi-gigabit uplinks, step up to the FortiGate 90G.
Software & Management
Runs FortiOS and is managed through the FortiOS web GUI and CLI. Two FortiLink ports let the FortiGate act as the switch controller for up to 24 FortiSwitch units, and FortiGate models also manage FortiAP wireless access points from the same interface. Cloud management is available separately as a FortiManagement Cloud subscription; ask us for a quote.
Security Subscriptions
The FortiGuard Unified Threat Protection (UTP) bundle adds IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam and FortiCare Premium support. Enterprise Protection and individual FortiGuard services are also available on request.
Package Contents & FortiGate Ordering Information
In the Box
Per Fortinet's FortiGate 70G-71G QuickStart Guide: 1 x FortiGate device, 1 x QuickStart Guide, 1 x Ethernet cable, 1 x AC power cable and 1 x DC power adapter.
Bundle Options on This Listing
| Hardware only | FG-70G |
| Hardware + 1-Year UTP | FG-70G + FC-10-GT70G-950-02-12 |
| Hardware + 3-Year UTP | FG-70G + FC-10-GT70G-950-02-36 |
| Hardware + 5-Year UTP | FG-70G + FC-10-GT70G-950-02-60 |
FortiGate G-Series Desktop & 1U Range — Ordering Information
| Model | Interfaces | Firewall (1518/512/64 B UDP) | Threat Protection | Part No. |
| FortiGate 30G | 4 x GE RJ45 | 4 / 4 / 3.9 Gbps | 500 Mbps | FG-30G |
| FortiGate 50G | 5 x GE RJ45 | 5 / 5 / 4 Gbps | 1.1 Gbps | FG-50G |
| FortiGate 70G (this listing) | 10 x GE RJ45 | 10 / 10 / 10 Gbps | 1.3 Gbps | FG-70G |
| FortiGate 90G | 8 x GE RJ45, 2 x 10GE shared port pairs | 28 / 28 / 27.9 Gbps | 2.2 Gbps | FG-90G |
| FortiGate 120G | 18 x GE RJ45, 8 x GE SFP, 4 x 10GE SFP+ | 39 / 39 / 28 Gbps | 2.8 Gbps | FG-120G |
Support Contracts
FortiCare Premium support on its own is also available for the FortiGate 70G in 1, 3 and 5-year terms. Ask us to quote it with the appliance.
Datasheet & Downloads
| Fortinet data sheet | FortiGate / FortiWiFi 70G Series Data Sheet |
| Fortinet product matrix | FortiGate Network Security Platform Product Matrix |
| QuickStart Guide | FortiGate 70G-71G Quick Start Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting FG-70G.
Frequently Asked Questions — Fortinet FortiGate 70G FG-70G
Does the FortiGate 70G include security subscriptions?
The "Hardware only" option is the appliance alone. Choose a UTP bundle option to add 1, 3 or 5 years of FortiGuard Unified Threat Protection with FortiCare Premium support.
How many ports does it have?
Ten Gigabit RJ45 ports: WAN1, WAN2, FortiLink A and B, and six internal ports.
What firewall throughput does it deliver?
Fortinet rates it at 10 Gbps firewall throughput and 1.3 Gbps threat protection throughput (Enterprise Mix).
Does it support two internet links?
Yes. The two WAN ports can be used together with FortiOS SD-WAN for link load-balancing and failover.
What warranty do I get?
Supplied by SourceIT with local warranty support and a GST invoice. FortiCare support contracts can be added for extended coverage.
