Fortinet FortiGate 50G Next-Generation Firewall, 5x GE RJ45, Desktop
PRODUCT DESCRIPTION

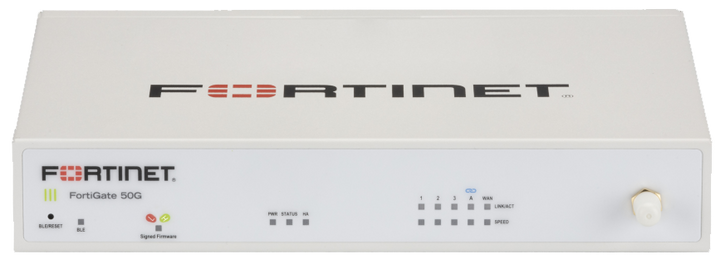

Fortinet FortiGate 50G Next-Generation Firewall (FG-50G) - Local Warranty
Secure, Fast Networking for Branch Offices
The Fortinet FortiGate 50G (FG-50G) is a G-series desktop next-generation firewall that brings NGFW security, SD-WAN and VPN together in one compact appliance for small offices and distributed branch sites. It runs FortiOS, Fortinet's converged networking and security operating system.
A Clear Step Up from the 30G
Fortinet rates the FortiGate 50G at 5 Gbps firewall throughput (1518-byte UDP), 2.25 Gbps IPS, 1.25 Gbps NGFW and 1.1 Gbps threat protection, with 4.4 Gbps of IPsec VPN throughput. It handles up to 720,000 concurrent sessions and 85,000 new sessions per second.
Five Gigabit Ports with FortiLink
The FG-50G provides 5 x GE RJ45 ports: a WAN port, FortiLink port A for managing FortiSwitch access switches, and internal ports 1 to 3. A USB 3.0 port, RJ45 console port and a BLE/reset button round out the hardware, and the unit runs from an external 12 V DC adapter (100–240 V AC, 50/60 Hz).
Choose Hardware Only or a UTP Bundle
Buy the appliance on its own, or bundle it with 1, 3 or 5 years of FortiGuard Unified Threat Protection (UTP). The UTP subscription covers IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam and FortiCare Premium support.
Not sure which FortiGate fits your office? Email sales@sourceit.com.sg with your user count, internet bandwidth and number of sites, and we will size it for you.
Fortinet FortiGate 50G FG-50G Datasheet — Technical Specifications
General
| Product Name | Fortinet FortiGate 50G |
| Part Number | FG-50G |
| Series | FortiGate / FortiWiFi 50G Series (G-series desktop NGFW) |
| Operating System | FortiOS |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Interfaces
| Network Ports | 5 x GE RJ45 (WAN, FortiLink port A, internal ports 1–3) |
| Management | 1 x RJ45 console port |
| Other | 1 x USB 3.0 (Type-A); BLE/reset button; signed-firmware switch; PWR, STATUS, HA, LINK/ACT and SPEED LEDs |
System Performance
| Firewall Throughput (1518 / 512 / 64 byte UDP) | 5 / 5 / 4 Gbps |
| IPS Throughput (Enterprise Mix) | 2.25 Gbps |
| NGFW Throughput (Enterprise Mix) | 1.25 Gbps |
| Threat Protection Throughput (Enterprise Mix) | 1.1 Gbps |
| IPsec VPN Throughput (512 byte) | 4.4 Gbps |
| Concurrent Sessions | 720,000 |
| New Sessions per Second | 85,000 |
| Firewall Policies | 2,000 |
| SSL Inspection Throughput | 1.3 Gbps |
| Maximum FortiSwitches Supported | 8 |
Physical & Power
| Form Factor | Desktop |
| Power Supply | Single external AC adapter |
| Power Input | 12 V DC, 100–240 V AC, 50/60 Hz adapter |
| Operating Temperature | 0 °C to 40 °C |
Fortinet performance figures are measured under Fortinet test conditions and vary with configuration and traffic mix.
Compatibility & Software Support
What It Is Suited To
Small offices, retail outlets, clinics and branch sites that have outgrown an entry-level firewall and want faster threat protection and VPN in a desktop unit. For more ports or higher throughput, step up to the FortiGate 70G or 90G.
Software & Management
Runs FortiOS and is managed through the FortiOS web GUI and CLI. The FortiLink port lets the FortiGate act as the switch controller for up to 8 FortiSwitch units, and FortiGate models also manage FortiAP wireless access points from the same interface. Cloud management is available separately as a FortiManagement Cloud subscription; ask us for a quote.
Security Subscriptions
The FortiGuard Unified Threat Protection (UTP) bundle adds IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam and FortiCare Premium support. Enterprise Protection and individual FortiGuard services are also available on request.
Package Contents & FortiGate Ordering Information
In the Box
Per Fortinet's FortiGate 50G-51G QuickStart Guide: 1 x FortiGate device, 1 x QuickStart Guide, 1 x Ethernet cable, 3 x AC adapter plugs (US, EU, UK) and 1 x DC power adapter.
Bundle Options on This Listing
| Hardware only | FG-50G |
| Hardware + 1-Year UTP | FG-50G + FC-10-GT50G-950-02-12 |
| Hardware + 3-Year UTP | FG-50G + FC-10-GT50G-950-02-36 |
| Hardware + 5-Year UTP | FG-50G + FC-10-GT50G-950-02-60 |
FortiGate G-Series Desktop & 1U Range — Ordering Information
| Model | Interfaces | Firewall (1518/512/64 B UDP) | Threat Protection | Part No. |
| FortiGate 30G | 4 x GE RJ45 | 4 / 4 / 3.9 Gbps | 500 Mbps | FG-30G |
| FortiGate 50G (this listing) | 5 x GE RJ45 | 5 / 5 / 4 Gbps | 1.1 Gbps | FG-50G |
| FortiGate 70G | 10 x GE RJ45 | 10 / 10 / 10 Gbps | 1.3 Gbps | FG-70G |
| FortiGate 90G | 8 x GE RJ45, 2 x 10GE shared port pairs | 28 / 28 / 27.9 Gbps | 2.2 Gbps | FG-90G |
| FortiGate 120G | 18 x GE RJ45, 8 x GE SFP, 4 x 10GE SFP+ | 39 / 39 / 28 Gbps | 2.8 Gbps | FG-120G |
Support Contracts
FortiCare Premium support on its own is also available for the FortiGate 50G in 1, 3 and 5-year terms. Ask us to quote it with the appliance.
Datasheet & Downloads
| Fortinet data sheet | FortiGate / FortiWiFi 50G Series Data Sheet |
| Fortinet product matrix | FortiGate Network Security Platform Product Matrix |
| QuickStart Guide | FortiGate 50G-51G QuickStart Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting FG-50G.
Frequently Asked Questions — Fortinet FortiGate 50G FG-50G
Does the FortiGate 50G include security subscriptions?
The "Hardware only" option is the appliance alone. Choose a UTP bundle option to add 1, 3 or 5 years of FortiGuard Unified Threat Protection with FortiCare Premium support.
How many ports does it have?
Five Gigabit RJ45 ports: one WAN, one FortiLink port (A) and three internal ports.
What firewall throughput does it deliver?
Fortinet rates it at 5 Gbps firewall throughput and 1.1 Gbps threat protection throughput (Enterprise Mix).
How many FortiSwitches can it manage?
Fortinet's product matrix lists up to 8 FortiSwitch units managed through FortiLink.
What warranty do I get?
Supplied by SourceIT with local warranty support and a GST invoice. FortiCare support contracts can be added for extended coverage.
