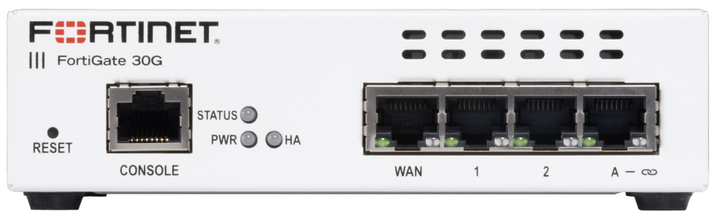

Fortinet FortiGate 30G Next-Generation Firewall, 4x GE RJ45, Desktop
PRODUCT DESCRIPTION
Fortinet FortiGate 30G Next-Generation Firewall (FG-30G) - Local Warranty
Entry-Level NGFW and SD-WAN for Small Offices and Branches
The Fortinet FortiGate 30G (FG-30G) is the entry point of Fortinet's G-series desktop firewalls, combining next-generation firewalling, SD-WAN and security in one compact appliance. Fortinet designs the 30G series for distributed enterprise sites and branch locations, and it runs FortiOS, Fortinet's converged networking and security operating system.
Performance Sized for Small Sites
Fortinet rates the FortiGate 30G at 4 Gbps firewall throughput (1518-byte UDP), 800 Mbps IPS, 570 Mbps NGFW and 500 Mbps threat protection, with 1 Gbps of IPsec VPN throughput for site-to-site and remote access tunnels. It supports up to 600,000 concurrent sessions and 30,000 new sessions per second.
Four Gigabit Ports with FortiLink
The FG-30G provides 4 x GE RJ45 ports: one WAN port and three internal ports, one of which is the FortiLink port (A) for managing a FortiSwitch directly from the FortiGate. A console port and reset button are on the front panel, and the unit is powered by an external 12 V DC adapter (100–240 V AC, 50/60 Hz).
Choose Hardware Only or a UTP Bundle
Buy the appliance on its own, or bundle it with 1, 3 or 5 years of FortiGuard Unified Threat Protection (UTP). The UTP subscription covers IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam and FortiCare Premium support.
Not sure which FortiGate fits your office? Email sales@sourceit.com.sg with your user count, internet bandwidth and number of sites, and we will size it for you.
Fortinet FortiGate 30G FG-30G Datasheet — Technical Specifications
General
| Product Name | Fortinet FortiGate 30G |
| Part Number | FG-30G |
| Series | FortiGate / FortiWiFi 30G Series (G-series desktop NGFW) |
| Operating System | FortiOS |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Interfaces
| Network Ports | 4 x GE RJ45 (1 x WAN, 3 x internal including 1 x FortiLink port A) |
| Management | 1 x console port |
| Other | Reset button; LINK/ACT, SPEED, PWR, STATUS and HA LEDs |
System Performance
| Firewall Throughput (1518 / 512 / 64 byte UDP) | 4 / 4 / 3.9 Gbps |
| IPS Throughput (Enterprise Mix) | 800 Mbps |
| NGFW Throughput (Enterprise Mix) | 570 Mbps |
| Threat Protection Throughput (Enterprise Mix) | 500 Mbps |
| IPsec VPN Throughput (512 byte) | 1 Gbps |
| Concurrent Sessions | 600,000 |
| New Sessions per Second | 30,000 |
Physical & Power
| Form Factor | Desktop |
| Power Supply | Single external AC adapter |
| Power Input | 12 V DC, 100–240 V AC, 50/60 Hz adapter |
| Operating Temperature | 0 °C to 40 °C |
Fortinet performance figures are measured under Fortinet test conditions and vary with configuration and traffic mix.
Compatibility & Software Support
What It Is Suited To
Small offices, retail outlets, clinics and branch sites that need a firewall, SD-WAN and VPN gateway in one desktop unit, typically for smaller user counts. For more users or faster links, step up to the FortiGate 50G or 70G.
Software & Management
Runs FortiOS and is managed through the FortiOS web GUI and CLI. The FortiLink port lets the FortiGate act as the switch controller for FortiSwitch access switches, and FortiGate models also manage FortiAP wireless access points from the same interface. Cloud management is available separately as a FortiManagement Cloud subscription; ask us for a quote.
Security Subscriptions
The FortiGuard Unified Threat Protection (UTP) bundle adds IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam and FortiCare Premium support. Enterprise Protection and individual FortiGuard services are also available on request.
Package Contents & FortiGate Ordering Information
In the Box
Per Fortinet's FortiGate 30G Series QuickStart Guide: 1 x FortiGate device, 1 x QuickStart Guide, 1 x Ethernet cable, 3 x AC adapter plugs (US, EU, UK) and 1 x DC power adapter.
Bundle Options on This Listing
| Hardware only | FG-30G |
| Hardware + 1-Year UTP | FG-30G + FC-10-FG30G-950-02-12 |
| Hardware + 3-Year UTP | FG-30G + FC-10-FG30G-950-02-36 |
| Hardware + 5-Year UTP | FG-30G + FC-10-FG30G-950-02-60 |
FortiGate G-Series Desktop & 1U Range — Ordering Information
| Model | Interfaces | Firewall (1518/512/64 B UDP) | Threat Protection | Part No. |
| FortiGate 30G (this listing) | 4 x GE RJ45 | 4 / 4 / 3.9 Gbps | 500 Mbps | FG-30G |
| FortiGate 50G | 5 x GE RJ45 | 5 / 5 / 4 Gbps | 1.1 Gbps | FG-50G |
| FortiGate 70G | 10 x GE RJ45 | 10 / 10 / 10 Gbps | 1.3 Gbps | FG-70G |
| FortiGate 90G | 8 x GE RJ45, 2 x 10GE shared port pairs | 28 / 28 / 27.9 Gbps | 2.2 Gbps | FG-90G |
| FortiGate 120G | 18 x GE RJ45, 8 x GE SFP, 4 x 10GE SFP+ | 39 / 39 / 28 Gbps | 2.8 Gbps | FG-120G |
Support Contracts
FortiCare Premium support on its own is available for the FortiGate 30G in 1, 3 and 5-year terms (FC-10-FG30G-247-02-12 / -36 / -60). Ask us to quote it with the appliance.
Datasheet & Downloads
| Fortinet data sheet | FortiGate / FortiWiFi 30G Series Data Sheet |
| Fortinet product matrix | FortiGate Network Security Platform Product Matrix |
| QuickStart Guide | FortiGate 30G Series QuickStart Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting FG-30G.
Frequently Asked Questions — Fortinet FortiGate 30G FG-30G
Does the FortiGate 30G include security subscriptions?
The "Hardware only" option is the appliance alone. Choose a UTP bundle option to add 1, 3 or 5 years of FortiGuard Unified Threat Protection with FortiCare Premium support.
How many ports does it have?
Four Gigabit RJ45 ports: one WAN and three internal, including the FortiLink port for FortiSwitch management.
What firewall throughput does it deliver?
Fortinet rates it at 4 Gbps firewall throughput and 500 Mbps threat protection throughput (Enterprise Mix).
Can it be rack-mounted?
The FortiGate 30G is a desktop unit. Fortinet's SP-RACKTRAY-02 rack tray supports desktop E, F and G-series models except the 30G, so plan for shelf or desktop placement.
What warranty do I get?
Supplied by SourceIT with local warranty support and a GST invoice. FortiCare support contracts can be added for extended coverage.
