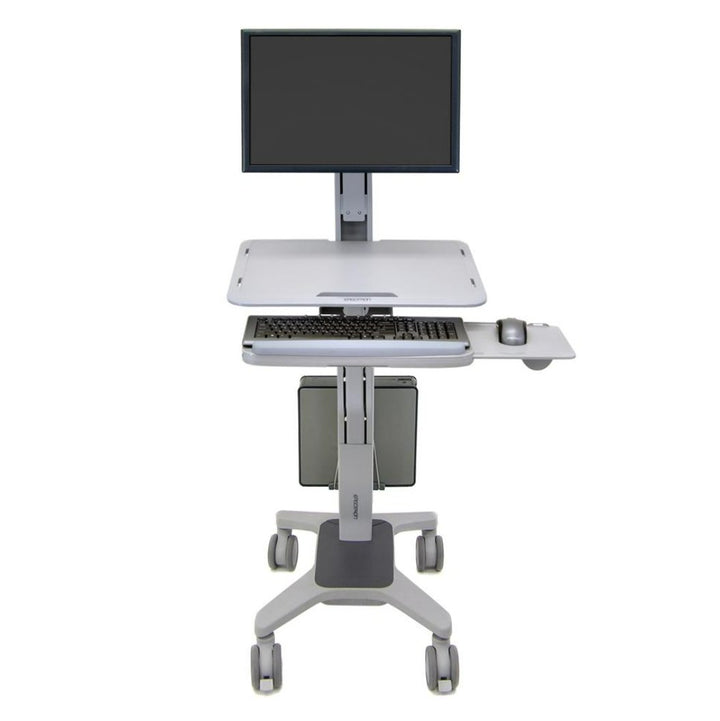

Ergotron WorkFit-C Single LD Sit-Stand Workstation
PRODUCT DESCRIPTION
Ergotron WorkFit-C Single LD Sit-Stand Workstation (24-198-055) - 5 Years Local Warranty
A Complete Sit-Stand Workstation That Needs No Desk
The Ergotron WorkFit-C Single LD is a self-contained mobile workstation: display mount, worksurface, stowable keyboard tray and CPU holder on four dual casters. Nothing is clamped, drilled or fixed, so it drops straight into leased Singapore offices, clinics and training rooms where altering the furniture is not an option, and rolls to wherever the work is happening.
25 Inches of Constant Force Lift
Patented Constant Force™ motion technology delivers 25″ (63.5 cm) of total height adjustment — the worksurface and display rise 20″ together and the display adjusts a further 5″ on its own. The cart moves from seated to standing in one smooth motion with no cranks, no motors and no power outlet, so a shared cart genuinely fits users of different heights.
Sized for a Single 27-Inch Display
The Single LD configuration carries one display of up to 27″ weighing 5–18 lbs (2.3–8.1 kg), with a 27 lbs (12.2 kg) maximum load across the workstation and 25° of tilt plus 360° of rotation for portrait or landscape working. The VESA MIS-D mount fits the pattern used by most business monitors.
Desk Space, Cables and Kit All Handled
A 24″ W x 23″ D worksurface, a 26.3″ W x 9.4″ D keyboard tray that stows underneath, and an included CPU holder with cable management keep the whole setup tidy and mobile — the cart can be parked flat against a wall between shifts without unplugging the workstation.
Backed by Ergotron, Supported Locally
Ergotron backs the WorkFit-C with a 5-year manufacturer warranty. Bought from SourceIT it ships with local Singapore warranty support and a GST invoice, so facilities and finance teams have what they need for a multi-unit rollout.
Ergotron WorkFit-C Datasheet — Technical Specifications
General
| Product | Ergotron WorkFit-C Single LD Sit-Stand Workstation |
| Part Number | 24-198-055 |
| Finish | Two-tone grey |
| Type | Mobile sit-stand computer cart (freestanding, no desk required) |
| Number of Displays | 1 display |
| Lift Technology | Patented Constant Force™ motion technology |
| Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty | Local Warranty (Singapore) |
Capacity & Worksurface
| Display Size Supported | Displays up to 27″ |
| Display Weight Range | 5–18 lbs (2.3–8.1 kg) |
| Maximum Load | 27 lbs (12.2 kg) |
| VESA Pattern | VESA MIS-D |
| Worksurface | 24″ W x 23″ D (60.7 x 57.9 cm) |
| Keyboard Tray | 26.3″ W x 9.4″ D (66.8 x 24.0 cm), stowable under the worksurface |
Adjustment & Motion
| Total Height Adjustment | 25″ (63.5 cm) |
| Worksurface & Display in Tandem | 20″ |
| Display Independent Adjustment | A further 5″ |
| Tilt | 25° |
| Rotation | 360° |
Design, Mobility & Durability
| Casters | Four dual casters, two front casters lockable |
| CPU Holder | Included, with cable management |
| Assembly | Ships with all platforms needed to mount the display |
| Warranty Term | 5 years |
Compatibility & Fit
The WorkFit-C Single LD carries displays up to 27″ and mounts through the VESA MIS-D pattern, which covers the hole spacing used by the large majority of business displays. Because the cart is freestanding on four dual casters, there is no desk clamp, grommet hole or wall fixing to plan for — it needs floor space and a lift or ramp route between rooms, nothing more. That makes it the practical option in Singapore offices with leased fit-outs where drilling desks or walls is not permitted.
Displays that provide no VESA holes require the manufacturer's own VESA adapter plate. Ultrawide and curved panels are outside the published display-size specification for this model; where a larger or heavier screen is involved, look at the Single HD configuration or at an LX or HX desk arm instead. The stowable keyboard tray slides under the worksurface when the cart is parked, so it can be pushed against a wall between shifts.
Total travel is 25″ (63.5 cm): the worksurface and display rise 20″ together and the display adjusts a further 5″ on its own, which is enough range to serve seated and standing users of very different heights on a shared cart — useful in ward rounds, training rooms and shift-based operations.
Package Contents & WorkFit-C Ordering Information
In the Box
- WorkFit-C cart with stowable keyboard tray
- Large worksurface
- LCD pivot
- CPU holder with cable management
- All platforms needed to mount the monitor
- Four dual casters (two locking)
WorkFit-C Series — Configurations & Part Numbers
| 24-198-055 | WorkFit-C Single LD Sit-Stand Workstation — Two-Tone Grey (this listing) |
| 24-215-085 | WorkFit-C Single LD Sit-Stand Workstation — Black & Grey |
| 24-216-085 | WorkFit-C Single HD Sit-Stand Workstation — Black & Grey |
| 24-214-085 | WorkFit-C Dual Sit-Stand Workstation — Black & Grey |
Related Ergotron Sit-Stand Models at SourceIT
| Desktop converter, large worksurface | WorkFit-TL Sit-Stand Desktop Workstation (33-406-085) |
| Desktop converter, deep worksurface | WorkFit-TX Standing Desk Converter (33-467-921) |
| Compact desktop converter | WorkFit-Z Mini Sit-Stand Desktop (33-458-917) |
Datasheet & Downloads
Frequently Asked Questions — Ergotron WorkFit-C
What is the difference between the WorkFit-C Single LD, Single HD and Dual?
Single LD (24-198-055 two-tone grey, 24-215-085 black & grey) takes one display up to 27″; Single HD (24-216-085) takes one larger, heavier display up to 30″; Dual (24-214-085) takes two displays up to 24″ each. The cart, worksurface, keyboard tray and 25″ of lift are common to all of them.
How large and heavy a monitor will this configuration take?
This configuration supports displays up to 27′ with a display weight range of 5–18 lbs (2.3–8.1 kg) and a maximum load of 27 lbs (12.2 kg).
How many screens does it hold?
1 display. If you need a different screen count, the WorkFit-C siblings listed in the ordering table cover single LD, single HD and dual configurations.
Does it need to be clamped to a desk or fixed to a wall?
No. The WorkFit-C is a freestanding mobile cart on four dual casters, two of which lock. There is no desk clamp, grommet hole or wall fixing, so no desk-thickness check is needed and no drilling is involved — an advantage in leased premises.
Will I need a VESA adapter?
The display mount uses the VESA MIS-D pattern. Most business monitors match it directly; a display with no VESA holes will need the manufacturer's own adapter plate.
Is it genuinely usable both sitting and standing?
Yes. Constant Force™ lift gives 25″ (63.5 cm) of total height adjustment — 20″ with the worksurface and display moving together plus 5″ of independent display adjustment — so the same cart serves a seated user and a standing user, and moves between them in one motion.
How does it compare with the WorkFit-TL or WorkFit-TX?
The WorkFit-C is a complete mobile cart that needs no desk at all, so it rolls between rooms. The WorkFit-TL (33-406-085) and WorkFit-TX (33-467-921) sit on top of an existing desk instead, which suits a fixed workstation where the desk is already in place.
Is there a local Singapore warranty?
Yes. Every Ergotron WorkFit-C sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the WorkFit-C with a 5-year manufacturer warranty.
