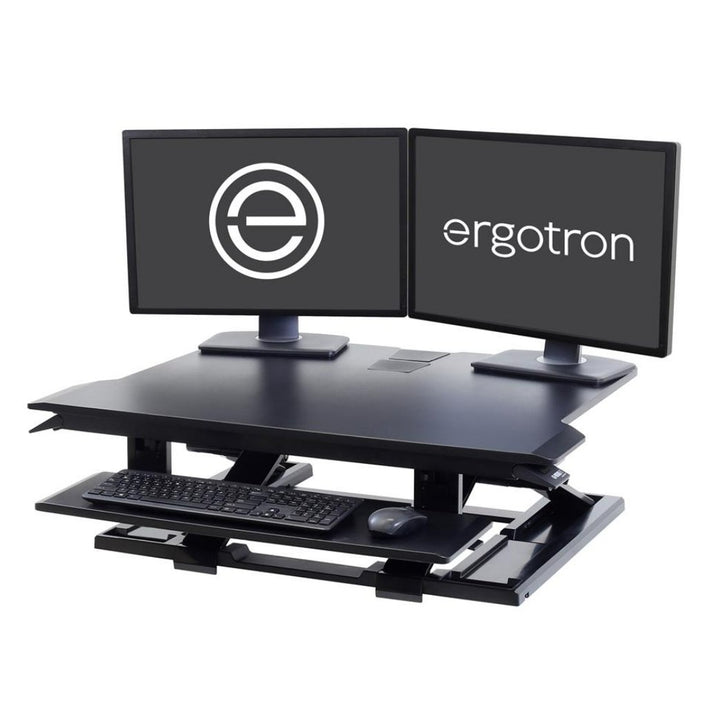

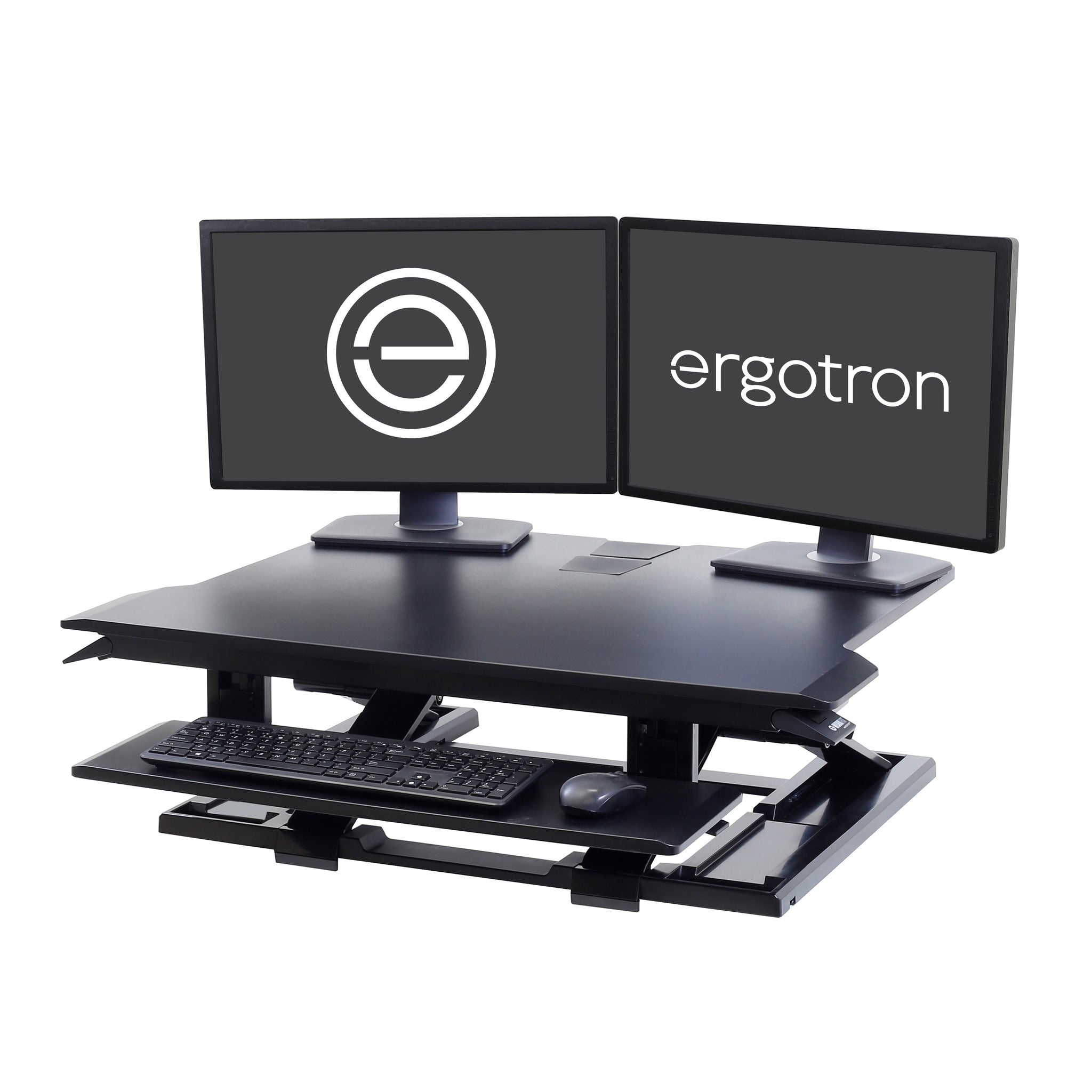

Ergotron WorkFit-TX Standing Desk Converter
PRODUCT DESCRIPTION
Ergotron WorkFit-TX Standing Desk Converter (33-467-921) - 5 Years Local Warranty
A Deep 32″ x 27″ Worksurface for Real Working Days
The Ergotron WorkFit-TX gives you a 32″ x 27″ (81 x 68.5 cm) worksurface — unusually deep for a converter — with a separate 28″ x 8″ (71 x 20 cm) keyboard tray below it. There is room for monitors, a notebook and the paperwork that comes with them, rather than a surface you have to keep clearing.

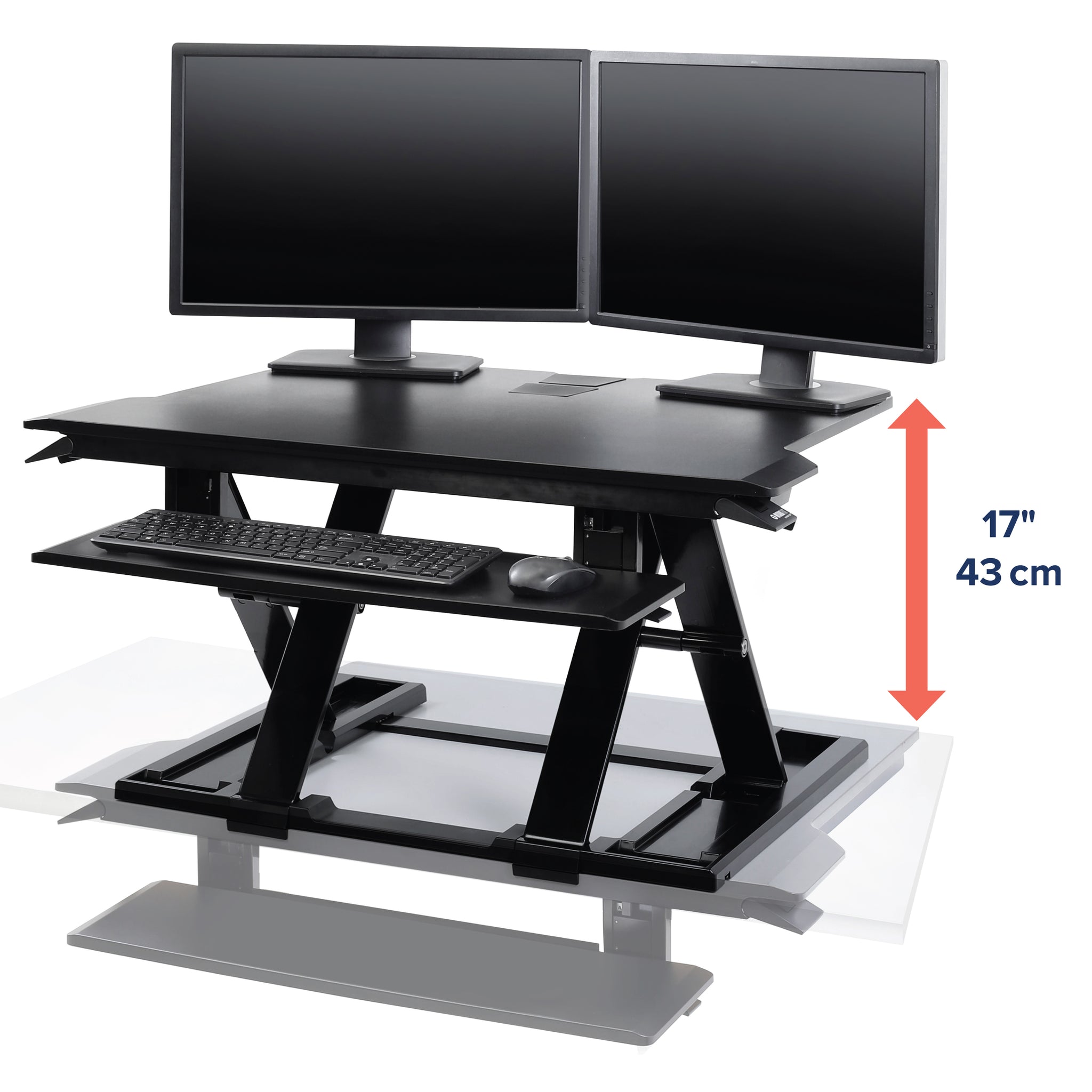

17 Inches of Worksurface Lift, 20 Inches of Total Range
The worksurface travels 17″ (43.2 cm) vertically and the keyboard adjusts a further 3″ independently, giving a full 20″ (50.8 cm) range of sit-stand motion. Ergotron uses infinite height adjustment points from an easy-to-find handle with no clicking, so you set the exact height instead of the nearest notch.
Folds Lower Than the Competition When You Sit Down
The X-shaped lift collapses to within inches of the desk — Ergotron puts it three inches below competing converters at rest. That low resting height is what stops a converter from permanently raising your seated typing position, which is the usual hidden cost of leaving one on the desk.
Ships Fully Assembled, Guaranteed Five Years
A solid metal design provides a stable platform that resists tipping and sway, and the unit ships fully assembled for out-of-the-box installation. Total capacity is 10–40 lbs (4.5–18.2 kg), the keyboard tray offers 10° of back tilt, and Ergotron tests and guarantees the WorkFit-TX with a full five-year warranty.
Ergotron WorkFit-TX Datasheet — Technical Specifications
General
| Product | WorkFit-TX Standing Desk Converter |
| Part Number | 33-467-921 |
| Finish | Black |
| Category | Sit-stand desktop workstation / standing desk converter |
| Desk Placement | Sits on the desktop; X-shaped lift folds down within inches of the desk at rest |
Capacity & Worksurface
| Total Weight Capacity | 10–40 lbs (4.5–18.2 kg) |

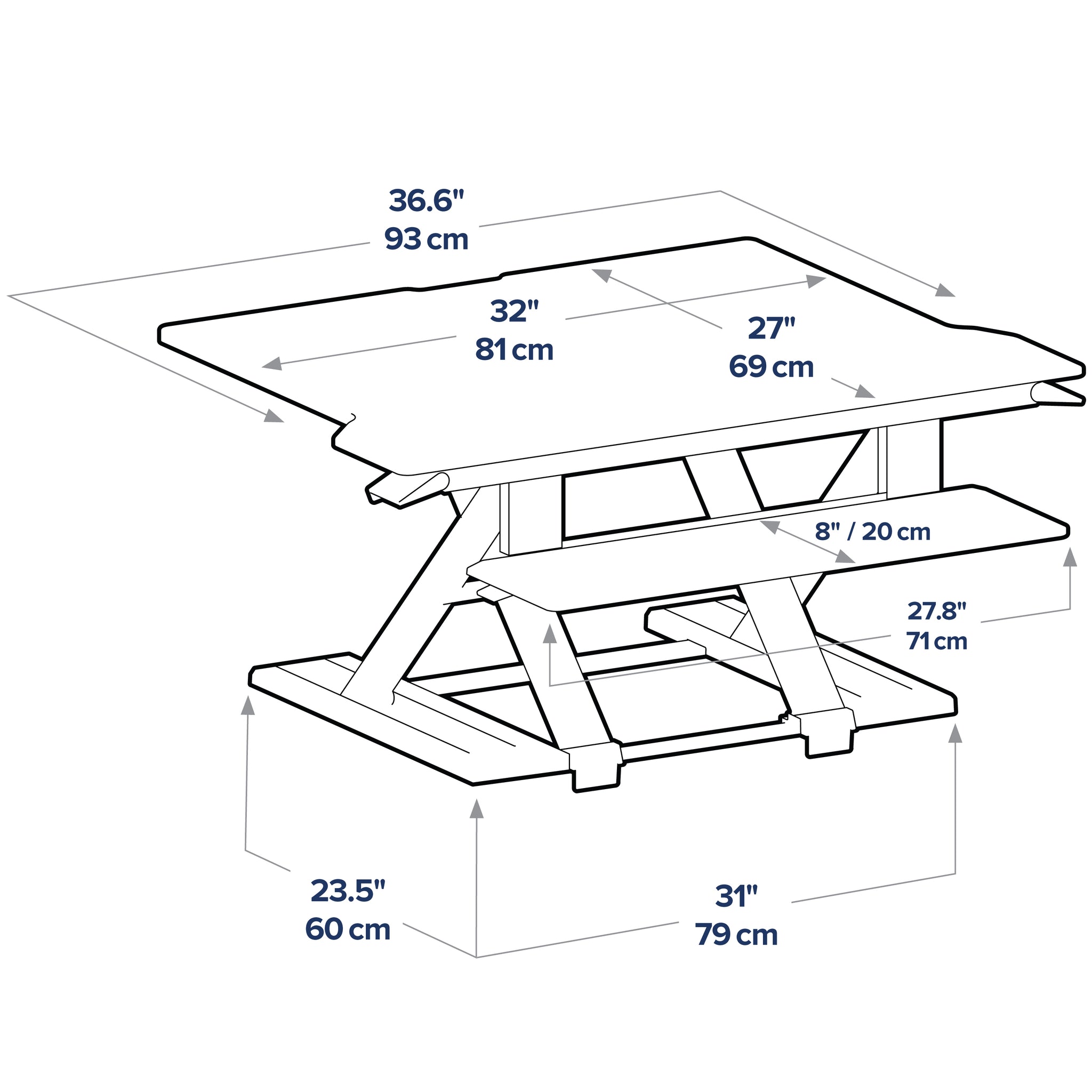

| Worksurface | 32″ x 27″ (81 x 68.5 cm) |
| Keyboard Tray | 28″ x 8″ (71 x 20 cm), height-adjustable with back tilt |
| Keyboard Drop Below Desk Surface | 3.5″ (8.9 cm) |
| Optional Monitor Mounting | Accepts an accessory WorkFit monitor mount kit (6–14 lbs / 2.72–6.35 kg per monitor) |
Adjustment & Motion
| Worksurface Lift | 17″ (43.2 cm) |
| Keyboard Independent Adjustment | 3″ |
| Total Sit-Stand Range of Motion | 20″ (50.8 cm) |
| Keyboard Tray Tilt | 10° back tilt |
| Adjustment Feel | Infinite height adjustment points from an easy-to-find handle, with no clicking |
Design, Assembly & Durability
| Construction | Solid metal design providing a stable platform to avoid tipping or sway |
| Assembly | Ships fully assembled with out-of-the-box installation |
| Product Weight | 58.5 lbs (26.6 kg) |
| Shipping Dimensions | 37.5″ x 40″ x 8″ (95.3 x 101.6 x 20.3 cm) |
| Shipping Weight | 76 lbs (34.5 kg) |
| Manufacturer Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty | Local Warranty (Singapore) |
Compatibility & Fit
The WorkFit-TX sits on your existing desktop — no clamp, grommet or wall fixing, so desk thickness is not a consideration. Plan instead around footprint and weight: the worksurface is 32″ x 27″ (81 x 68.5 cm) and the unit itself weighs 58.5 lbs (26.6 kg), so the desk beneath it needs to be sound and deep enough to take it.
Total capacity is 10–40 lbs (4.5–18.2 kg). Equipment can sit directly on the worksurface, or you can add an accessory WorkFit monitor mount kit — that kit is rated at 6–14 lbs (2.72–6.35 kg) per monitor, which is the figure to check a heavier or curved panel against. Ergotron does not publish a maximum screen diagonal for the TX itself.

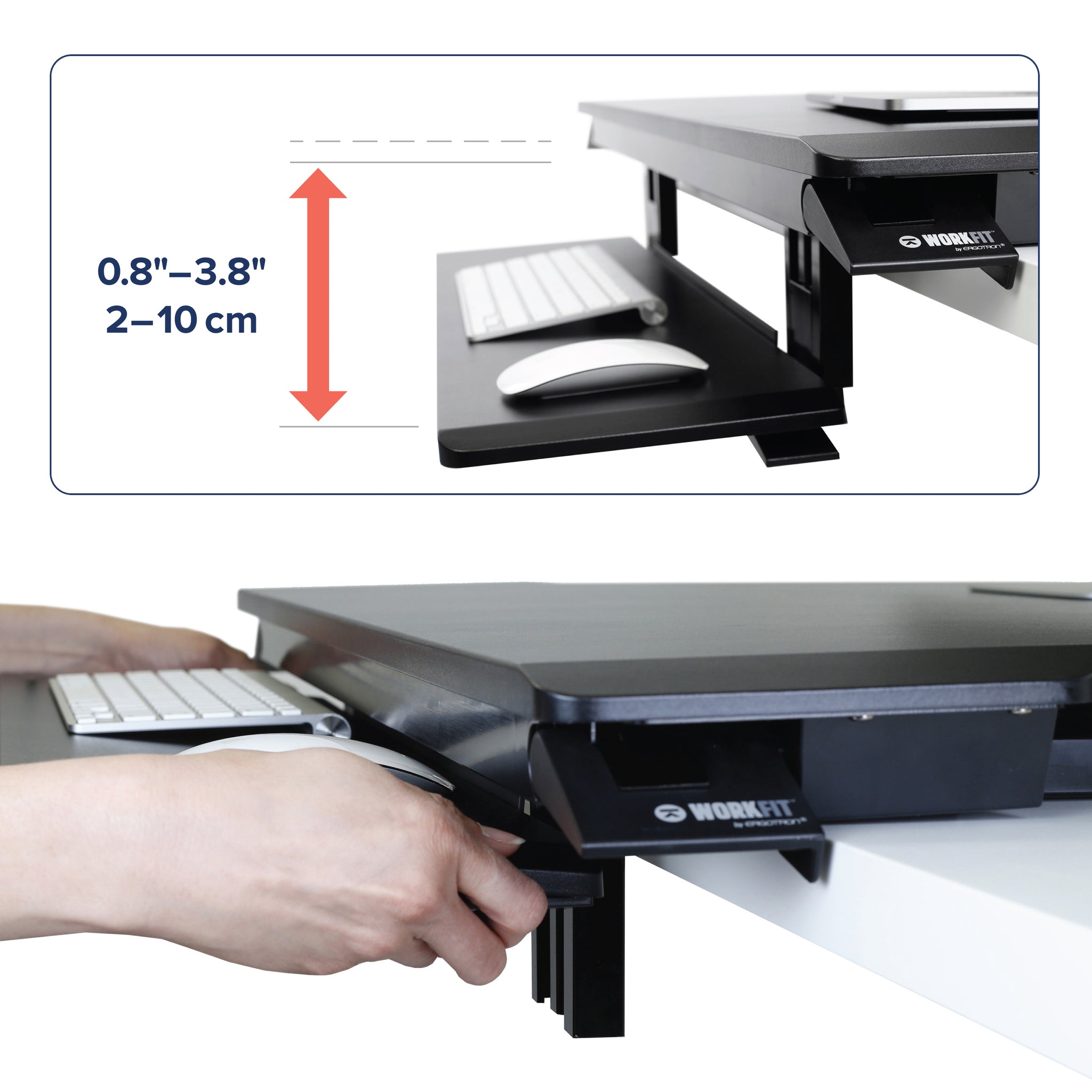

The keyboard tray is 28″ x 8″ (71 x 20 cm) with 10° of back tilt and 3″ of independent height adjustment, dropping 3.5″ (8.9 cm) below the desk surface — the arrangement that keeps typing height correct while the screens stay at eye level. Monitor kits that fit include the Dual Monitor Kit (97-934-085) and Single HD Kit (97-936-085).
Package Contents & WorkFit Ordering Information
In the box: the WorkFit-TX ships fully assembled for out-of-the-box installation — worksurface, height-adjustable keyboard tray and X-shaped lift. Ergotron does not publish a separate itemised box-contents list for this part number.
WorkFit Sit-Stand Converters
| WorkFit-TX Standing Desk Converter (black) | 33-467-921 (this listing) |
| WorkFit-TL Sit-Stand Desktop Workstation (black) | 33-406-085 |
| WorkFit-Z Mini Sit-Stand Desktop (grey woodgrain) | 33-458-917 |
WorkFit Monitor Kits & Accessories
| WorkFit Single LD Monitor Kit, black | 97-935-085 |
| WorkFit Single HD Monitor Kit, black | 97-936-085 |
| WorkFit Dual Monitor Kit | 97-934-085 |
| WorkFit LCD & Laptop Kit, black | 97-933-085 |
Datasheet & Downloads
Frequently Asked Questions — Ergotron WorkFit-TX
How much sit-stand range does it give?
The worksurface lifts 17 inches (43.2 cm) and the keyboard adjusts a further 3 inches independently, for a full 20 inch (50.8 cm) range of motion.
How big is the worksurface?
32″ x 27″ (81 x 68.5 cm) — noticeably deeper than most converters — with a separate 28″ x 8″ (71 x 20 cm) keyboard tray below it.
How much weight can it take?
10–40 lbs (4.5–18.2 kg) in total. If you add an accessory WorkFit monitor mount kit, that kit is rated 6–14 lbs (2.72–6.35 kg) per monitor.

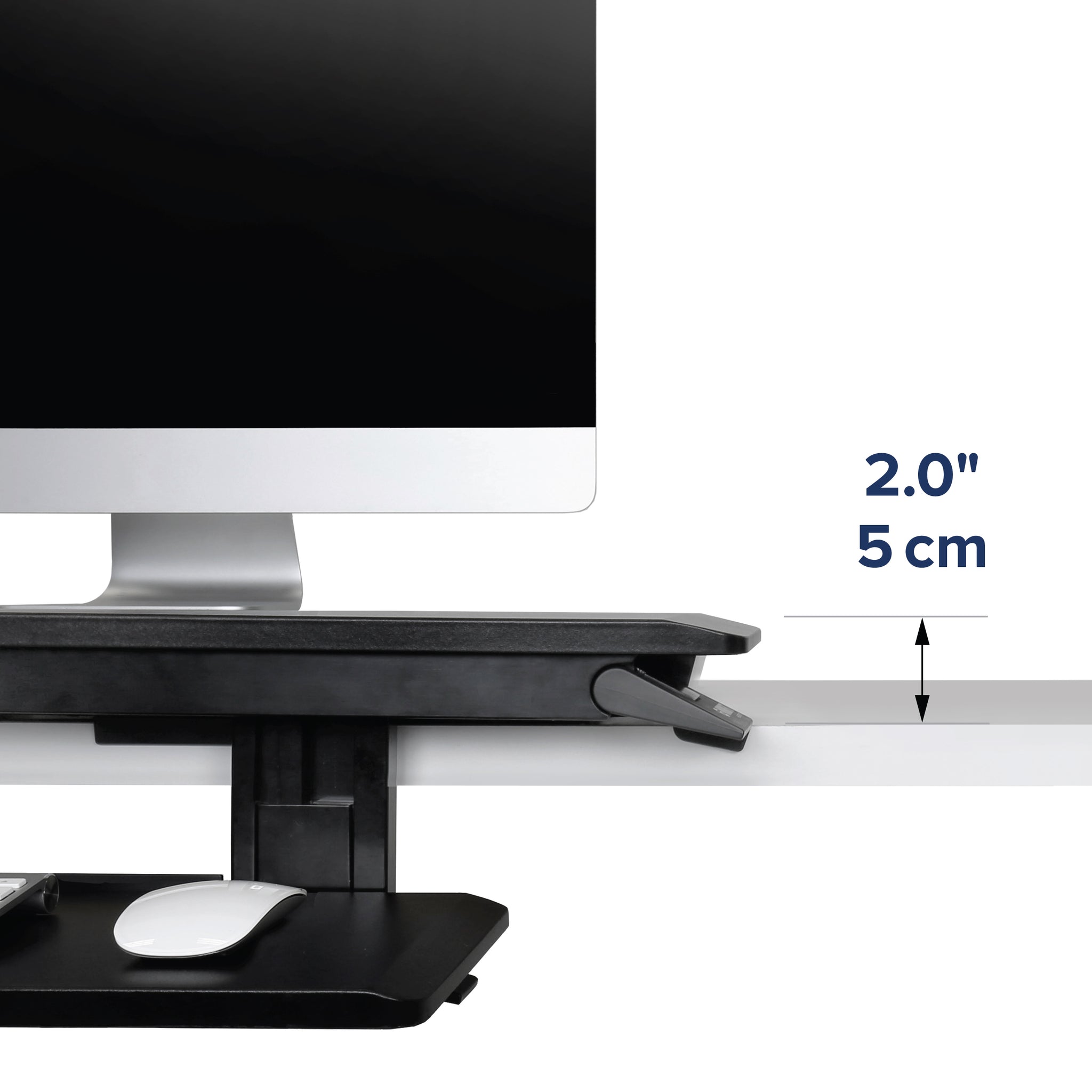

How low does it sit when I am seated?
The X-shaped lift folds down to within inches of the desk — Ergotron states it rests three inches lower than competing converters, so it does not raise your seated typing position.
Does the keyboard tray tilt?
Yes, 10° of back tilt, with 3 inches of independent height adjustment. It drops 3.5″ (8.9 cm) below the desk surface.
How does it compare with the WorkFit-TL?
The WorkFit-TL (33-406-085) has a wider but shallower 37.5″ x 23″ worksurface with 15″ of lift. The TX is deeper at 32″ x 27″, lifts 17″, adds independent keyboard adjustment and folds lower at rest.
Is there a local Singapore warranty?
Yes. Every Ergotron WorkFit-TX sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the WorkFit-TX with a 5-year manufacturer warranty.
