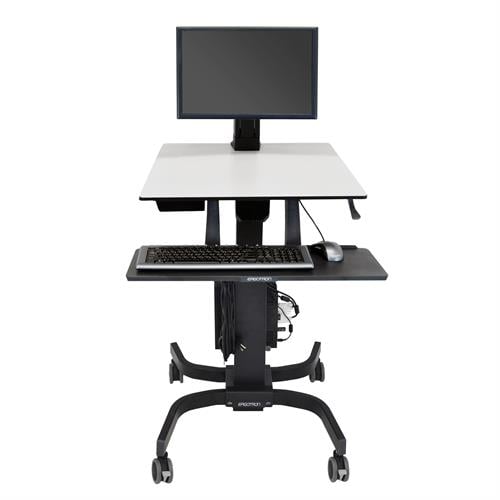

Ergotron WorkFit-C Single HD Sit-Stand Workstation Black
PRODUCT DESCRIPTION
Ergotron WorkFit-C Single HD Sit-Stand Workstation Black (24-216-085) - 5 Years Local Warranty
Heavy-Duty Mobile Sit-Stand for Large Displays
The Ergotron WorkFit-C Single HD is the heavy-duty member of the WorkFit-C family, built to roll a display of up to 30″ and 28 lbs around the floor plate. Design studios, control rooms, radiology reading points and engineering offices in Singapore get a full sit-stand workstation without giving up the large screen the work actually needs.
25 Inches of Constant Force Lift Under Load
Patented Constant Force™ motion technology carries the larger panel through 25″ (63.5 cm) of total height adjustment — 20″ with the worksurface and display together plus 5″ of independent display travel — and holds position wherever it is left, with no motor and no power outlet required.
Rated for 16 to 28 lb Displays
The HD configuration takes one display of up to 30″ weighing 16–28 lbs (7.3–12.7 kg), with a 32.5 lbs (14.7 kg) maximum load and 30° of tilt. Its mount covers the wider VESA MIS-D/E/F hole patterns used by larger panels, so big-screen monitors bolt straight on.

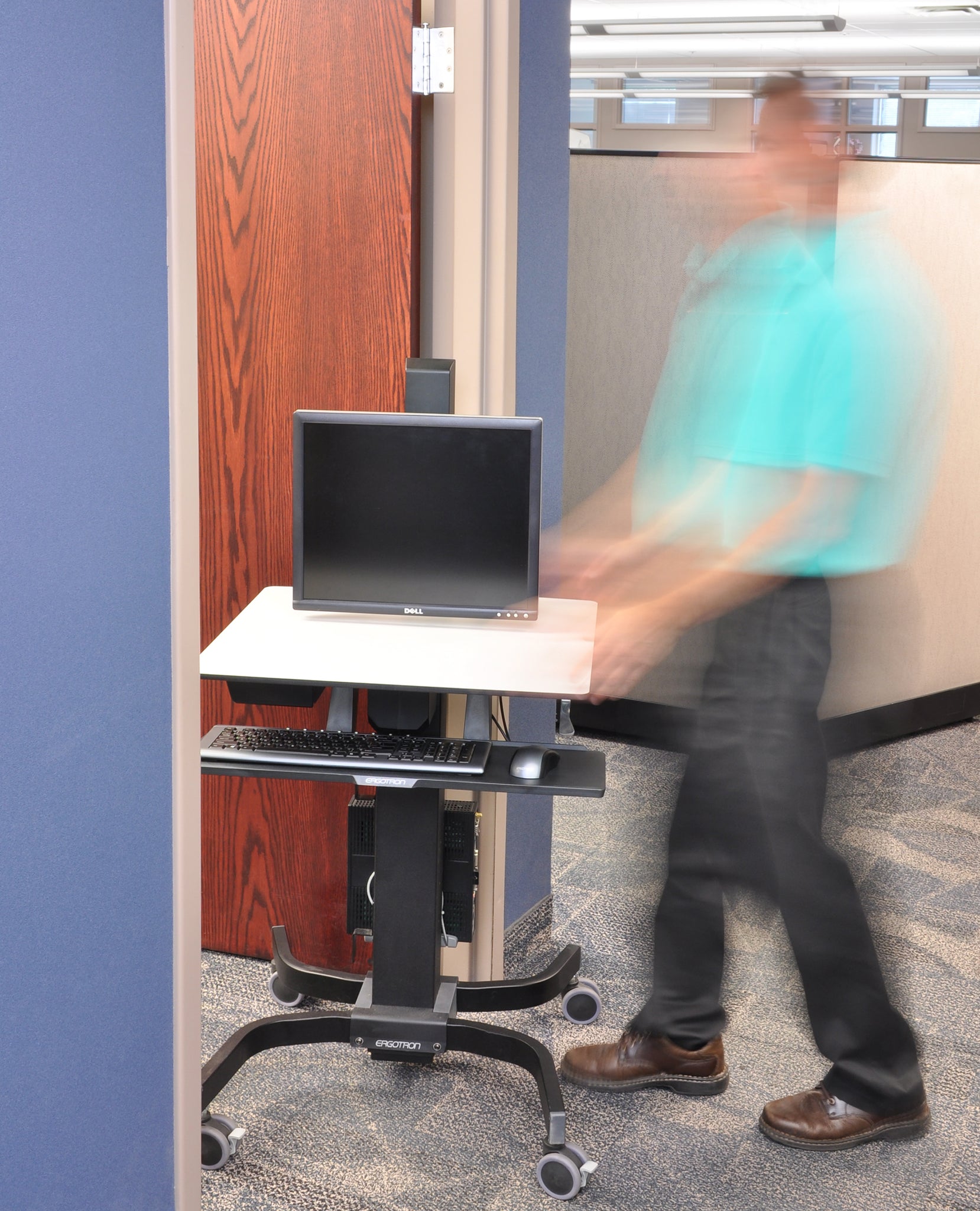

A Workstation You Can Wheel to the Work
A 24″ W x 23″ D worksurface, a stowable 26.3″ W x 9.4″ D keyboard tray and an included CPU holder with cable management ride with the cart on four dual casters, two of them lockable — so the whole setup relocates in one move rather than being rebuilt at the far end.
Backed by Ergotron, Supported Locally
Ergotron backs the WorkFit-C with a 5-year manufacturer warranty. Bought from SourceIT it ships with local Singapore warranty support and a GST invoice.
Ergotron WorkFit-C Datasheet — Technical Specifications
General
| Product | Ergotron WorkFit-C Single HD Sit-Stand Workstation |
| Part Number | 24-216-085 |
| Finish | Black & grey |
| Type | Mobile sit-stand computer cart (freestanding, no desk required) |
| Number of Displays | 1 display |
| Lift Technology | Patented Constant Force™ motion technology |
| Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty | Local Warranty (Singapore) |
Capacity & Worksurface
| Display Size Supported | Displays up to 30″ |
| Display Weight Range | 16–28 lbs (7.3–12.7 kg) |
| Maximum Load | 32.5 lbs (14.7 kg) |
| VESA Pattern | VESA MIS-D/E/F |
| Worksurface | 24″ W x 23″ D (60.7 x 57.9 cm) |
| Keyboard Tray | 26.3″ W x 9.4″ D (66.8 x 24.0 cm), stowable under the worksurface |
Adjustment & Motion
| Total Height Adjustment | 25″ (63.5 cm) |
| Worksurface & Display in Tandem | 20″ |
| Display Independent Adjustment | A further 5″ |
| Tilt | 30° |
| Rotation | 90° |
Design, Mobility & Durability
| Casters | Four dual casters, two front casters lockable |
| CPU Holder | Included, with cable management |
| Assembly | Ships with all platforms needed to mount the display |
| Warranty Term | 5 years |
Compatibility & Fit
The WorkFit-C Single HD carries displays up to 30″ and mounts through the VESA MIS-D/E/F pattern, which covers the hole spacing used by the large majority of business displays. Because the cart is freestanding on four dual casters, there is no desk clamp, grommet hole or wall fixing to plan for — it needs floor space and a lift or ramp route between rooms, nothing more. That makes it the practical option in Singapore offices with leased fit-outs where drilling desks or walls is not permitted.
Displays that provide no VESA holes require the manufacturer's own VESA adapter plate. Ultrawide and curved panels are outside the published display-size specification for this model; where a larger or heavier screen is involved, look at the Single HD configuration or at an LX or HX desk arm instead. The stowable keyboard tray slides under the worksurface when the cart is parked, so it can be pushed against a wall between shifts.
Total travel is 25″ (63.5 cm): the worksurface and display rise 20″ together and the display adjusts a further 5″ on its own, which is enough range to serve seated and standing users of very different heights on a shared cart — useful in ward rounds, training rooms and shift-based operations.
Package Contents & WorkFit-C Ordering Information
In the Box
- WorkFit-C cart with stowable keyboard tray
- Large worksurface
- LCD pivot
- CPU holder with cable management
- All platforms needed to mount the monitor
- Four dual casters (two locking)
WorkFit-C Series — Configurations & Part Numbers
| 24-198-055 | WorkFit-C Single LD Sit-Stand Workstation — Two-Tone Grey |
| 24-215-085 | WorkFit-C Single LD Sit-Stand Workstation — Black & Grey |
| 24-216-085 | WorkFit-C Single HD Sit-Stand Workstation — Black & Grey (this listing) |
| 24-214-085 | WorkFit-C Dual Sit-Stand Workstation — Black & Grey |
Related Ergotron Sit-Stand Models at SourceIT
| Desktop converter, large worksurface | WorkFit-TL Sit-Stand Desktop Workstation (33-406-085) |
| Desktop converter, deep worksurface | WorkFit-TX Standing Desk Converter (33-467-921) |
| Compact desktop converter | WorkFit-Z Mini Sit-Stand Desktop (33-458-917) |
Datasheet & Downloads
Frequently Asked Questions — Ergotron WorkFit-C
What is the difference between the WorkFit-C Single LD, Single HD and Dual?
Single LD (24-198-055 two-tone grey, 24-215-085 black & grey) takes one display up to 27″; Single HD (24-216-085) takes one larger, heavier display up to 30″; Dual (24-214-085) takes two displays up to 24″ each. The cart, worksurface, keyboard tray and 25″ of lift are common to all of them.
How large and heavy a monitor will this configuration take?
This configuration supports displays up to 30′ with a display weight range of 16–28 lbs (7.3–12.7 kg) and a maximum load of 32.5 lbs (14.7 kg).
How many screens does it hold?
1 display. If you need a different screen count, the WorkFit-C siblings listed in the ordering table cover single LD, single HD and dual configurations.
Does it need to be clamped to a desk or fixed to a wall?
No. The WorkFit-C is a freestanding mobile cart on four dual casters, two of which lock. There is no desk clamp, grommet hole or wall fixing, so no desk-thickness check is needed and no drilling is involved — an advantage in leased premises.
Will I need a VESA adapter?
The display mount uses the VESA MIS-D/E/F pattern. Most business monitors match it directly; a display with no VESA holes will need the manufacturer's own adapter plate.

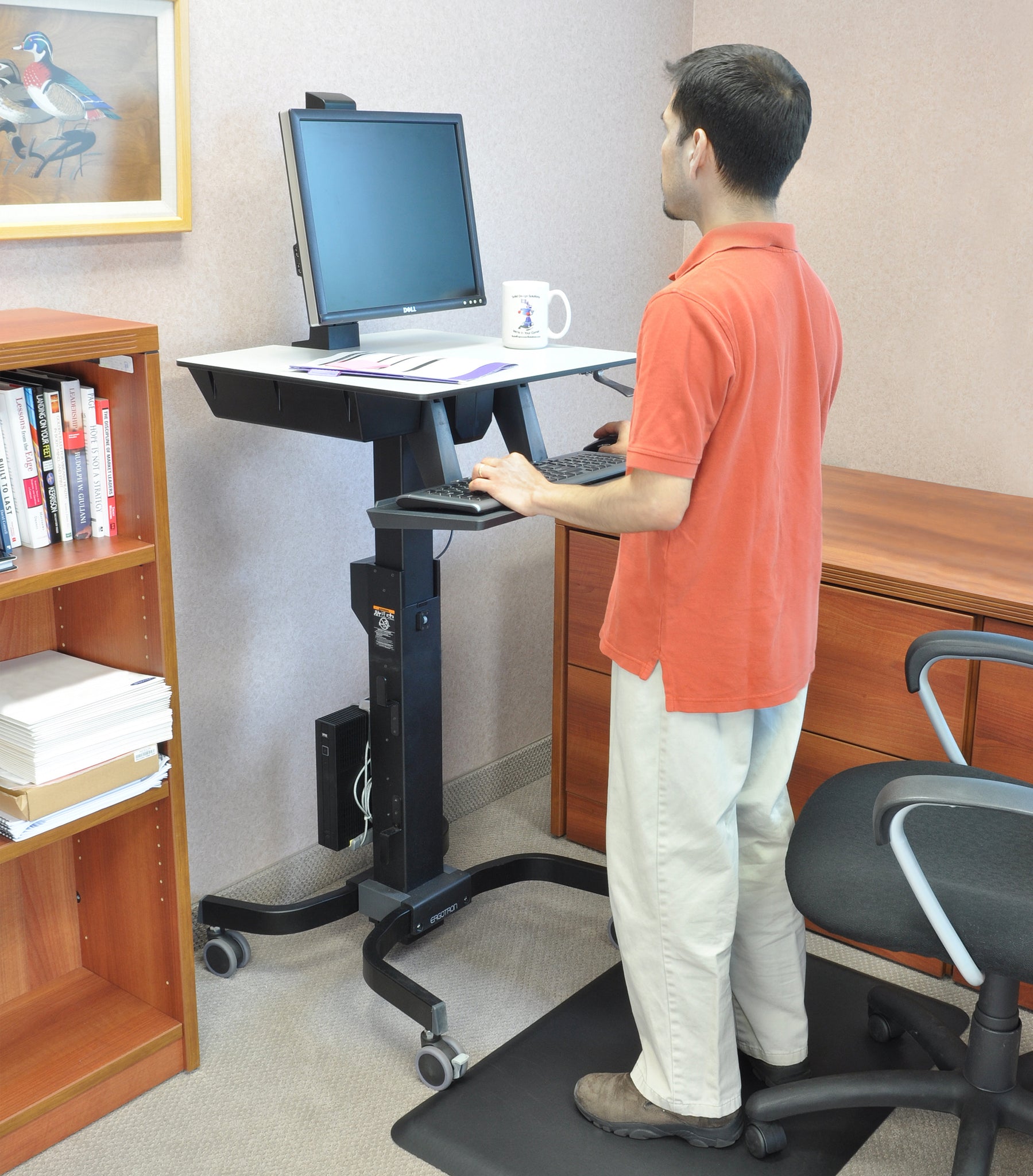

Is it genuinely usable both sitting and standing?
Yes. Constant Force™ lift gives 25″ (63.5 cm) of total height adjustment — 20″ with the worksurface and display moving together plus 5″ of independent display adjustment — so the same cart serves a seated user and a standing user, and moves between them in one motion.
How does it compare with the WorkFit-TL or WorkFit-TX?
The WorkFit-C is a complete mobile cart that needs no desk at all, so it rolls between rooms. The WorkFit-TL (33-406-085) and WorkFit-TX (33-467-921) sit on top of an existing desk instead, which suits a fixed workstation where the desk is already in place.
Is there a local Singapore warranty?
Yes. Every Ergotron WorkFit-C sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the WorkFit-C with a 5-year manufacturer warranty.
