Ergotron WM Low Profile Wall Mount
PRODUCT DESCRIPTION
Ergotron WM Low Profile Wall Mount (60-604-003) - 5 Years Local Warranty
175 lb (79.4 kg) Capacity in a 1.25" (32 mm) Wall Profile

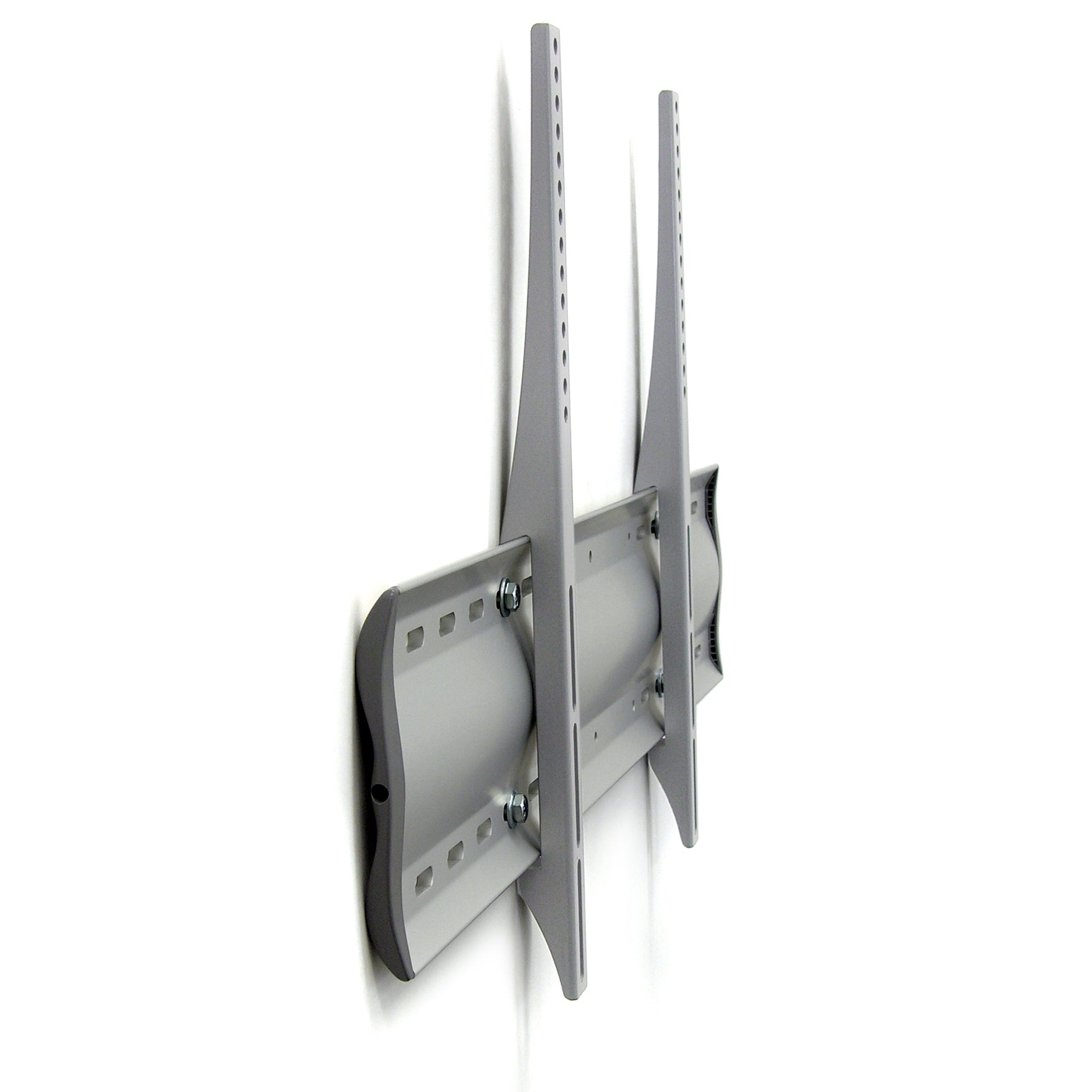

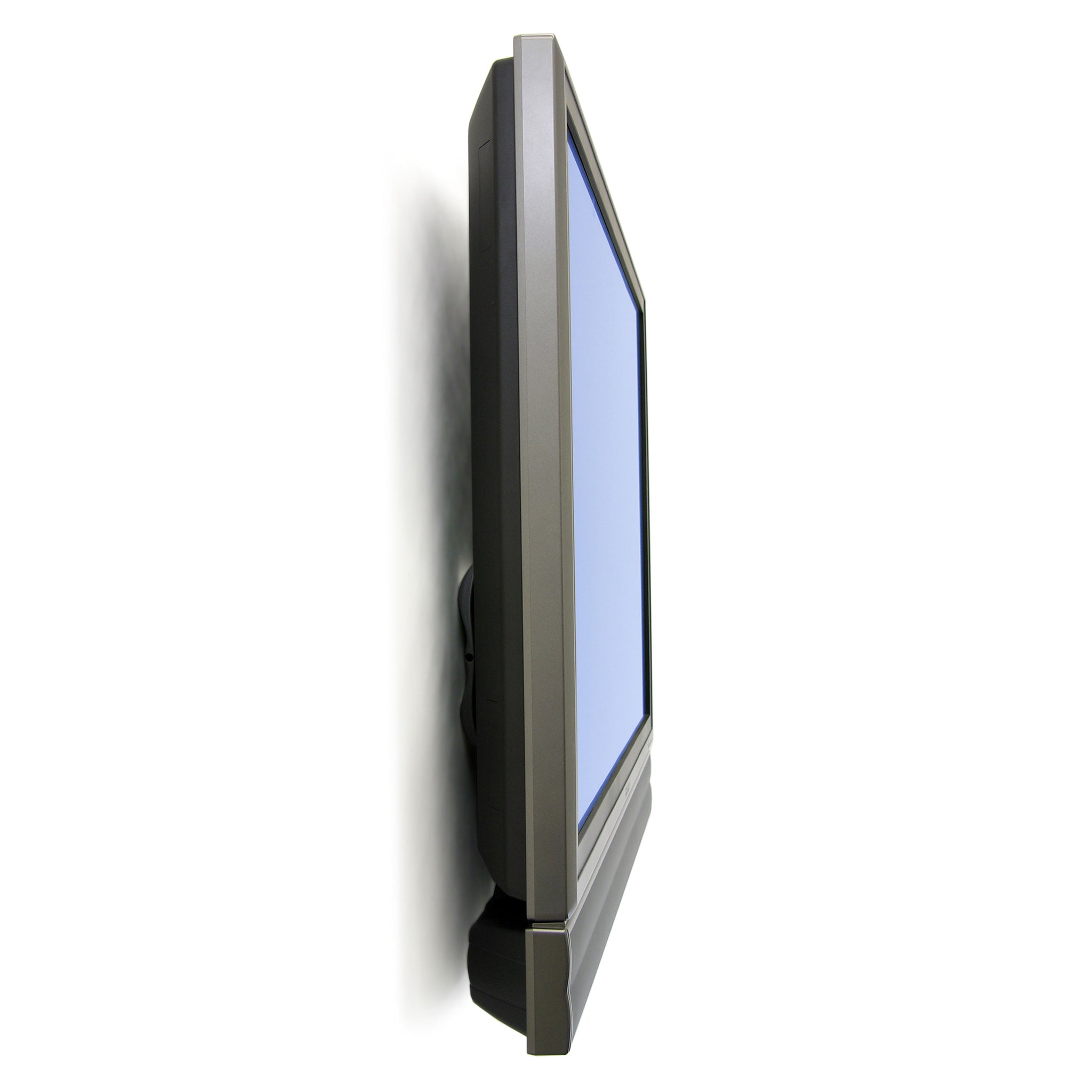

The Ergotron WM Low Profile Wall Mount holds a display of up to 175 lb (79.4 kg) just 1.25" (32 mm) from the wall. Ergotron's own description is that the wall-hugging design hangs a large flat panel "just over an inch from the wall" — the practical result is a screen that reads as part of the wall rather than as equipment bolted to it.
VESA MIS-D/E/F: 100–600 mm Horizontal, 100–450 mm Vertical

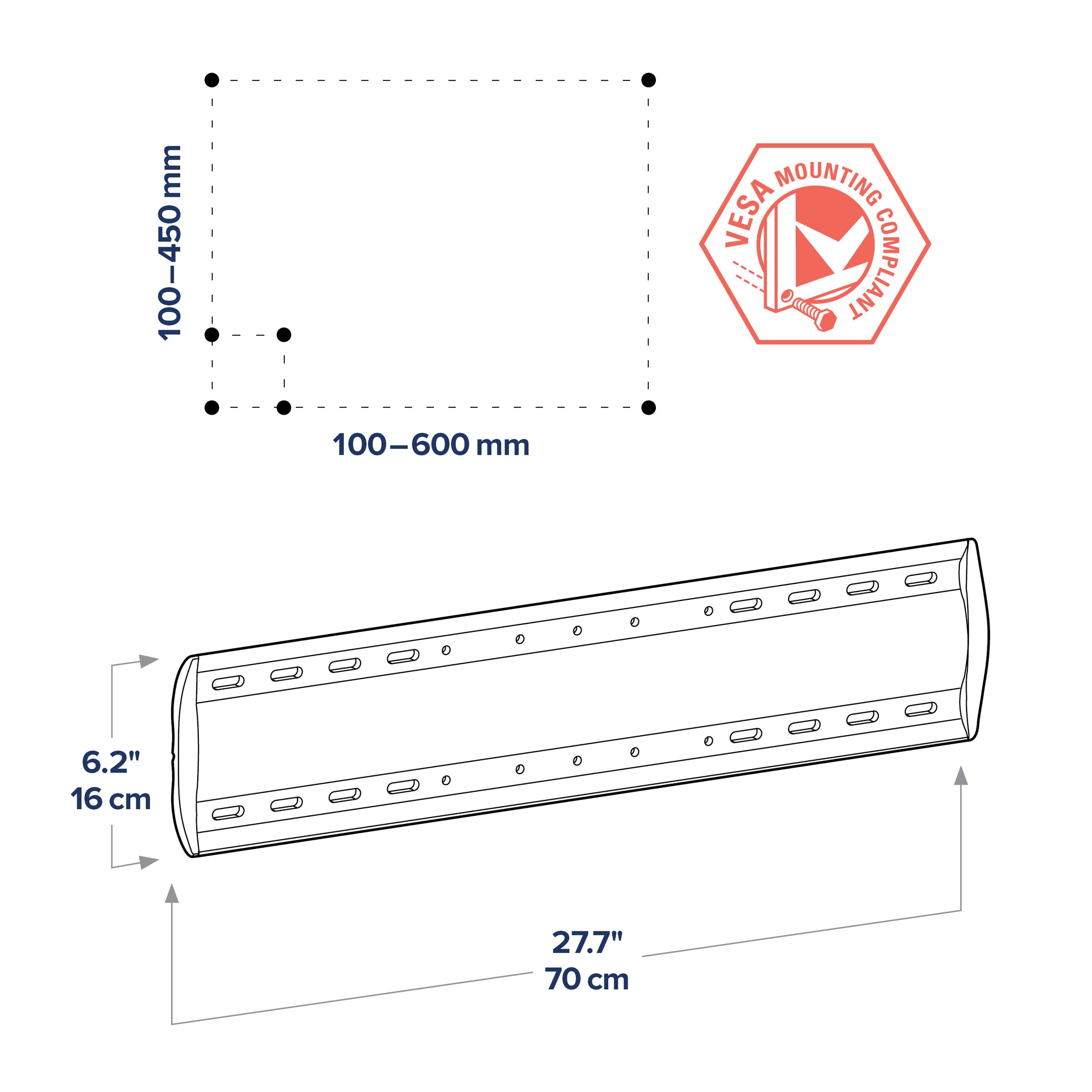

The wall plate and display brackets cover hole patterns from 100 mm to 600 mm horizontally and 100 mm to 450 mm vertically, certified to VESA MIS-D, MIS-E and MIS-F. That range takes in almost every commercial panel from 32" upward, so one part number covers a mixed meeting-room estate.
Wood Stud or Solid Concrete, with the Fastener Kit in the Box
Ergotron documents installation into 2" x 4" solid wood studs at 16" (406 mm) on centre, or into solid concrete of at least 3,000 psi and 4" (102 mm) thickness, over a drywall or plaster covering of no more than 5/8" (16 mm). Wall screws, concrete anchors, display screws in M4 through M8, spacers and washers are all supplied.
Security Fasteners That Deter a Walk-Off

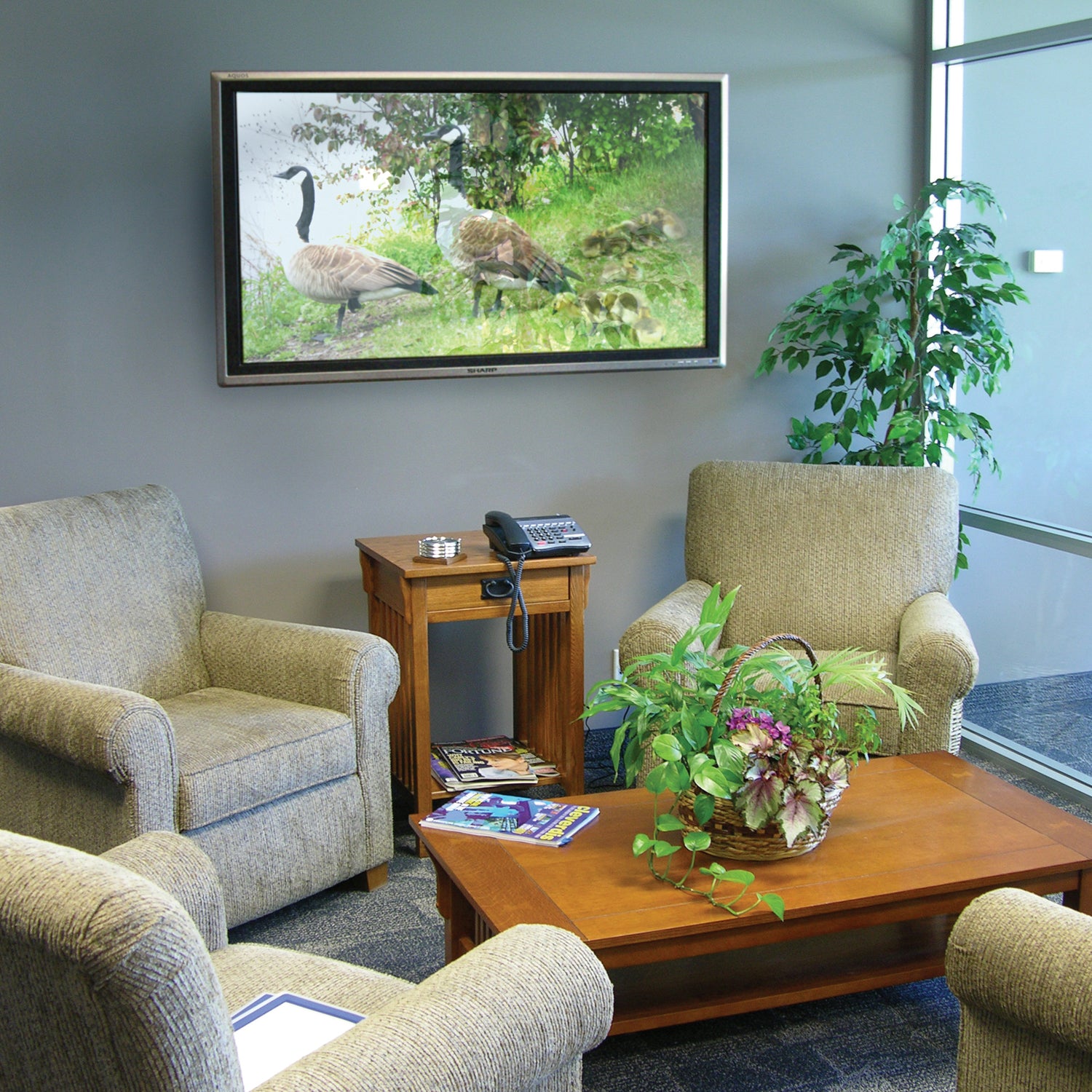

Two pentagon security screws, two Phillips locking screws and the matching pentagon tool ship with the mount, so a display in a reception area, showroom or clinic waiting room needs the correct tool to come off the wall.
Ergotron WM Low Profile Wall Mount Datasheet — Technical Specifications
General
| Product | Ergotron WM Low Profile Wall Mount |
| Part Number | 60-604-003 |
| Ergotron Model | 60-604 (also documented as WM Medium Display Low Profile Wall Mount) |
| Mount Type | Fixed flat-panel wall mount |
| Number of Displays | 1 |
| Colour | Silver |
| Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Display Compatibility
| Maximum Weight Capacity | 175 lb (79.4 kg) |
| Screen Size | 32" and larger |
| VESA Standard | VESA MIS-D / MIS-E / MIS-F |
| Hole Pattern — Horizontal | 100 mm (min.) to 600 mm (max.) |
| Hole Pattern — Vertical | 100 mm (min.) to 450 mm (max.) |
| Display Screw Sizes | M4, M5, M6 and M8 supplied in multiple lengths |
Adjustment & Motion
| Motion | Fixed — no tilt, pan or lift |

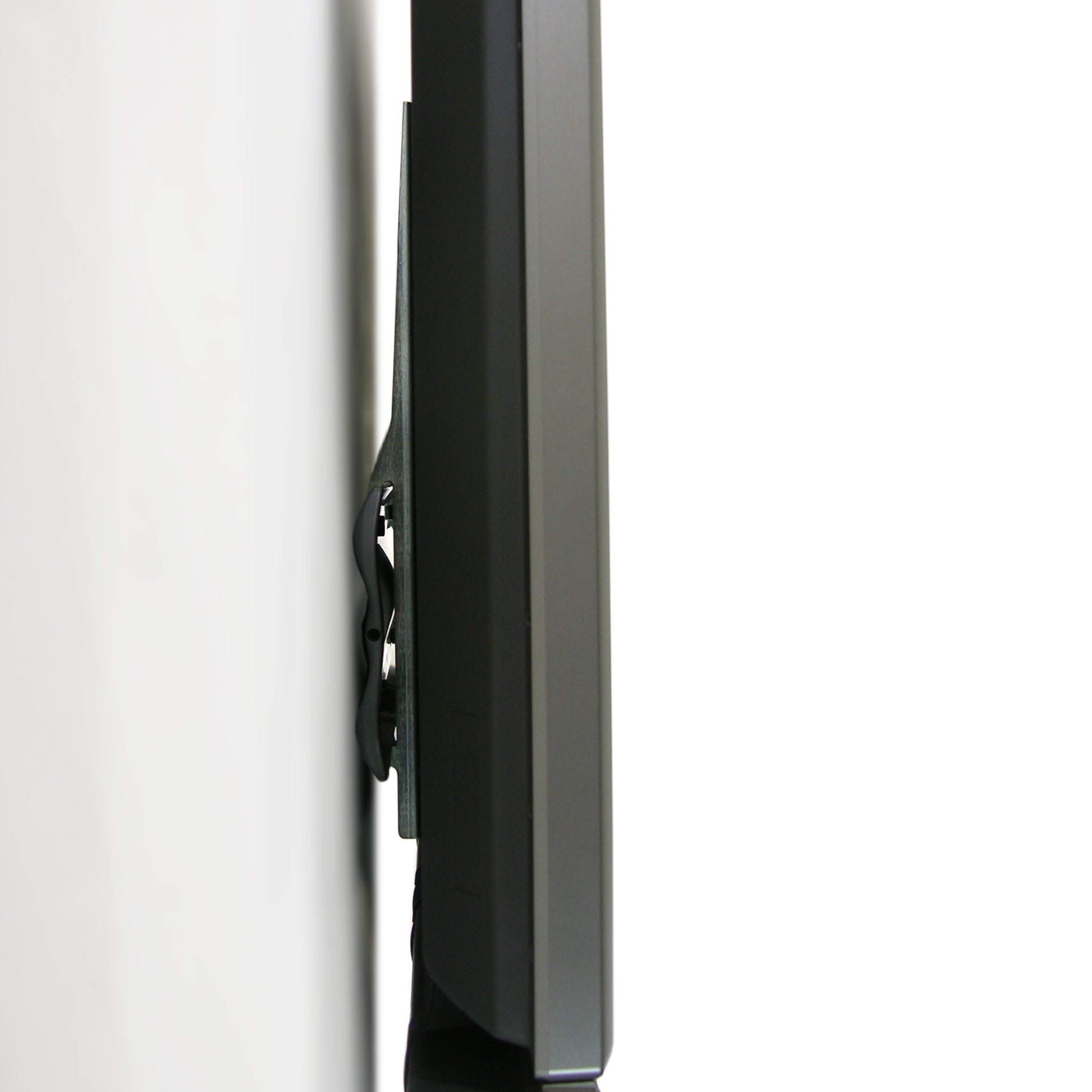

| Profile / Depth from Wall | 1.25" (32 mm) |
Design & Durability
| Wall Type I | Solid wood studs (2" x 4") at 16" (406 mm) on centre |
| Wall Type II | Solid concrete, 3,000 psi, minimum 4" (102 mm) thickness |
| Maximum Wall Covering | 5/8" (16 mm) drywall or plaster |
| Security | 2 pentagon security screws, 2 Phillips locking screws, pentagon tool |
| Load Testing | Tested to four times maximum load capacity per UL standard |
| Reference Document | Ergotron installation guide 888-60-513-P-01 rev. D |
Compatibility & Fit
Fit is decided by two numbers: the display's hole pattern must fall within 100–600 mm horizontally and 100–450 mm vertically, and its weight must be at or below 175 lb (79.4 kg). The mount is certified to VESA MIS-D, MIS-E and MIS-F, which is the pattern family used by essentially all commercial panels from 32" upward. Ergotron gives no upper screen-size limit for this model — the limit is the hole pattern and the weight.
If your panel's horizontal hole spacing exceeds 600 mm — common on 85" and larger commercial displays — order the XL version (60-602-003) instead, which extends the horizontal range to 800 mm.
This is a single-display fixed mount with no tilt or pan, so set the mounting height deliberately: the screen centre should sit at the eye level of the seated or standing audience. Ultrawide and curved panels are fine within the pattern and weight limits. On the wall side, Ergotron documents wood studs at 16" on centre or solid concrete at least 4" thick, with no more than 5/8" (16 mm) of drywall or plaster over it. Steel-stud walls need the separate Steel Stud Wall Mounting Kit (60-591-003).
Package Contents & WM Low Profile Ordering Information

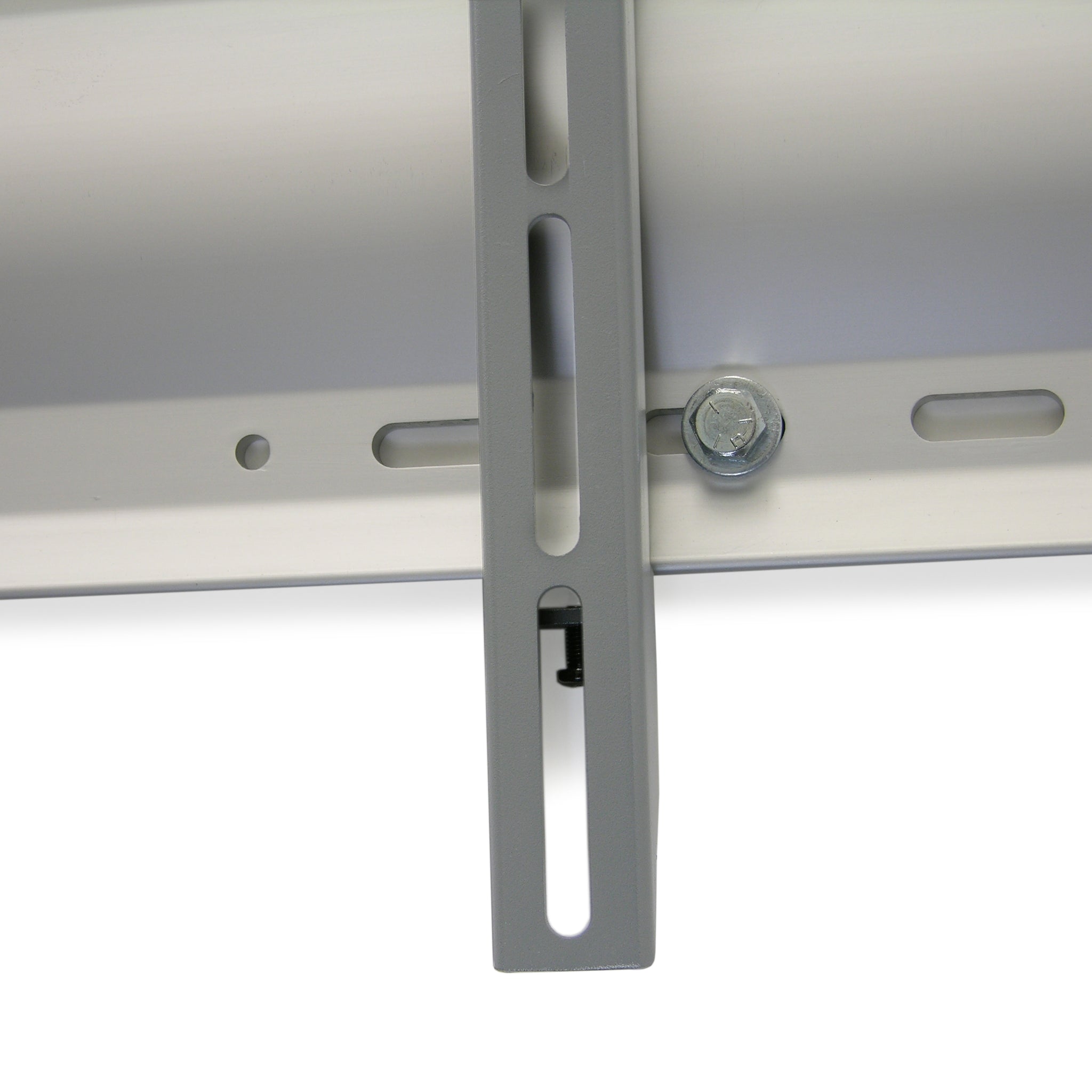

In the box: wall plate, two display brackets and a hardware fastener kit.
Fastener kit contents: 4 x each of M4 x 20, M4 x 40, M5 x 20, M5 x 40, M6 x 20, M6 x 45, M8 x 25, M8 x 50 and M8 x 80 screws; 4 x each of four spacer sizes and two washer sizes; 4 x M8 x 50 mm wood screws; 2 x concrete anchors with 13 mm washers; 2 x pentagon security screws; 2 x Phillips locking screws; 1 x pentagon tool; 1 x 13 mm socket wrench.
WM Low Profile Ordering Information
| 60-604-003 (this listing) | WM Low Profile Wall Mount — silver, 100–600 mm horizontal pattern, 32" and larger |
| 60-602-003 | WM Low Profile Wall Mount, XL — silver, 100–800 mm horizontal pattern, 42" and larger |
Related Ergotron Wall Mounts at SourceIT
| 60-614 | Neo-Flex Fixed Wall Mount, UHD — 175 lb (79.4 kg), up to 80" |
| 60-600-009 | SIM90 Signage Integration Mount — display plus mini PC, tilt and 90° rotation |
| 45-269-009 | LX HD Pivot Wall Mount — articulating single display |
Wall Fixing Accessories
| 60-591-003 | Steel Stud Wall Mounting Kit — for steel-stud walls |
Datasheet & Downloads
- Ergotron WM Low Profile Wall Mount product page (60-604)
- Ergotron installation guide 888-60-513-P (PDF)
The installation guide is the authoritative Ergotron document for load capacity, VESA hole ranges, wall types and the fastener kit contents quoted above.
Frequently Asked Questions — Ergotron WM Low Profile Wall Mount
How much weight does the WM Low Profile Wall Mount hold?
175 lb (79.4 kg), per Ergotron's installation guide. Ergotron also notes the mount is tested to four times its maximum load capacity per UL standard — that is a test condition, not a licence to exceed the rating in use.
What VESA patterns fit?
VESA MIS-D, MIS-E and MIS-F, with hole spacing from 100 mm to 600 mm horizontally and 100 mm to 450 mm vertically. If your panel is wider than 600 mm between holes, order the XL (60-602-003).
What is the difference between this and the XL version?
Only the horizontal hole-pattern range and the recommended screen size. This model covers 100–600 mm and 32" and larger; the XL covers 100–800 mm and 42" and larger. Both carry 175 lb (79.4 kg) and both sit 1.25" (32 mm) off the wall.
What wall does it need?
Solid wood studs at 16" (406 mm) on centre, or solid concrete of at least 3,000 psi and 4" (102 mm) thick, with no more than 5/8" (16 mm) of drywall or plaster covering. All the wall and display fixings for those two substrates are in the box.
Does it tilt or swivel?
No — it is a fixed mount, which is how it achieves the 1.25" profile. For an angled or articulating screen, look at the LX HD Pivot Wall Mount (45-269-009).
Can I mount a mini PC behind the display as well?
Not on this mount. If you need the display, a VESA mini PC and a power brick on one bracket, the SIM90 Signage Integration Mount (60-600-009) is designed for exactly that.
Does it come with a warranty in Singapore?
Yes. Every Ergotron WM Low Profile Wall Mount sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the WM Low Profile Wall Mount with a 5-year manufacturer warranty.
