Ergotron LX HD Pivot Wall Mount Black up to 49"
PRODUCT DESCRIPTION
Ergotron LX HD Wall Mount Pivot Black (45-269-009) - 5 Years Local Warranty
Low-Profile Heavy-Duty Wall Pivot for Displays up to 50 lbs

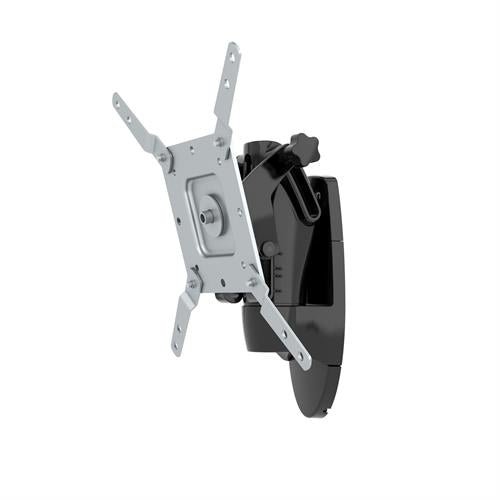

The Ergotron LX HD Wall Mount Pivot (45-269-009) holds a display close to the wall while still allowing it to be angled towards the viewer. Ergotron rates it for up to 50 lbs (22.7 kg) and screens up to 42″, in a mount that projects only 3.7″ (9.1 cm) from the wall and weighs just 3.3 lbs (1.5 kg).
Angle the Screen Without Giving Up the Corridor
This is the mount to choose when a swing arm would be in the way. With 20° of tilt, 40° of pan and 360° rotation, the display can be angled down towards a seated viewer, turned modestly towards the room, and switched between landscape and portrait — all while staying tight to the wall. In Singapore corridors, lift lobbies, ward bays, classrooms and retail floors where a protruding arm is a genuine circulation hazard, a low-profile pivot is the compliant choice.
Signage-Ready Portrait Rotation
Full 360° rotation means a single mount serves both a landscape meeting-room display and a portrait digital-signage panel, so one part number covers mixed deployments across a site.
Heavy-Duty Rating in a Discreet Black Finish
At 50 lbs the LX HD Pivot carries twice the load of the standard LX Wall Monitor Arm, so large-format commercial panels that would overload a conventional monitor arm are within its rating. The black finish recedes behind the screen rather than framing it.
Five-Year Ergotron Warranty, Supported Locally in Singapore
Ergotron backs the LX HD Wall Mount Pivot with a 5-year manufacturer warranty — the term that applies across the LX HD range, as distinct from the 10-year term on the standard LX Wall Monitor Arm. SourceIT Pte Ltd supplies it with local Singapore warranty support and a GST invoice.
Ergotron LX HD Wall Mount Pivot Datasheet — Technical Specifications
General
| Product Name | Ergotron LX HD Wall Mount Pivot |
| Part Number | 45-269-009 |
| Finish | Black |
| Number of Displays | 1 |
| Mounting Type | Wall — wood stud or solid concrete |
| Product Weight | 3.3 lbs (1.5 kg) |
| Shipping Weight | 4.5 lbs (2.1 kg) |
| Shipping Dimensions | 9″ × 9″ × 3.9″ (22.9 × 22.9 × 9.9 cm) |
| Manufacturer Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty | Local Warranty (Singapore) |
Display Compatibility
| Display Weight Capacity | Up to 50 lbs (22.7 kg) |
| Display Size | Up to 42″ |
| VESA Standard | VESA MIS-D / MIS-E / MIS-F — Ergotron's installation guide documents 75 × 75, 100 × 100, 100 × 200, 200 × 100 and 200 × 200 mm adapter configurations |
Adjustment & Motion
| Tilt | 20° |
| Pan | 40° |
| Rotation | 360° — portrait and landscape |
| Depth from Wall | 3.7″ (9.1 cm) |
| Extension / Reach | Not applicable — low-profile pivot, no extension arm |
| Height Adjustment (Lift) | Not applicable — Ergotron publishes no vertical lift figure for this model |
Design & Durability
| Wall Structure Requirement | Wall must support four times the total weight of mounted equipment |
| Wall Fixing Options | Wood stud or solid concrete, per Ergotron's installation guide |
| Available Finishes | 45-269-009 black (sole finish listed by Ergotron) |
Compatibility & Fit
VESA fit. Ergotron's datasheet refers to the website for VESA detail; its own installation guide documents 75 × 75, 100 × 100, 100 × 200, 200 × 100 and 200 × 200 mm adapter configurations, and the Ergotron catalogue designates the model MIS-D / MIS-E / MIS-F.
Weight and size fit. Up to 50 lbs (22.7 kg) and up to 42″ — use the panel-only weight from your display's specification sheet.
Ultrawide and curved displays. The published limit is weight and diagonal, not aspect ratio. Because this mount has only 40° of pan and sits close to the wall, a very wide panel will present its edges at a sharper angle to off-axis viewers — if the room needs the screen turned to face different seating positions, the LX HD Wall Mount Swing Arm with its 360° pan is the better fit.
Number of screens. Single display.
No vertical lift and no extension. This mount tilts, pans 40° and rotates. It does not raise, lower or swing out. Choose it deliberately for the low profile.
Wall type — read this before ordering. Ergotron's installation instruction for the LX HD range is explicit: the wall structure must be capable of supporting four times the total weight of the mounted equipment. With a 50 lb (22.7 kg) display that means a structure rated for roughly 200 lbs (91 kg). Ergotron documents two approved surfaces: a wood stud, using M8 × 80 mm bolts, and solid concrete, drilled to a depth of at least 3-1/8″ (80 mm). Most Singapore commercial and residential walls are reinforced concrete or solid block, which suits the concrete method — but the anchor must land in solid concrete, not in mortar joints or render, and a plasterboard partition is not a suitable substrate on its own. If you are mounting to a partition or a wall you are unsure of, have it assessed before installation; SourceIT can advise on a site-by-site basis.
Package Contents & LX HD Series Ordering Information
In the box
Ergotron does not publish an itemised box-contents list for this model. Its installation guide covers wood-stud and concrete fixing options and the display fasteners for the supported VESA patterns. SourceIT supplies the mount in Ergotron's sealed retail packaging.
LX HD wall range — ordering information
| LX HD Wall Mount Swing Arm (polished aluminium) — 13″ reach, 360° pan | 45-268-026 |
| LX HD Wall Mount Pivot (black) — low profile, 40° pan | 45-269-009 (this listing) |
Related Ergotron wall arms in the SourceIT catalogue
| LX Wall Monitor Arm — 13″ lift, up to 25 lbs, 10-year warranty | 45-243-026 polished aluminium · 45-243-224 matte black |
| LX Sit-Stand Wall Mount LCD Arm — 20″ lift, up to 42″ | 45-353-026 LX Sit-Stand Wall Mount LCD Arm |
Datasheet & Downloads
Ergotron LX HD Wall Mount Pivot (45-269) product page — official Ergotron product page.
Ergotron LX HD Swing Arm & Wall Mount Pivot datasheet — official Ergotron datasheet (PDF).
Ergotron LX HD Wall Mount Pivot installation guide (888-45-198-W) — wall fixing detail and VESA adapter configurations
All technical figures published on this page are taken from the official Ergotron datasheet for this part number. Where Ergotron does not publish a figure, SourceIT omits it rather than estimate. For a written quotation or a bulk/project price in Singapore, contact SourceIT Pte Ltd.
Frequently Asked Questions — Ergotron LX HD Wall Mount Pivot
What is the difference between the LX HD Wall Mount Pivot and the LX HD Wall Mount Swing Arm?
The Pivot (45-269-009, black) stays close to the wall — 3.7″ (9.1 cm) deep, no extension arm, 40° of pan. The LX HD Wall Mount Swing Arm (45-268-026, polished aluminium) swings the display 13″ (33 cm) out and pans 360°. Capacity (50 lbs / 42″), tilt (20°) and warranty (5 years) are the same. Choose the Pivot where a protruding arm would obstruct a walkway.
What size and weight of display does it take?
Up to 50 lbs (22.7 kg) and up to 42″, per Ergotron's datasheet. Please note: this SourceIT listing previously stated 49″ and 11.3 kg. The Ergotron datasheet figures above are correct and supersede that.
Can it hold two monitors?
No — it is a single-display mount.
Does it move up and down for sit-stand use?
No. Ergotron publishes no vertical lift range for this model. For height change from a wall, use the LX Sit-Stand Wall Mount LCD Arm, which lifts 20″ (51 cm).
What wall can it be fitted to?
Ergotron approves a wood stud or solid concrete, and requires the wall structure to support four times the total mounted weight. Concrete and solid block — standard in most Singapore buildings — are suitable; plasterboard partitions are not, without structural backing.
Do I need a VESA adapter?
Usually not — the supported patterns run from 75 × 75 up to 200 × 200 mm. A display with no VESA holes needs its manufacturer's own adapter plate.
Can I use it for portrait digital signage?
Yes. It rotates a full 360°, so the same mount serves a landscape display or a portrait signage panel.
Is the Ergotron LX HD Wall Mount Pivot covered by warranty in Singapore?
Yes. Every Ergotron LX HD Wall Mount Pivot sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the LX HD Wall Mount Pivot with a 5-year manufacturer warranty.
