Ergotron Neo-Flex® Fixed Wall Mount, UHD
PRODUCT DESCRIPTION
Ergotron Neo-Flex Fixed Wall Mount, UHD (60-614) - 3 Years Local Warranty
175 lb (79.4 kg) Fixed Wall Mount for UHD Flat Panels up to 80"
The Ergotron Neo-Flex Fixed Wall Mount, UHD carries a display of up to 175 lb (79.4 kg) and a maximum screen size of 80", making it one of the highest-capacity fixed mounts in the Ergotron range. Ergotron recommends it for flat panels of 37" and larger, so it suits the large UHD, LED, OLED and LCD panels used for boardroom displays, digital signage and lobby screens.
A 1.7" (4.4 cm) Wall Profile That Keeps Large Screens Tight to the Wall
The mount holds the panel just 1.7" (4.4 cm) from the wall. In Singapore offices, retail units and clinics where circulation space is tight and walkways are regulated, that slim profile keeps a large display clear of head height and out of the traffic path while still looking purpose-built rather than improvised.
Rated for Wood Stud and Solid Concrete — the Two Walls You Actually Meet Here
Ergotron's installation guide covers two wall types: solid wood studs, where the wall plate must be centred on the studs, and solid concrete, where the widest 24" wall-plate configuration must be used. Most Singapore commercial and HDB installations are into concrete or block, so the supplied 8 mm x 65 mm lag bolts, steel washers and 10 mm wall anchors are the relevant hardware set.
Security Hardware and a Locking Bar as Standard
Two security Allen screws, a locking bar and a 4 mm security Allen wrench ship in the box, so a display in a public or semi-public space cannot simply be lifted off its rails. Display-side hardware covers M4, M5, M6 and M8 fixings in 15 mm and 30 mm lengths with spacers and washers, so most panels mount without a separate adapter purchase.
Ergotron Neo-Flex Fixed Wall Mount UHD Datasheet — Technical Specifications
General
| Product | Ergotron Neo-Flex Fixed Wall Mount, UHD |
| Part Number | 60-614 |
| Mount Type | Fixed flat-panel wall mount |
| Number of Displays | 1 |
| Colour | Black |
| Warranty | 3-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Display Compatibility
| Maximum Weight Capacity | 175 lb (79.4 kg) |
| Maximum Screen Size | 80" |
| Recommended Screen Size | 37" and larger |
| Display Hole Patterns | 100 x 100 mm to 600 x 400 mm |
| Display Screw Sizes | M4, M5, M6 and M8 — 15 mm and 30 mm lengths supplied |
| Screw Restriction | M4 screws must not be used on hole patterns larger than 200 x 200 mm |
Adjustment & Motion
| Motion | Fixed — no tilt, pan or roll |
| Depth from Wall | 1.7" (4.4 cm) |
Design & Durability
| Wall Types Supported | Solid wood stud; solid concrete |
| Wood Stud Installation | Wall plate must be centred on the studs |
| Concrete Installation | Widest 24" wall-plate configuration required |
| Security | 2 security Allen screws, locking bar, 4 mm security Allen wrench |
| Reference Document | Ergotron installation guide 888-60-527-W-01 rev. E |
Compatibility & Fit

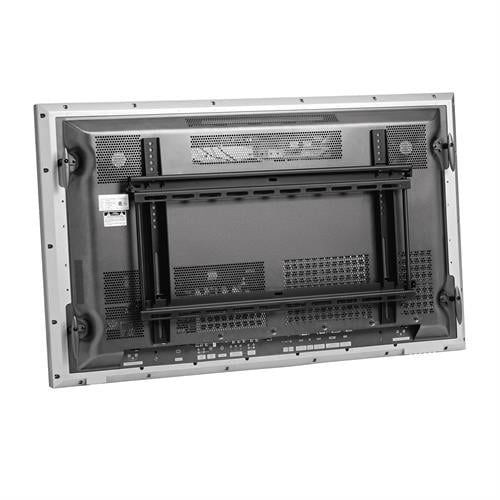

The Neo-Flex Fixed Wall Mount, UHD accepts display hole patterns from 100 x 100 mm up to 600 x 400 mm, which covers the great majority of 37" to 80" commercial and consumer panels. Two checks decide fit: the panel's hole pattern must fall inside that range, and its weight must be at or below 175 lb (79.4 kg). Ergotron sets one hardware restriction worth reading before installation — the supplied M4 screws must not be used where the hole pattern is larger than 200 x 200 mm.
This mount holds a single display and does not tilt, pan or roll. Fix the mounting height so the centre of the screen sits at seated or standing eye level for the room, because it cannot be angled down afterwards. If the screen faces a window and glare is likely, an articulating or tilting mount is the better choice.
Ultrawide and curved panels mount normally provided the hole pattern and weight fall within the figures above; curvature itself is not a limitation on a fixed mount. Ergotron documents installation into solid wood studs and solid concrete only. Plasterboard alone is not a supported substrate — on a stud wall the plate must be centred on the studs, and on concrete the widest 24" configuration must be used.
Package Contents & Neo-Flex Wall Mount Ordering Information
In the box:

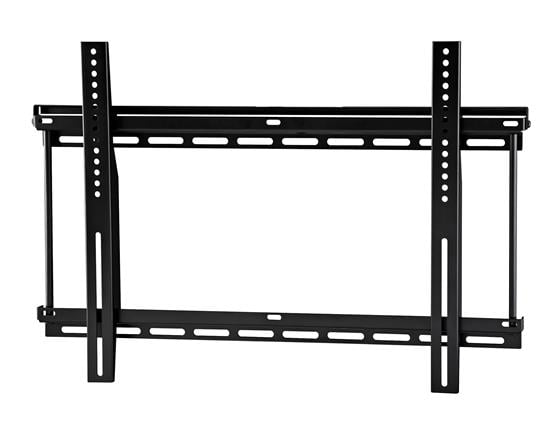

- 1 x wall plate, 2 x vertical rails, 1 x locking bar, 2 x security Allen screws
- 4 x lag bolts (8 mm x 65 mm), 4 x steel washers, 4 x wall anchors (10 mm OD x 8 mm)
- 1 x 4 mm security Allen wrench
- Display fastener kit: Phillips screws in M4, M5, M6 and M8 (15 mm and 30 mm), round spacers and round washers
Neo-Flex Wall Mount Ordering Information
| 60-614 (this listing) | Neo-Flex Fixed Wall Mount, UHD — black, up to 175 lb (79.4 kg) |
| 28-514-800 | Neo-Flex Dual Monitor Wall Mount |
Other Ergotron Fixed Wall Mounts at SourceIT
| 60-604-003 | WM Low Profile Wall Mount — 175 lb (79.4 kg), 32" and larger |
| 60-602-003 | WM Low Profile Wall Mount, XL — 175 lb (79.4 kg), 42" and larger |
| 45-269-009 | LX HD Pivot Wall Mount — articulating, single display |
Wall Fixing Accessories
| 60-591-003 | Steel Stud Wall Mounting Kit — for steel-stud walls |
Datasheet & Downloads
- Ergotron Neo-Flex Fixed Wall Mount UHD product page (60-614)
- Ergotron installation guide 888-60-527 (PDF)
Ergotron does not publish a separate marketing datasheet PDF for 60-614; the installation guide above is the authoritative specification document for load, screen size, wall types and box contents.
Frequently Asked Questions — Ergotron Neo-Flex Fixed Wall Mount UHD
What size and weight of display does the Neo-Flex Fixed Wall Mount UHD take?
Ergotron rates it to 175 lb (79.4 kg) with a maximum screen size of 80", and recommends it for panels of 37" and larger. Check your panel's weight on its own datasheet, not on its screen size — an 80" commercial panel and an 80" consumer TV can differ by tens of kilograms.
What VESA pattern does it support?
Display hole patterns from 100 x 100 mm to 600 x 400 mm. The supplied M4 screws must not be used where the pattern is larger than 200 x 200 mm — use the M5, M6 or M8 fixings supplied for those panels.
Does it tilt?
No. This is a fixed mount with no tilt, pan or roll, which is what allows the 1.7" (4.4 cm) wall profile. If you need to angle the screen down or away from a window, look at the LX HD Pivot Wall Mount (45-269-009) instead.
Can it be installed on a plasterboard or steel-stud wall?
Ergotron documents solid wood studs and solid concrete only, and supplies hardware for those two substrates. Plasterboard alone will not hold a 175 lb display. For steel-stud construction Ergotron sells a separate Steel Stud Wall Mounting Kit (60-591-003).
How does it compare with the WM Low Profile Wall Mount?
Both carry 175 lb (79.4 kg). The WM (60-604-003) sits closer to the wall at 1.25" (32 mm) and takes hole patterns to 600 x 450 mm; this Neo-Flex model carries an 80" maximum screen size and ships with a locking bar. Choose on hole pattern and on whether you need the locking bar.
Is it secure enough for a public area?
It ships with two security Allen screws, a locking bar and the matching 4 mm security wrench, so the display cannot be lifted off the rails without the tool. For high-risk sites, pair it with a locked equipment cabinet for the source device.
Does it come with a warranty in Singapore?
Yes. Every Ergotron Neo-Flex Fixed Wall Mount UHD sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the Neo-Flex Fixed Wall Mount UHD with a 3-year manufacturer warranty.
