Ergotron LX Extension Polished Aluminum
PRODUCT DESCRIPTION
Ergotron LX Extension Polished Aluminum (45-289-026) - 10 Years Local Warranty
Add 9 Inches of Extra Reach to Any LX Monitor Arm

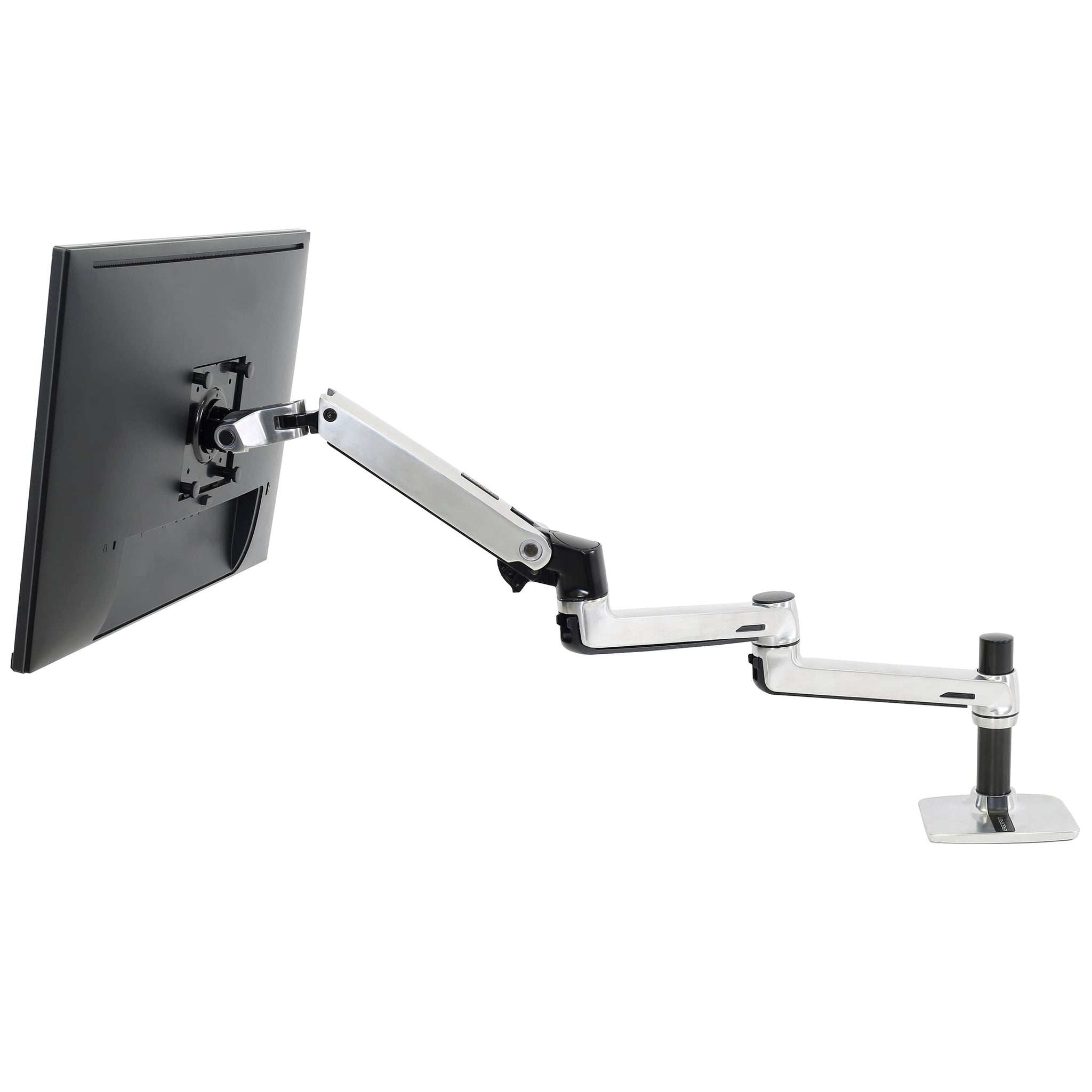

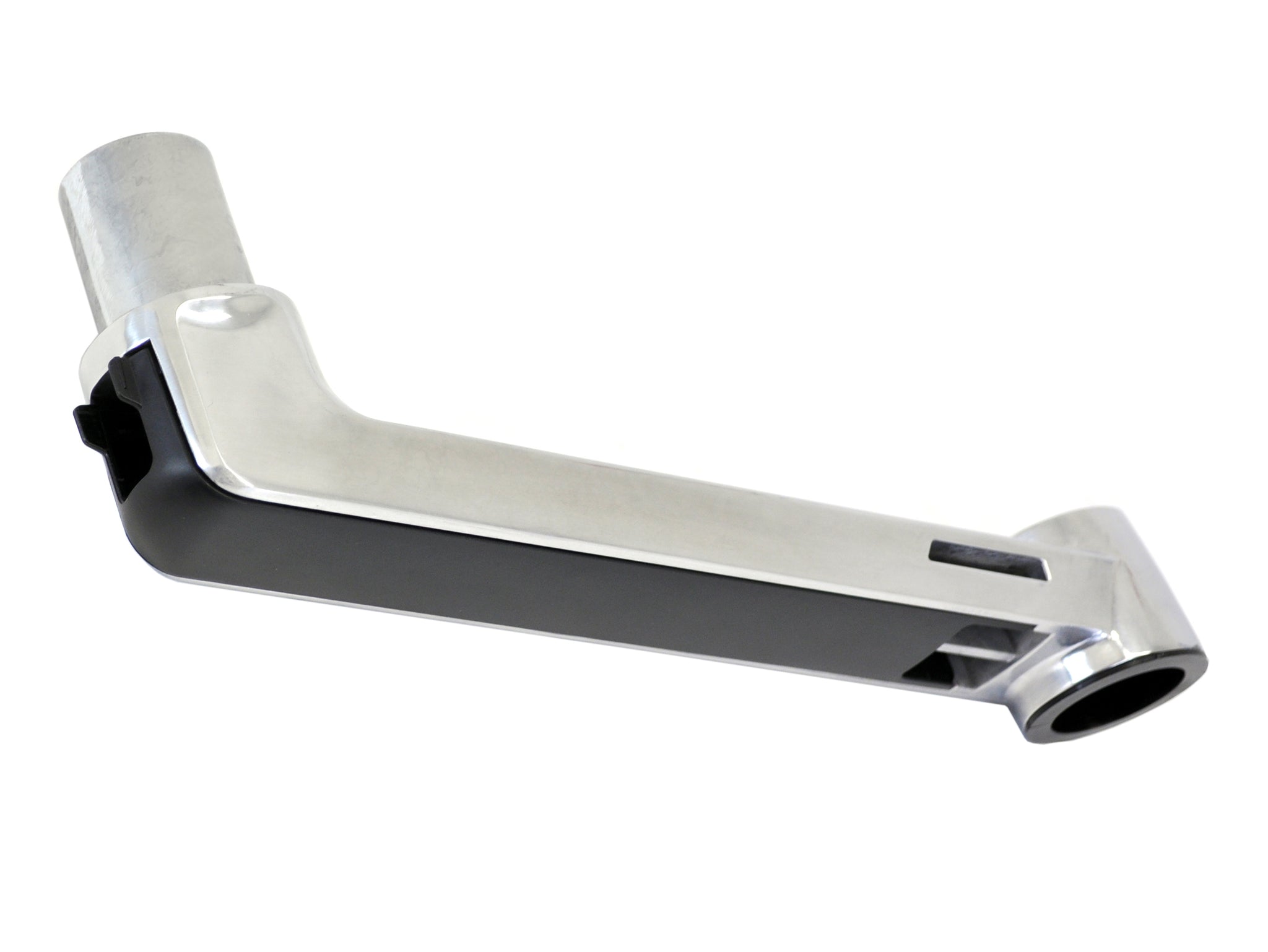

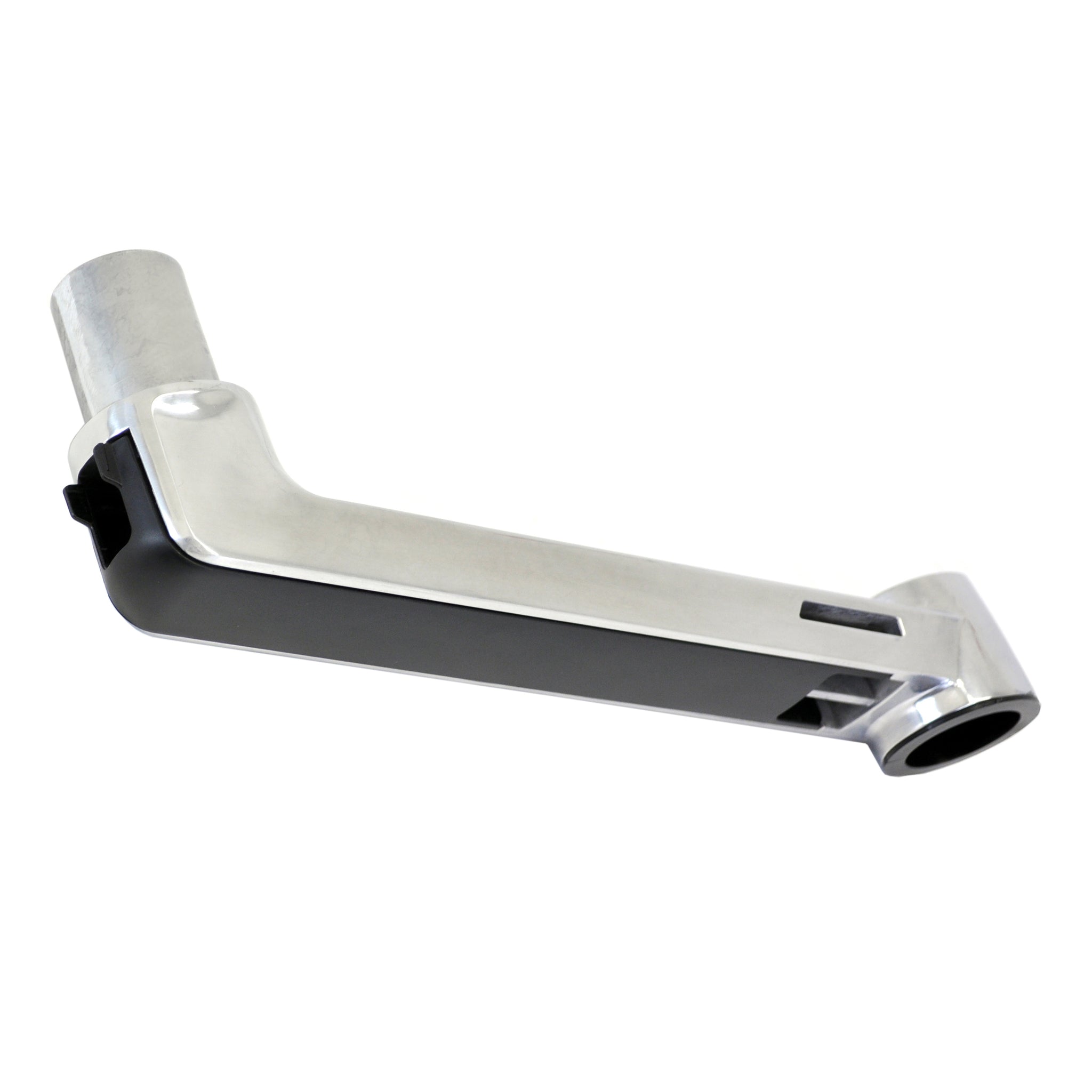

The Ergotron LX Extension (45-289-026) bolts a second extension segment onto an existing LX Desk Monitor Arm, LX Wall Monitor Arm or LX Keyboard Arm, increasing its horizontal reach by a further 9″ (23 cm). For deep Singapore workstations, reception counters and hot-desking pods where the standard LX arm cannot quite bring the screen to the user, this is the smallest and most economical fix available.
An Extra Pivot Point for Finer Screen Positioning
Beyond raw reach, the extension introduces another pivot point into the arm geometry. That extra joint lets the screen be swung around obstacles — a monitor riser, a partition, a CPU tower or a second user — instead of forcing a straight-line approach. Shared desks and two-person benches gain a great deal of practical adjustability from a single added segment.
Polished Aluminium to Match the LX Family
The extension is finished in polished aluminium so it blends seamlessly with LX polished aluminium arms. White (45-289-216) and matte black (45-289-224) versions of the same accessory exist for colour-matched installations.
Plan the Load Before You Extend
Adding length changes the leverage on the arm, so Ergotron publishes a reduced capacity when the extension is fitted: 18 lbs (8.1 kg) on the LX Desk Mount Arm (45-241-026) and 36 lbs (16.4 kg) on the LX HD Wall Mount Swing Arm (45-268-026). Only one additional extension is permitted per LX configuration, and Ergotron does not recommend it on the LX Dual Desk Mount arms.
Ergotron LX Extension Datasheet — Technical Specifications
General
| Product Name | Ergotron LX Extension Arm Accessory |
| Part Number | 45-289-026 (polished aluminium) |
| Product Type | LX arm extension accessory |

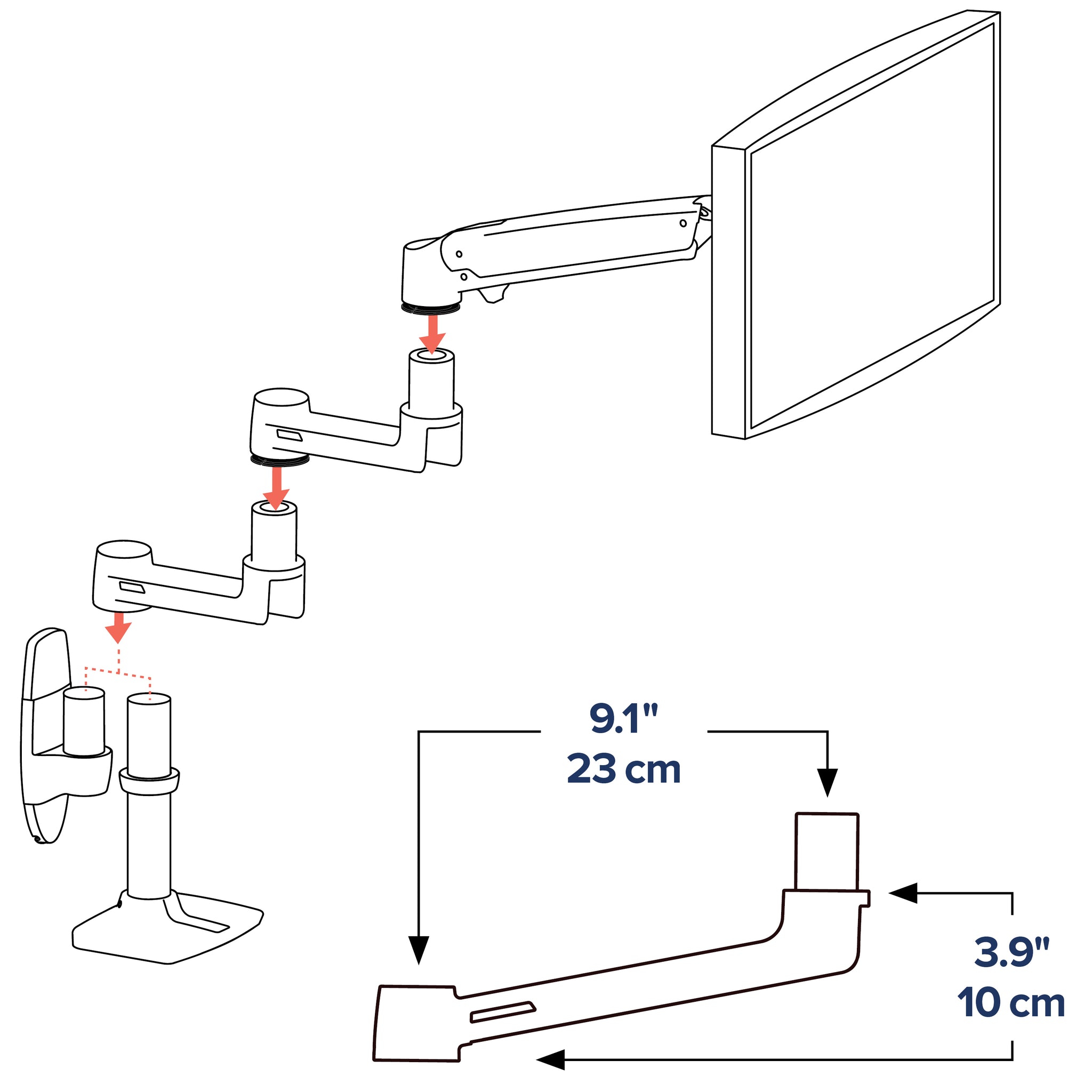

| Added Reach | 9″ (23 cm) of additional horizontal reach |
| Additional Pivot | Yes — adds one further pivot point to the arm |
| Construction | Polished aluminium |
| Manufacturer Warranty | 10-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Supplied by SourceIT Pte Ltd with GST invoice |
Fit & Capacity Effect
| Compatible With | LX Desk Monitor Arm, LX Wall Monitor Arm and LX Keyboard Arm |
| Extensions Per Arm | One additional extension only, per LX configuration |
| Capacity with LX Desk Mount Arm (45-241-026) | Reduced to 18 lbs (8.1 kg) |
| Capacity with LX HD Wall Mount Swing Arm (45-268-026) | Reduced to 36 lbs (16.4 kg) |
| Not Recommended For | LX Dual Desk Mount Arms (45-245-026, 45-248-026) |
Dimensions & Weight
| Product Weight | 1.1 lbs (0.5 kg) |
| Shipping Dimensions | 12″ x 4″ x 2.3″ (31 x 10 x 6 cm) |
| Shipping Weight | 1.5 lbs (0.6 kg) |
| Supersedes | Part number 45-244-026 |
Compatibility & Fit
The LX Extension is an arm accessory, not a mount: it has no VESA interface of its own and always sits between an existing LX arm segment and the screen pivot. Fit is therefore determined entirely by the host arm.
| Host Arms Supported | LX Desk Monitor Arm, LX Wall Monitor Arm, LX Keyboard Arm |
| VESA Pattern | Inherited from the host LX arm — the extension adds no VESA interface |
| Number of Screens | No change — the extension does not add a screen position |
| Mounting Type | None — inline arm segment; the host arm keeps its desk clamp, grommet, wall or pole base |
| Maximum Per Configuration | One additional extension per LX arm |
| Excluded Configurations | LX Dual Desk Mount Side-by-Side (45-245-026) and LX Dual Stacking (45-248-026) |
Ultrawide and curved screens: reach is rarely the limiting factor on a 34″ or 38″ ultrawide — weight is. Because fitting the extension lowers the arm's rated capacity to 18 lbs (8.1 kg) on a standard LX desk arm, check the display's weight without its stand before ordering. If the screen is heavier than that, an HX Desk Monitor Arm rated to 42 lbs (19 kg) is the correct product instead.
Desk thickness: unchanged — the extension does not touch the desk. The host LX arm's own clamp and grommet limits continue to apply.
Package Contents & LX Ordering Information
In the Box
- LX extension segment (polished aluminium)
- Attachment hardware
- Instruction manual
LX Extension — Finishes
| 45-289-026 | Polished Aluminium (this listing) |
| 45-289-216 | White — not stocked; available to order |
| 45-289-224 | Matte Black — not stocked; available to order |
Compatible LX Arms in the SourceIT Catalogue
| 45-241-026 | LX Desk Mount Monitor Arm, Polished Aluminium |
| 45-241-224 | LX Desk Mount Monitor Arm, Matte Black |
| 45-490-216 | LX Desk Mount Monitor Arm, White |
| 45-295-026 | LX Desk Monitor Arm, Tall Pole, Polished Aluminium |
| 45-268-026 | LX HD Wall Swing Arm |
Related LX Accessories
| 97-940-026 | LX Extension Arm Kit, Polished Aluminium |
| 98-130-216 | LX Extension Arm Kit, White |
| 50-193-200 | Notebook Tray for laptops |
Datasheet & Downloads
- Ergotron LX Extension official product page (ergotron.com)
- Official Ergotron LX Desk Monitor Arm datasheet (PDF) — lists the 45-289 extension accessory
Need the datasheet emailed as a PDF for a tender or quotation? Contact SourceIT Pte Ltd at sales@sourceit.com.sg.
Frequently Asked Questions — Ergotron LX Extension
What is the difference between the LX Extension finishes?
Only the colour. 45-289-026 is polished aluminium (this listing), 45-289-216 is white and 45-289-224 is matte black. All three add the same 9″ (23 cm) of reach and share identical mechanical specifications.
How much extra reach does the LX Extension actually add?
9″ (23 cm) of additional horizontal reach, plus one further pivot point in the arm. Ergotron permits only one additional extension per LX configuration.
Does adding the extension change how heavy a monitor I can mount?
Yes. Ergotron publishes a reduced capacity once the extension is fitted: 18 lbs (8.1 kg) on the LX Desk Mount Arm (45-241-026) and 36 lbs (16.4 kg) on the LX HD Wall Mount Swing Arm (45-268-026). Weigh the display without its factory stand before ordering.
Can I fit the LX Extension to a dual-monitor LX arm?
Ergotron does not recommend it on the LX Dual Desk Mount Side-by-Side (45-245-026) or LX Dual Stacking (45-248-026) arms. For dual setups that need more reach, look at the HX Dual Monitor Desk Arm, which reaches up to 24.5″ (60 cm) as standard.
Do I need a VESA adapter with this extension?
No. The extension is an inline arm segment with no VESA interface of its own — the host LX arm's existing VESA bracket continues to carry the screen.
What is the difference between the LX Extension and the LX Extension Arm Kit?
The LX Extension (45-289) adds reach to an arm you already own. The LX Extension Arm Kit (97-940-026 / 98-130-216) is a different product — it supplies a complete additional LX arm, extension, pole collar and cap so that one desk-mount pole can carry a second, third or fourth screen.
Does the LX Extension come with a Singapore warranty?
Yes. Every Ergotron LX Extension sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the LX Extension with a 10-year manufacturer warranty.
