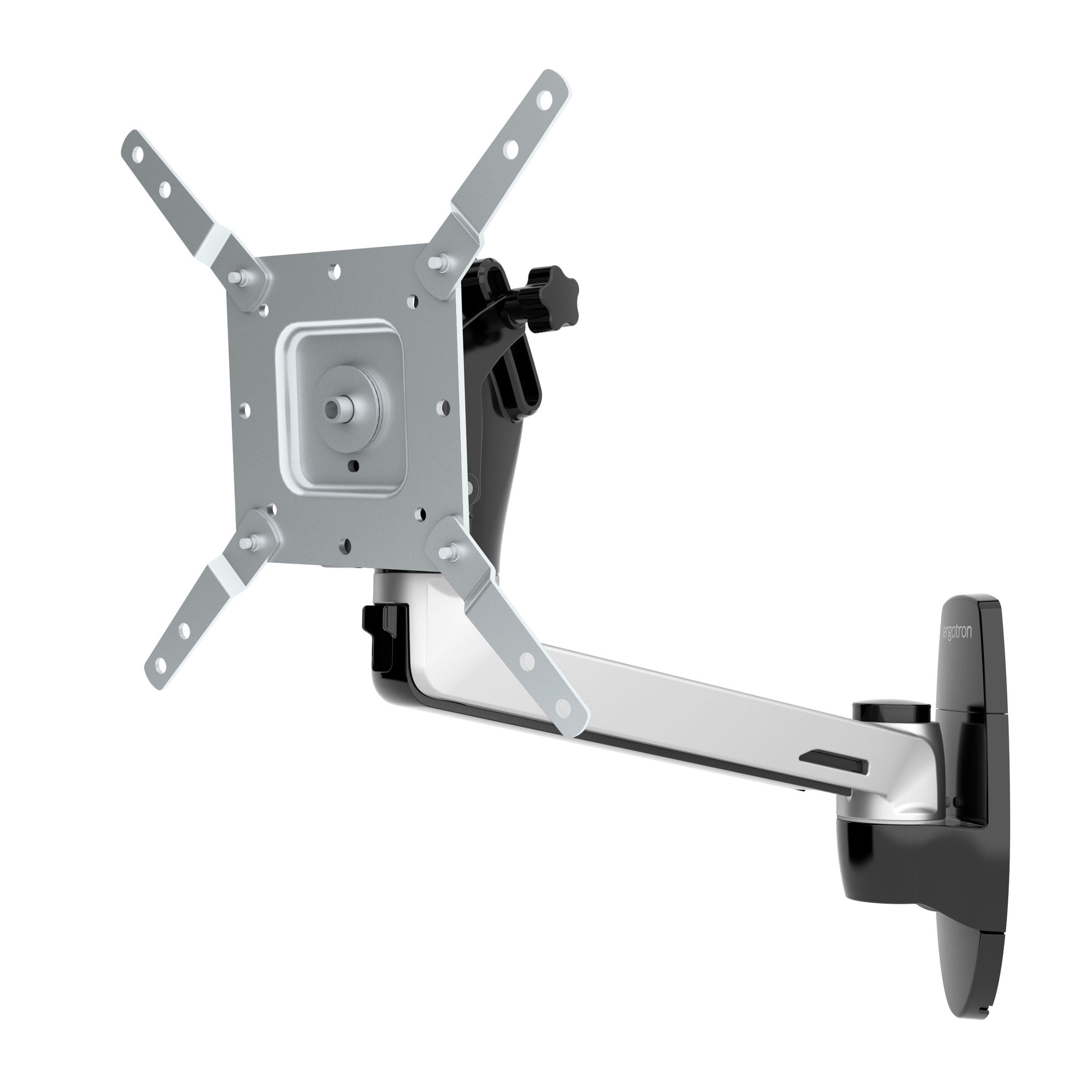

Ergotron LX HD Wall Swing Arm Heavy Monitor or TV Mount
PRODUCT DESCRIPTION
Ergotron LX HD Wall Swing Arm Heavy Monitor or TV Mount (45-268-026) - 5 Years Local Warranty
Heavy-Duty Wall Swing Arm for Displays up to 50 lbs
The Ergotron LX HD Wall Mount Swing Arm (45-268-026) is the heavy-duty member of the LX wall family, rated by Ergotron for displays up to 50 lbs (22.7 kg) and screens up to 42″. That is double the capacity of the standard LX Wall Monitor Arm, which makes it the right choice for large-format monitors, digital signage panels and meeting-room displays that a conventional monitor arm cannot safely carry.

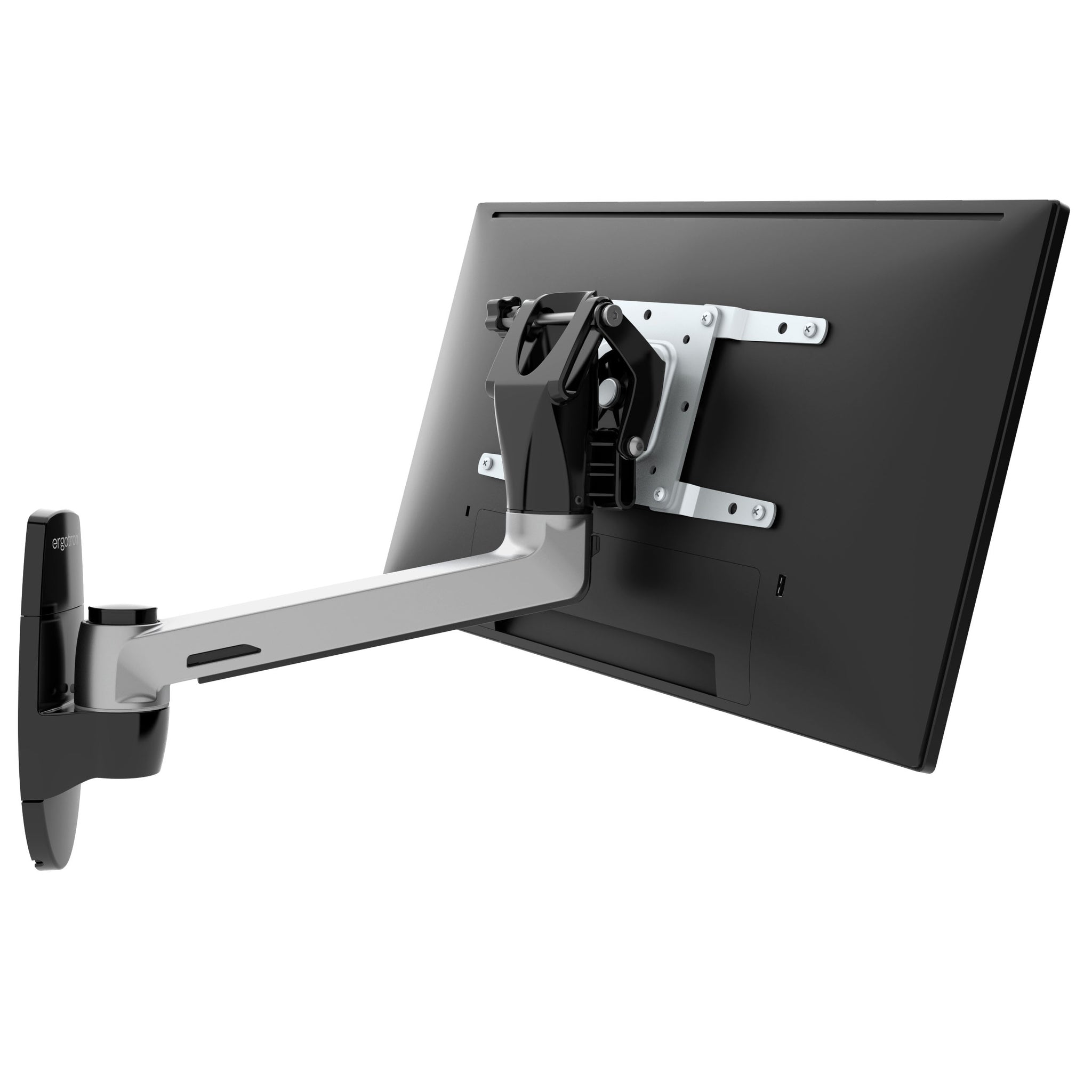

Swings the Screen 13″ Out from the Wall — and Folds Back to 3.7″
The arm extends the display 13″ (33 cm) out from the wall so a presenter or clinician can pull the screen towards them, then folds back to a retracted depth of just 3.7″ (9.1 cm). In a Singapore meeting room, ward bay or retail back-of-house where a permanently protruding screen would be a hazard, that low retracted profile is the whole point of a swing arm rather than a fixed plate.

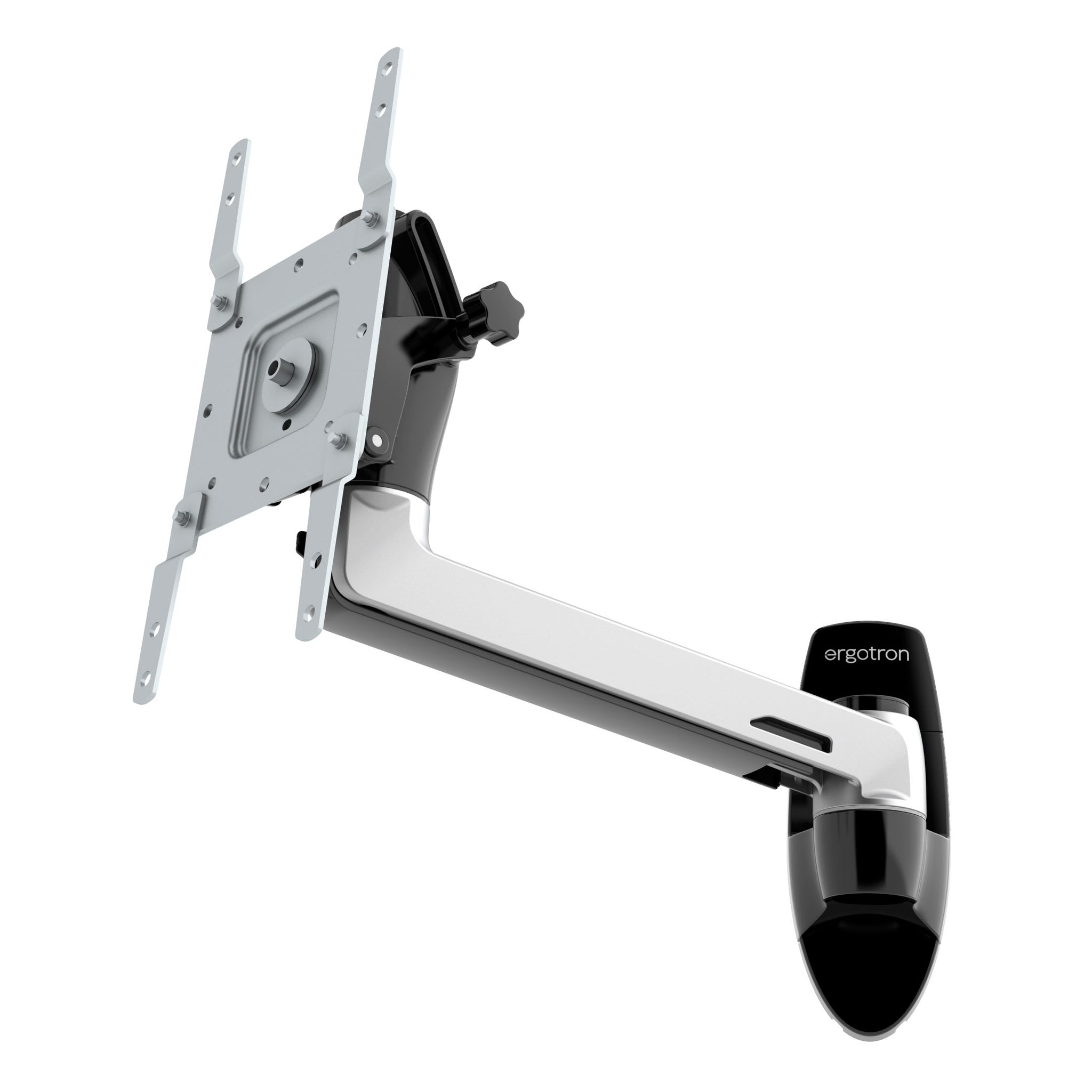

360° Pan and Full Portrait/Landscape Rotation
With 360° pan and 360° rotation the display turns to face anywhere in the room and switches between landscape and portrait — useful for signage, document review and code or log walls. Ergotron's Constant Force patented motion technology delivers the 20° of tilt as a smooth, controlled adjustment rather than a stiff ratchet.
Cable Routing and a Light 2 kg Arm

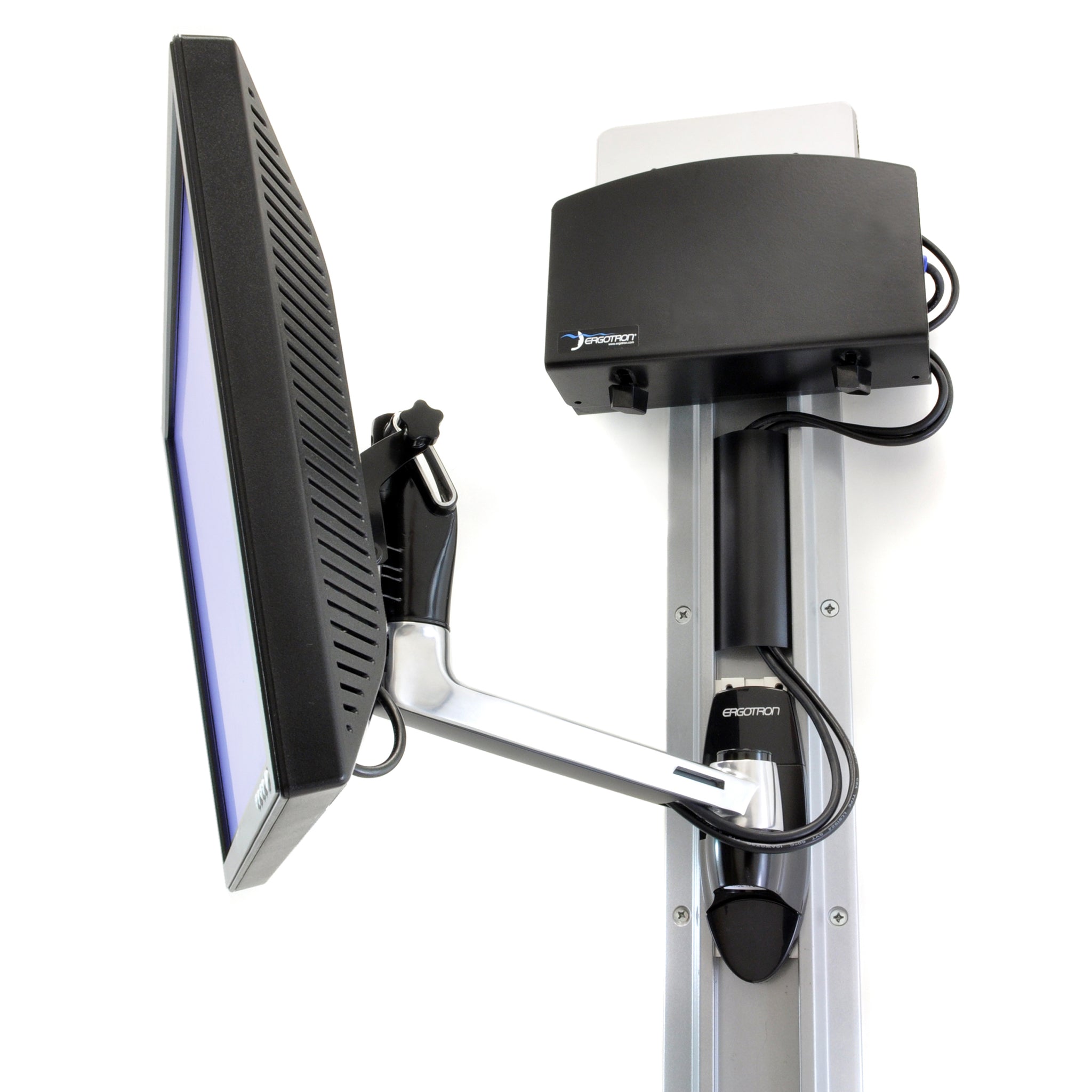

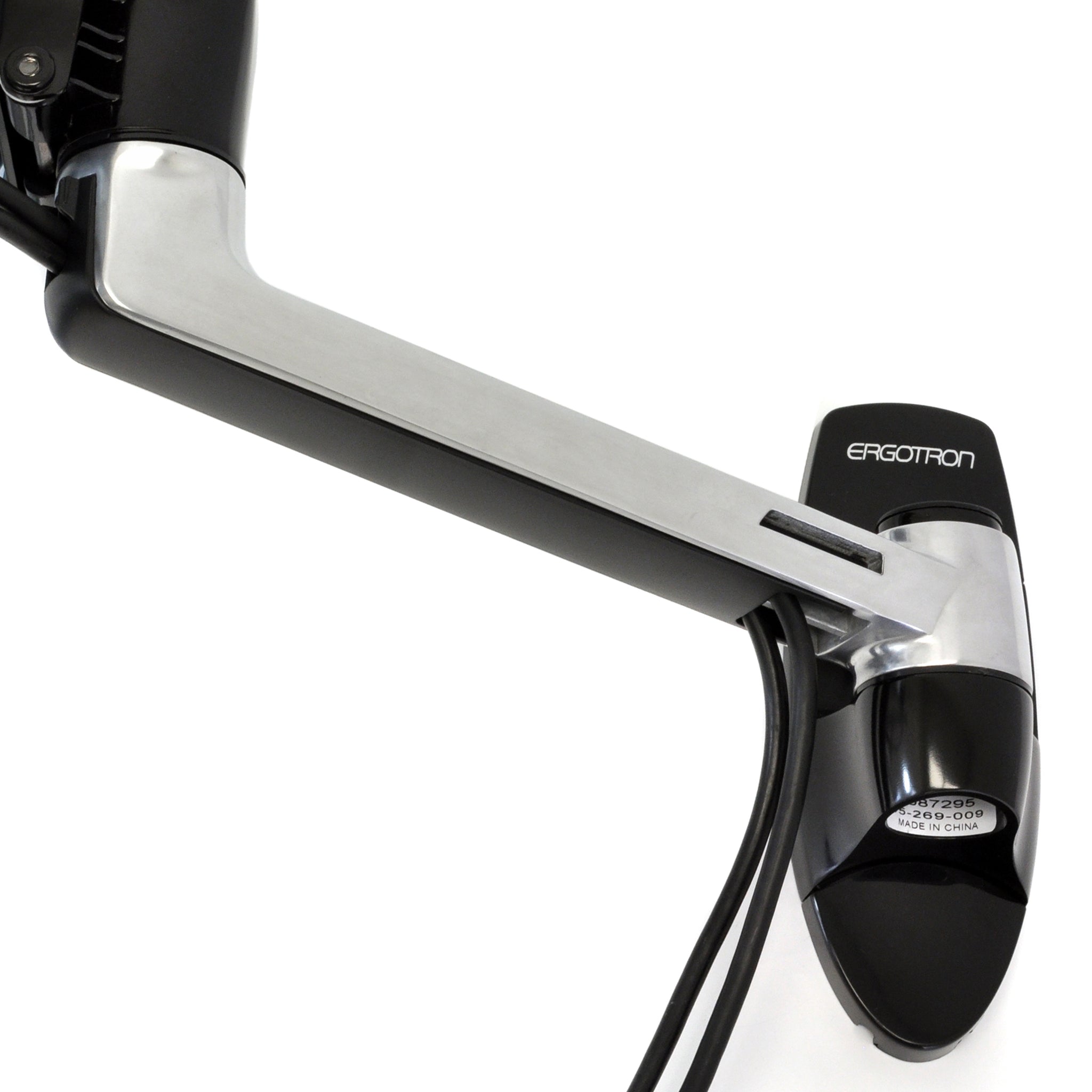

Cables are guided along the underside of the arm, keeping a large wall-mounted panel looking installed rather than improvised. The arm itself weighs only 4.5 lbs (2 kg), so the load your wall carries is overwhelmingly the display, not the mount.
Five-Year Ergotron Warranty, Supported Locally in Singapore
Ergotron backs the LX HD Wall Mount Swing Arm with a 5-year manufacturer warranty. Note that this differs from the 10-year term on the standard LX Wall Monitor Arm — the heavy-duty LX HD range carries the shorter term. SourceIT Pte Ltd supplies it with local Singapore warranty support and a GST invoice.
Ergotron LX HD Wall Mount Swing Arm Datasheet — Technical Specifications
General
| Product Name | Ergotron LX HD Wall Mount Swing Arm |
| Part Number | 45-268-026 |
| Finish | Polished Aluminium |
| Number of Displays | 1 |
| Mounting Type | Wall — wood stud or solid concrete |
| Product Weight | 4.5 lbs (2 kg) |
| Shipping Weight | 5.5 lbs (2.5 kg) |
| Manufacturer Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty | Local Warranty (Singapore) |
Display Compatibility
| Display Weight Capacity | Up to 50 lbs (22.7 kg) |
| Display Size | Up to 42″ |
| VESA Standard | VESA MIS-D / MIS-E / MIS-F — Ergotron's installation guide documents 75 × 75, 100 × 100, 100 × 200, 200 × 100 and 200 × 200 mm adapter configurations |
Adjustment & Motion
| Tilt | 20° total (15° up / 5° down) |
| Pan | 360° |
| Rotation | 360° — portrait and landscape |
| Extension / Reach | Swings the display 13″ (33 cm) out from the wall |
| Retracted Depth | 3.7″ (9.1 cm) |
| Lift Technology | Ergotron Constant Force patented motion technology (smooth tilt adjustment) |
| Height Adjustment (Lift) | Not applicable — Ergotron publishes no vertical lift figure for this model |
Design & Durability
| Cable Management | Cables are guided along the underside of the arm |
| Wall Structure Requirement | Wall must support four times the total weight of mounted equipment |
| Wood Stud Fixing | M8 × 80 mm bolts |
| Concrete Fixing | Holes drilled at least 3-1/8″ (80 mm) deep in solid concrete |
| Available Finishes | 45-268-026 polished aluminium (sole finish listed by Ergotron) |
Compatibility & Fit
VESA fit. Ergotron's datasheet refers to the website for VESA detail; its own installation guide for this model documents adapter configurations for 75 × 75, 100 × 100, 100 × 200, 200 × 100 and 200 × 200 mm, and the Ergotron catalogue designates the model MIS-D / MIS-E / MIS-F. That covers the great majority of business monitors and commercial panels up to 42″.
Weight and size fit. Up to 50 lbs (22.7 kg) and 42″. Check the panel weight on your display's spec sheet excluding its factory stand — that is the figure that matters.
Ultrawide and curved displays. Ergotron publishes the limit by weight and diagonal, not by aspect ratio, so an ultrawide within 50 lbs and 42″ with a supported VESA pattern will mount. A wide or deeply curved panel loads the pivot asymmetrically, so centre it carefully on the plate and confirm the larger VESA patterns (200 × 100 / 200 × 200) are used where the display offers them.
Number of screens. Single display.
No vertical lift. This is a swing/tilt arm, not a sit-stand arm — Ergotron publishes no height-adjustment range for it. If you need the screen to move between seated and standing height, the LX Sit-Stand Wall Mount LCD Arm is the correct product; see the ordering section.
Wall type — read this before ordering. Ergotron's installation instruction for the LX HD range is explicit: the wall structure must be capable of supporting four times the total weight of the mounted equipment. With a 50 lb (22.7 kg) display that means a structure rated for roughly 200 lbs (91 kg). Ergotron documents two approved surfaces: a wood stud, using M8 × 80 mm bolts, and solid concrete, drilled to a depth of at least 3-1/8″ (80 mm). Most Singapore commercial and residential walls are reinforced concrete or solid block, which suits the concrete method — but the anchor must land in solid concrete, not in mortar joints or render, and a plasterboard partition is not a suitable substrate on its own. If you are mounting to a partition or a wall you are unsure of, have it assessed before installation; SourceIT can advise on a site-by-site basis.
Package Contents & LX HD Series Ordering Information
In the box
Ergotron does not publish an itemised box-contents list for this model. Its installation guide specifies the supplied mounting hardware set, which includes M8 × 80 mm wall bolts, an M8/M5 converter kit, and M4, M5, M6 and 10-24 display fasteners, washers and anchors covering the supported VESA patterns. SourceIT supplies the mount in Ergotron's sealed retail packaging.
LX HD wall range — ordering information
| LX HD Wall Mount Swing Arm (polished aluminium) — 13″ reach, 360° pan | 45-268-026 (this listing) |
| LX HD Wall Mount Pivot (black) — low profile, 40° pan | 45-269-009 |
Related Ergotron wall arms in the SourceIT catalogue
| LX Wall Monitor Arm — 13″ lift, up to 25 lbs, 10-year warranty | 45-243-026 polished aluminium · 45-243-224 matte black |
| LX Sit-Stand Wall Mount LCD Arm — 20″ lift, up to 42″ | 45-353-026 LX Sit-Stand Wall Mount LCD Arm |
Datasheet & Downloads
Ergotron LX HD Wall Mount Swing Arm (45-268) product page — official Ergotron product page.
Ergotron LX HD Swing Arm & Wall Mount Pivot datasheet — official Ergotron datasheet (PDF).
Ergotron LX HD Wall Mount Swing Arm installation guide (888-45-200-W) — wall fixing detail, VESA adapter configurations and hardware list
All technical figures published on this page are taken from the official Ergotron datasheet for this part number. Where Ergotron does not publish a figure, SourceIT omits it rather than estimate. For a written quotation or a bulk/project price in Singapore, contact SourceIT Pte Ltd.
Frequently Asked Questions — Ergotron LX HD Wall Mount Swing Arm
What is the difference between the LX HD Wall Mount Swing Arm and the LX HD Wall Mount Pivot?
Reach and pan. The Swing Arm (45-268-026, polished aluminium) swings the display 13″ (33 cm) out from the wall and pans a full 360°. The LX HD Wall Mount Pivot (45-269-009, black) is a low-profile pivot with no extension arm and only 40° of pan. Both take 50 lbs and 42″, both tilt 20°, and both carry the same 5-year warranty. Choose the Swing Arm when someone needs to pull the screen towards them; choose the Pivot when the screen should stay near the wall and only needs a small angle change.
What size and weight of display does it take?
Up to 50 lbs (22.7 kg) and up to 42″. This is double the weight rating of the standard LX Wall Monitor Arm, which is capped at 25 lbs.
Can it hold two monitors?
No — it is a single-display mount.
Does it adjust up and down for sit-stand use?
No. Ergotron publishes no vertical lift range for this model; it tilts, pans, rotates and extends, but does not raise and lower. For sit-stand height change from a wall, use the LX Sit-Stand Wall Mount LCD Arm, which lifts 20″ (51 cm).
What wall can it be fitted to?
Ergotron approves a wood stud (M8 × 80 mm bolts) or solid concrete (holes at least 3-1/8″ / 80 mm deep), and requires the wall structure to support four times the total mounted weight. Concrete and solid block — standard in most Singapore buildings — are suitable. Plasterboard partitions are not, without additional structural backing.
Do I need a VESA adapter?
Usually not. Ergotron's installation guide covers 75 × 75, 100 × 100, 100 × 200, 200 × 100 and 200 × 200 mm patterns with the supplied hardware. A display with no VESA holes at all needs its manufacturer's own adapter plate.
How does it compare with the standard LX Wall Monitor Arm?
The LX Wall Monitor Arm carries 7–25 lbs, screens to about 34″, lifts 13″ (33 cm), reaches 25″ (64 cm) and has a 10-year warranty. The LX HD Swing Arm carries twice the weight and a bigger screen but has no lift, less tilt, shorter reach and a 5-year warranty. Pick by display weight first.
Is the Ergotron LX HD Wall Mount Swing Arm covered by warranty in Singapore?
Yes. Every Ergotron LX HD Wall Mount Swing Arm sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the LX HD Wall Mount Swing Arm with a 5-year manufacturer warranty.
