Ergotron HX Desk Monitor Arm for Displays up to 19kg White (45-475-216)
Ergotron HX Desk Monitor Arm for Displays up to 19kg White (45-475-216) - 10 Years Local Singapore Warranty

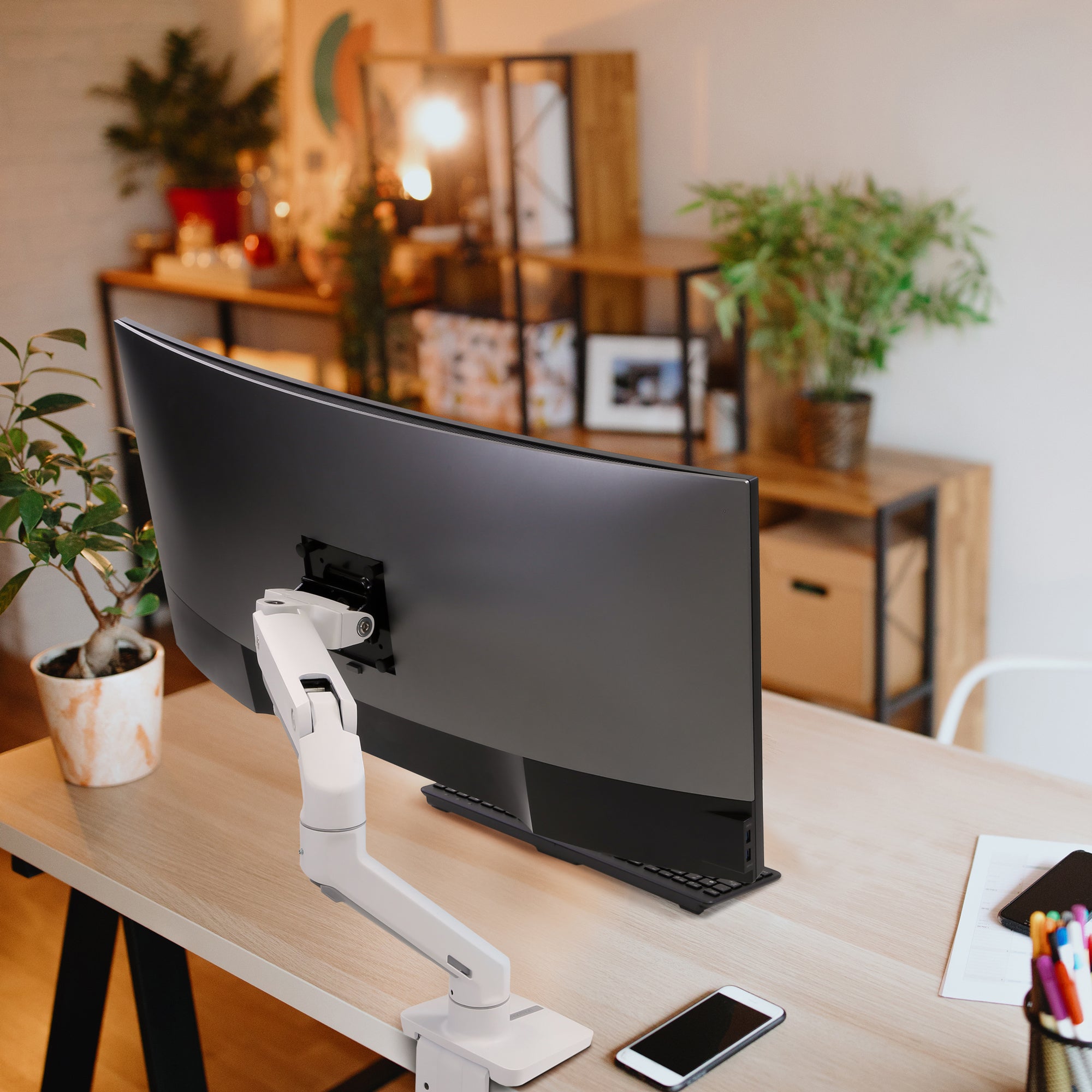

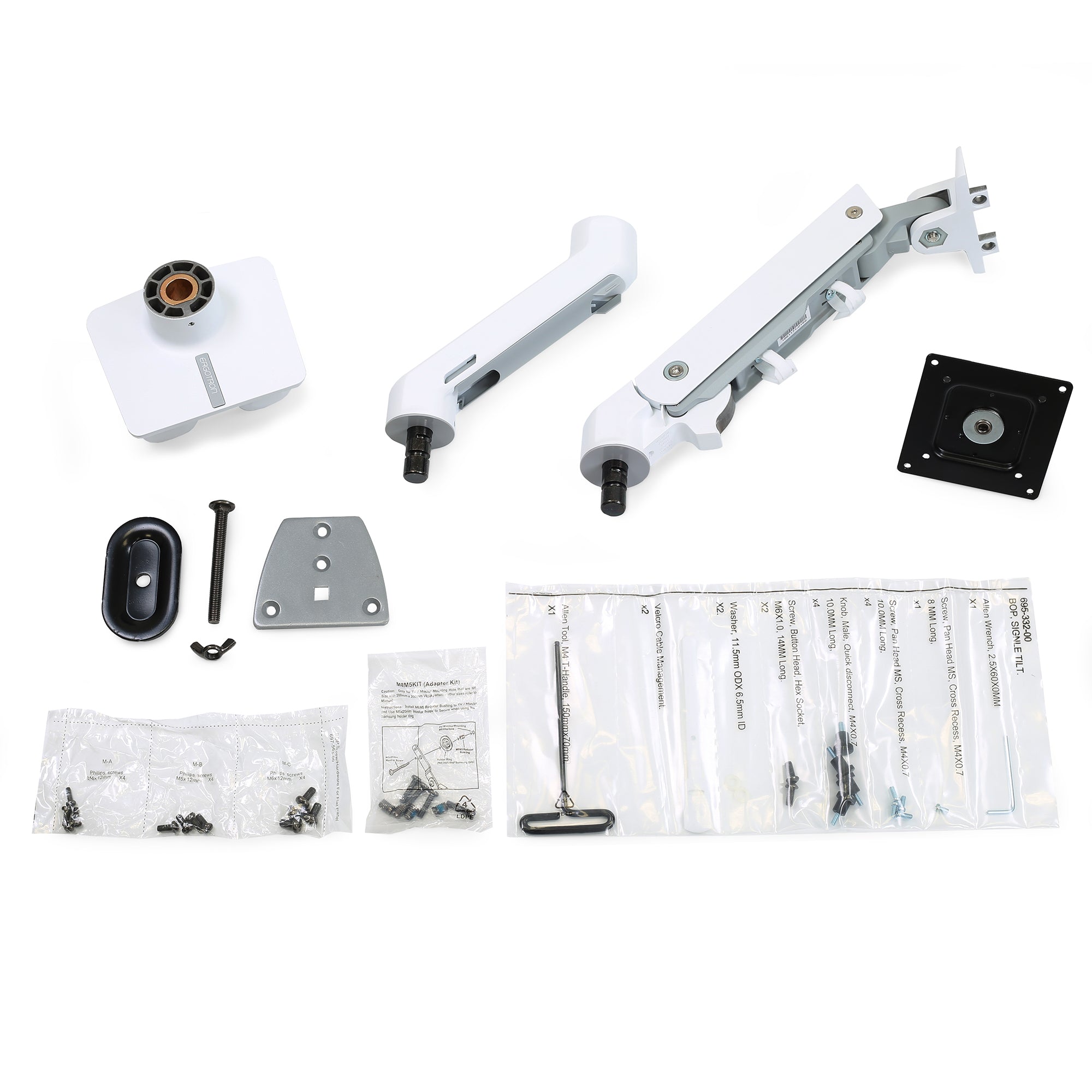

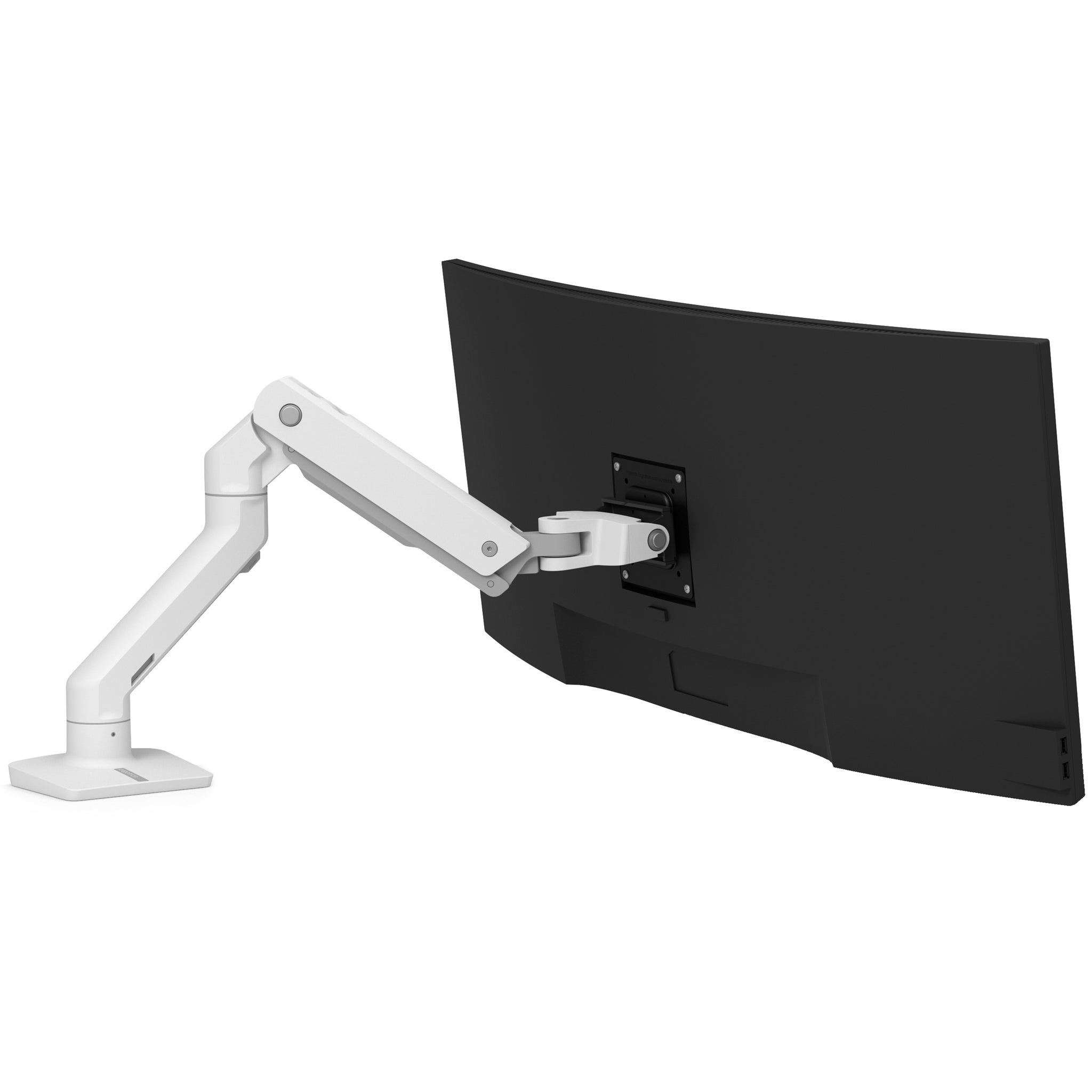

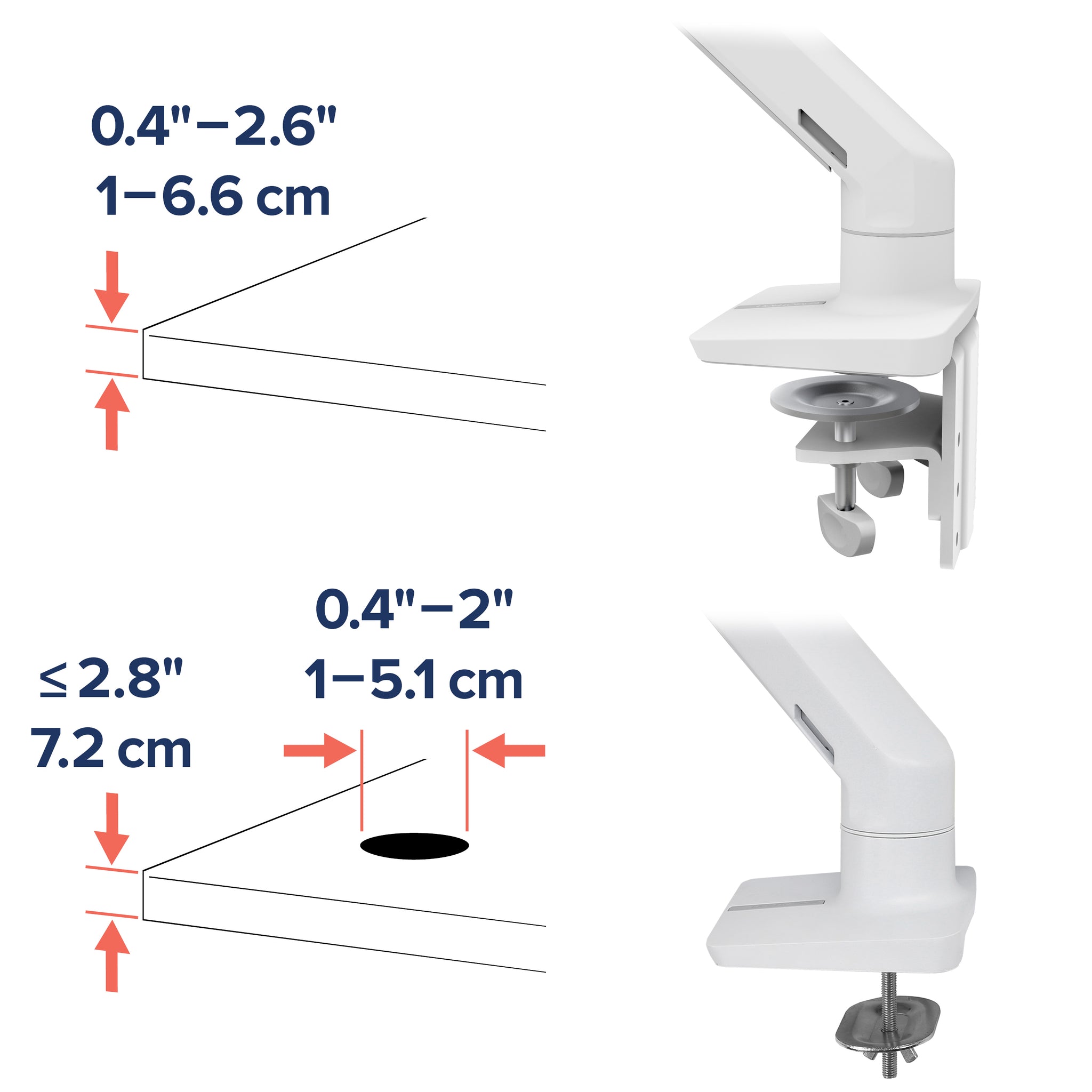

Mount your 20 to 42 lb display to your desktop with the White Ergotron HX Desk Monitor Arm. It supports displays up to 42" with 75 x 75 to 200 x 200mm VESA patterns and will connect via the included edge-of-desk clamp or the included grommet mount. It provides -5 to 70° of tilt adjustment and 360° of pan and rotation adjustment. Your display's center-height can be adjusted from 6.3 to 17.8" from your desktop. Integrated cable management will help keep your wiring safe and neat.
- Designed to increase viewing comfort by helping to reduce eye, back, and neck strain
- CF motion technology engineered to provide simple display adjustment
- Cable management feature routes cables under the arm and through the extension, out of the way
- Lets you rotate the screen for portrait viewing of photos or documents
- Rotation stop on base limits range to 180° and prevents monitor from making contact with the wall
- Folding arm helps free up space in constrained areas and allows you to tuck your monitor under storage shelves or cabinets
- Portrait/landscape rotation with lockout
- Clamp base helps provide enhanced stability of display and arm
- Monitor can be rotated 360° at connection point of arm and extension; rotation restricted to 180° at connection point of extension and base
- Maximum screen size determined by monitor weight
- Certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to the emissions of VOC (volatile organic compounds)
- Expandable with optional equipment to support up to three monitors
Ergotron HX Desk Arm Specification
| Manufacturer Part Number: |
45-475-216 (white) GTIN: 698833054491 45-475-224 (matte black) GTIN: 698833084474 45-475-026 (aluminum) GTIN: 698833060942 |
|
Typical LCD Size: |
≤ 49″ |
|

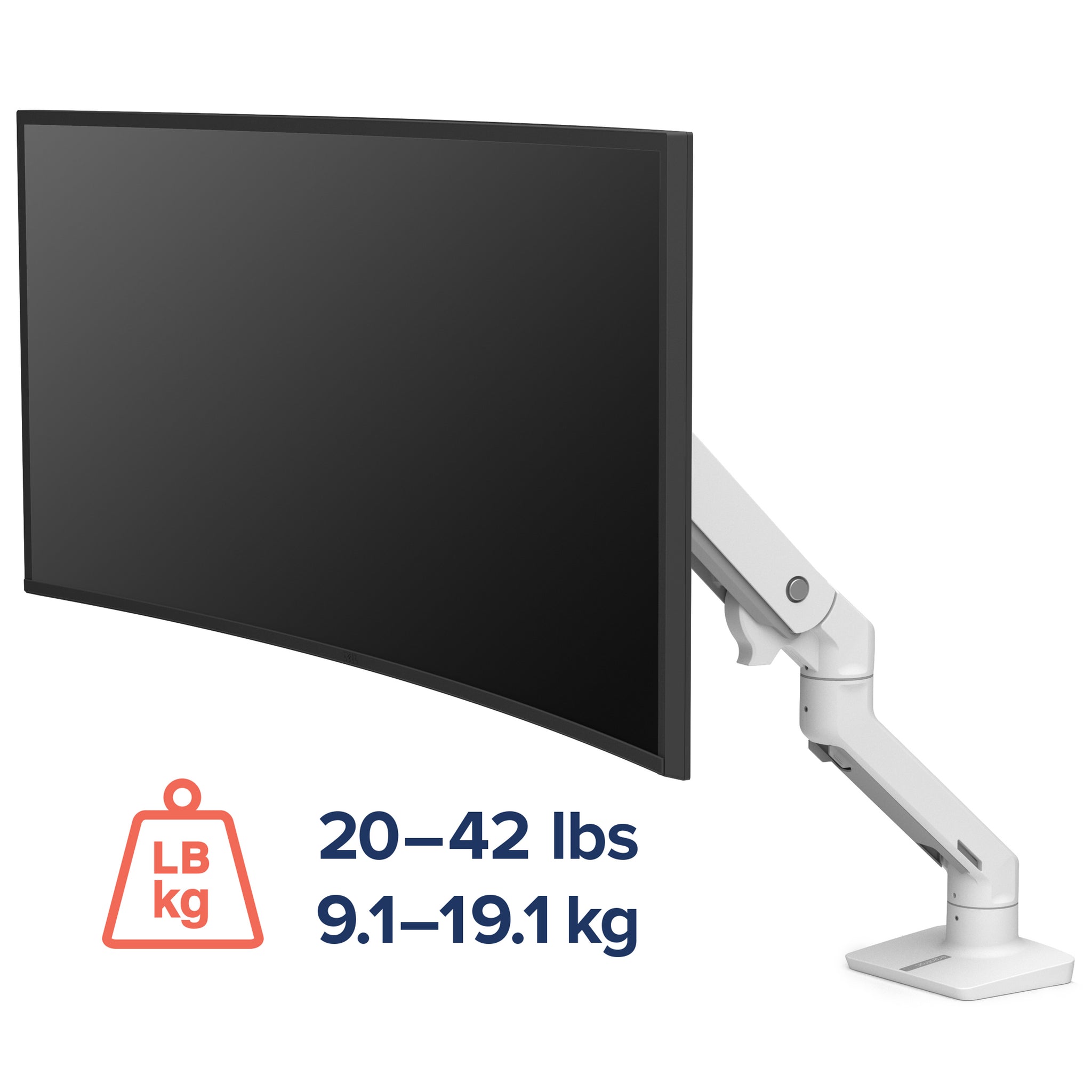

Weight Capacity: |
9–19 kg per monitor; use HX tilt accessory (98-540-216) for monitor depth > 6″ (15 cm) and weight >(12.7 kg) |
|

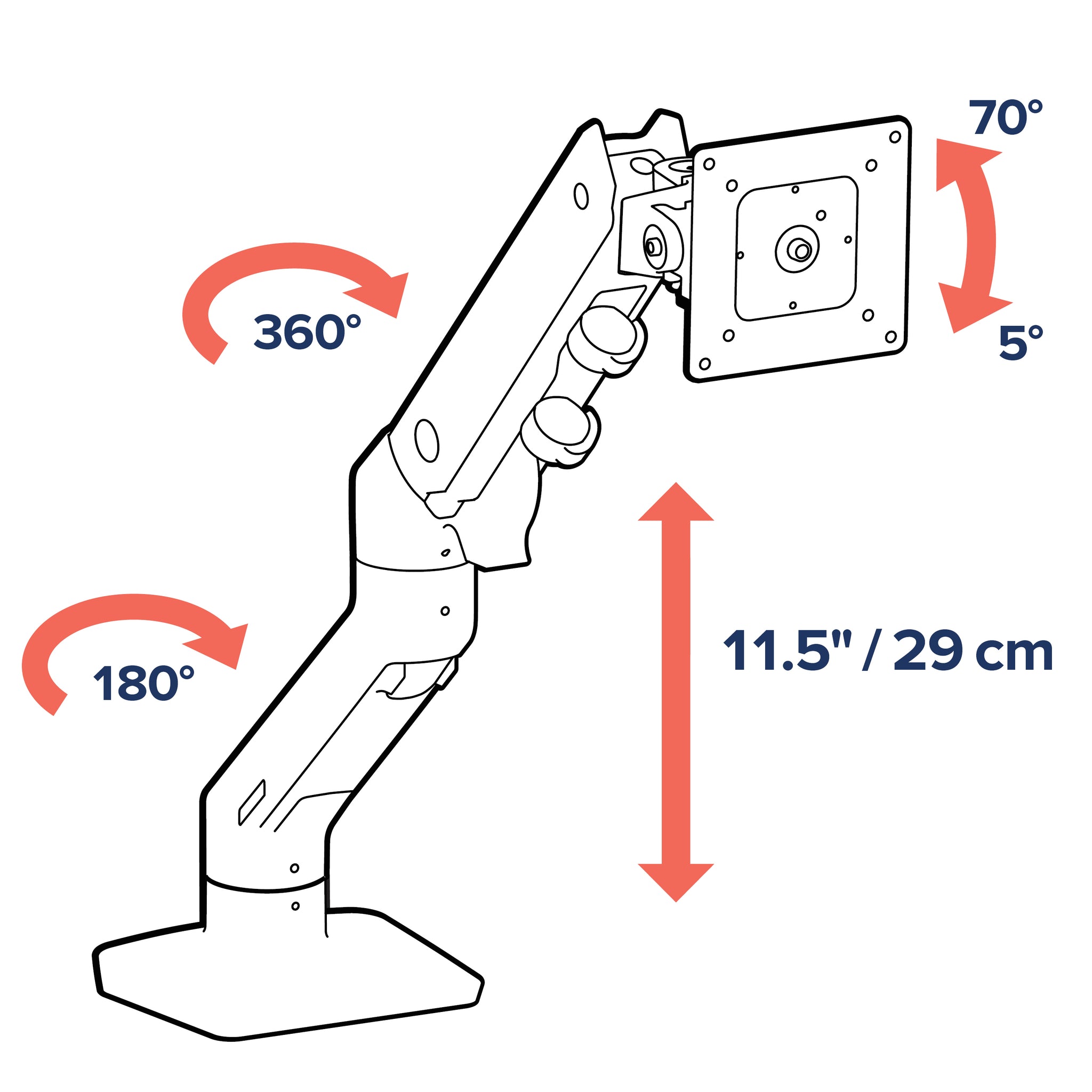

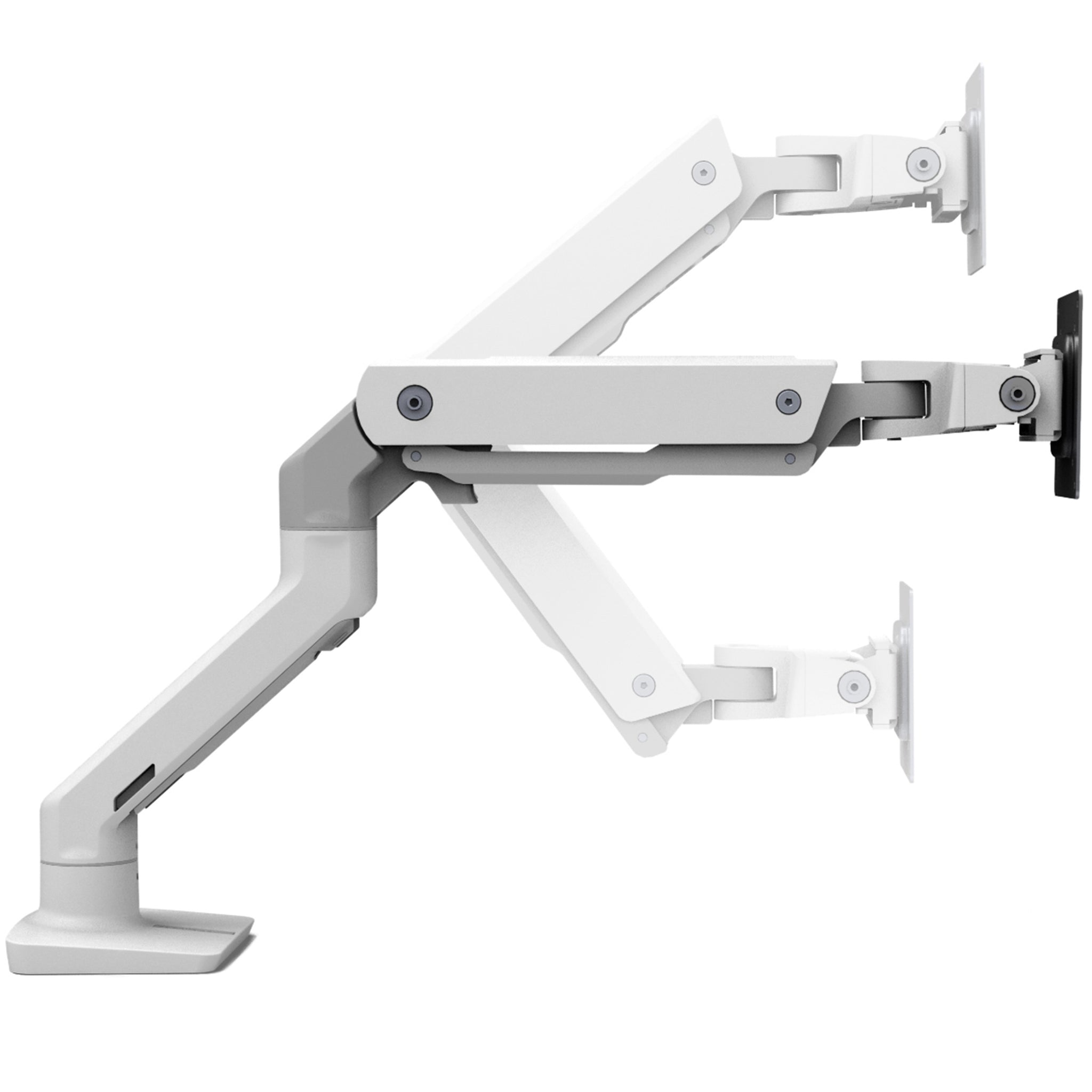

Lift: |
11.5″ (29,2 cm) |
|
Tilt: |
70° backward, 5° forward |
|
Extension Pan: |
360° |
|
Base Rotation: |
180° |
|
VESA |
VESA FDMI MIS-D, 100/75, C (100 x 100 mm & 75 x 75 mm hole pattern); HX Single also includes 200 x 200 mm |

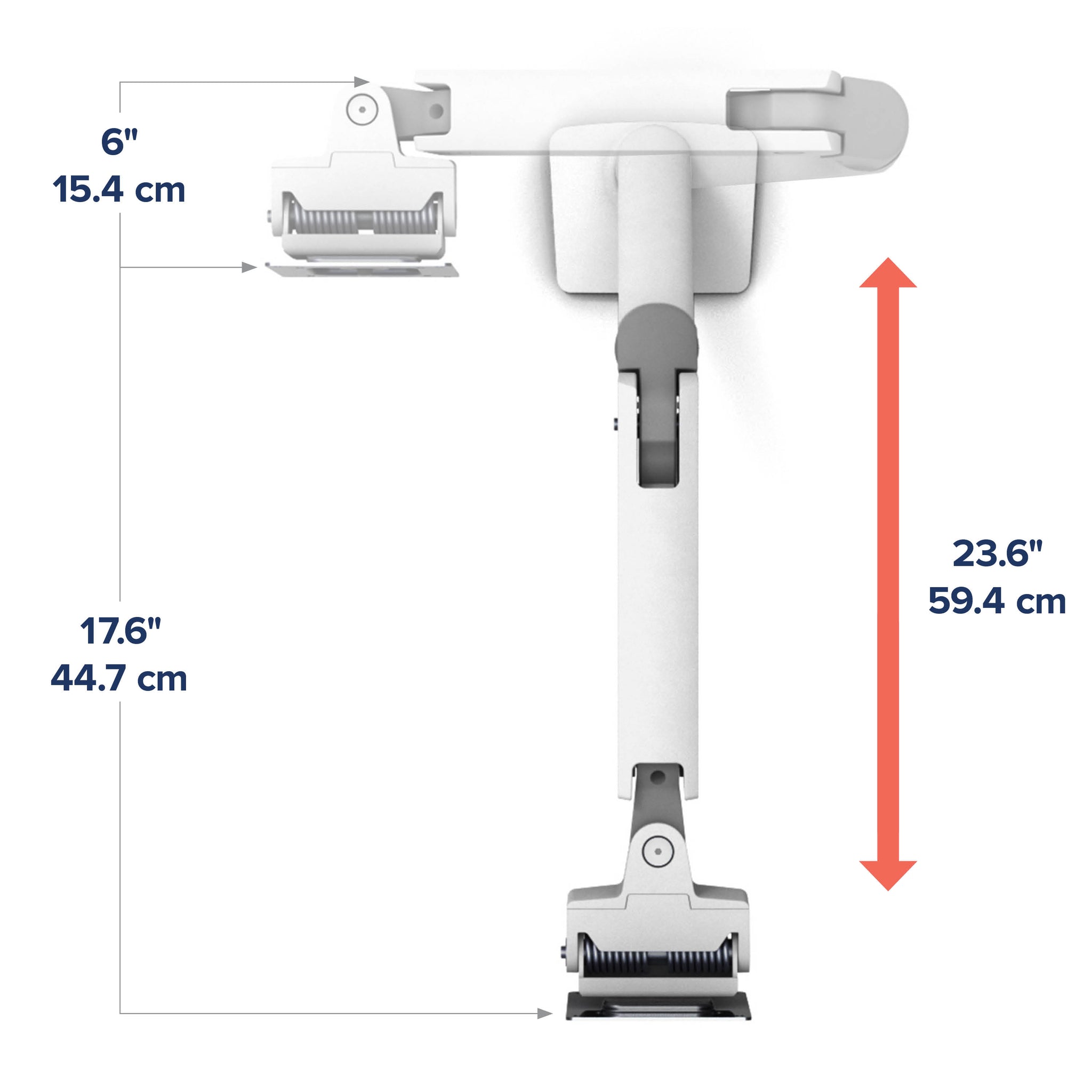

| Extension: | ≤ 25″ (60 cm) |
| Shipping Weight: | 8.3 kg |
| Shipping Dimensions: | 12.0″ x 19.2″ x 7.0″ (30.5 x 48.8 x 17.8 cm) |
|
Manufacturer's Warranty: |
10 Years Local Singapore Carry-In |

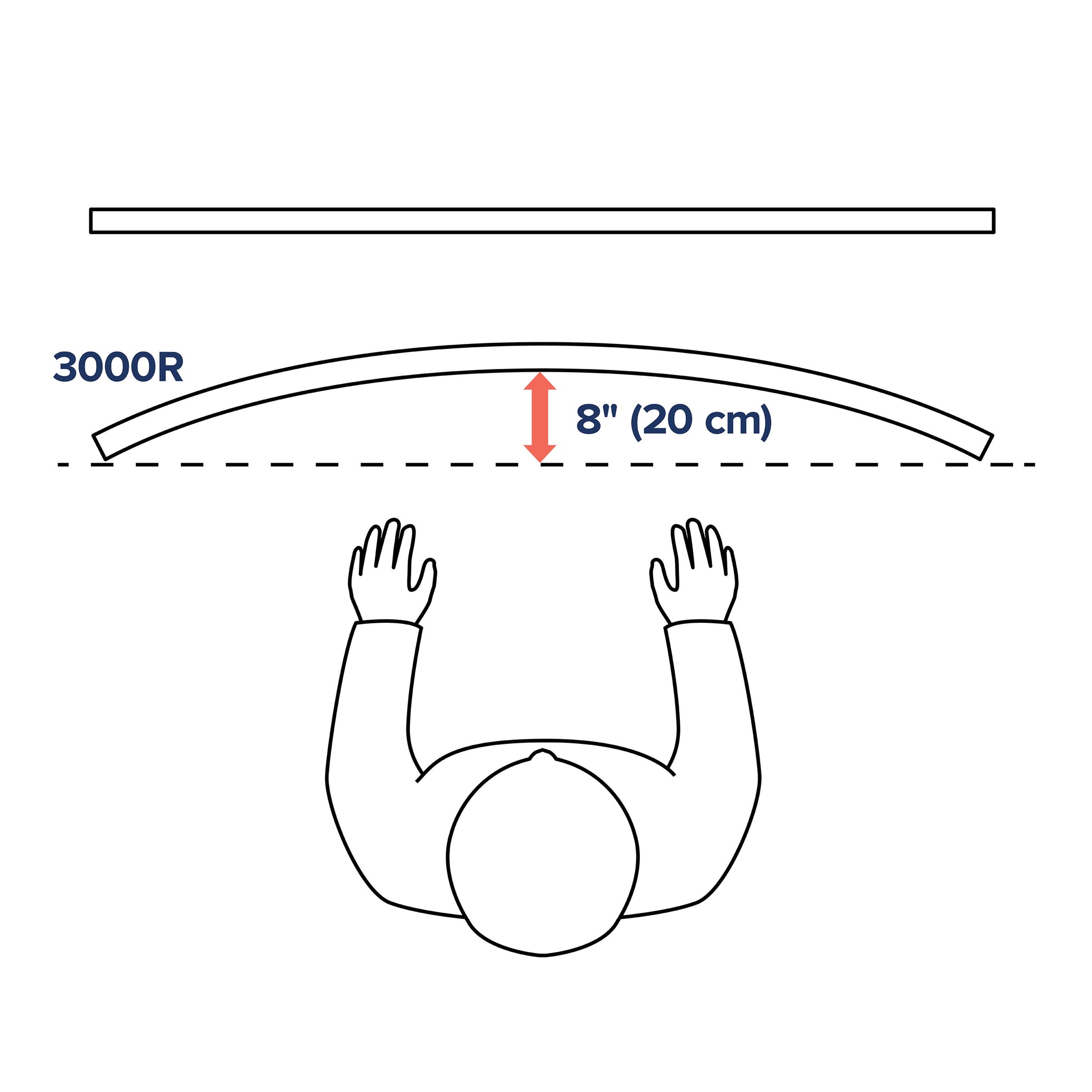

Note: Display depth > 6" (15 cm) may affect the arm’s weight capacity. For a curved monitor, consider the arc’s depth to determine compatibility.
For a display weighing (12.7–19.1 kg) with a depth of 6"–12" (15–30 cm), the accessory HX Heavy-Duty Tilt Pivot (98-540-216) is required.
You May Also Like:
Ergotron HX Desk Monitor Arm for Displays up to 19kg Matte Black (45-475-224)
Ergotron HX Desk Monitor Arm for Displays up to 19kg Polished Aluminum (45-475-026)
Ergotron HX Desk Monitor Arm for Displays up to 19kg White (45-475-216)
Ergotron HX Desk Monitor Arm with HD Pivot Matte Black (45-647-224)
Ergotron HX Desk Monitor Arm with HD Pivot White (45-647-216)

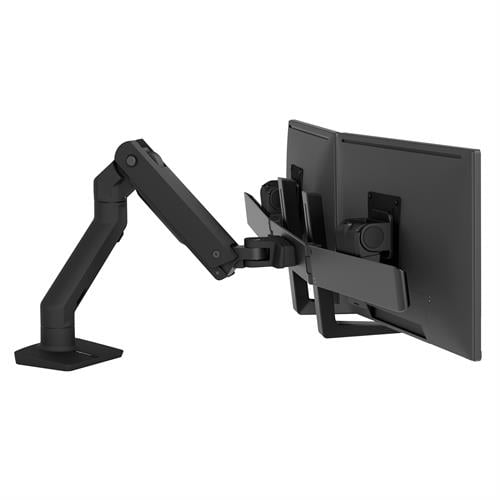

Ergotron HX Dual Monitor Desk Arm Black (45-476-224)

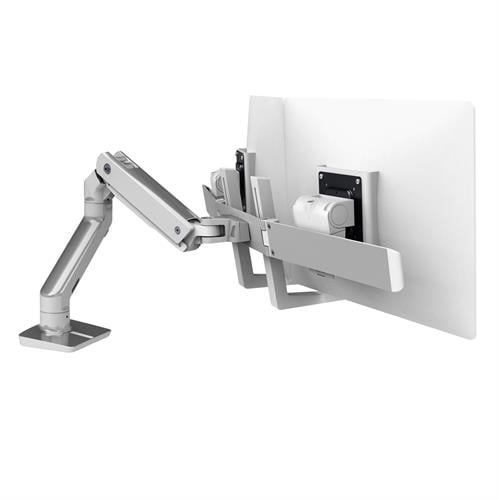

Ergotron HX Dual Monitor Desk Arm Polished Aluminum (45-476-026)

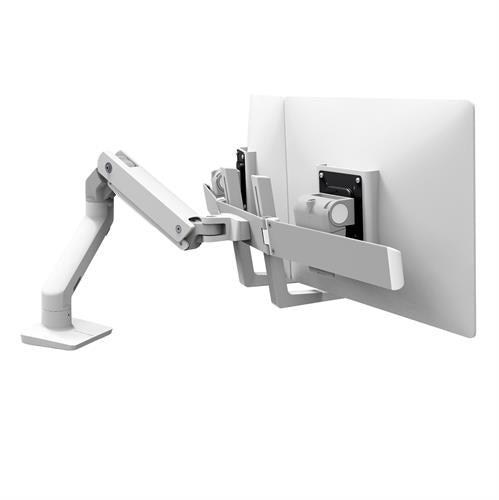

Ergotron HX Dual Monitor Desk Arm White (45-476-216)

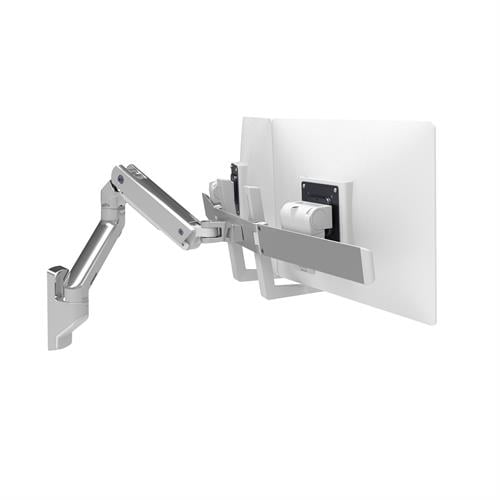

Ergotron HX Wall Dual Monitor Arm for Displays up to 32" Polished Aluminum (45-479-026)

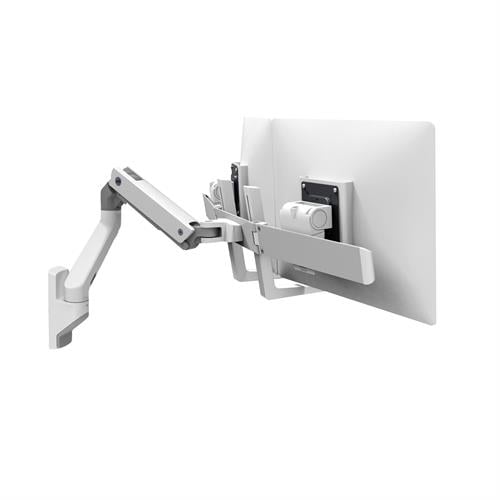

Ergotron HX Wall Dual Monitor Arm for Displays up to 32" White (45-479-216)
