Ergotron CareFit™ Enclosure Matte Black
PRODUCT DESCRIPTION
Ergotron CareFit™ Enclosure, Matte Black (61-367-060) - 5 Years Local Warranty
A Fold-Away Sit-Stand Clinical Workstation in Matte Black

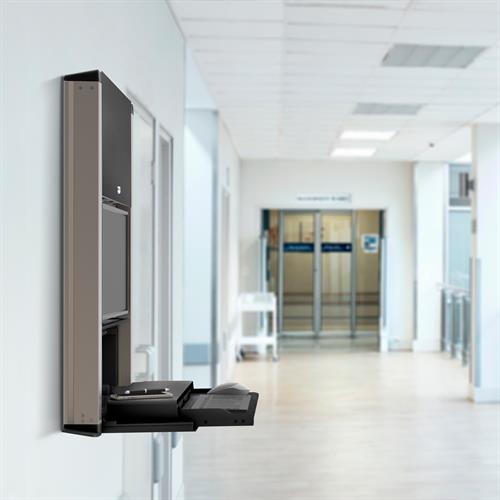

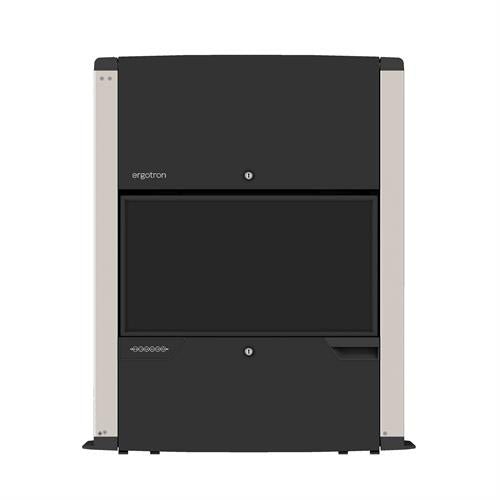

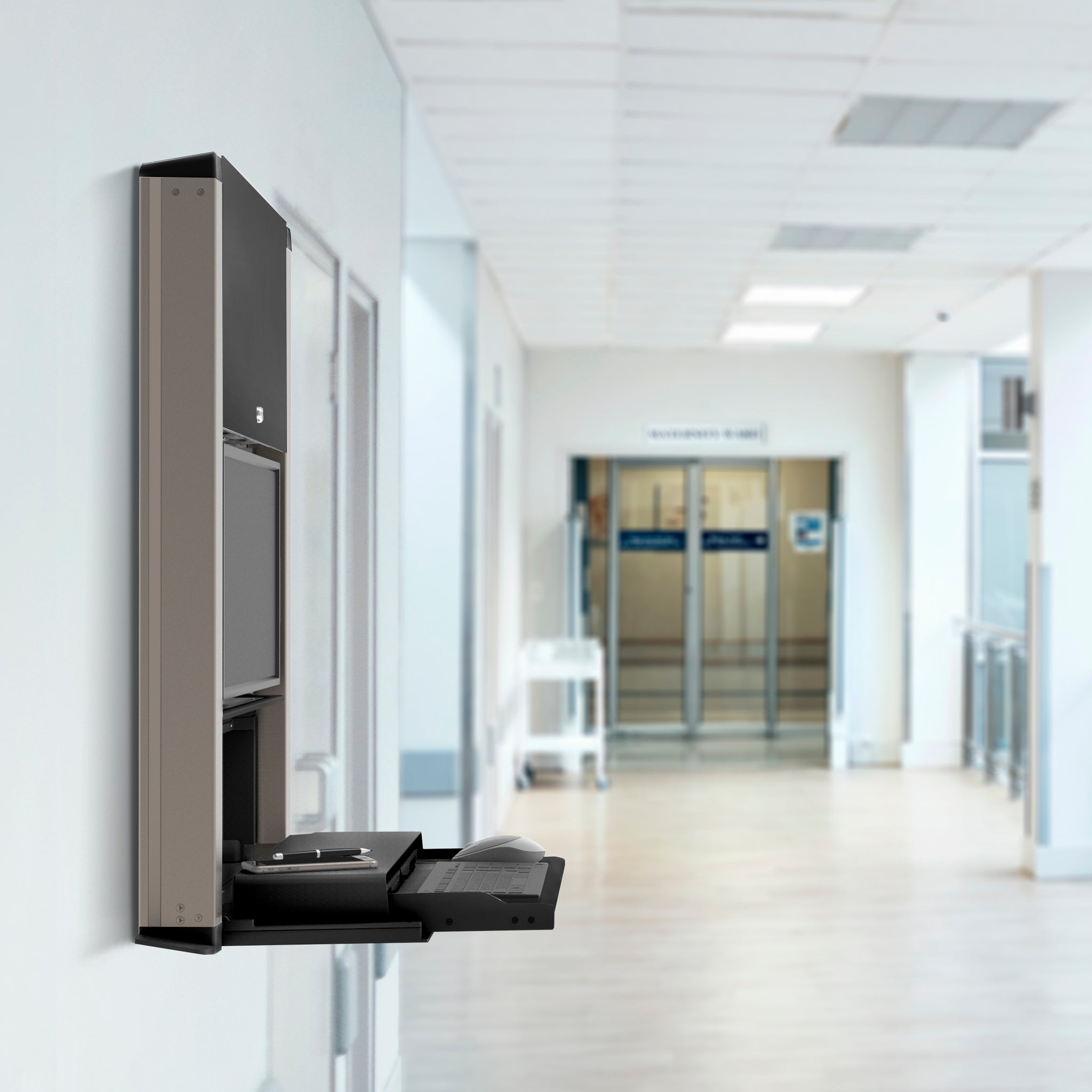

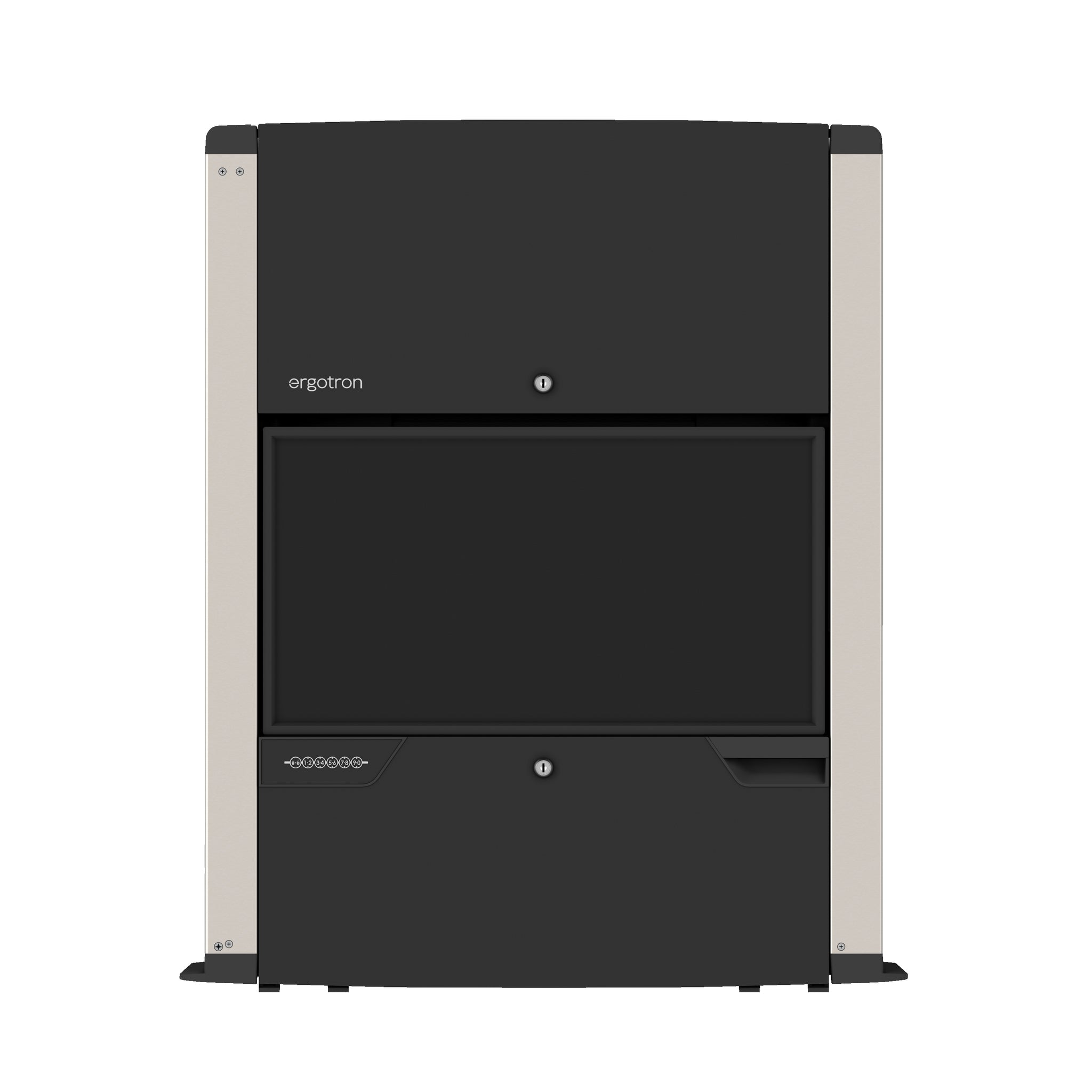

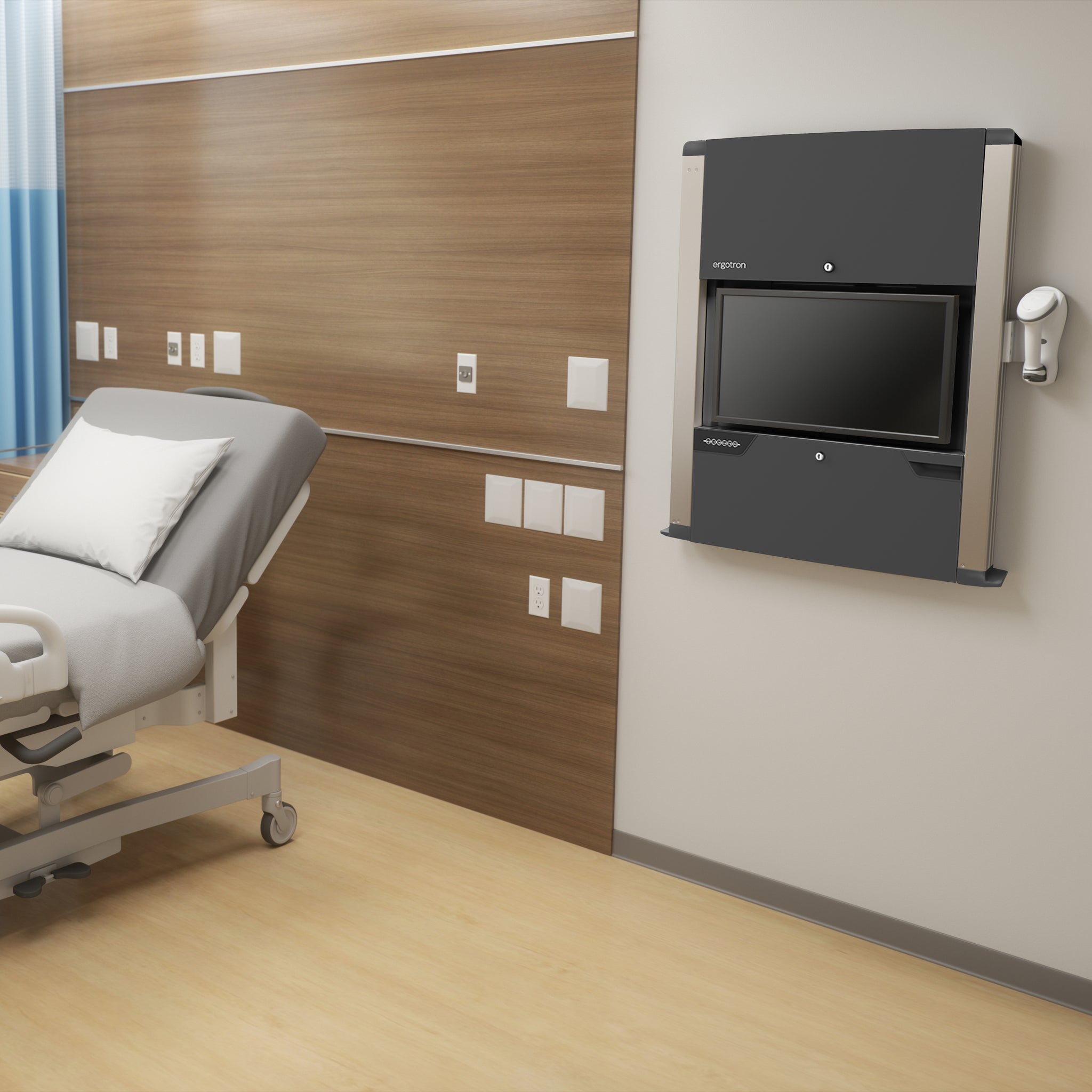

The Ergotron CareFit Enclosure (61-367-060, matte black) is a wall-mounted sit-stand computer workstation with 20 in (51 cm) of height adjustment that folds away and locks when it is not in use. Clinicians work sitting or standing at the point of care; between consultations the whole workstation closes flat against the wall. The matte black finish suits darker clinical and consulting interiors and modern specialist practices.
Closes to Within 4 Inches of the Wall
The low-profile design keeps the closed enclosure within 4 in (10.2 cm) of the wall. For Singapore ward bays, consult rooms and clinic corridors where circulation clearance is tightly controlled and every square metre is accounted for, a workstation that disappears into the wall between patients delivers real, measurable space back to the department.
10-Digit Lock Code and Integrated Cable Management
A 10-digit lock code secures the closed unit, protecting patient data and the technology inside in shared and public-facing areas. Integrated cable management keeps cords organised and easy to clean — important both for infection-control routines and for presenting a tidy, inspection-ready installation.

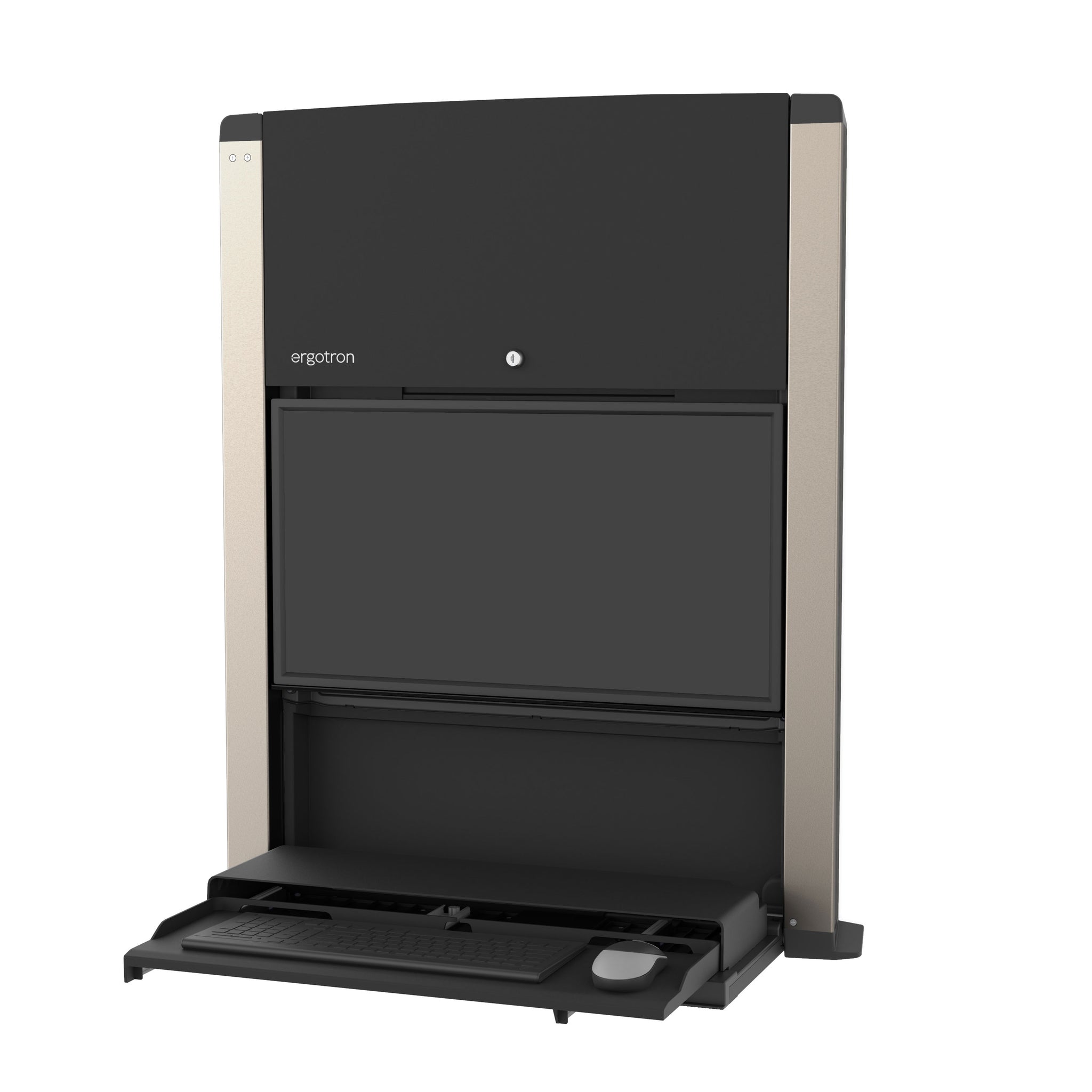

Screen, Keyboard, Mini PC and Scanner in One Wall Unit
The enclosure fits most 24–27 inch screens against a black backing, with a monitor pivot rated 7–12.5 lb (3.2–5.7 kg), a keyboard tray rated 0.5–3 lb (0.2–1.4 kg) and a mini PC bay rated 3–8 lb (1.4–3.6 kg). A removable 24.7 x 7.4 in (62.7 x 18.9 cm) worksurface plus a T-slot for a proximity reader or printer round out a complete point-of-care station, with easy scanner access for medication delivery.
Ergotron CareFit Enclosure Datasheet — Technical Specifications
General
| Part Number | 61-367-060 |
| Product Name | Ergotron CareFit Enclosure, Matte Black |
| Product Type | Fold-away, lockable wall-mount sit-stand computer workstation |
| Finish | Matte black (snow white also available as 61-367-030) |
| Mounting | Wall mounted |
| 5-Year Manufacturer Warranty (Ergotron) | Included |
| Local Warranty (Singapore) | Supported by SourceIT Pte Ltd |
Capacity & Worksurface
| Worksurface | 24.7 x 7.4 in (62.7 x 18.9 cm), removable |
| Screen Fit | Fits most 24–27 in screens, with a black backing for a seamless background |
| Monitor Pivot Capacity | 7–12.5 lb (3.2–5.7 kg) |
| Keyboard Tray Capacity | 0.5–3 lb (0.2–1.4 kg) |
| Mini PC Enclosure Capacity | 3–8 lb (1.4–3.6 kg) |
| Input Devices | Mouse and keyboard tray with removable worksurface |
Adjustment & Motion
| Height Adjustment (Lift) | 20 in (51 cm) — work sitting or standing |
| Profile from Wall | Low-profile design stays within 4 in (10.2 cm) of the wall |
| Tilt / Pan / Rotation | Not published by Ergotron — see specification note |
Design, Security & Durability
| Security | 10-digit lock code keeps patient data and technology secure |
| Cable Management | Integrated — keeps cords organised and easy to clean |
| Accessory Mounting | T-slot for accessories such as a proximity reader or printer |
| Scanner Access | Provides easy access to a scanner for medication delivery |
| Front Panel Options | Interchangeable woodgrain laminate fronts available (98-419) |
| Product Weight | 73.8 lb (33.5 kg) |
| Shipping Weight | 77.2 lb (35 kg) |
| Shipping Dimensions | 45.3 x 37.5 x 8.2 in (115.1 x 95.3 x 20.8 cm) |
Specification note: Ergotron does not publish a VESA pattern for the CareFit Enclosure's integrated monitor pivot, nor tilt, pan or rotation degrees, nor the enclosure's internal cavity dimensions, nor its assembled open and closed dimensions (only shipping-carton dimensions are published), nor an itemised box-contents list. Those are omitted here rather than estimated. Ergotron makes no published antimicrobial or infection-control material claim for this product. Contact SourceIT if any of these figures are decisive for your specification and we will confirm them with Ergotron.
Compatibility & Fit
Display fit. Ergotron states the enclosure fits most 24–27 in screens against a black backing. The integrated monitor pivot is rated 7–12.5 lb (3.2–5.7 kg) — a window rather than a maximum, so confirm your monitor's weight falls inside it. Ergotron does not publish the pivot's VESA pattern; send SourceIT your monitor model and we will confirm compatibility before you order.
Computing device fit. The mini PC enclosure is rated 3–8 lb (1.4–3.6 kg). Ergotron's wording is “mini PC”; thin clients and small-form-factor PCs within that weight band are the intended occupants. Internal cavity dimensions are not published, so check physical size with SourceIT if your device is unusually tall or deep.
Input devices and peripherals. The keyboard tray is rated 0.5–3 lb (0.2–1.4 kg) and the removable worksurface measures 24.7 x 7.4 in (62.7 x 18.9 cm). A T-slot accepts accessories such as a proximity reader or printer, and the design gives easy access to a scanner for medication delivery. Matching matte black scanner brackets are available separately.
Mounting. A wall-mounted unit weighing 73.8 lb (33.5 kg) before equipment, carrying a moving 20-inch lift. It requires structural wall support. Ergotron does not publish a substrate specification for this part, so SourceIT strongly recommends a site survey before ordering. This is not a desk-clamp, grommet, pole or mobile-base product.
Choosing between finishes. Matte black (61-367-060, this listing) and snow white (61-367-030) are mechanically identical and share this datasheet — only the finish differs. Interchangeable woodgrain laminate fronts are available separately if the unit needs to blend with a specific interior scheme.
Package Contents & CareFit Ordering Information
In the Box
- CareFit Enclosure, matte black (61-367-060)
- Integrated monitor pivot, keyboard tray and removable worksurface
- Integrated cable management
- Installation hardware and documentation
CareFit Enclosure Finishes
| CareFit Enclosure, Snow White — 61-367-030 | Snow white |
| CareFit Enclosure, Matte Black — 61-367-060 (this listing) | Matte black |
CareFit Enclosure Accessories at SourceIT
| Horizontal Scanner Bracket, Snow White — 98-424-030 | Scanner mounting |
| Horizontal Scanner Bracket, Matte Black — 98-424-060 | Scanner mounting |
| Vertical Scanner Bracket, Snow White — 98-425-030 | Scanner mounting |
| Vertical Scanner Bracket, Matte Black — 98-425-060 | Scanner mounting |
Datasheet & Downloads
- Ergotron CareFit Enclosure product page (61-367)
- Official Ergotron CareFit Enclosure datasheet — imperial and metric (PDF)
- Official Ergotron CareFit Enclosure datasheet — metric (PDF)
Ergotron publishes no installation manual or dimensional drawing for the 61-367 series that SourceIT was able to verify. The two datasheets above are the official specification sources. The box-contents list above reflects the product's documented configuration rather than a published Ergotron packing list.
Frequently Asked Questions — Ergotron CareFit Enclosure
Is this a passive equipment cabinet?
No. Ergotron's datasheet specifies 20 in (51 cm) of lift, explicitly so clinicians can work sitting or standing. “Enclosure” describes the fold-away, lockable form factor — the product is a height-adjustable wall-mounted sit-stand workstation that closes and locks.
What is the difference between the matte black and snow white versions?
Finish only. 61-367-060 is matte black and 61-367-030 is snow white; they are mechanically identical and share the same Ergotron datasheet. Interchangeable woodgrain laminate fronts (98-419) are available separately in six finishes.
What monitor size and weight does it support?
Most 24–27 in screens, with the monitor pivot rated 7–12.5 lb (3.2–5.7 kg). Both ends of that range matter on a counterbalanced pivot. Ergotron does not publish the VESA pattern, so contact SourceIT with your monitor model to confirm fit.
Can it house a mini PC or thin client?
Yes — there is a dedicated mini PC bay rated 3–8 lb (1.4–3.6 kg). Ergotron does not publish the internal cavity dimensions, so if your device is unusually large, check physical clearance with SourceIT before ordering.
How does it keep patient data secure?
The unit closes and locks with a 10-digit lock code, which Ergotron states keeps patient data and technology secure — the practical requirement for leaving a workstation unattended in a shared or public-facing clinical area.
Does it need a special wall?
It needs a structurally sound one. The enclosure weighs 73.8 lb (33.5 kg) empty and carries a moving 20-inch lift plus a monitor, keyboard and mini PC. Ergotron does not publish a substrate specification for this part number, so SourceIT recommends a site survey before ordering — particularly where lightweight partitions are involved.
Can I add a barcode scanner?
Yes. The T-slot accepts accessories such as a proximity reader or printer, and Ergotron notes the design gives easy access to a scanner for medication delivery. SourceIT stocks matching matte black horizontal and vertical scanner brackets to suit this enclosure.
Does the CareFit Enclosure come with a Singapore warranty?
Yes. Every Ergotron CareFit Enclosure sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the CareFit Enclosure with a 5-year manufacturer warranty.
