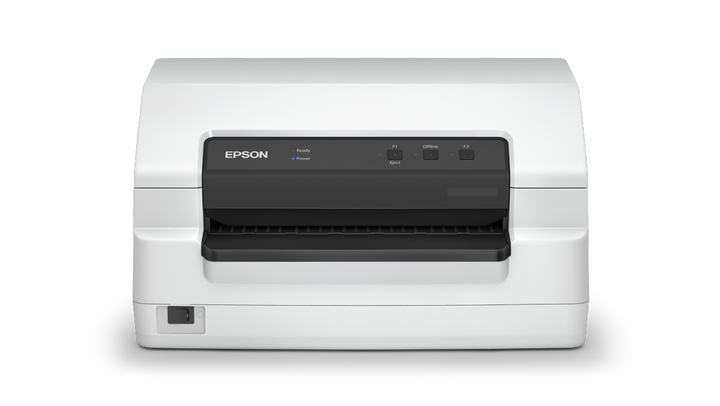

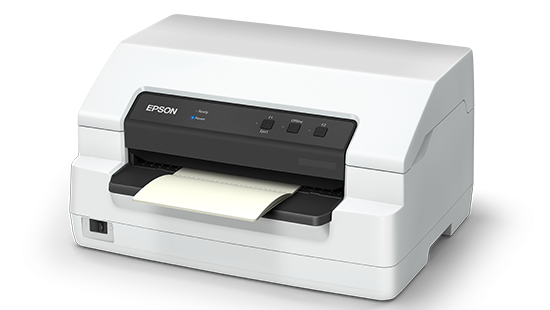

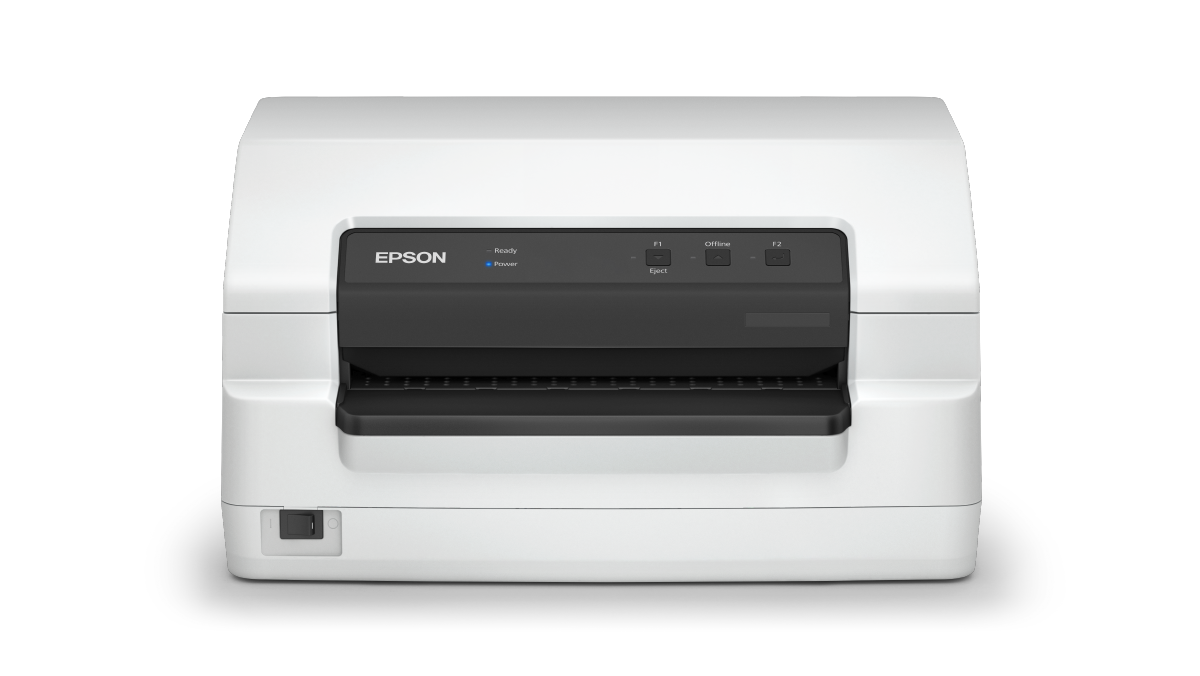

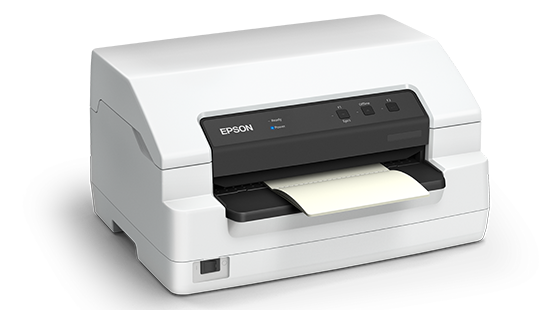

Epson PLQ-35 Passbook Printer
PRODUCT DESCRIPTION
Epson PLQ-35 Passbook Printer (C11CJ11501) - 1 Year Local Warranty
The Epson PLQ-35 Passbook Printer - RELIABLE, SEAMLESS INTEGRATION MAKES ALL THE DIFFERENCE.
Astounding Speeds
Accomplish more, in shorter periods of time with high print speed of up to 540 cps (10cpi).
Reliability
Built to last, the PLQ-35 will continue to perform consistently, even in demanding environments.
Versatility
The PLQ-35 printer accommodates passbook printing and a wide variety of printing needs.
Seamless Integration
Suits existing IT infrastructure with IBM, Wincor and Olivetti control code emulation.
Low Total Cost of Ownership
High productivity, low ribbon yield, and minimal maintenance reduce operational costs.
Smart Functionality
Includes auto platen gap adjustment, auto sheet alignment, and auto border function.
Consistent High Prints
Epson products and genuine supplies work together for optimal quality printouts.
Ideal For
Banks, credit unions and financial counters that print passbooks, slips and multi-part forms. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
PLQ-35 Datasheet — Technical Specifications
General
| Model | PLQ-35 |
| Official Product Name | Epson PLQ-35 Passbook Printer |
| Epson Product Code | C11CJ11501 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 12 months carry-in |
Printing Technology
| Print Method | 24 pins Impact Dot Matrix |

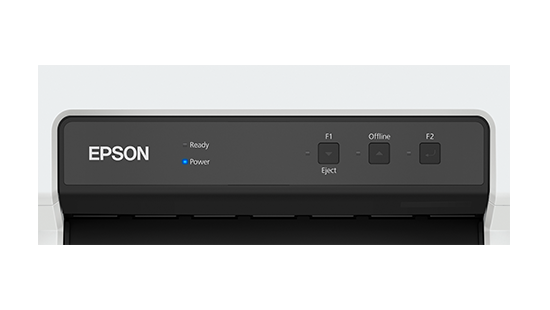

| Control Panel | 3 Buttons + 5 LED |
| Print Direction | Bi-direction with logic seeking |
| Colour | Black |
| Control Code | PR2, WNI4915, IBM4722, IBM PPDS, ESC/P2 |
Print Speed
| PR2 Emulation (10 cpi) | Ultra High Speed Draft: 540 cps; High Speed Draft: 480 cps; Draft: 360 cps; NLQ: 180 cps; LQ: 120 cps |
| ESC/P2, Others (10 cpi) | Ultra High Speed Draft: 540 cps; High Speed Draft: 480 cps; Draft: 360 cps; LQ: 120 cps |
| IBM 4722 | Standard Text (10 cpi): 360 cps; NLQ (10 cpi): 240 cps |
Reliability
| Printhead Life | 400 million strokes/wire |
| MVBF | 21 million lines |
| MTBF | 30,000 POH |
Print Characteristics
| Character Sets | International, PC437, PC850, PC860, PC863, PC865, PC861, BRASCII, Abicomp, Roman 8, ISO Latin 1, PC858, CP847 (Thai with TIS Extended - IBM 4722 only) |
| Barcode | EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code39, Code128, POSTNET |
Paper Path
| Manual Insertion | Front in, front out / front in, rear out |
Paper Media
| Cut Sheet | Width: 65-243mm; Length: 67-297mm; Thickness: Single 0.065-0.19mm, Multi 0.12-0.53mm |
| Cheque | Width: 120-216mm; Height: 68-120mm; Thickness: 0.075-0.2mm |
| Copy | 1 original + 6 copies |
| Line Spacing | 1/6 inch |
Passbook
| Width | 110-241.3mm |
| Length | Horizontal: 127-220mm; Vertical: 85-220mm |
| Thickness | Max: 2.6mm; Cover: 0.2-0.5mm; Each Page: 0.1-0.15mm |
Supported OS & Applications
| Printer Driver OS | Windows XP, Vista, 7, 8, 8.1, 10; Windows Server 2003, 2008, 2012, 2016 |
| Software Compatibility | Status Monitor |
Environmental Conditions (Operating)
| Temperature | 5-38°C |
| Humidity | 10-85% RH |
| Rated Voltage | AC 100-240V |
| Rated Frequency | 50-60Hz |
| Power Consumption | In Operation: 61W; Sleep: 0.7W |
Acoustic Noise
| Noise Level | A4 Single Sheet: 55dB; Passbook: 52dB |
Interface
| Interface | Bi-directional parallel (IEEE-1284 nibble mode), Serial, USB 2.0 |
Printable Columns
| 10 cpi | 94 cpl |
| 12 cpi | 112 cpl |
Ribbon Cartridge
| Colour | Black |
| Type | Fabric |
| Ribbon Life | Approx. 5 million characters (LQ 10cpi, 48 dots/character); approx. 10 million characters (Draft 10cpi, 24 dots/character) |
Dimensions and Weight (per brochure)
| Dimensions | 384 x 280 x 203 mm |
| Weight | 7.8 kg |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the PLQ-35. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| PR2 Emulation (10 cpi) | Ultra High Speed Draft: 540 cps; High Speed Draft: 480 cps; Draft: 360 cps; NLQ: 180 cps; LQ: 120 cps |
| Printer Driver OS | Windows XP, Vista, 7, 8, 8.1, 10; Windows Server 2003, 2008, 2012, 2016 |
| Software Compatibility | Status Monitor |
| Interface | Bi-directional parallel (IEEE-1284 nibble mode), Serial, USB 2.0 |
Package Contents & Ordering Information
Ordering Information
| Model | PLQ-35 |
| Epson Product Code | C11CJ11501 |
| Recommended Retail Price (incl. GST) | S$1,194.00 |
| Consumables | Ribbon Cartridge (Black) C13S015592 (part no. per Epson PLQ-35/50/50M/50CSM brochure) - approx. 5 million characters (LQ 10cpi, 48 dots/char) / approx. 10 million (Draft 10cpi, 24 dots/char) |
In the Box
- User's Manual CD
- Setup Guide
- Ribbon Cartridge (Black) - C13S015592
- Power Supply Cable
Datasheet & Downloads
Frequently Asked Questions — PLQ-35
What warranty does the PLQ-35 come with?
1 Year Local Warranty from Epson Singapore: 12 months carry-in. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the PLQ-35 use?
Ribbon Cartridge (Black) C13S015592 (part no. per Epson PLQ-35/50/50M/50CSM brochure) - approx. 5 million characters (LQ 10cpi, 48 dots/char) / approx. 10 million (Draft 10cpi, 24 dots/char) Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
