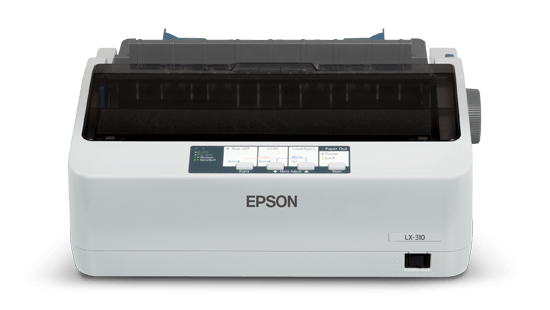

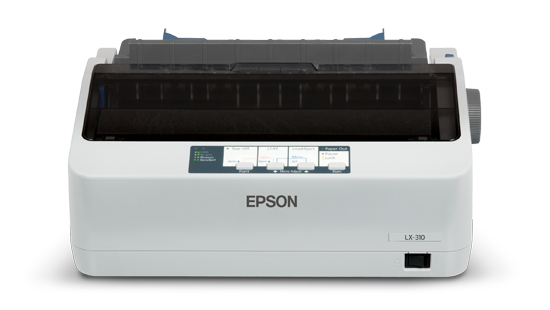

Epson LX-310 Dot Matrix Printer (C11CC24301) - 1 Year Local Warranty
The Epson LX-310 Dot Matrix Printer - 9-Pin Narrow Carriage Impact Printer - Highly reliable printing with better performance.
Why the Epson LX-310?
Building on its reputation as the world's top dot matrix printer maker, Epson has introduced the Epson LX-310 as the next-generation narrow carriage, 9-pin model that replaces the legendary LX-300, featuring vastly improved speed and reliability.
Extreme Speed
The Epson LX-310 features a 128KB input data buffer memory that is double that of its predecessor. This enables it to achieve high printing speeds of up to 357 characters per second at 12 CPI.
Improving on Legendary Reliability
The Epson LX-310 also has an improved reliability rating that is an astonishing 67% higher than its predecessor that was already renowned for its dependability. The LX-310 is rated for a mean time before failure (MTBF) of 10,000 POH (power on hours) compared to the older model's 6,000 POH.
High Impact for Multiple Carbon Copies
Achieve optimum efficiency with the LX-310's ability to create up to a 5-part form printout (1 original + 4 copies).
Flexible Connectivity
With built-in USB, Serial and Parallel Interface options, the LX-310 is able to connect to just about any output device you need it for.
Ideal For
Logistics, warehousing, accounts and government counters in Singapore printing multi-part forms, invoices and delivery orders. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
LX-310 Datasheet — Technical Specifications
General
| Model |
LX-310 |
| Official Product Name |
Epson LX-310 Dot Matrix Printer |
| Epson Product Code |
C11CC24301 |
| Brand |
Epson |
| Warranty |
1 Year Local Warranty (Singapore) - 12 months |
Printing Technology
| Print Method |
Impact dot matrix |
| Control Panel |
4 switches and 5 LEDs |
| Print Direction |
Bi-direction with logic seeking |
| Number of Pins in Head |
9 pins |
| Control Code |
ESC/P and IBM PPDS emulation |
Print Speed
| High Speed Draft (10 / 12 / 15 cpi) |
347 / 357 / 390 cps |
| High Speed Draft Condensed (17 / 20 cpi) |
383 / 298 cps |
| Draft (10 / 12 / 15 cpi) |
260 / 312 / 223 cps |
| Draft Condensed (17 / 20 cpi) |
222 / 260 cps |
| Draft Emphasized (10 cpi) |
130 cps |
| NLQ (10 / 12 / 15 / 17 / 20 cpi) |
65 / 78 / 55 / 47 / 56 cps |
Reliability
| Printhead Life |
Approx. 400 million strokes/wire |
| Mean Print Volume Between Failure (MVBF) |
Approx. 20 million lines (Except print head) |
| Mean Time Between Failure (MTBF) |
Approx. 10,000 POH (25% Duty) |
Print Characteristics
| Character Sets |
Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portugese), PC861 (Icelandic), PC863 (Canadian French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15 |
| Bitmap Fonts |
Epson Draft: 10, 12, 15 cpi; Epson Roman & Sans Serif: 10, 12, 15 cpi, Proportional, Epson OCR-B |
| Barcode |
EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet |
Paper Path
| Manual Insertion |
Rear in, Top out |
| Push Tractor |
Rear in, Top out |
Paper Media
| Cut Sheet (Single Sheet) Length |
100 ~ 364mm (3.9 ~ 14.3") |
| Cut Sheet (Single Sheet) Width |
100 ~ 257mm (3.9 ~ 10.1") |
| Cut Sheet (Single Sheet) Thickness |
0.065 ~ 0.14mm (0.0025 ~ 0.0055") |
| Cut Sheet (Multi-part Forms) Length |
100 ~ 364mm (3.9 ~ 14.3") |
| Cut Sheet (Multi-part Forms) Width |
100 ~ 257mm (3.9 ~ 10.1") |
| Cut Sheet (Multi-part Forms) Thickness |
0.12 ~ 0.39mm (0.0047 ~ 0.015") (Total) |
| Continuous Paper (Single Sheet / Multi-part) Length |
101.6 ~ 558.8mm (4.0 ~ 22.0") |
| Continuous Paper (Single Sheet / Multi-part) Width |
101.6 ~ 254.0mm (4.0 ~ 10.0") |
| Continuous Paper (Single Sheet / Multi-part) Thickness |
0.065 ~ 0.39mm (0.0025 ~ 0.015") (Total) |
| Envelope (No.6) Length |
92mm (3.6") |
| Envelope (No.6) Width |
165mm (6.5") |
| Envelope (No.6) Thickness |
0.16 ~ 0.52mm (0.0063 ~ 0.0205") (Total) |
| Envelope (No.10) Length |
105mm (4.1") |
| Envelope (No.10) Width |
241mm (9.5") |
| Envelope (No.10) Thickness |
0.16 ~ 0.52mm (0.0063 ~ 0.0205") (Total) |
| Roll Paper Width |
216mm (8.5") |
| Roll Paper Thickness |
0.07 ~ 0.09mm (0.0028 ~ 0.0035") |
Supported OS and Applications
| Supported OS |
Microsoft Windows 2000 / XP / Vista / 7 / 8 / 8.1 / 10 |
Dimensions and Weight
| Dimensions (W x D x H) |
362 x 275 x 154 mm |
| Weight |
Approx. 4.1 kg |
Consumables
| Ribbon Cartridge Black Ribbon Life |
Approx. 4.0 million characters (Draft 10 cpi, 14 dots/character) |
Environmental Conditions (Operating)
| Temperature |
5 ~ 35°C |
| Humidity |
10 ~ 80 % RH |
Acoustic Noise
| Acoustic Noise |
Approx. 53 dB(A) (ISO 7779 pattern) |
Input Data Buffer
Interface
| Standard |
Bi-directional parallel (IEEE-1284 nibble mode supported), USB 2.0 Full-Speed, Serial |
Ribbon Cartridge
| Standard |
Fabric Ribbon Cartridge (Black) - C13S015632 |
| Ribbon Life |
Approx. 4.0 million characters (Draft 10 cpi, 14 dots/character) |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the LX-310. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Supported OS |
Microsoft Windows 2000 / XP / Vista / 7 / 8 / 8.1 / 10 |
Package Contents & Ordering Information
Ordering Information
| Model |
LX-310 |
| Epson Product Code |
C11CC24301 |
| Recommended Retail Price (incl. GST) |
S$369.51 |
| Consumables |
Fabric Ribbon Cartridge (Black) C13S015632 - approx. 4.0 million characters (Draft 10 cpi, 14 dots/character) |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — LX-310
What warranty does the LX-310 come with?
1 Year Local Warranty from Epson Singapore: 12 months. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the LX-310 use?
Fabric Ribbon Cartridge (Black) C13S015632 - approx. 4.0 million characters (Draft 10 cpi, 14 dots/character) Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
