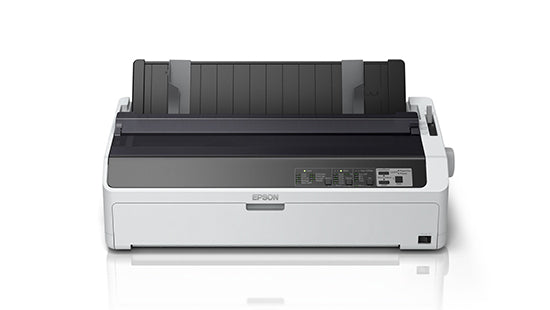

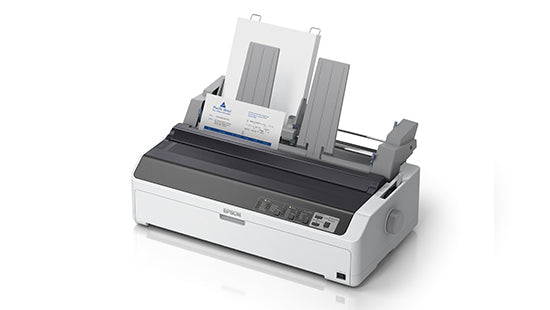

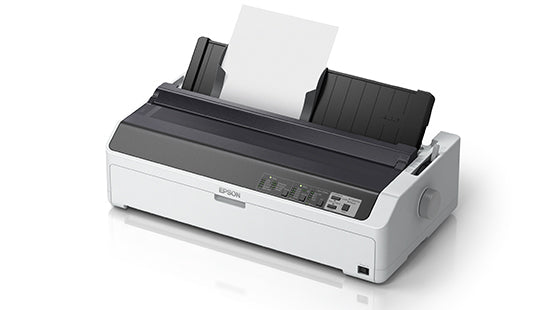

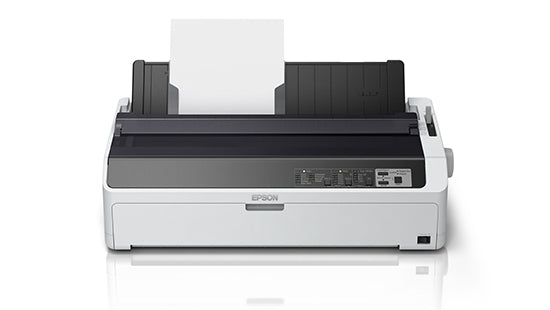

Epson LQ-2090IIN Dot Matrix Printer
PRODUCT DESCRIPTION
Epson LQ-2090IIN Dot Matrix Printer (C11CF40502) - 1 Year Local Warranty
The Epson LQ-2090IIN Dot Matrix Printer - Built for reliability, engineered for convenience.
Increase Productivity
Enjoy maximum productivity with fast print speeds of up to 487 cps (10 cpi) and 128 kb memory buffer.
Multiple Copy Capability
High copy capability of up to 7 layers (1 original + 6 copies) means sharp, clear documents right through the last copy.
Absolute Convenience
Experience fuss-free printing with built-in network connectivity via Ethernet cable.
Ideal For
Logistics, warehousing, accounts and government counters in Singapore printing multi-part forms, invoices and delivery orders. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
LQ-2090IIN Datasheet — Technical Specifications
General
| Model | LQ-2090IIN |
| Official Product Name | Epson LQ-2090IIN Dot Matrix Printer |
| Epson Product Code | C11CF40502 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 12 months |
Printing Technology
| Print Method | Impact dot matrix |
| Control Panel | 6 switches and 10 LEDs |
| Print Direction | Bi-direction with logic seeking |
| Number of Pins in Head | 24 pins |
| Control Code | ESC/P2, IBM PPDS |
Print Speed
| Ultra High Speed Draft | 10cpi: 550cps |
| High Speed Draft | 10 / 12 cpi: 487 / 584 cps |
| Draft | 10 / 12 cpi: 366 / 439 cps |
| Letter Quality | 10cpi: 121cps |
Reliability
| Printhead Life | 400 million strokes / wire |
| Mean Print Volume Between Failure (MVBF) | 50 million lines (except printhead) |
| Mean Time Between Failure (MTBF) | 25,000 Power On Hours (POH) (25% Duty) |
Print Characteristics
| Character Sets | 1 Italic and 12 graphical character tables: Italic table, PC437 (US, Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC865 (Nordic), PC863 (Canadian-French), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC858, ISO 8859-15 |
| Bitmap Fonts | 10, 12, 15 cpi |
| Scalable Fonts | Epson Roman / Sans Serif / Roman T / Sans Serif H: 10.5 pt., 8 pt. - 32 pt. (every 2 pt.) |
| Barcode | EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET |
Paper Path
| Manual Insertion | Front or rear in-top out |
| Push Tractor | Front or rear in, top out |
| Pull Tractor | Front, rear or bottom in, top out |
Paper Media
| Cut Sheet (Single Sheet) - Entry: Front | Length: 100 - 420 mm (3.9 - 16.5"); Width: 100 - 420 mm (3.9 - 16.5"); Thickness: 0.065 - 0.14 mm (0.0025 - 0.0055") |
| Cut Sheet (Single Sheet) - Entry: Rear | Length: 100 - 420 mm (3.9 - 16.5"); Width: 100 - 420 mm (3.9 - 16.5"); Thickness: 0.065 - 0.14 mm (0.0025 - 0.0055") |
| Cut Sheet (Multi-part Forms) - Entry: Front | Length: 100 - 420 mm (3.9 - 16.5"); Width: 100 - 420 mm (3.9 - 16.5"); Thickness: 0.12 - 0.46 mm (0.0047 - 0.018"); Copies: 1 Original + 5 copies |
| Continuous Paper (Single Sheet / Multi-part) - Entry: Front, Rear, Bottom | Length: 101.6 - 558.8 mm (4.0 - 22.0"); Width: 101.6 - 406.4 mm (4.0 - 16.0"); Thickness: 0.065 - 0.49 mm (0.0025 - 0.019"); Copies: 1 Original + 6 copies |
| Envelope (No.6) - Entry: Rear | Length: 92mm (3.6"); Width: 165mm (6.5"); Thickness: 0.16 - 0.52 mm (0.0063 - 0.0205") |
| Envelope (No.10) - Entry: Rear | Length: 105mm (4.1"); Width: 241mm (9.5"); Thickness: 0.16 - 0.52 mm (0.0063 - 0.0205") |
| Label (Base Sheet) - Entry: Bottom | Length: 101.6 - 558.8 mm (4.0 - 22.0"); Width: 101.6 - 406.4 mm (4.0 - 16.0"); Thickness: 0.16 - 0.19 mm (0.0063 - 0.0075") |
| Card - Entry: Front, Rear | Length: 100 - 148 mm (3.9 - 5.8"); Width: 100 - 148 mm (3.9 - 5.8"); Thickness: 0.22mm (0.0087") |
| Roll Paper - Entry: Rear | Width: 216mm (8.5"); Thickness: 0.07 - 0.09 mm (0.0028 - 0.035") |
| Line Spacing | 4.23mm (1/6") or programmable in increments of 0.0706mm (1/360") |
Environmental Conditions (Operating)
| Temperature | 5 - 35 °C |
| Humidity | 10 - 80% RH |
Acoustic Noise
| Acoustic Noise | 55dB |
Input Data Buffer
| Input Data Buffer | 128KB |
Interface

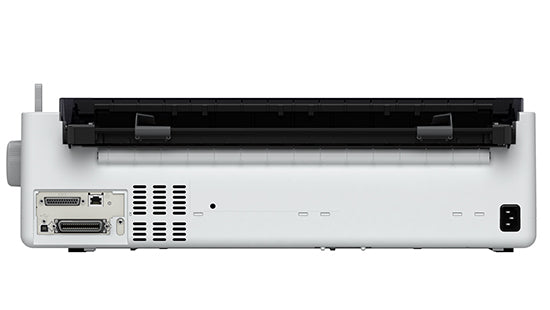

| Interface | USB 2.0, Bi-directional parallel (IEEE-1284 nibble mode supported), Serial, 100base-Tx wired LAN |
Printable Columns
| Pitch | 10cpi: 136 columns |
Ribbon Cartridge
| Standard | Fabric Ribbon Cartridge (Black) |
| Ribbon Life | Approx. 8 million Characters |
Supported Operating System
| Printer Driver | Microsoft Windows XP / Vista / 7 / 8 / 10 |
| Utility - Epson Status Monitor 3 | Microsoft Windows XP / Vista / 7 / 8 / 10 |
| Utility - Epson Setting Utility | Microsoft Windows XP / Vista / 7 / 8 / 10 |
From official brochure (download.epson.com.sg)
| Dimensions (W x D x H) | 612mm (24.1") x 375mm (14.8") x 176.5mm (7") |
| Weight | 9.4kg (20.7lbs) |
| Rated Voltage | AC 220-240V |
| Rated Frequency | 50Hz-60Hz |
| Power Consumption - Operating | Approx. 49W |
| Power Consumption - Sleep Mode | Approx. 0.8W |
| Ribbon Cartridge | C13S015586 - Approx. 8 million Characters |
| Options | Pull Tractor Unit C12C933791; Single Bin Cut Sheet Feeder C12C806392 |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the LQ-2090IIN. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Interface | USB 2.0, Bi-directional parallel (IEEE-1284 nibble mode supported), Serial, 100base-Tx wired LAN |
| Printer Driver | Microsoft Windows XP / Vista / 7 / 8 / 10 |
Package Contents & Ordering Information
Ordering Information
| Model | LQ-2090IIN |
| Epson Product Code | C11CF40502 |
| Recommended Retail Price (incl. GST) | S$1,366.86 |
| Consumables | Fabric Ribbon Cartridge (Black) C13S015586 - approx. 8 million characters (part number from official Epson SG brochure; product page lists ribbon without part number) |
In the Box
- User's manual
- Driver disc
- Ribbon cartridge (Black)
- Power supply cable
- Push tractor unit
- Rear sheet guide
Datasheet & Downloads
Frequently Asked Questions — LQ-2090IIN
What warranty does the LQ-2090IIN come with?
1 Year Local Warranty from Epson Singapore: 12 months. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the LQ-2090IIN use?
Fabric Ribbon Cartridge (Black) C13S015586 - approx. 8 million characters (part number from official Epson SG brochure; product page lists ribbon without part number) Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
