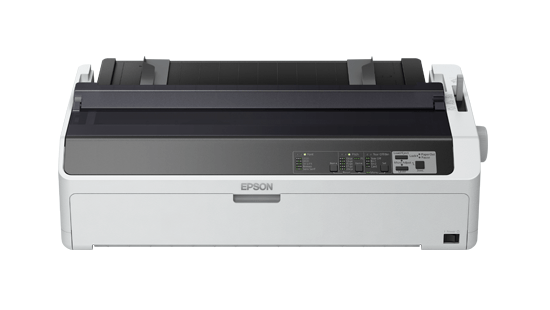

Epson FX-2190IIN Dot Matrix Printer
PRODUCT DESCRIPTION
Epson FX-2190IIN Dot Matrix Printer (C11CF38502) - 1 Year Local Warranty
The Epson FX-2190IIN Dot Matrix Printer - Experience rugged reliability and powerful performance.
Unparalleled Productivity
Boost productivity with fast print speeds of up to 615 cps (10 cpi) and 128 kb memory buffer.
Rugged Reliability
Enjoy cost savings, superior print quality and minimal downtime with a MTBF of up to 25,000 POH.
Superior Connectivity
Stay connected and experience fuss-free printing with built-in network connectivity via Ethernet cable.
Ideal For
Logistics, warehousing, accounts and government counters in Singapore printing multi-part forms, invoices and delivery orders. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
FX-2190IIN Datasheet — Technical Specifications
General
| Model | FX-2190IIN |
| Official Product Name | Epson FX-2190IIN Dot Matrix Printer |
| Epson Product Code | C11CF38502 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 12 months |
Printing Technology
| Control Panel | 6 switches and 10 LEDs |
| Print Direction | Bi-direction with logic seeking |
| Printing Method | Impact dot matrix |
| Number of Pins in Head | 9 pins |
| Control Code | ESC/P2, IBM PPDS |
Reliability
| Printhead Life | 400 million strokes / wire |
| Mean Print Volume Between Failure (MVBF) | 52 million lines (except print head) |
| Mean Time Between Failure (MTBF) | 25,000 Power On Hours (POH) (25% Duty) |
Print Characteristics
| Bitmap Fonts | Epson Draft: 10, 12, 15 cpi |
| Scalable Fonts | Epson Roman / Epson Sans Serif |
| Barcode | EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET |
Paper Media
| Cut Sheet (Single Sheet) | Entry: Front, Rear; Length: 100 - 420 mm (3.9 - 16.5"); Width: 100 - 420 mm (3.9 - 16.5"); Thickness: 0.065 - 0.14 mm (0.0025 - 0.0055") |
| Cut Sheet (Multi-part Sheet) | Entry: Front/Rear; Length: 100 - 420 mm (3.9 - 16.5"); Width: 100 - 420 mm (3.9 - 16.5"); Thickness: 0.12 - 0.46 mm (0.0047 - 0.018") |
| Continuous Paper (Single Sheet / Multi-part) | Entry: Front/Rear/Bottom; Copies: Original + 4 copies; Length: 101.6 - 558.8 mm (4.0 - 22.0"); Width: 101.6 - 406.4 mm (4.0 - 16.0"); Thickness: 0.065 - 0.46 mm (0.0025 - 0.018") |
| Envelope (No.6) | Entry: Rear; Length: 92 mm (3.6"); Width: 165 mm (6.5"); Thickness: 0.16 - 0.52 mm (0.0063 - 0.0205") |
| Envelope (No.10) | Entry: Rear; Length: 105 mm (4.1"); Width: 241 mm (9.5"); Thickness: 0.16 - 0.52 mm (0.0063 - 0.0205") |
| Label (Base Sheet) | Entry: Bottom; Length: 101.6 - 558.8 mm (4.0 - 22.0"); Width: 101.6 - 406.4 mm (4.0 - 16.0"); Thickness: 0.16 - 0.19 mm (0.0063 - 0.0075") |
| Card | Entry: Front/Rear; Length: 100 - 148 mm (3.9 - 5.8"); Width: 100 - 148 mm (3.9 - 5.8"); Thickness: 0.22 mm (0.0087") |
| Roll Paper | Entry: Rear; Diameter: 127mm (5"); Width: 216 mm (8.5"); Thickness: 0.07 - 0.09 mm (0.0028 - 0.035") |
| Line Spacing | 4.23mm (1/6") or programmable in increments of 0.059mm (1/432") |
General
| Operating Systems - Printer Driver | Microsoft Windows XP / Vista / 7 / 8 / 10 |
| Operating Systems - Utility Epson Status Monitor 3 | Microsoft Windows XP / Vista / 7 / 8 / 10 |
| Operating Systems - Utility Epson Setting Utility | Microsoft Windows XP / Vista / 7 / 8 / 10 |
Consumables
| Ribbon Cartridge Black - Standard | Fabric Ribbon Cartridge (Black) |
| Ribbon Life | Approx. 12 million Characters |
Environmental Conditions (Operating)
| Temperature | 5 - 35 °C |
| Humidity | 10 - 80% RH |
Acoustic Noise
| Acoustic Noise | 55 dB |
Input Data Buffer
| Input Data Buffer | 128KB |
Interface
| Interface | USB 2.0, Bi-directional parallel (IEEE-1284 nibble mode supported) Serial, 100base-Tx wired LAN |
Printable Columns
| Pitch | 10cpi: 136 cpl |
From official brochure (download.epson.com.sg)
| Print Speed - Ultra Speed Draft 10cpi | 615 cps |
| Print Speed - High Speed Draft 10cpi | 612 cps |
| Print Speed - Draft 10cpi | 463 cps |
| Print Speed - NLQ 10cpi | 115 cps |
| Dimensions (W x D x H) | 612mm (24.1") x 375mm (14.8") x 176.5mm (7") |
| Weight | Approx. 9.4kg (20.8lbs) |
| Rated Voltage | AC 220 - 240 V |
| Rated Frequency | 50 Hz - 60 Hz |
| Power Consumption - Operating | 54W |
| Power Consumption - Sleep Mode | 0.8W |
| Power Consumption - Power Off | 0.1W in power off mode |
| Ribbon Cartridge | C13S015584 - Approx. 12 million Characters |
| Options | Pull Tractor Unit C12C933761; Single Bin Cut Sheet Feeder C12C806392 |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the FX-2190IIN. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Operating Systems - Printer Driver | Microsoft Windows XP / Vista / 7 / 8 / 10 |
| Operating Systems - Utility Epson Status Monitor 3 | Microsoft Windows XP / Vista / 7 / 8 / 10 |
| Operating Systems - Utility Epson Setting Utility | Microsoft Windows XP / Vista / 7 / 8 / 10 |
| Interface | USB 2.0, Bi-directional parallel (IEEE-1284 nibble mode supported) Serial, 100base-Tx wired LAN |
Package Contents & Ordering Information
Ordering Information
| Model | FX-2190IIN |
| Epson Product Code | C11CF38502 |
| Recommended Retail Price (incl. GST) | S$1,505.29 |
| Consumables | Fabric Ribbon Cartridge (Black) C13S015584 - approx. 12 million characters (part number from official Epson SG brochure; product page lists ribbon without part number) |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — FX-2190IIN
What warranty does the FX-2190IIN come with?
1 Year Local Warranty from Epson Singapore: 12 months. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the FX-2190IIN use?
Fabric Ribbon Cartridge (Black) C13S015584 - approx. 12 million characters (part number from official Epson SG brochure; product page lists ribbon without part number) Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
