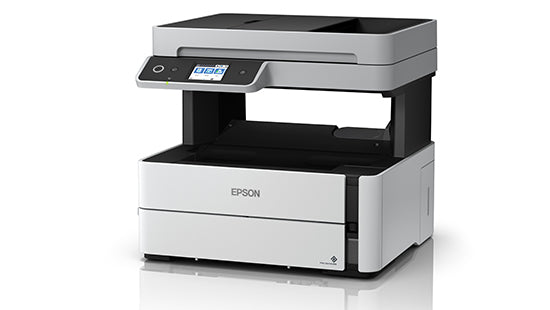

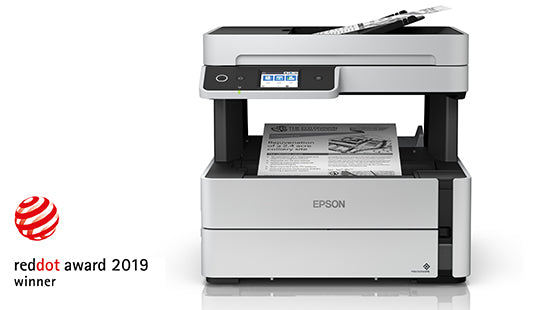

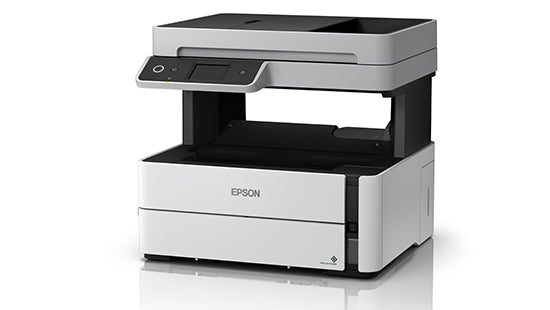

Epson EcoTank Monochrome M3170 Wi-Fi All-in-One Ink Tank Printer
PRODUCT DESCRIPTION
Epson EcoTank Monochrome M3170 Wi-Fi All-in-One Ink Tank Printer (C11CG92501) - 4 Years Local Warranty
The Epson EcoTank Monochrome M3170 Wi-Fi All-in-One Ink Tank Printer - PRINTS LIKE MONO LASERS, BUT WITH MORE CAPABILITIES.
PrecisionCore Printhead Technology
With our PrecisionCore printhead technology, busy offices with high print volume will appreciate the fast print speeds of 39ppm for draft and 20ipm (simplex) for standard prints on M3170.
Space-saving Design, Spill-free Refilling
Compact and sleek, the new tank design is integrated into the printer, resulting in a small footprint. Additionally, the unique bottle nozzle enables spill-free and error-free refilling.
Superb Savings & Page Yield
Don't compromise on cost as you print. Enjoy ultra-high yield of 6,000 pages with each ink bottle, reducing the constant hassle of refilling.
Wi-Fi and Wi-Fi Direct Connectivity
Experience a world of wireless convenience with access to easy and flexible shared printing and mobile printing. The added advantage of Wi-Fi Direct allows you to connect up to 8 devices to the printer without a router.
Multi-functional Printer
The all-in-one M3170 gives users the added convenience of scan, copy and fax functions with a 35-sheets automatic document feeder.
Epson Warranty for Peace of Mind
Enjoy warranty coverage of up to 4 years or 50,000 prints, whichever comes first, for maximum value from your printer and freedom from worries over its maintenance. Epson's warranty includes coverage of printhead, which is most important for a printer designed for high volume printing.

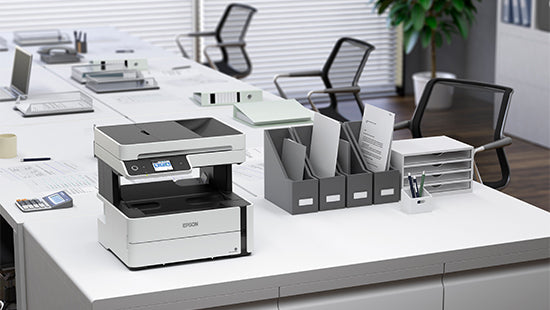

Ideal For
Offices, counters, tuition centres and home offices in Singapore that print mostly black-and-white documents and want ultra-low cost per page. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
EcoTank Monochrome M3170 Datasheet — Technical Specifications
General
| Model | EcoTank Monochrome M3170 |
| Official Product Name | Epson EcoTank Monochrome M3170 Wi-Fi All-in-One Ink Tank Printer |
| Epson Product Code | C11CG92501 |
| Brand | Epson |
| Warranty | 4 Years Local Warranty (Singapore) - 4 years carry-in or 50,000 pages, whichever comes first |
Printer Type
| Printer Type | Print, Scan, Copy, Fax with ADF |
Printing
| Printing Technology | PrecisionCore™ Printhead |
| Nozzle Configuration | 400 x 2 nozzles Black |
| Print Direction | Bi-directional printing |
| Maximum Print Resolution | 1200 x 2400 dpi (with Variable-Sized Droplet Technology) |
| Minimum Ink Droplet Size | 2.8 pl |
| Print Speed | Draft Text - Memo, A4 (Black): Up to 39 ppm; ISO 24734, A4 (Black): Simplex: Up to 20 ipm, Duplex: 9.0 ipm; First Page Out Time (Black): Approx. 6 sec (simplex) / 13 sec (duplex) |
| Automatic 2-sided Printing | Yes |
| Printer Language | ESC / P-R |
Copying
| Maximum Copies from Standalone | 99 copies |
| Reduction / Enlargement | 25 – 400 % Auto Fit Function |
| Maximum Copy Resolution | 600 x 600 dpi |
| Maximum Copy Size | Legal (ADF) |
| ISO 29183, A4, Simplex (Black) | Up to 17 ipm |
Scanning
| Scanner Type | Flatbed colour image scanner |
| Sensor Type | CIS |
| Optical Resolution | 1200 x 2400 dpi |
| Maximum Scan Area | 216 x 297 mm (8.5 x 11.7") |
| Scanner Bit Depth (Colour) | 48-bit input, 24-bit output |
| Scanner Bit Depth (Grayscale) | 16-bit input, 8-bit output |
| Scanner Bit Depth (Black & White) | 16-bit input, 1-bit output |
Scan Speed
| Flatbed (200dpi) | Monochrome: 12sec, Colour: 27sec |
| ADF (200dpi) | Monochrome: 7.0ipm, Colour: 7.0ipm |
ADF Specifications
| ADF Capacity | 64 to 95 g/m2 |
| Paper Capacity | 35 sheets of A4 paper |
Fax Function
| Type Of Fax | Walk-up black-and-white and colour fax capability |
| Receive Memory / Page Memory | 2 MB, Page memory, Up to 180 pages (ITU-T No.1 chart) |
| Error Correction Mode | ITU-T T.30 |
| Fax Speed (Data Transfer Rate) | Up to 33.6 kbps, Approx. 3 sec/page |
| Fax Resolution | Up to 200 x 200 dpi |
| Transmission Paper Size (Flatbed) | Letter, A4 |
| Transmission Paper Size (ADF) | Letter, A4, 8.5 x 13", Legal |
| Receiving Paper Size | Letter, A4, Legal |
| Speed Dial / Group Dial | Up to 100 numbers, 99 groups |
| Fax Features | PC Fax (Transmission/Receive), Automatic redial, Address book, Transmit Reservation, Broadcast Fax (Mono Only), Polling Reception, Fax Preview |
Paper Handling
| Paper Feed Method | Friction feed |
| Number of Paper Trays | 2 |
| Paper Hold Capacity | Input Capacity: Cassette 1: 250 Sheets-A4 / Letter Plain Paper (80 g/m2); 10-sheets-Envelope; Rear Slot: 1 Sheet-A4 Plain Paper. Output Capacity: Up to 100 sheets |
| Maximum Paper Size | 215.9 x 1200 mm (8.5 x 47.24") |
| Paper Sizes | Legal, Indian-Legal (215 x 345 mm), 8.5 x 13", Letter, A4, 16K (195 x 270 mm), B5, A5, B6, A6, Hagaki (100 x 148 mm), Envelopes: #10, DL, C6 |
| Print Margin | 3 mm top, left, right, bottom via custom settings in printer driver |
Mobile and Cloud Solutions
| Epson Connect Features | Epson iPrint, Email Print, Remote Print Driver, Scan to Cloud |
| Other Mobile Solutions | Apple AirPrint, Google Cloud Print, Mopria Print Service |
Noise Level
| PC Printing / Plain Paper Default | 6.9 B(A), 56 dB (A) |
Consumables
| Standard Capacity Black | Page Yield: 2,000, Order Code: 005S |
| High Capacity Black | Page Yield: 6,000, Order Code: 005 |
| Maintenance Box | C13T04D100 |
Interface
| USB | USB 2.0 |
| Network | Ethernet, Wi-Fi IEEE 802.11b/g/n, Wi-Fi Direct |
| Network Protocol | TCP/IPv4, TCP/IPv6 |
| Network Management Protocols | SNMP, HTTP, DHCP, APIPA, PING, DDNS, mDNS, SLP, WSD, LLTD |
Printer Software
| Operating System Compatibility | Windows XP / Vista / 7 / 8 / 8.1 / 10, Windows Server 2003 / 2008 / 2012 / 2016 (only printing and scanning functions are supported for Windows Server OS), Mac OS X 10.6.8 or later |
Control Panel
| LCD Screen | 2.4" LCD Touch Screen |
Power Consumption
| Operating | 12 W |
| Standby | 5.6 W |
| Sleep | 0.9 W |
| Power Off | 0.2 W |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the EcoTank Monochrome M3170. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Printer Language | ESC / P-R |
| Epson Connect Features | Epson iPrint, Email Print, Remote Print Driver, Scan to Cloud |
| Other Mobile Solutions | Apple AirPrint, Google Cloud Print, Mopria Print Service |
| USB | USB 2.0 |
| Operating System Compatibility | Windows XP / Vista / 7 / 8 / 8.1 / 10, Windows Server 2003 / 2008 / 2012 / 2016 (only printing and scanning functions are supported for Windows Server OS), Mac OS X 10.6.8 or later |
Package Contents & Ordering Information
Ordering Information
| Model | EcoTank Monochrome M3170 |
| Epson Product Code | C11CG92501 |
| Recommended Retail Price (incl. GST) | S$459.00 |
| Consumables | Black ink bottle 005 (high capacity, 6,000 pages); standard black ink bottle 005S (2,000 pages); maintenance box C13T04D100. |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — EcoTank Monochrome M3170
What warranty does the EcoTank Monochrome M3170 come with?
4 Years Local Warranty from Epson Singapore: 4 years carry-in or 50,000 pages, whichever comes first. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the EcoTank Monochrome M3170 use?
Black ink bottle 005 (high capacity, 6,000 pages); standard black ink bottle 005S (2,000 pages); maintenance box C13T04D100. Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
