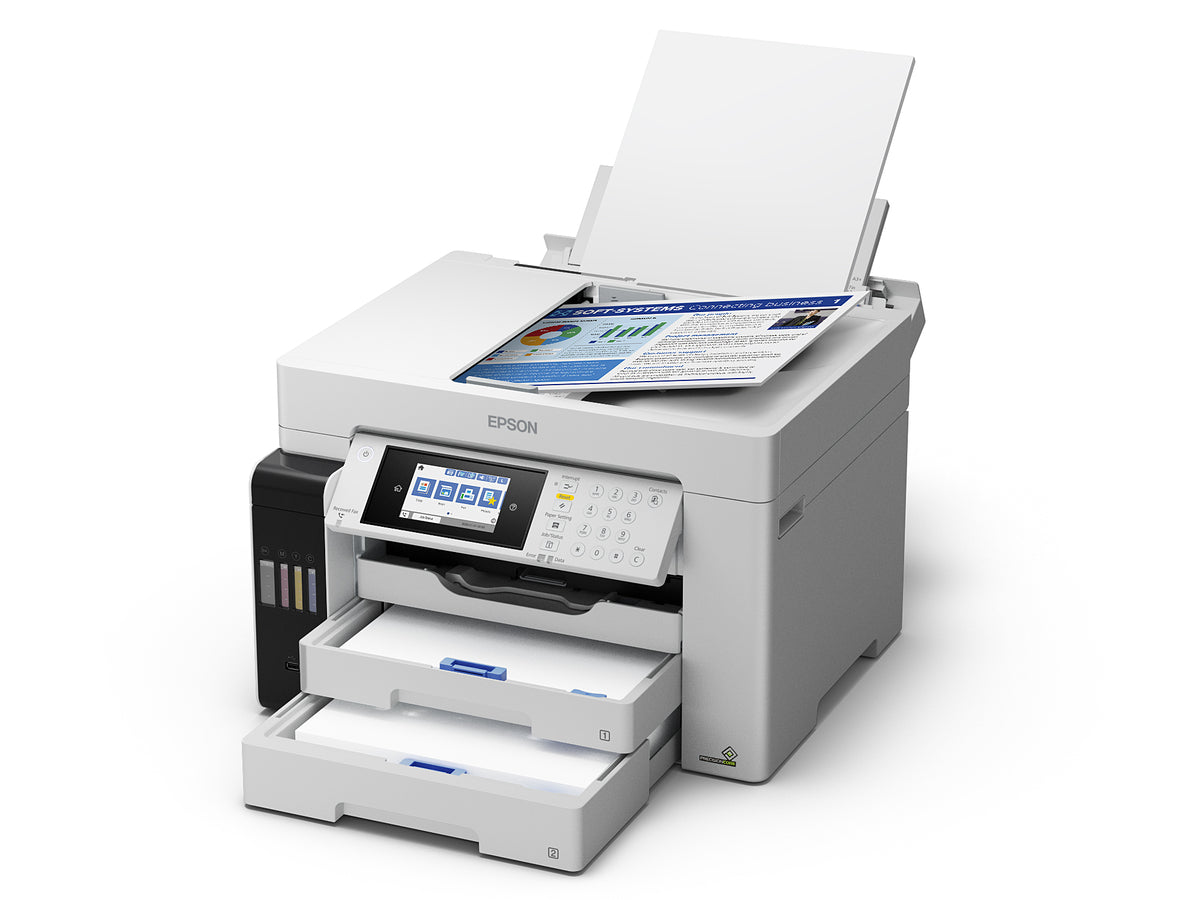

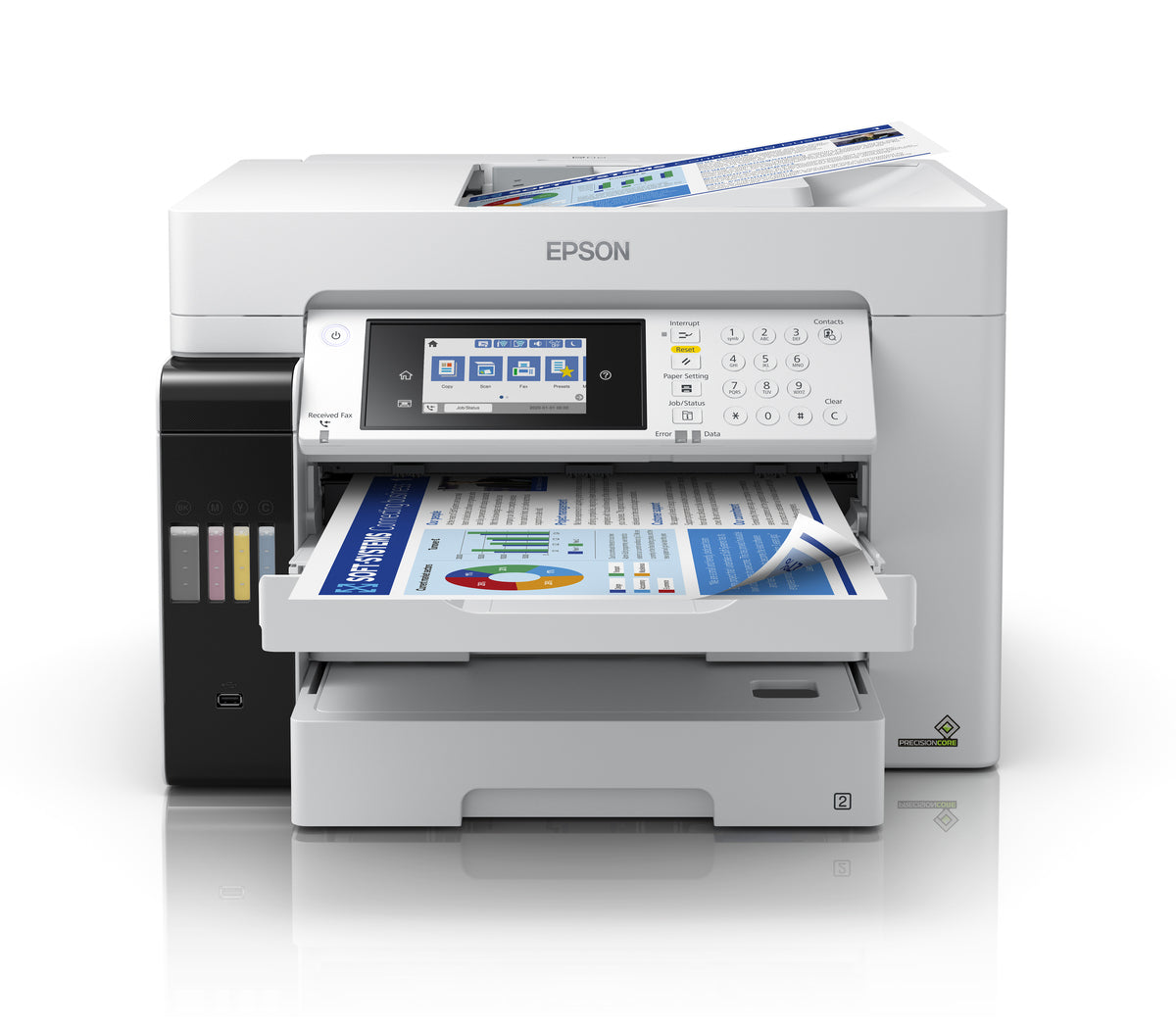

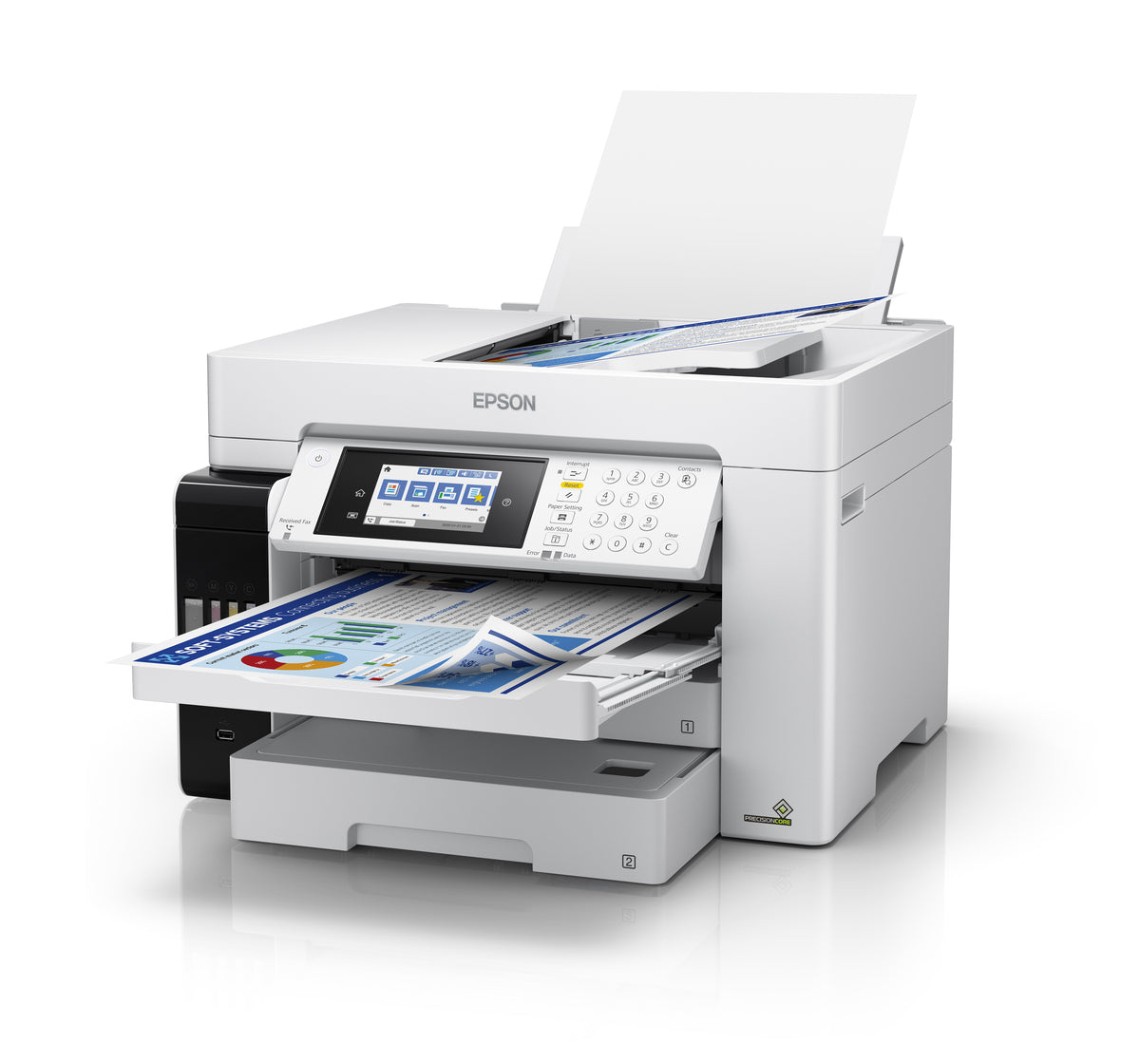

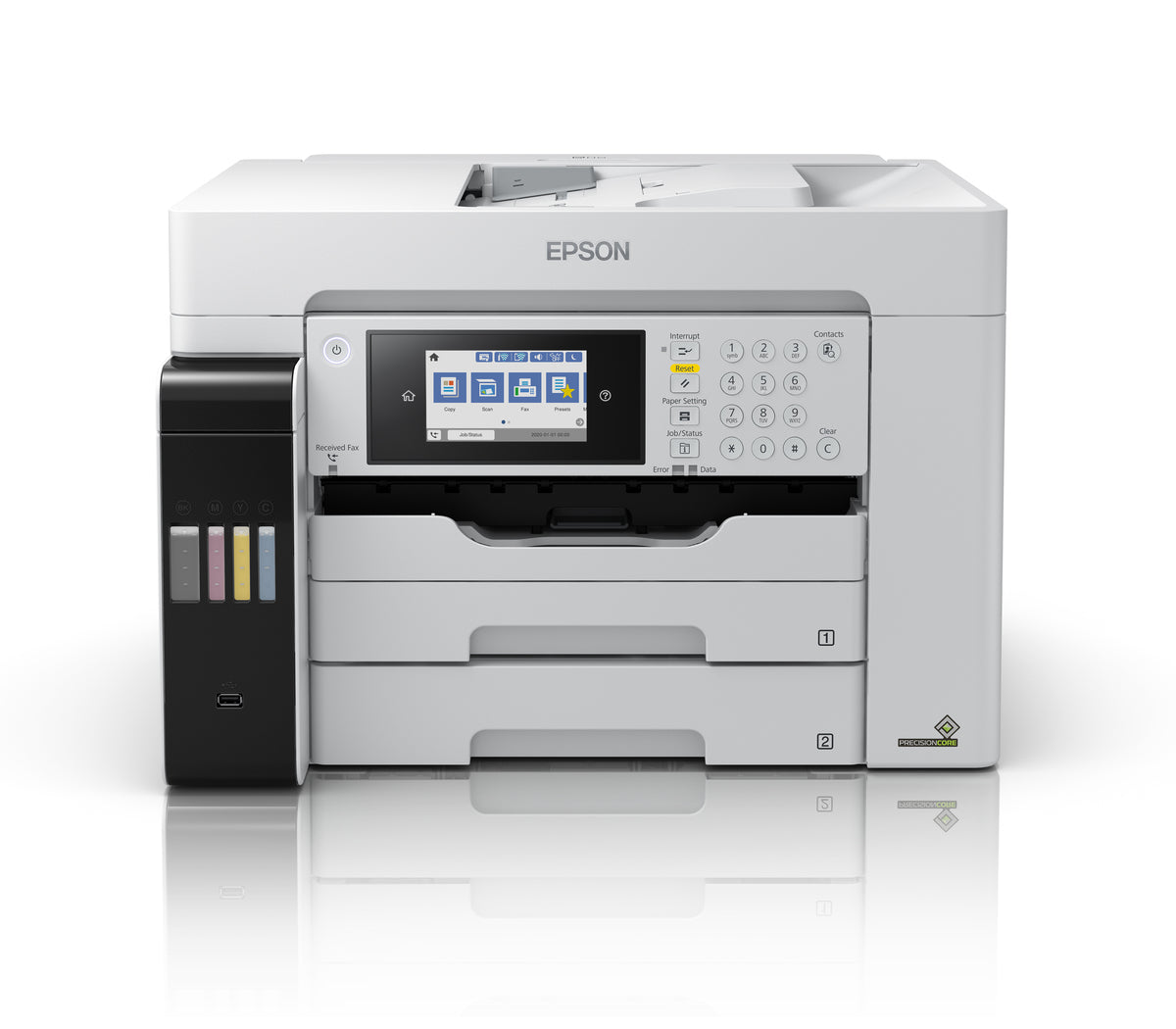

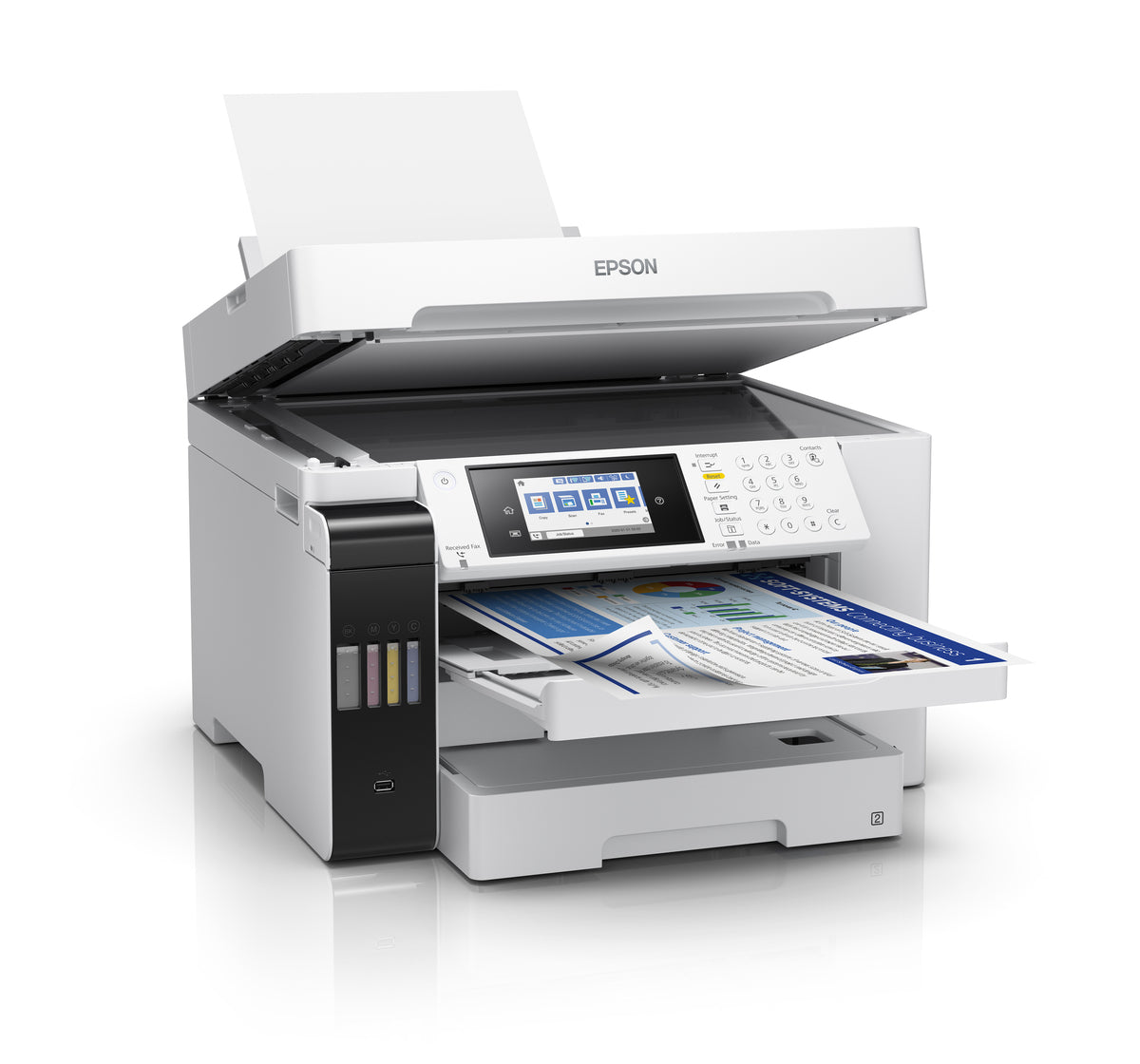

Epson EcoTank L15160 A3 Wi-Fi Duplex All-in-One Ink Tank Printer
PRODUCT DESCRIPTION
Epson EcoTank L15160 A3 Wi-Fi Duplex All-in-One Ink Tank Printer (C11CH71501E1) - 3 Years Local Warranty
The Epson EcoTank L15160 A3 Wi-Fi Duplex All-in-One Ink Tank Printer - THE IDEAL CHOICE FOR HIGH-VOLUME BUSINESS QUALITY A3 PRINTING.
Epson Heat-Free Technology
Achieve high speed printing at lower power consumption with Epson Heat-Free Technology as no heat is required during the ink ejection process.
Consistent High Speed Printing
With our PrecisionCore printhead technology, busy offices with high print volume will appreciate the consistent fast print speeds up to 32.0 ppm for draft and 25.0 ipm (simplex) for standard prints on L15160.
Low Power Consumption
Unlike laser printers, there is no fuser unit to heat, less power is consumed by L15160.
Superb Savings & Page Yield
With L15160, you'll be able to save costs as each set of bottle inks has an ultra-high yield of 7,500 for black and 6,000 pages for colour.
Less Maintenance with Decreased Downtime
Due to the simple Heat-Free structure of L15160, there are fewer parts that can fail, which minimises the amount of intervention required.
DURABrite ET Ink
Get printouts that are sharp, clear and water-resistant with the new 4-color pigment inks, which is perfect for business printing.

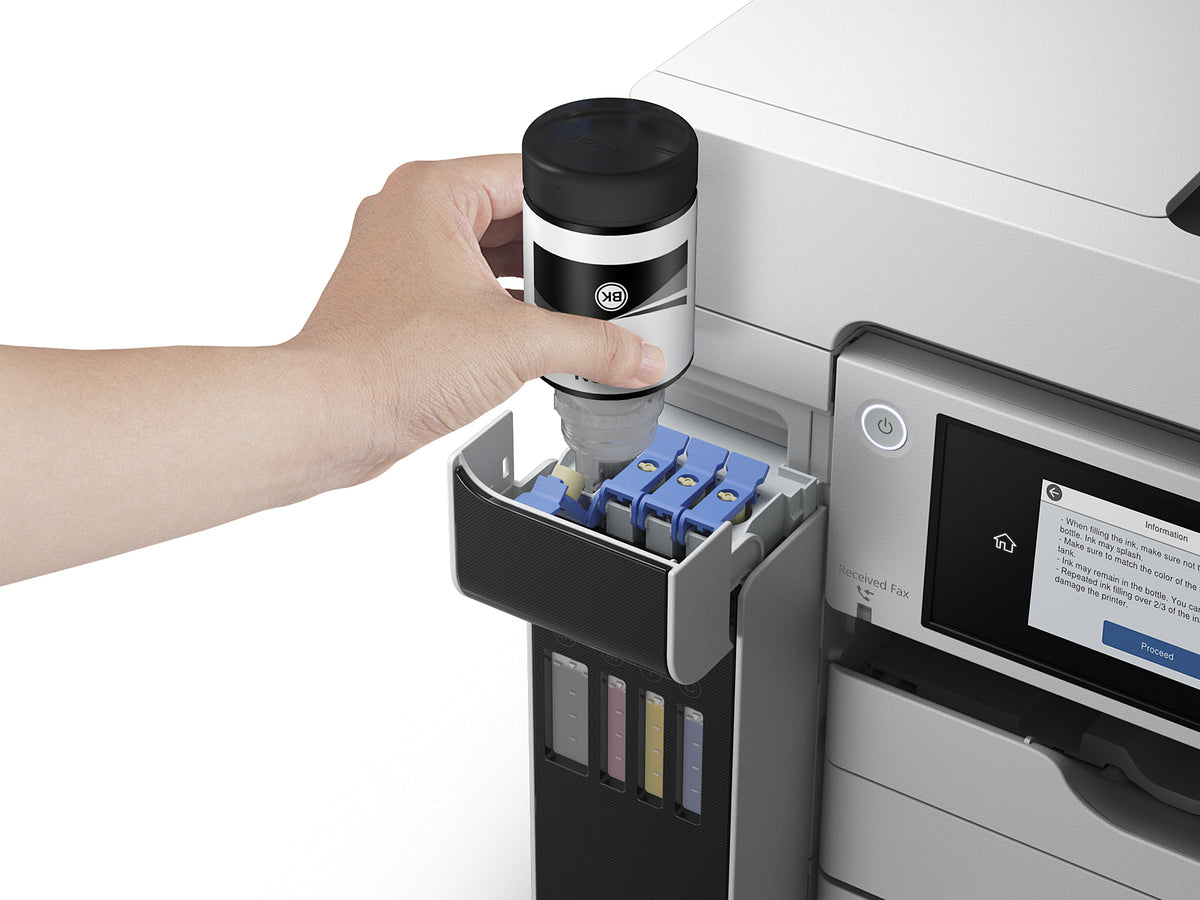

Space-saving Design, Spill-free Refilling
Compact and sleek, the new tank design is integrated into the printer to allow the printer to have a small footprint.
Ideal For
Homes, home offices, students and small businesses in Singapore that print regularly and want the very low running cost of Epson's refillable EcoTank ink bottles. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
EcoTank L15160 Datasheet — Technical Specifications
General
| Model | EcoTank L15160 |
| Official Product Name | Epson EcoTank L15160 A3 Wi-Fi Duplex All-in-One Ink Tank Printer |
| Epson Product Code | C11CH71501E1 |
| Brand | Epson |
| Warranty | 3 Years Local Warranty (Singapore) - 3 years NBD on-site or 80,000 pages, whichever comes first |
Printing
| Printer Type | Print, Scan, Copy, Fax with ADF |
| Print Method | PrecisionCore™ Printhead |
| Print Direction | Bi-directional printing |
| Nozzle Configuration | 800 x 1 nozzles each (Black, Cyan, Magenta, Yellow) |
| Maximum Resolution | 4800 x 1200 dpi |
| Automatic 2-sided Printing | Yes (up to A3) |
| Photo Default - 10 x 15 cm / 4 x 6" | Approx. 26 sec per photo (Border) / 27 sec per photo (Borderless) |
| Draft, A4 (Black / Colour) | Up to 32.0 ppm / 32.0 ppm |
| ISO 24734, A4 Simplex (Black / Colour) | Up to 25.0 ipm / 25.0 ipm |
| ISO 24734, A4 Duplex (Black / Colour) | Up to 21.0 ipm / 21.0 ipm |
| ISO 24734, A3 Simplex (Black / Colour) | Up to 13.5 ipm / 13.5 ipm |
| ISO 24734, A3 Duplex (Black / Colour) | Up to 10.0 ipm / 10.0 ipm |
General
| Minimum Ink Droplet Volume | 3.8 pl |
| Dimensions (W x D x H) | 515 x 500 x 350mm |
| Weight | 21.0kg |
Copying
| ISO 29183, A4 Simplex Flatbed (Black / Colour) | Up to 23.0 ipm / 23.0 ipm |
| Copy Reduction / Enlargement | 25 - 400% |
| Maximum Copy Size | A3 |
| Copy Resolution | 600 x 600 dpi |
| Max Copies | 999 copies |
Scanning
| ISO 24735, A4 Simplex ADF (Black / Colour) | Up to 22.5 ipm / 22.5 ipm |
| ISO 24735, A4 Duplex ADF (Black / Colour) | Up to 19.0 ipm / 19.0 ipm |
| Scanner Type | Flatbed colour image scanner |
| Sensor Type | CIS |
| Optical Resolution | 1200 x 2400 dpi |
| Maximum Scan Area | 297 x 431.8 (mm) |
| Scanner Bit Depth (Colour) | 48-bit input, 24-bit output |
| Scanner Bit Depth (Grayscale) | 16-bit input, 8-bit output |
| Scanner Bit Depth (Black & White) | 16-bit input, 1-bit output |
| Scan Speed (Flatbed / ADF Simplex/Duplex) | 200dpi, Black: 5 sec / Up to 26.0 ipm | 11.5 ipm; 200dpi, Colour: 10 sec / Up to 9.0 ipm | 6.0 ipm |
| ADF Support Paper Thickness | 64-95 g/m² |
| ADF Paper Capacity | 50 sheets |
Fax
| Fax Type | Walk-up Black-and-white and Colour Fax Capability |
| Receive Memory / Page Memory | 6MB, Page memory; Up to 550 pages |
| Error Correction Mode | ITU-T T.30 |
| Fax Speed (Data Transfer Rate) | Up to 33.6 kbps, Approx. 3 sec/page |
| Fax Resolution | Up to 200 x 200 dpi |
| Transmission Paper Size (Flatbed) | A5, A4, A3, B5, B4, Half Letter, Letter, Legal, 11 x 17" |
| Transmission Paper Size (ADF) | A5, A4, A3, B5, B4, Half Letter, Letter, Legal, 11 x 17" |
| Receiving Paper Size | Half Letter, A5, B5, A4, Letter, Legal, B4, 11 x 17", A3, A3+ |
| Speed Dial / Group Dial | Up to 200 numbers, 199 groups |
| Fax Features | PC Fax (Transmission/Receive), Automatic Redial, Address book, Broadcast Fax (Mono Only), Transmit Reservation, Polling Reception, Fax Preview, Memory reception, Fax to Email, Fax to Folder, Automatic 2-sided Fax |
Connectivity
| Type of Direct Printing | USB Memory |
| USB | USB 2.0 |
| Network | Ethernet, Wi-Fi IEEE 802.11 b/g/n, Wi-Fi Direct |
| Network Protocol | TCP/IPv4, TCP/IPv6 |
| Network Management Protocols | SNMP, HTTP, DHCP, BOOTP, APIPA, PING, DDNS, mDNS, SNTP, SLP, WSD, LLTD |
| Epson Connect Features | Epson iPrint, Epson Email Print, Remote Print Driver, Scan to Cloud |
| Other Mobile Solutions | Apple AirPrint, Mopria Print Service |
| LCD Screen | 4.3" Colour LCD Touch Screen |
| Software Support | Epson ScanSmart |
| Supported OS | Windows XP / Vista / 7 / 8 / 8.1 / 10, Windows Server 2003 / 2008 / 2012 / 2016 / 2019; Mac OS X 10.6.8 or later |
Paper Handling
| Paper Feed Method | Friction feed |
| Number of Paper Trays | 3 (Front 2, Rear 1) |
| Standard Paper Input Capacity | Rear Slot: 50 sheets for A4 Plain paper (80 g/m²), 20 sheets for Premium Glossy Photo Paper; Cassette 1: 250 sheets for A4 Plain paper (80g/m²); Cassette 2: 250 sheets for A4 Plain paper (80 g/m²), 50 sheets for Premium Glossy Photo Paper |
| Output Capacity | 125 sheets for A4 Plain paper (80 g/m²), 20 sheets for Premium Glossy Photo Paper |
| Maximum Paper Size | 329 x 6000 mm |
| Paper Sizes | A3, Super B (13 x 19"), Indian Legal, Letter, A4, 16K (195 x 270mm), 8K (270 x 390mm), Executive (7.25 x 10.5"), B4, B5, A5, B6, A6, 8.5 x 13", 5 x 7", 4 x 6", 8 x 10", Legal (8.5 x 14"), 16:9 wide, Envelopes: #10, DL, C6, C4 |
| Print Margin | 3mm top, left, right, bottom via custom settings in printer driver |
Power & Environment
| Rated Voltage | AC 220 - 240 V |
| Rated Frequency | 50 - 60 Hz |
| Power Consumption - Operating | 18.0 W |
| Power Consumption - Standby | 9.7 W |
| Power Consumption - Sleep | 0.9 W |
| Power Consumption - Power off | 0.2 W |
| Sound Power (Black / Colour) | 6.8 B(A) / 6.7 B(A) |
| Sound Pressure (Black / Colour) | 52 dB(A) |
Consumables
| Maintenance Box | C12C934591 |
| Pigment Black Ink Bottle | 7,500 pages - 008 (C13T06G100 / C13T06G199 Indonesia) |
| Pigment Cyan Ink Bottle | 6,000 pages (Composite Yield) - 008 (C13T06G200 / C13T06G299 Indonesia) |
| Pigment Magenta Ink Bottle | 6,000 pages (Composite Yield) - 008 (C13T06G300 / C13T06G399 Indonesia) |
| Pigment Yellow Ink Bottle | 6,000 pages (Composite Yield) - 008 (C13T06G400 / C13T06G499 Indonesia) |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the EcoTank L15160. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| USB | USB 2.0 |
| Epson Connect Features | Epson iPrint, Epson Email Print, Remote Print Driver, Scan to Cloud |
| Other Mobile Solutions | Apple AirPrint, Mopria Print Service |
| Software Support | Epson ScanSmart |
| Supported OS | Windows XP / Vista / 7 / 8 / 8.1 / 10, Windows Server 2003 / 2008 / 2012 / 2016 / 2019; Mac OS X 10.6.8 or later |
Package Contents & Ordering Information
Ordering Information
| Model | EcoTank L15160 |
| Epson Product Code | C11CH71501E1 |
| Recommended Retail Price (incl. GST) | S$1,849.00 |
| Consumables | 008 pigment ink bottles: Black C13T06G100 (7,500 pages); Cyan C13T06G200, Magenta C13T06G300, Yellow C13T06G400 (6,000 pages composite yield each). Indonesia variants C13T06G199/299/399/499. Maintenance box C12C934591. |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — EcoTank L15160
What warranty does the EcoTank L15160 come with?
3 Years Local Warranty from Epson Singapore: 3 years NBD on-site or 80,000 pages, whichever comes first. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the EcoTank L15160 use?
008 pigment ink bottles: Black C13T06G100 (7,500 pages); Cyan C13T06G200, Magenta C13T06G300, Yellow C13T06G400 (6,000 pages composite yield each). Indonesia variants C13T06G199/299/399/499. Maintenance box C12C934591. Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
