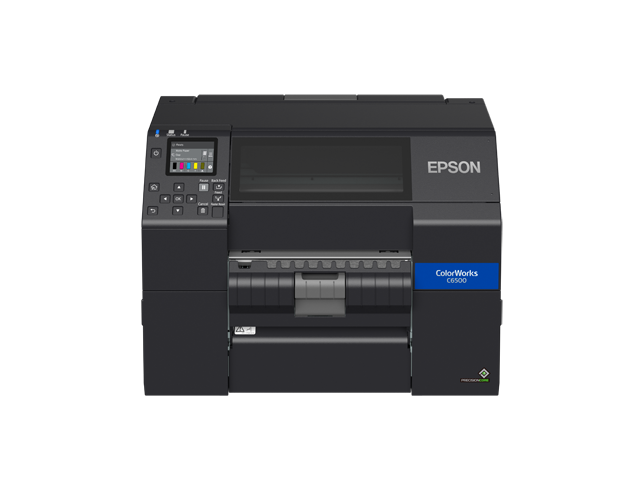

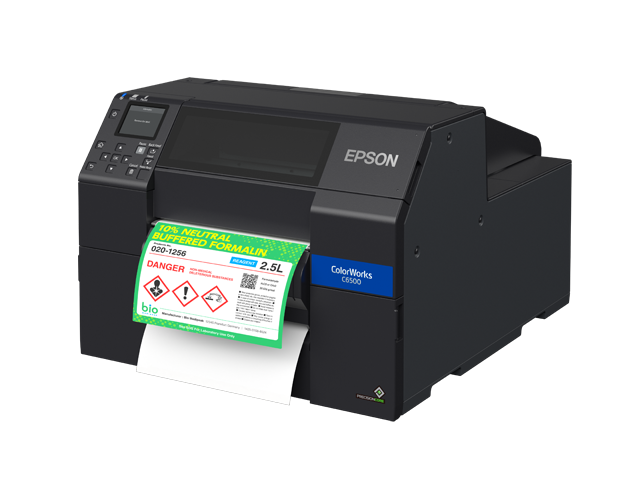

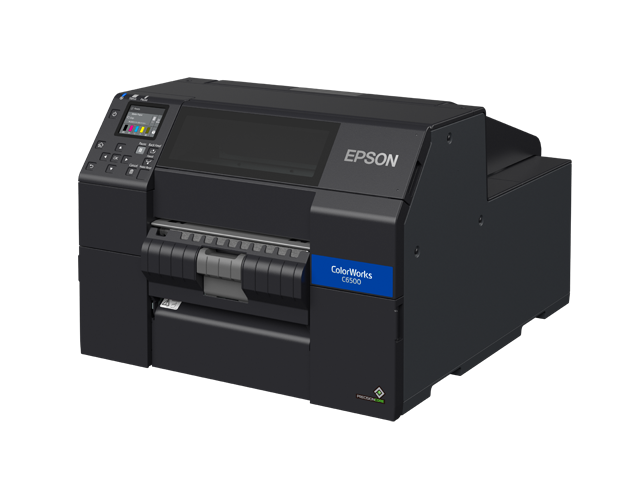

Epson ColorWorks C6550P Peel-and-Present Colour Label Printer
PRODUCT DESCRIPTION
Epson ColorWorks C6550P Peel-and-Present Colour Label Printer (C31CH77206E1) - 1 Year Local Warranty
The Epson ColorWorks C6550P Peel-and-Present Colour Label Printer - Labelling Solutions Made Convenient.
Enhanced Production Capability
The C6550P's peel-and-present model improves efficiency and convenience by eliminating the need for manual peeling. Integration with print-and-apply systems through label applicators enables a more seamless workflow and enhanced production line productivity.
Crisp Images
With a print resolution of up to 1200 dpi, variable droplet size and Spot Colour Matching that assures greater colour accuracy, the C6550P ColorWorks label printers series produce incredible print images.
High Connectivity
Compatible with a wide range of technologies including multiplatform operating systems such as Windows, Mac and Linux along with application software including SAP and legacy systems using ZPL II commands.
World's First Peeler-equipped Inkjet Label Printer
Making it possible to apply labels immediately after printing, the C6550P can be used in any desktop printing operations. When integrated with a label applicator, it offers a unique print-and-apply system for both online and offline use.
Easy Use and Maintenance
Intuitive designs including easy-load spindle, flexible paper cover and frontal ink cartridge loading. A 2.7" colour LCD allows status checking and configuration, with a space-saving design for varied environments.
Durable, Exceptional Quality Inks
The ColorWorks C6000 series incorporates UltraChrome DL pigment inks that comply with BS 5609 certification for GHS compliant labelling. These inks possess high pigment density and resin coating for stability.
PrecisionCore TFP Printhead
With its stunning ability to scale while delivering unbeatable speed and precision, the printhead's perfectly round nozzles dispense precise ink droplets, which guarantee consistent superior image quality.
Ideal For
Manufacturers, food and beverage, chemical, retail and logistics businesses in Singapore that print on-demand colour labels in-house. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
ColorWorks CW-C6550P Datasheet — Technical Specifications
General
| Model | ColorWorks CW-C6550P |
| Official Product Name | Epson ColorWorks C6550P Peel-and-Present Colour Label Printer |
| Epson Product Code | C31CH77206E1 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 12 months |
Printing Technology
| Technology | Serial Inkjet PrecisionCore TFP® with Nozzle Verification Technology |
| Colour | Four-colour printing, individual ink cartridge (UltraChrome DL pigment ink: C, M, Y, K) |
| Print Speeds | Matte Paper Label, Synthetic Label: Max Speed (300 x 600 dpi): 85mm/s, Speed (600 x 600 dpi): 49mm/s, Normal (600 x 600 dpi): 34mm/s, Quality (600 x 1200 dpi): 13mm/s; Glossy Paper Label, Glossy Film Label, High Glossy Paper Label: Normal (600 x 600 dpi): 34mm/s, Quality (600 x 1200 dpi): 13mm/s, Max quality (1200 x 1200 dpi): 6mm/s |
Ink Cartridge
| Colour | Black, Cyan, Magenta, Yellow |
| Model | SJIC40P-BK / SJIC40P-C / SJIC40P-M / SJIC40P-Y |
Printing
| Print Resolution | 1200 x 1200 dpi (max.) |
| Max. Print Width | 211.9mm |
Connectivity
| Interface | USB2.0, Ethernet 1000Base-T / 100Base-TX / 10Base-T, Extended Interface: Dsub-25pin |
Print Fonts
| Print Fonts | Built-in font available |
Barcode Font
| Barcode | UPC-A, UPC-E, JAN13(EAN), JAN8(EAN), Code39, ITF, Codabar, Code93, Code128, GS1-128, GS1 DataBar, Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded |
| Two-dimensional Code | PDF417, QR Code, Maxi Code, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, DataMatrix, Aztec Code, MicroPDF417, Micro QR Code |
Media
| Media Source | Roll media, Fanfold |
| Media Type | Matte paper label, Synthetic label, Glossy paper label, Glossy film label, High glossy paper label |
| Media Form (Roll) | Continuous label (BM or w/o BM), Die-cut label (Gap or BM) |
| Media Form (Fanfold) | Die-cut label (BM) |
| Number Of Folds | 750 or Less |
| Winding Direction | Face Out |
Media Handling
| Width | Backing Paper Width: 25.4 to 215.9mm; Label Width: 21.4 to 211.9mm |
| Thickness | Matt paper label: 0.178mm; Synthetic label: 0.235mm; Glossy paper label: 0.174mm; Glossy film label: 0.164mm; High glossy paper label: 0.188mm |
| Roll Diameter | Max. 152.4mm |
| Core Diameter | Inner: 76.2 mm ± 0.5 mm |
| Die-cut Label Gap | 2 to 6mm (if the gap is 3mm or less, need to adjust the detector) |
| Black Mark Size | Width: 18.4mm or over; Length: 4 to 25.4mm |
Environment
| Temperature / Humidity (Printing) | 5 to 35°C / 20 to 80% RH; Barcode Printing: 15 to 35°C, 20 to 80% RH |
| Temperature / Humidity (Storage) | When packed (ink not charged): -20 to 60°C / 5 to 85% RH (no condensation) |
General
| Overall Dimensions | 444 x 515 x 326mm (W x D x H, not including protrusion) |
| Mass | Approx. 26.3kg |
| Power Supply | Built-in Power Supply |
| Power Consumption (Operating) | 100V: Average approximately 39.5W; 230V: Average approximately 38.7W |
| Power Consumption (Standby) | 100V: Average approximately 7.51W; 230V: Average approximately 5.82W |
| Power Consumption (Power Off) | 100V: Average approximately 0.08W; 230V: Average approximately 0.24W |
| Rated Voltage | 100 - 240VAC |
| Rated Frequency | 50 - 60Hz |
| EMC Standards | Europe: CE Marking; North America: FCC Class A, CAN ICES-3 (A)/NMB-3 (A); Oceania: Radiocommunications (Electromagnetic Compatibility) Standard, Class A |
| Operating System | Windows 10, 8.1, 8, 7 SP1, Vista SP2, XP SP3 or later, Server 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003 R2 (32-bit), Mac OS X 10.6.8 - 10.14.x |
| Options | Paper Holder C6500 (for C6550 Series) |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the ColorWorks CW-C6550P. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Interface | USB2.0, Ethernet 1000Base-T / 100Base-TX / 10Base-T, Extended Interface: Dsub-25pin |
| Operating System | Windows 10, 8.1, 8, 7 SP1, Vista SP2, XP SP3 or later, Server 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003 R2 (32-bit), Mac OS X 10.6.8 - 10.14.x |
Package Contents & Ordering Information
Ordering Information
| Model | ColorWorks CW-C6550P |
| Epson Product Code | C31CH77206E1 |
| Recommended Retail Price (incl. GST) | S$6,083.30 |
| Consumables | Ink cartridges (UltraChrome DL): SJIC40P-BK (Black), SJIC40P-C (Cyan), SJIC40P-M (Magenta), SJIC40P-Y (Yellow). Yields not published. Option: Paper Holder C6500. Related accessory listed: SJMB6000 Maintenance Box. |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — ColorWorks CW-C6550P
What warranty does the ColorWorks CW-C6550P come with?
1 Year Local Warranty from Epson Singapore: 12 months. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the ColorWorks CW-C6550P use?
Ink cartridges (UltraChrome DL): SJIC40P-BK (Black), SJIC40P-C (Cyan), SJIC40P-M (Magenta), SJIC40P-Y (Yellow). Yields not published. Option: Paper Holder C6500. Related accessory listed: SJMB6000 Maintenance Box. Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
