Eaton Rack PDU G4 Managed 0U Vertical PDU, Single-phase 16A IEC 60309 Input, 3.7 kW, 12x C13 + 12x C39, Outlet Metering
PRODUCT DESCRIPTION
Eaton Rack PDU G4 Managed 0U Single-phase 16A 3.7 kW Rack PDU (EVMAF116A, 9001-22337) - 2 Years Local Warranty
Per-Outlet Measurement and Remote Outlet Control

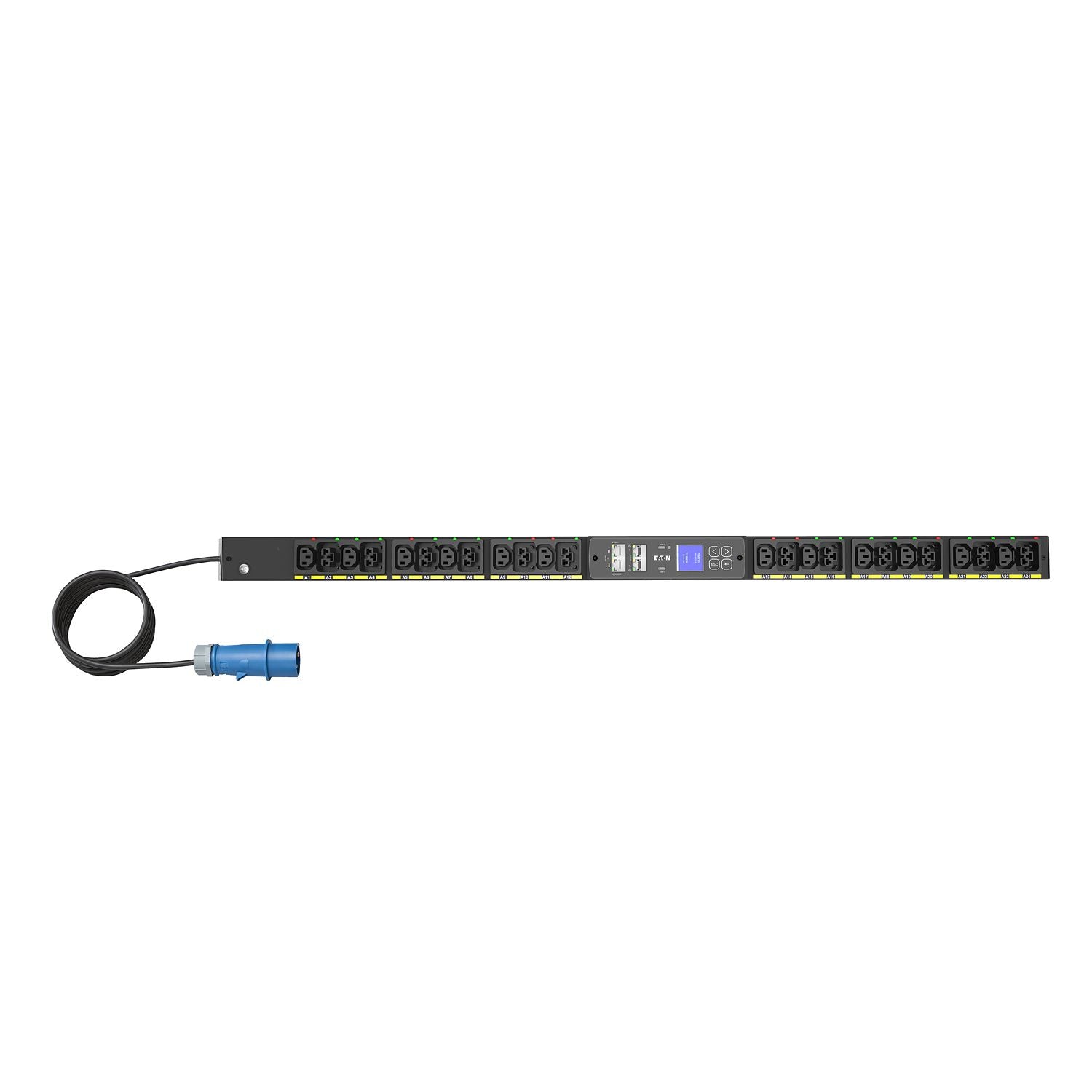

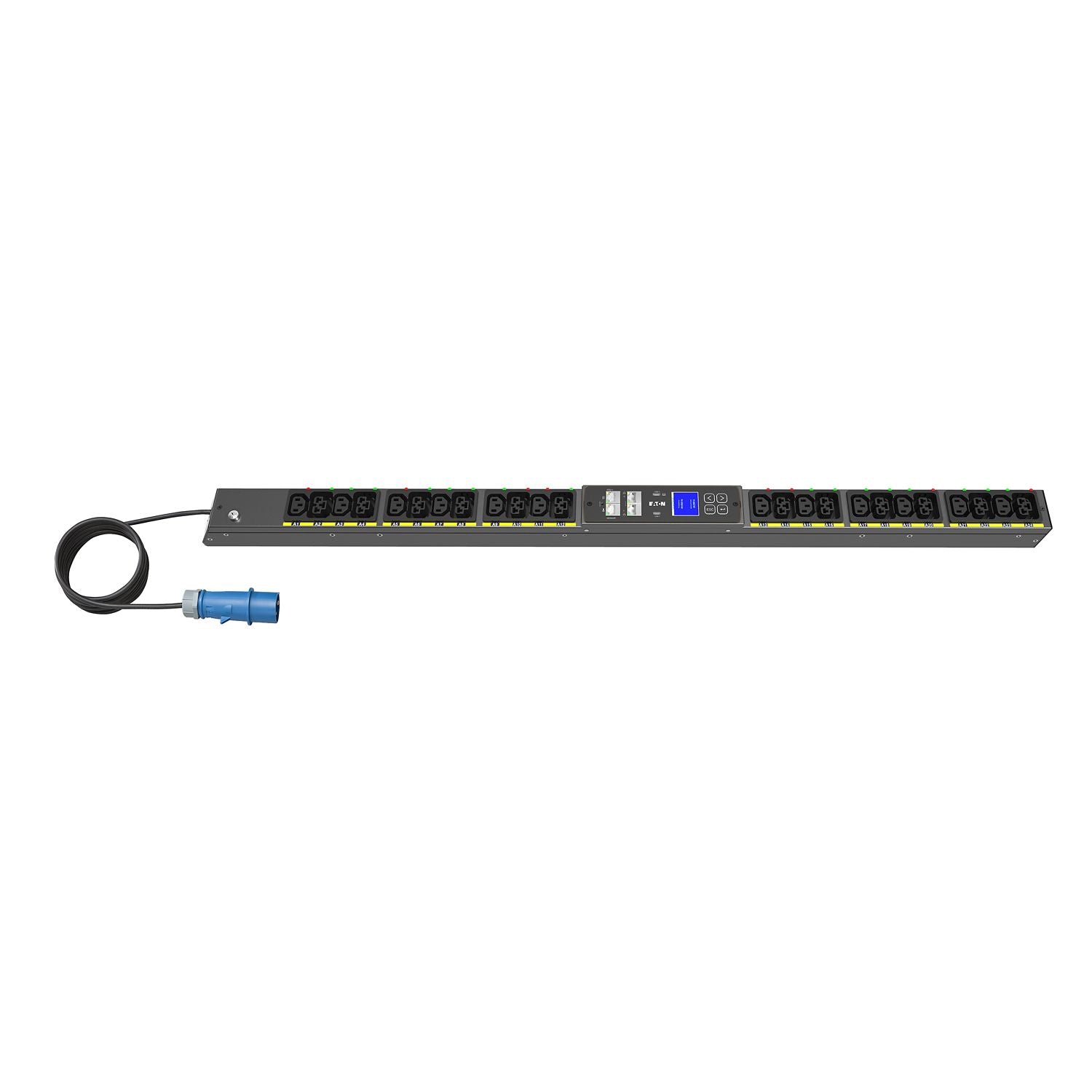

The Eaton Rack PDU G4 EVMAF116A is a Managed 0U (vertical) rack PDU. It takes a single-phase 16A feed through an IEC 60309 16A single-phase plug on a 3 m cord and distributes up to 3.7 kW to 24 outlets (12 x IEC C13 + 12 x IEC C39). Eaton lists its outlets as switchable, with remote on/off, reboot and sequential start-up control, 1% measurement accuracy at outlet level (V, W, A) and 1% IEC Class 1 billing-grade measurement accuracy.
For a Singapore data centre, colocation cage or remote branch rack, that means you can power-cycle a hung server or switch without a site visit, and see exactly which device is drawing what — cutting downtime and callout costs.
Gigabit Networking, Modern Protocols and Cybersecurity
Eaton fits the Rack PDU G4 with a gigabit network card with 2 x Gb ports, supporting RestAPI, Modbus TCP, SNMP, LDAP and HTTPS. Up to 32 PDUs can be cascaded, and the network control module is hot-swappable. Eaton also lists power sharing between two network modules.
Eaton lists compliance with the UL 2900-1 and IEC 62443-4-2 cybersecurity standards — useful where IT security teams audit every networked device in the data centre.
C39 Outlets That Take Either C14 or C20 Plugs
Eaton describes the C39 outlet as versatile: it accepts either a C14 or a C20 power cord plug. With 12 x IEC C13 + 12 x IEC C39, you can mix standard servers and switches with higher-power C20-corded equipment without re-planning the rack. Eaton also specifies high-retention outlets to help keep cords seated.
Rated for Hot Aisles: 0–60 °C Operation
Eaton rates the Rack PDU G4 for operation from 0 °C to 60 °C, which gives margin at the back of a densely packed rack where exhaust air collects. The chassis is aluminium, finished in black.
Supplied Locally with GST Invoice and 2-Year Warranty
SourceIT supplies the Eaton Rack PDU G4 range in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives a 2-year warranty for ePDUs.
Need help choosing an input plug or outlet mix? Email sales@sourceit.com.sg with your rack layout and supply type.
Eaton EVMAF116A Datasheet — Technical Specifications
General
| Product Name | Eaton Rack PDU G4 |
| Catalogue Number | EVMAF116A |
| Part Number (SKU) | 9001-22337 |
| Model Code | PDU G4 MA 0U 309 16A 1P 12xC13,12xC39 |
| Range | Eaton Rack PDU G4 |
| Type | Managed Rack PDU |
| Form Factor | 0U (vertical) |
| Outlet Control | Yes |
| Local Warranty (Singapore) | 2 years (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Power
| Phase | Single-phase |
| Input Connection | IEC 60309 16A single-phase |
| Amperage Rating | 16 A |
| Input Voltage | 200–240 V |
| Frequency | 50/60 Hz |
| Maximum Power | 3.7 kW |
| Cord Length | 3 m |
Outlets
| Total Outlets | 24 |
| Outlet Types | 12 x IEC C13 + 12 x IEC C39 |
| C39 Outlets | Accept C14 or C20 power cord plugs |
| Outlet Retention | High-retention outlets |
Metering & Network
| Metering | Outlet-level measurement (V, W, A), 1% accuracy |
| Measurement Accuracy | 1% IEC Class 1 (billing grade) |
| Switchable Outlets | Yes |
| Network | Gigabit network card, 2 x Gb ports |
| Protocols | RestAPI, Modbus TCP, SNMP, LDAP, HTTPS |
| Serial Interface | Yes |
| USB Ports | 2 |
| RJ45 Sockets | 2 |
| Network Module | Hot-swappable |
| Power Sharing | Between two network modules |
| Outlet Control | On/Off, reboot, sequential start-up |
| Cascading | Up to 32 PDUs |
| Mass Configuration | Yes |
| Cybersecurity | UL 2900-1 and IEC 62443-4-2 |
Physical & Environmental
| Dimensions (L x W x H) | 1000 x 52 x 53 mm |
| Weight | 3 kg |
| Material / Colour | Aluminium / Black |
| Operating Temperature | 0–60 °C |
| Overvoltage Category | 2 |
| Certifications | IEC 62368-1, EN IEC 63000, CE, EAC, UKCA, Cm, Ukr, IEC/EN 61000-6-2, IEC/EN 61000-6-4, EN 61000-3-2, EN 61000-3-3, CISPR 35/EN 55035 |
Compatibility & Software Support
What It Is Suited To
The EVMAF116A suits IT equipment with IEC C14 or C20 power cords — rack servers, storage arrays, switches, routers and firewalls. Keep the total connected load within 3.7 kW and within the rating of the circuit that feeds the PDU.
Monitoring and Integration
Manage the PDU from a web browser over HTTPS, or bring it into an existing NMS, BMS or DCIM platform over SNMP, Modbus TCP or the RestAPI. LDAP support allows central user authentication. Outlets can be switched remotely and measured individually.
Input Plug and Supply
The input is an IEC 60309 16A single-phase plug on a 3 m cord. Your rack feed needs the matching IEC 60309 16A single-phase socket, installed by a licensed electrician; a standard BS 1363 wall socket cannot feed this PDU.
Package Contents & Rack PDU G4 Switched & Managed Ordering Information
In the Box
Eaton lists the package contents as: the Rack PDU, rack mounting accessories, a quick start guide and safety instructions.
Eaton Rack PDU G4 Switched & Managed Range — Ordering Information
| EVSWFC20A | Switched, 0U, 1-phase, C20, 3.7 kW | 12 x C13 + 12 x C39 | 9001-22363 |
| EVSWF116A | Switched, 0U, 1-phase, IEC 60309 16A, 3.7 kW | 12 x C13 + 12 x C39 | 9001-22361 |
| EVSWF132A | Switched, 0U, 1-phase, IEC 60309 32A, 7.4 kW | 12 x C13 + 12 x C39 | 9001-22355 |
| EVSWF316A | Switched, 0U, 3-phase, IEC 60309 16A, 11 kW | 12 x C13 + 12 x C39 | 9001-22360 |
| EVMAFC20A | Managed, 0U, 1-phase, C20, 3.7 kW | 12 x C13 + 12 x C39 | 9001-22334 |
| EVMAF116A (this listing) | Managed, 0U, 1-phase, IEC 60309 16A, 3.7 kW | 12 x C13 + 12 x C39 | 9001-22337 |
| EVMAF132A | Managed, 0U, 1-phase, IEC 60309 32A | Ask us | 9001-22325 |
| EVMAF132X | Managed, 0U, 1-phase, IEC 60309 32A | Ask us | 9001-22349 |
| EVMAF316A | Managed, 0U, 3-phase, IEC 60309 16A | Ask us | 9001-22332 |
| EVMAF316X | Managed, 0U, 3-phase, IEC 60309 16A | Ask us | 9001-22346 |
| EVMAF332A | Managed, 0U, 3-phase, IEC 60309 32A | Ask us | 9001-22329 |
| EVMAF332X | Managed, 0U, 3-phase, IEC 60309 32A | Ask us | 9001-22310 |
| EVMAF332C | Managed, 0U, 3-phase, IEC 60309 32A | Ask us | 9001-22373 |
Rack PDU G4 Basic and Metered Input models are also available on request.
Datasheet & Downloads
| Eaton specifications | Eaton EVMAF116A Specifications — Eaton Singapore |
| Eaton brochure | Eaton Rack PDU G4 Brochure BR155022 (PDF) |
| Technical drawing | Eaton EVMAF116A Outline Drawing (PDF) |
| Quick guide | Eaton Rack PDU G4 Quick Guide (PDF) |
| Installation guide | Eaton Rack PDU G4 Installation and Setup Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting EVMAF116A.
Frequently Asked Questions — Eaton EVMAF116A
What does the EVMAF116A measure and control?
Eaton lists 1% measurement accuracy at outlet level (V, W, A), 1% IEC Class 1 billing-grade measurement accuracy, and switchable outlets with on/off, reboot and sequential start-up control.
How do I access it remotely?
Over the gigabit network card (2 x Gb ports) using a web browser (HTTPS), SNMP, Modbus TCP or RestAPI. LDAP is supported for central authentication, and up to 32 PDUs can be cascaded.
How many devices can I connect?
24 outlets: 12 x IEC C13 + 12 x IEC C39. C13 outlets take the common C14 cord; Eaton's C39 outlets take either a C14 or a C20 plug. Keep the total load within 3.7 kW.
What supply do I need?
A single-phase 16A feed with a matching IEC 60309 16A single-phase socket (200–240 V), installed by a licensed electrician.
How hot can the rack get?
Eaton rates the Rack PDU G4 for 0–60 °C operation.
What warranty do I get?
2 years per Eaton's Singapore price list, supplied by SourceIT with local Singapore support and a GST invoice.
