Eaton Horizontal Rack PDU G4 Managed 2U, Universal Input 200-415V, 5-23 kW, 12x C13 + 12x C39, Outlet Control
PRODUCT DESCRIPTION
Eaton Horizontal Rack PDU G4 Managed 2U Universal-Input Rack PDU (EHMAGU23A, 9001-22418) - 2 Years Local Warranty
Outlet-Level Monitoring and Remote Outlet Control

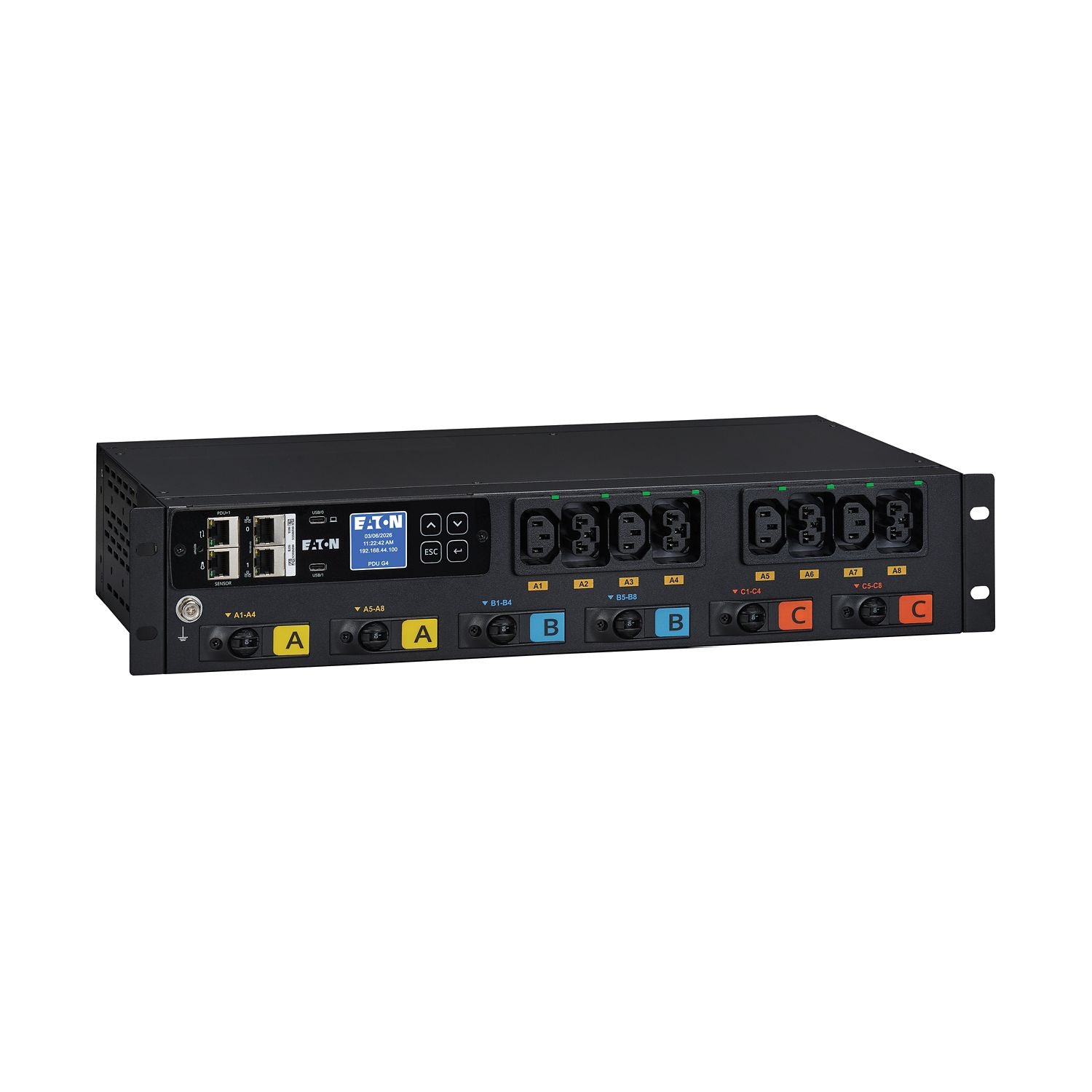

The Eaton EHMAGU23A is a Managed horizontal rack PDU from Eaton's Rack PDU G4 range. It mounts in 2U of a standard 19-inch rack and feeds 24 outlets (12 x IEC C13 + 12 x IEC C39). Eaton describes Managed models as giving outlet-level monitoring and outlet-level control, so you can see what each device draws and switch or reboot individual outlets remotely.
For a Singapore server room, colocation cage or branch rack, that means power-cycling a hung server or switch without a site visit, and spotting overloaded circuits before they trip.
One PDU, Many Power Feeds: Universal Input

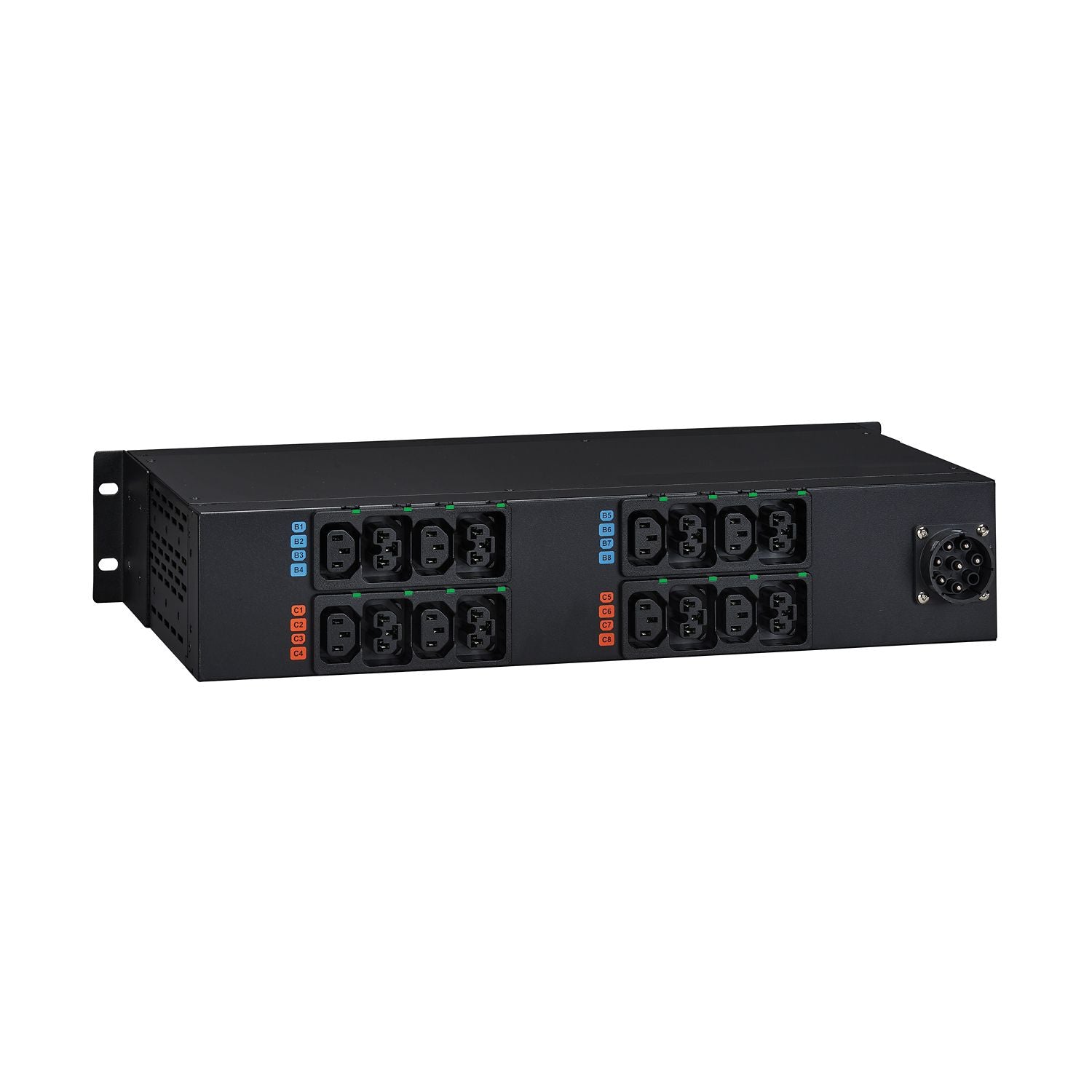

This is a universal-input (UPDU) model with a UTG 8-pin inlet. Eaton lists it as compatible with 17 different interchangeable input cables (sold separately) covering 15 plug types, from single-phase through three-phase, for 5–23 kW depending on the cable. Choose the cable that matches your rack feed today, and swap it if your power changes — without replacing the PDU.
Secure Gigabit Networking

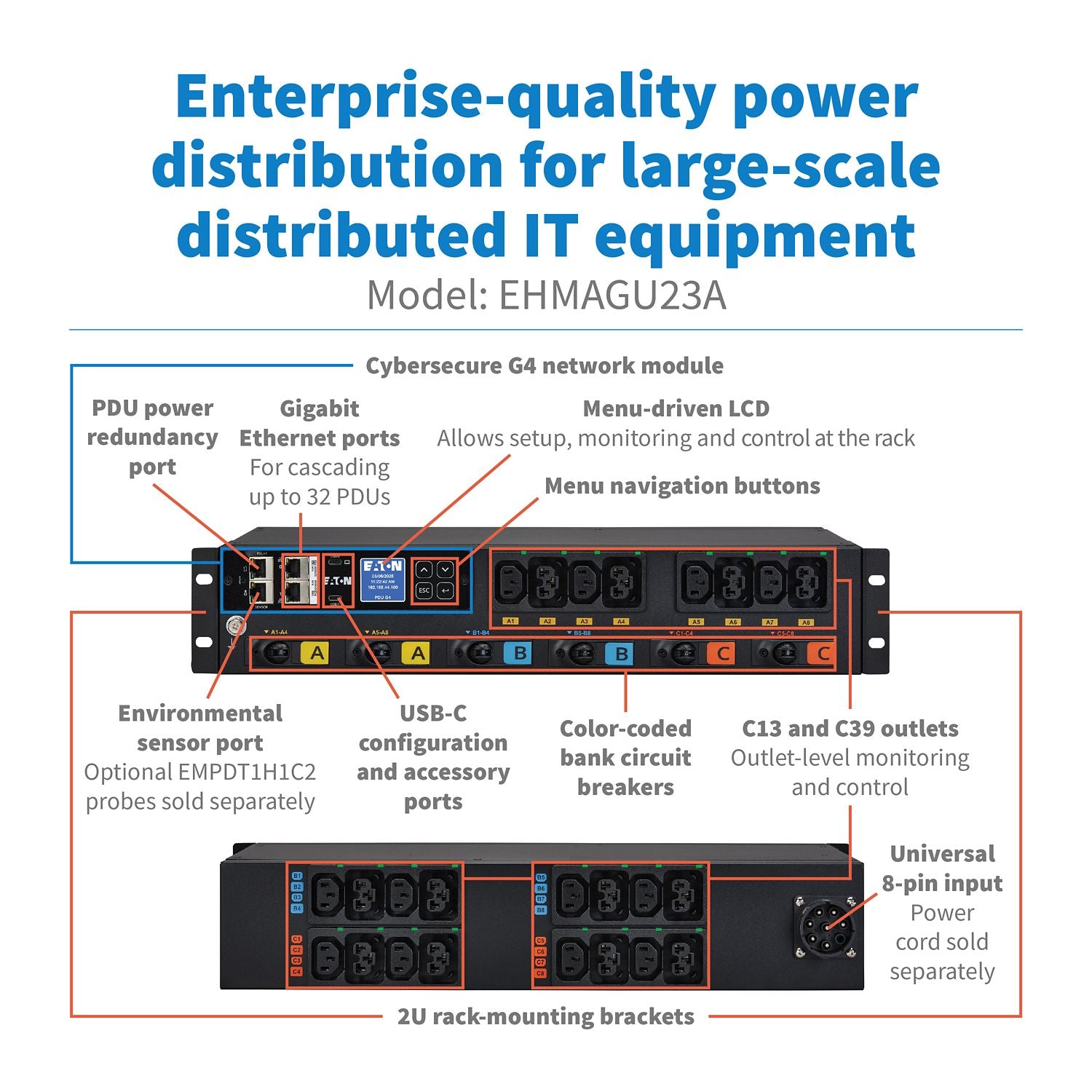

Eaton's Rack PDU G4 range brochure lists gigabit Ethernet, a hot-swappable G4 network module, network cascading of up to 32 PDUs through one Ethernet port, and secure remote access via web browser, SNMP or MQTT plus a RESTful API. Security features include a zero-trust architecture with hardware root of trust and secure boot, a user-configurable firewall with IP whitelisting, and zero-touch provisioning; firmware updates are free without a support contract.
C39 Outlets That Take C14 or C20 Plugs
Eaton's C39 outlet accepts either a C14 or a C20 plug, so you can mix standard servers and switches with higher-power C20-corded equipment. The range is also compatible with P-Lock and P-Lock Lite locking cords.
Supplied Locally with GST Invoice and 2-Year Warranty
SourceIT supplies the Eaton Rack PDU G4 range in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives a 2-year warranty for ePDUs.
Need help choosing an input cable or outlet mix? Email sales@sourceit.com.sg with your rack layout and supply type.
Eaton EHMAGU23A Datasheet — Technical Specifications
General
| Product Name | Eaton Rack PDU G4 (horizontal) |
| Catalogue Number | EHMAGU23A |
| Part Number (SKU) | 9001-22418 |
| Range | Eaton Horizontal Rack PDU G4 |
| Type | Managed Rack PDU |
| Form Factor | 2U (horizontal, 19-inch rack) |
| Outlet Control | Yes |
| Local Warranty (Singapore) | 2 years (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Power
| Phase | Single-phase or three-phase (set by the input cable) |
| Input Connection | Universal input — UTG 8-pin inlet; input cable sold separately |
| Input Voltage | 200–415 V |
| Current Rating | 16–55 A (derated, set by the input cable) |
| Frequency | 50/60 Hz |
| Power Rating | 5–23 kW (set by the input cable) |
| Cord Length | 6 or 10 ft, depending on the input cable chosen |
| Overload Protection | (6) 2-pole circuit breakers |
Outlets
| Total Outlets | 24 |
| Outlet Types | 12 x IEC C13 + 12 x IEC C39 |
| C39 Outlets | Accept C14 or C20 power cord plugs |
| Locking Cords | Compatible with Eaton P-Lock and P-Lock Lite cords |
| LED Indicators | Green = outlet on; Red = PDU has power but outlet is off |
Metering & Network
| Monitoring | Outlet-level monitoring and outlet-level control |
| Measurement Accuracy | ±1% current, power and voltage |
| Network | Gigabit Ethernet |
| Network Module | Hot-swappable G4 network module |
| Network Ports | Serial/Ethernet ports for environmental monitoring and daisy-chain connections |
| Access | Web browser, SNMP, MQTT, RESTful API |
| Cascading | Up to 32 PDUs through one Ethernet port |
| Security | Zero-trust architecture, hardware root of trust, secure boot, user-configurable firewall with IP whitelist |
| Provisioning | Zero-touch provisioning |
| Environmental Probes | Optional temperature, humidity and contact-closure probes |
Physical & Environmental
| Dimensions (H x W x D) | 3.5 x 17.5 x 9.8 in (approx. 89 x 445 x 249 mm) |
| Colour | Black |
| Operating Temperature | -20 °C to 50 °C |
| Certifications | cTUVus |
Compatibility & Software Support
What It Is Suited To
The EHMAGU23A suits IT equipment with IEC C14 or C20 power cords — rack servers, storage, switches, routers and firewalls — in racks where a horizontal PDU is preferred. Keep the total connected load within the PDU's rating and the rating of the circuit that feeds it.
Monitoring and Integration
Manage the PDU from a web browser, or bring it into an existing NMS, BMS or DCIM platform over SNMP, MQTT or the RESTful API. Outlets can be monitored and switched individually.
Input Cable and Supply
Universal-input models take an interchangeable input cable (sold separately) on the UTG 8-pin inlet — Eaton lists 17 cable options with 15 plug types. The cable you choose sets the phase, current and power rating (5–23 kW). Tell us your rack feed (e.g. single-phase or three-phase IEC 60309 socket) and we will quote the matching Eaton cable. Any new socket should be installed by a licensed electrician.
Package Contents & Horizontal Rack PDU G4 Ordering Information
In the Box
Eaton lists the package contents as: EHMAGU23A Universal-Input Managed Rack PDU G4, rack-mounting hardware, user documentation.
The input cable is sold separately.
Eaton Horizontal Rack PDU G4 Range — Ordering Information
| EHMIL620N | Metered Input, 1U, 1-phase 230V 16A, C20/L6-20P, 3.7 kW | 4 x C13 + 4 x C39 | 9001-22407 |
| EHMAL620N | Managed, 1U, 1-phase 230V 16A, C20/L6-20P, 3.7 kW | 4 x C13 + 4 x C39 | 9001-22408 |
| EHMI5606Q | Metered Input, 2U, 3-phase 240/415V Wye, 560P6W, 34.5 kW | 12 x C39 | 9001-22415 |
| EHMA5606Q | Managed, 2U, 3-phase 240/415V Wye, 560P6W, 34.5 kW | 12 x C39 | 9001-22416 |
| EHMIGU23A | Metered Input, 2U, Universal input, 5–23 kW | 12 x C13 + 12 x C39 | 9001-22417 |
| EHMAGU23A (this listing) | Managed, 2U, Universal input, 5–23 kW | 12 x C13 + 12 x C39 | 9001-22418 |
| EHMIGU23D | Metered Input, 3U, Universal input, 5–23 kW | 18 x C13 + 18 x C39 | 9001-22419 |
| EHMAGU23D | Managed, 3U, Universal input, 5–23 kW | 18 x C13 + 18 x C39 | 9001-22420 |
| EHBAGU15Q | Basic, 1U, Universal input, 5–23 kW | 12 x C39 | 9001-22421 |
| EHBAGU15A | Basic, 2U, Universal input, 5–23 kW | 12 x C13 + 12 x C39 | 9001-22422 |
Figures from Eaton's Horizontal Rack PDU G4 brochure BR155062EN. Universal-input input cables and environmental probes are available on request.
Datasheet & Downloads
| Eaton specifications | Eaton EHMAGU23A Specifications — Eaton Singapore |
| Eaton brochure | Eaton Horizontal Rack PDU G4 Brochure BR155062EN (PDF) |
| Quick guide | Eaton Rack PDU G4 Quick Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting EHMAGU23A.
Frequently Asked Questions — Eaton EHMAGU23A
What does the EHMAGU23A monitor and control?
Eaton describes Managed models as giving outlet-level monitoring and outlet-level control, with ±1% current, power and voltage measurement accuracy.
How do I access it remotely?
Over gigabit Ethernet using a web browser, SNMP, MQTT or the RESTful API. Up to 32 PDUs can be cascaded through one Ethernet port.
How many devices can I connect?
24 outlets: 12 x IEC C13 + 12 x IEC C39. C13 outlets take the common C14 cord; Eaton's C39 outlets take either a C14 or a C20 plug.
What supply do I need?
It depends on the input cable you choose (sold separately): Eaton offers 17 cables with 15 plug types, single-phase or three-phase, 200–415 V, 16–55 A. Tell us your feed and we will match the cable.
What warranty do I get?
2 years per Eaton's Singapore price list, supplied by SourceIT with local Singapore support and a GST invoice.
