Eaton Rack PDU G4 Basic 0U Vertical PDU, Single-phase 32A IEC 60309 Input, 12x C13 + 12x C39
PRODUCT DESCRIPTION
Eaton Rack PDU G4 Basic 0U Single-phase 32A 7.4 kW Rack PDU (EVBAF132A, 9001-22356) - 2 Years Local Warranty
Simple, Dependable Power Distribution for Your Rack

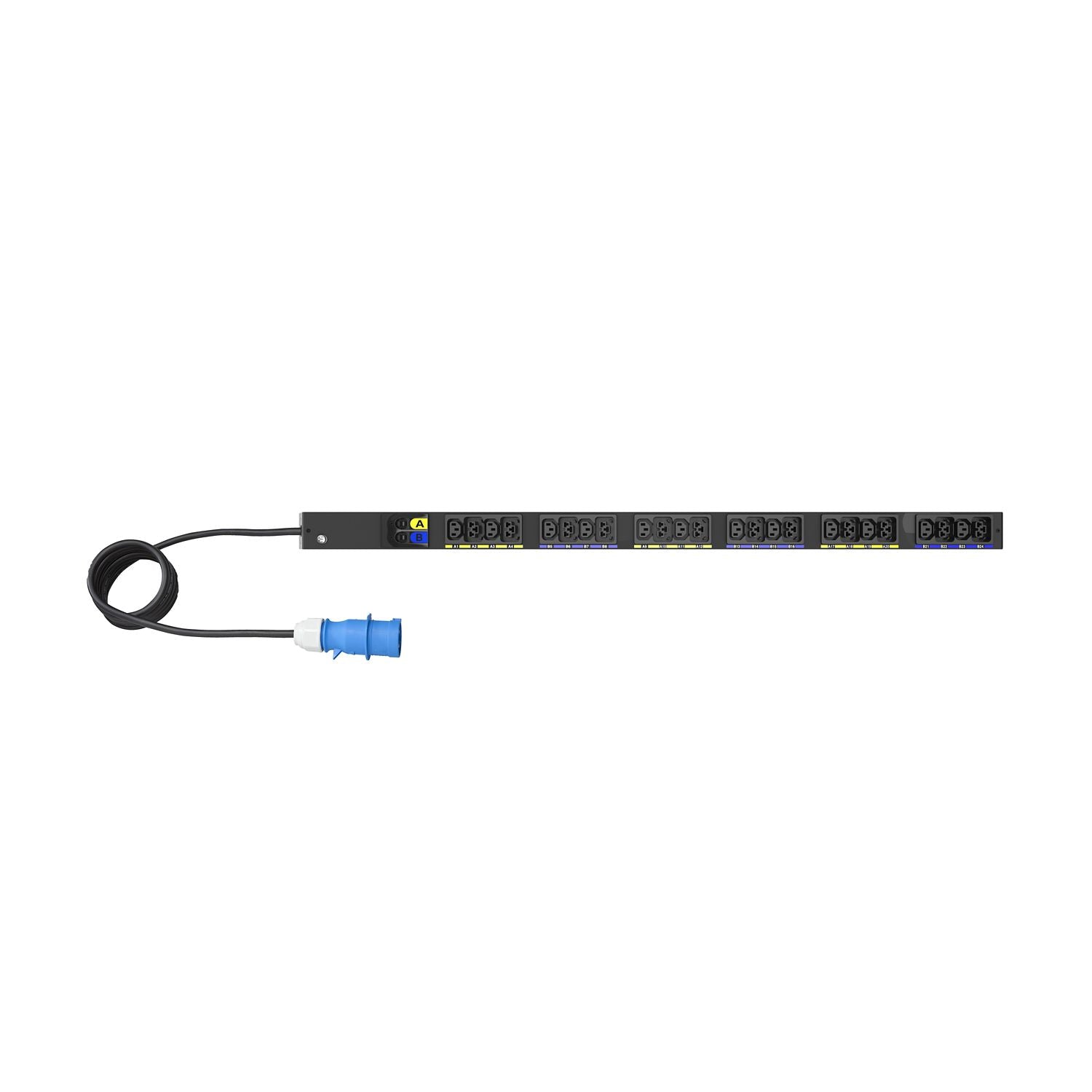

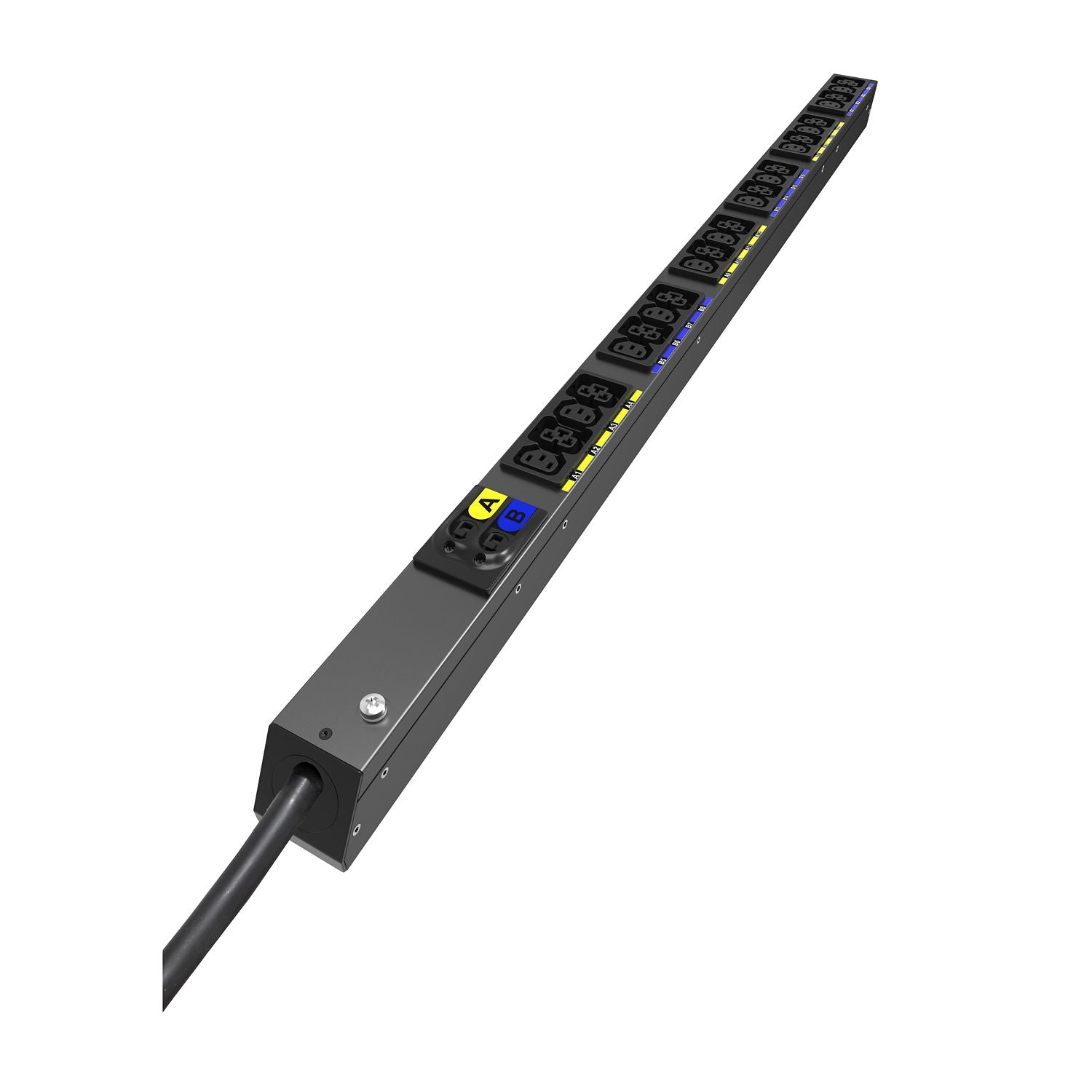

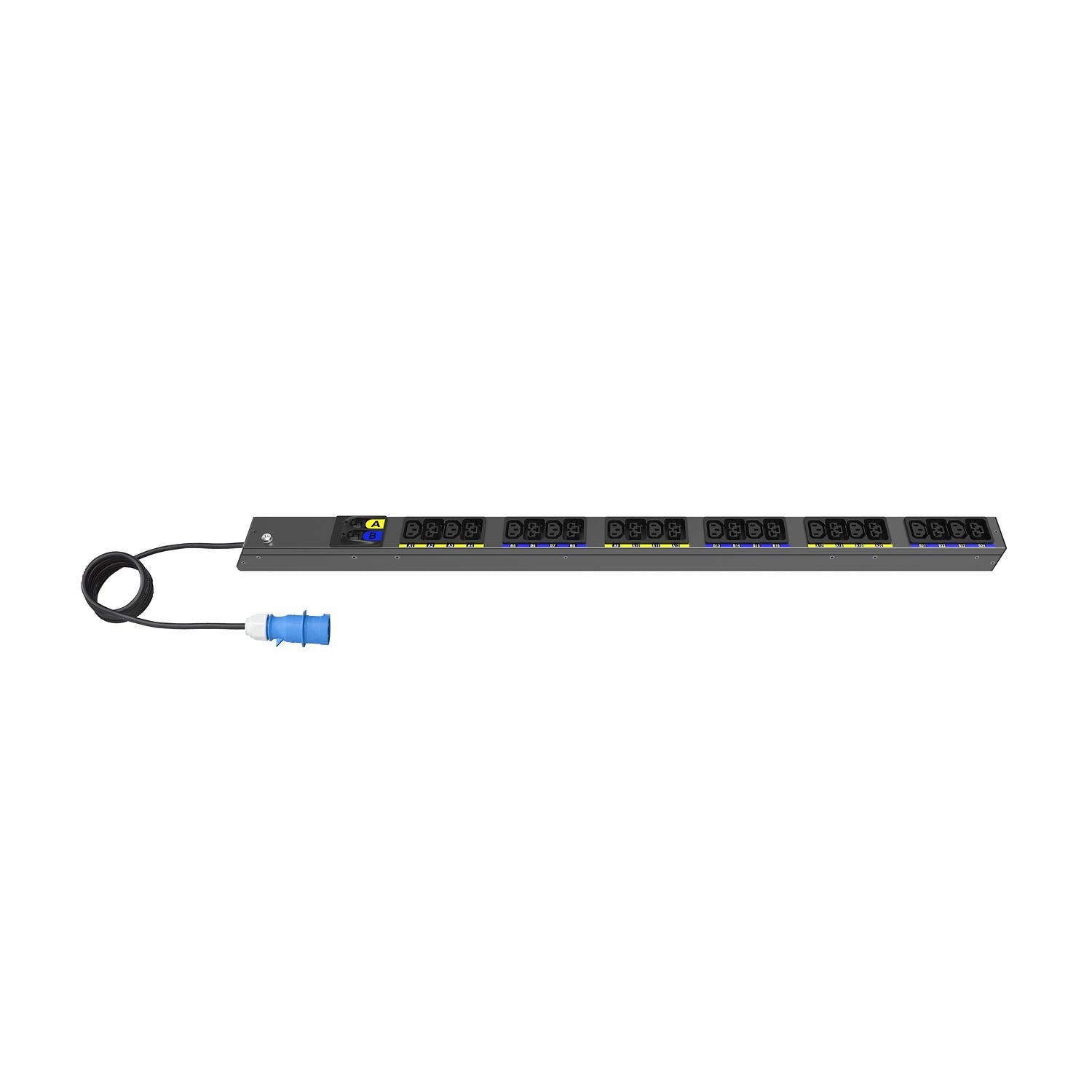

The Eaton Rack PDU G4 EVBAF132A is a Basic 0U (vertical) rack PDU that takes a single-phase 32A feed through an IEC 60309 32A single-phase plug on a 3 m cord and distributes up to 7.4 kW to 24 outlets: 12 x IEC C13 + 12 x IEC C39. There is no network or metering to configure — it is straightforward, reliable power distribution for servers, storage and network equipment.
It mounts vertically in the rear side channel of the rack, keeping rack units free for equipment — a good fit for Singapore server rooms, comms cabinets and colocation racks where every U counts.
C39 Outlets That Take Either C14 or C20 Plugs
Eaton describes the C39 outlet as versatile: it accepts either a C14 or a C20 power cord plug. With 12 C39 outlets alongside 12 C13 outlets, you can mix standard servers and switches with higher-power C20-corded equipment without re-planning the rack. Eaton also specifies high-retention outlets to help keep cords seated.
Rated for Hot Aisles: 0–60 °C Operation
Eaton rates the Rack PDU G4 for operation from 0 °C to 60 °C, which gives margin at the back of a densely packed rack where exhaust air collects. The chassis is aluminium, finished in black.
Supplied Locally with GST Invoice and 2-Year Warranty
SourceIT supplies the Eaton Rack PDU G4 range in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives a 2-year warranty for ePDUs.
Need help choosing an input plug or outlet mix? Email sales@sourceit.com.sg with your rack layout and supply type.
Eaton EVBAF132A Datasheet — Technical Specifications
General
| Product Name | Eaton Rack PDU G4 |
| Catalogue Number | EVBAF132A |
| Part Number (SKU) | 9001-22356 |
| Range | Eaton Rack PDU G4 |
| Type | Basic Rack PDU |
| Form Factor | 0U (vertical) |
| Outlet Control | No |
| Local Warranty (Singapore) | 2 years (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Power
| Phase | Single-phase |
| Input Connection | IEC 60309 32A single-phase |
| Amperage Rating | 32 A |
| Input Voltage | 200–240 V |
| Frequency | 50/60 Hz |
| Maximum Power | 7.4 kW |
| Circuit Breakers | 2 x single-pole |
| Cord Length | 3 m |
Outlets
| Total Outlets | 24 |
| Outlet Types | 12 x IEC C13 + 12 x IEC C39 |
| C39 Outlets | Accept C14 or C20 power cord plugs |
| Outlet Retention | High-retention outlets |
Monitoring
| Metering | No |
| Network / SNMP | No |
| Switchable Outlets | No |
Physical & Environmental
| Dimensions (L x W x H) | 1000 x 52 x 53 mm |
| Weight | 2.4 kg |
| Material / Colour | Aluminium / Black |
| Operating Temperature | 0–60 °C |
| Overvoltage Category | 2 |
| Certifications | IEC 62368-1, EN IEC 63000, CE, EAC, UKCA, Cm, Ukr |
Compatibility & Software Support
What It Is Suited To
The EVBAF132A suits IT equipment with IEC C14 or C20 power cords — rack servers, storage arrays, switches, routers and firewalls. Keep the total connected load within 7.4 kW and within the rating of the circuit that feeds the PDU.
Monitoring
This is a Basic model: no metering, no network port and no outlet switching. If you need to see load remotely or report energy use, choose a Rack PDU G4 Metered Input model; for remote outlet on/off, ask us about Switched and Managed models.
Input Plug and Supply
The input is an IEC 60309 32A single-phase plug on a 3 m cord. Your rack feed needs the matching IEC 60309 socket, installed by a licensed electrician; a standard BS 1363 wall socket cannot feed this PDU.
Package Contents & Rack PDU G4 Basic Ordering Information
In the Box
Eaton Rack PDU G4 with user documentation. Eaton's page for this model does not itemise the carton contents, so confirm mounting hardware with us before ordering if it matters to your installation.
Eaton Rack PDU G4 Basic Range — Ordering Information
| EVBAFC20A | 0U, 1-phase, C20, 3.7 kW | 12 x C13 + 12 x C39 | 9001-22364 |
| EVBAF116A | 0U, 1-phase, IEC 60309 16A, 3.7 kW | 12 x C13 + 12 x C39 | 9001-22362 |
| EVBAF132A (this listing) | 0U, 1-phase, IEC 60309 32A, 7.4 kW | 12 x C13 + 12 x C39 | 9001-22356 |
| EVBAF132X | 0U, 1-phase, IEC 60309 32A, 7.4 kW | 24 x C13 + 18 x C39 | 9001-22350 |
| EVBAF316X | 0U, 3-phase, IEC 60309 16A, 11 kW | 24 x C13 + 18 x C39 | 9001-22347 |
| EVBAF332X | 0U, 3-phase, IEC 60309 32A, 22 kW | 24 x C13 + 18 x C39 | 9001-22352 |
Rack PDU G4 Metered Input, Switched and Managed models are also available on request.
Datasheet & Downloads
| Eaton specifications | Eaton EVBAF132A Specifications — Eaton Singapore |
| Eaton brochure | Eaton Rack PDU G4 Brochure BR155022 (PDF) |
| Technical drawing | Eaton EVBAF132A Outline Drawing (PDF) |
| Quick guide | Eaton Rack PDU G4 Quick Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting EVBAF132A.
Frequently Asked Questions — Eaton EVBAF132A
Does the EVBAF132A have metering or a network port?
No. It is a Basic PDU with no metering, SNMP, Ethernet or outlet switching. For remote load monitoring, choose a Rack PDU G4 Metered Input model.
How many devices can I connect?
24 outlets: 12 x IEC C13 + 12 x IEC C39. C13 outlets take the common C14 cord; Eaton's C39 outlets take either a C14 or a C20 plug. Keep the total load within 7.4 kW.
What supply do I need?
A single-phase 32A feed with a matching IEC 60309 socket (200–240 V), installed by a licensed electrician.
How hot can the rack get?
Eaton rates the Rack PDU G4 for 0–60 °C operation.
What warranty do I get?
2 years per Eaton's Singapore price list, supplied by SourceIT with local Singapore support and a GST invoice.
