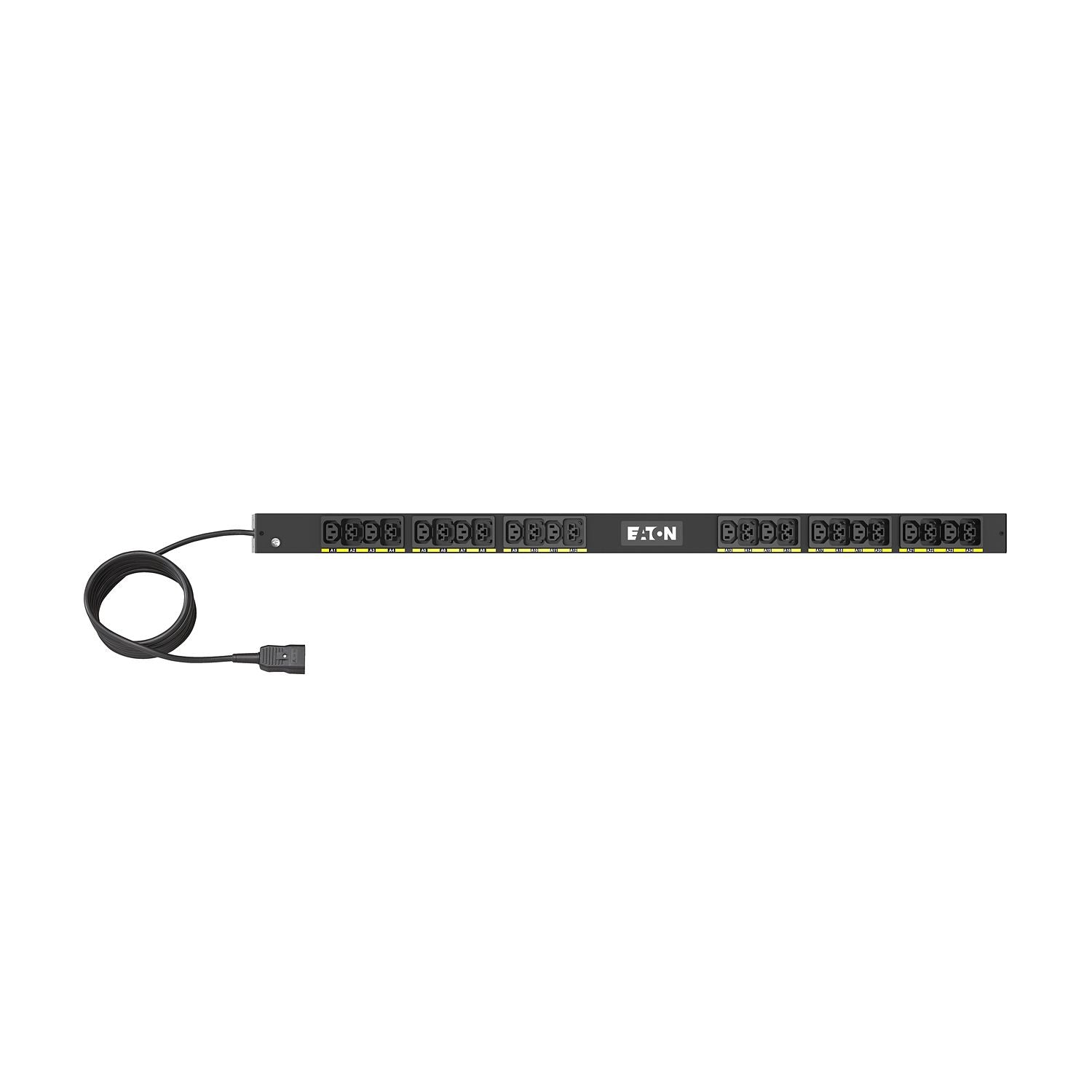

Eaton Rack PDU G4 Basic 0U Vertical PDU, Single-phase 16A C20 Input, 12x C13 + 12x C39
PRODUCT DESCRIPTION
Eaton Rack PDU G4 Basic 0U Single-phase 16A 3.7 kW Rack PDU (EVBAFC20A, 9001-22364) - 2 Years Local Warranty
Simple, Dependable Power Distribution for Your Rack

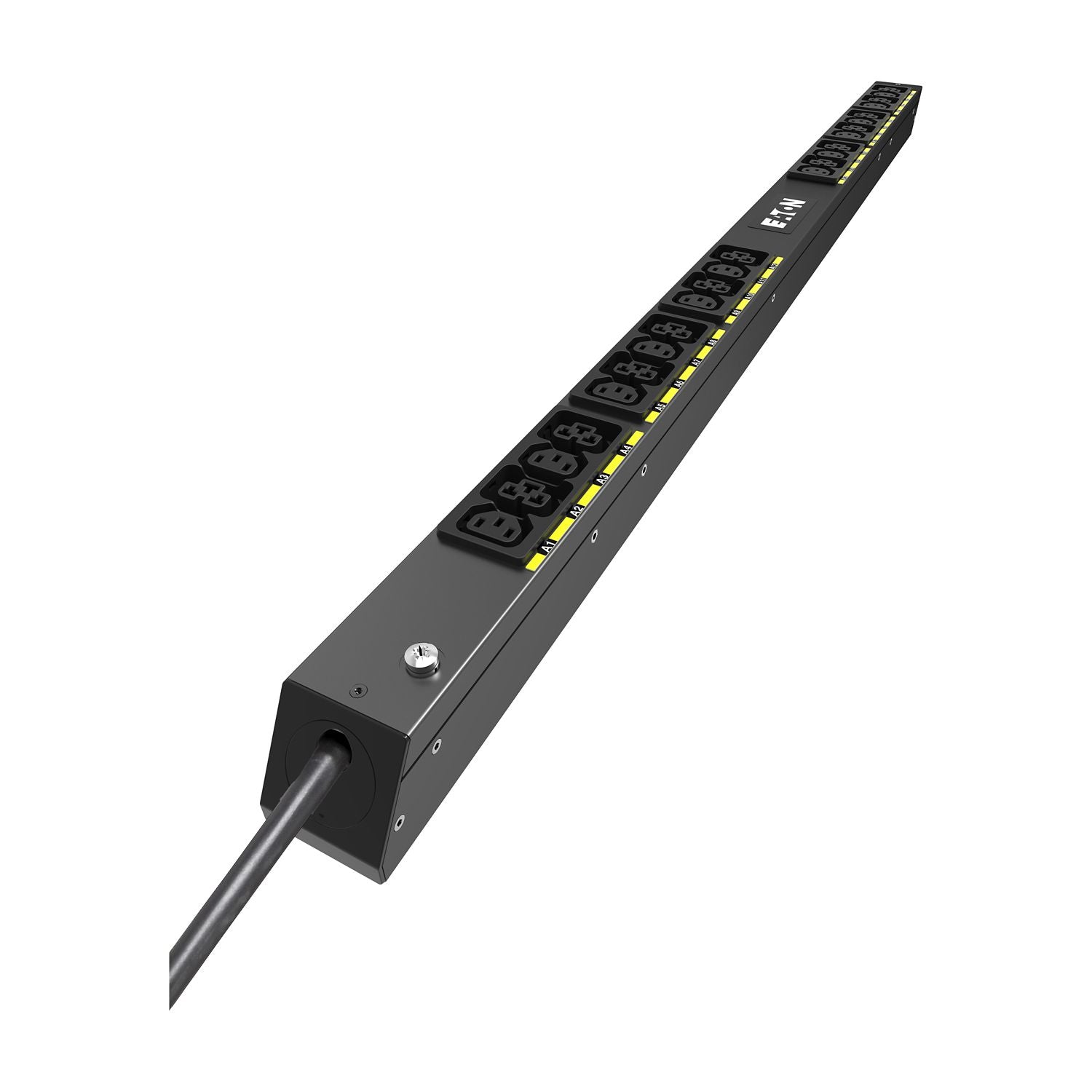

The Eaton Rack PDU G4 EVBAFC20A is a Basic 0U (vertical) rack PDU that takes a single-phase 16A feed through an IEC C20 inlet on a 3 m cord and distributes up to 3.7 kW to 24 outlets: 12 x IEC C13 + 12 x IEC C39. There is no network or metering to configure — it is straightforward, reliable power distribution for servers, storage and network equipment.
It mounts vertically in the rear side channel of the rack, keeping rack units free for equipment — a good fit for Singapore server rooms, comms cabinets and colocation racks where every U counts.
C39 Outlets That Take Either C14 or C20 Plugs
Eaton describes the C39 outlet as versatile: it accepts either a C14 or a C20 power cord plug. With 12 C39 outlets alongside 12 C13 outlets, you can mix standard servers and switches with higher-power C20-corded equipment without re-planning the rack. Eaton also specifies high-retention outlets to help keep cords seated, and colour-coded outlet banks for easier load balancing.
Rated for Hot Aisles: 0–60 °C Operation
Eaton rates the Rack PDU G4 for operation from 0 °C to 60 °C, which gives margin at the back of a densely packed rack where exhaust air collects. The chassis is aluminium, finished in black.
Supplied Locally with GST Invoice and 2-Year Warranty
SourceIT supplies the Eaton Rack PDU G4 range in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives a 2-year warranty for ePDUs.
Need help choosing an input plug or outlet mix? Email sales@sourceit.com.sg with your rack layout and supply type.
Eaton EVBAFC20A Datasheet — Technical Specifications
General
| Product Name | Eaton Rack PDU G4 |
| Catalogue Number | EVBAFC20A |
| Part Number (SKU) | 9001-22364 |
| Range | Eaton Rack PDU G4 |
| Type | Basic Rack PDU |
| Form Factor | 0U (vertical) |
| Outlet Control | No |
| Local Warranty (Singapore) | 2 years (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Power
| Phase | Single-phase |
| Input Connection | IEC C20 |
| Amperage Rating | 16 A |
| Input Voltage | 200–240 V |
| Frequency | 50/60 Hz |
| Maximum Power | 3.7 kW |
| Cord Length | 3 m |
Outlets
| Total Outlets | 24 |
| Outlet Types | 12 x IEC C13 + 12 x IEC C39 |
| C39 Outlets | Accept C14 or C20 power cord plugs |
| Outlet Retention | High-retention outlets |
| Outlet Banks | Colour-coded |
Monitoring
| Metering | No |
| Network / SNMP | No |
| Switchable Outlets | No |
Physical & Environmental
| Dimensions (L x W x H) | 1000 x 52 x 53 mm |
| Weight | 2.15 kg |
| Material / Colour | Aluminium / Black |
| Operating Temperature | 0–60 °C |
| Overvoltage Category | 2 |
| Certifications | IEC 62368-1, EN IEC 63000, CE, EAC, UKCA, Cm, Ukr, cTUVus |
Compatibility & Software Support
What It Is Suited To
The EVBAFC20A suits IT equipment with IEC C14 or C20 power cords — rack servers, storage arrays, switches, routers and firewalls. Keep the total connected load within 3.7 kW and within the rating of the circuit that feeds the PDU.
Monitoring
This is a Basic model: no metering, no network port and no outlet switching. If you need to see load remotely or report energy use, choose a Rack PDU G4 Metered Input model; for remote outlet on/off, ask us about Switched and Managed models.
Input and Supply
The input is an IEC C20 inlet with a 3 m cord, so it can be fed from a UPS C19 outlet or an upstream PDU. It does not take a BS 1363 (Type G) wall plug.
Package Contents & Rack PDU G4 Basic Ordering Information
In the Box
Eaton lists: Rack PDU, rack mounting accessories, quick-start guide and safety instructions.
Eaton Rack PDU G4 Basic Range — Ordering Information
| EVBAFC20A (this listing) | 0U, 1-phase, C20, 3.7 kW | 12 x C13 + 12 x C39 | 9001-22364 |
| EVBAF116A | 0U, 1-phase, IEC 60309 16A, 3.7 kW | 12 x C13 + 12 x C39 | 9001-22362 |
| EVBAF132A | 0U, 1-phase, IEC 60309 32A, 7.4 kW | 12 x C13 + 12 x C39 | 9001-22356 |
| EVBAF132X | 0U, 1-phase, IEC 60309 32A, 7.4 kW | 24 x C13 + 18 x C39 | 9001-22350 |
| EVBAF316X | 0U, 3-phase, IEC 60309 16A, 11 kW | 24 x C13 + 18 x C39 | 9001-22347 |
| EVBAF332X | 0U, 3-phase, IEC 60309 32A, 22 kW | 24 x C13 + 18 x C39 | 9001-22352 |
Rack PDU G4 Metered Input, Switched and Managed models are also available on request.
Datasheet & Downloads
| Eaton specifications | Eaton EVBAFC20A Specifications — Eaton Singapore |
| Eaton brochure | Eaton Rack PDU G4 Brochure BR155022 (PDF) |
| Technical drawing | Eaton EVBAFC20A Outline Drawing (PDF) |
| Quick guide | Eaton Rack PDU G4 Quick Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting EVBAFC20A.
Frequently Asked Questions — Eaton EVBAFC20A
Does the EVBAFC20A have metering or a network port?
No. It is a Basic PDU with no metering, SNMP, Ethernet or outlet switching. For remote load monitoring, choose a Rack PDU G4 Metered Input model.
How many devices can I connect?
24 outlets: 12 x IEC C13 + 12 x IEC C39. C13 outlets take the common C14 cord; Eaton's C39 outlets take either a C14 or a C20 plug. Keep the total load within 3.7 kW.
What supply do I need?
A 16A source with a C19 outlet, such as a UPS or upstream PDU, via the 3 m IEC C20 input cord.
How hot can the rack get?
Eaton rates the Rack PDU G4 for 0–60 °C operation.
What warranty do I get?
2 years per Eaton's Singapore price list, supplied by SourceIT with local Singapore support and a GST invoice.
