Eaton Horizontal Rack PDU G4 Metered Input 1U, Single-phase 230V 16A C20/L6-20P Input, 3.7 kW, 4x C13 + 4x C39, Network
PRODUCT DESCRIPTION
Eaton Horizontal Rack PDU G4 Metered Input 1U Single-phase 16A 3.7 kW Rack PDU (EHMIL620N, 9001-22407) - 2 Years Local Warranty
Bank-Level Power Monitoring over the Network

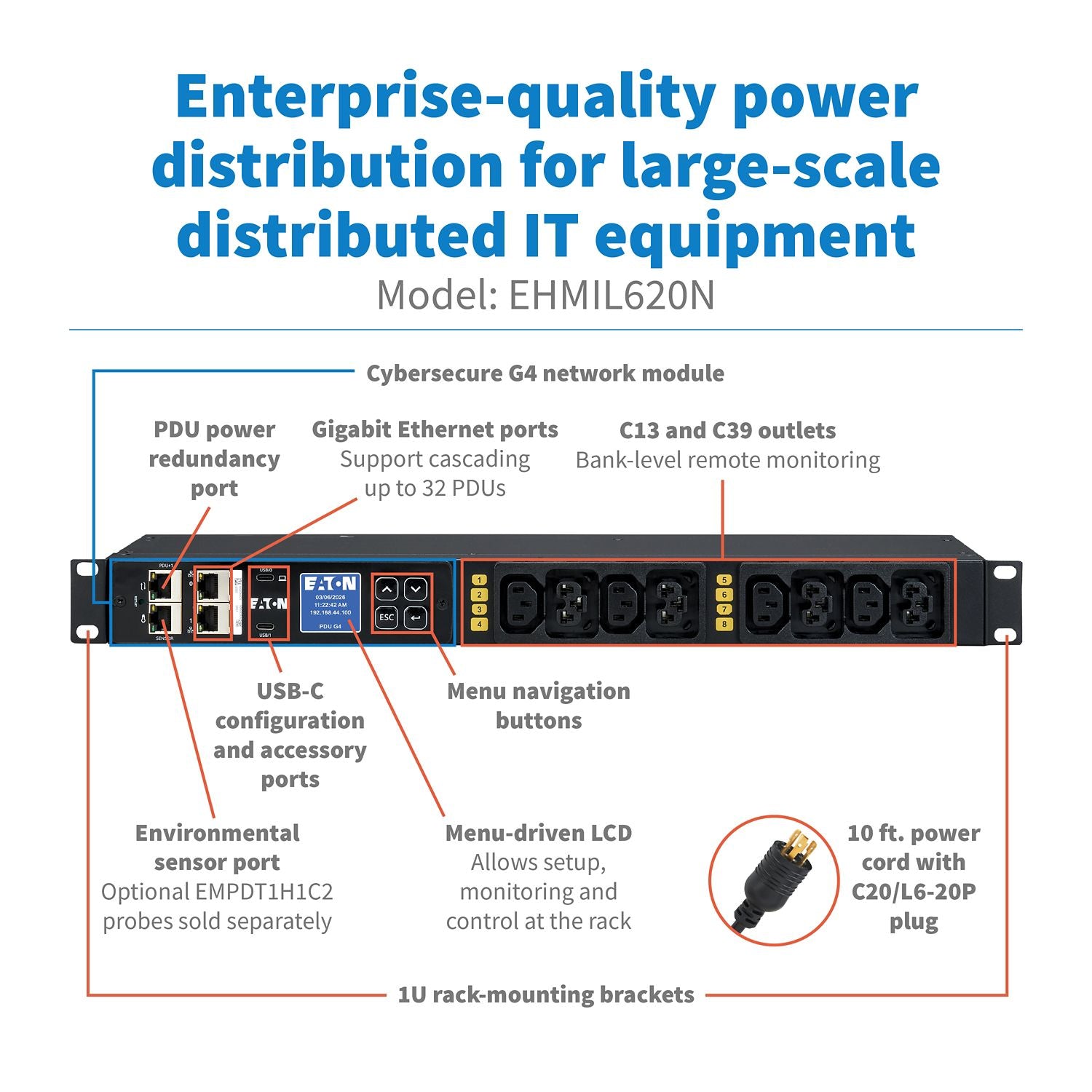

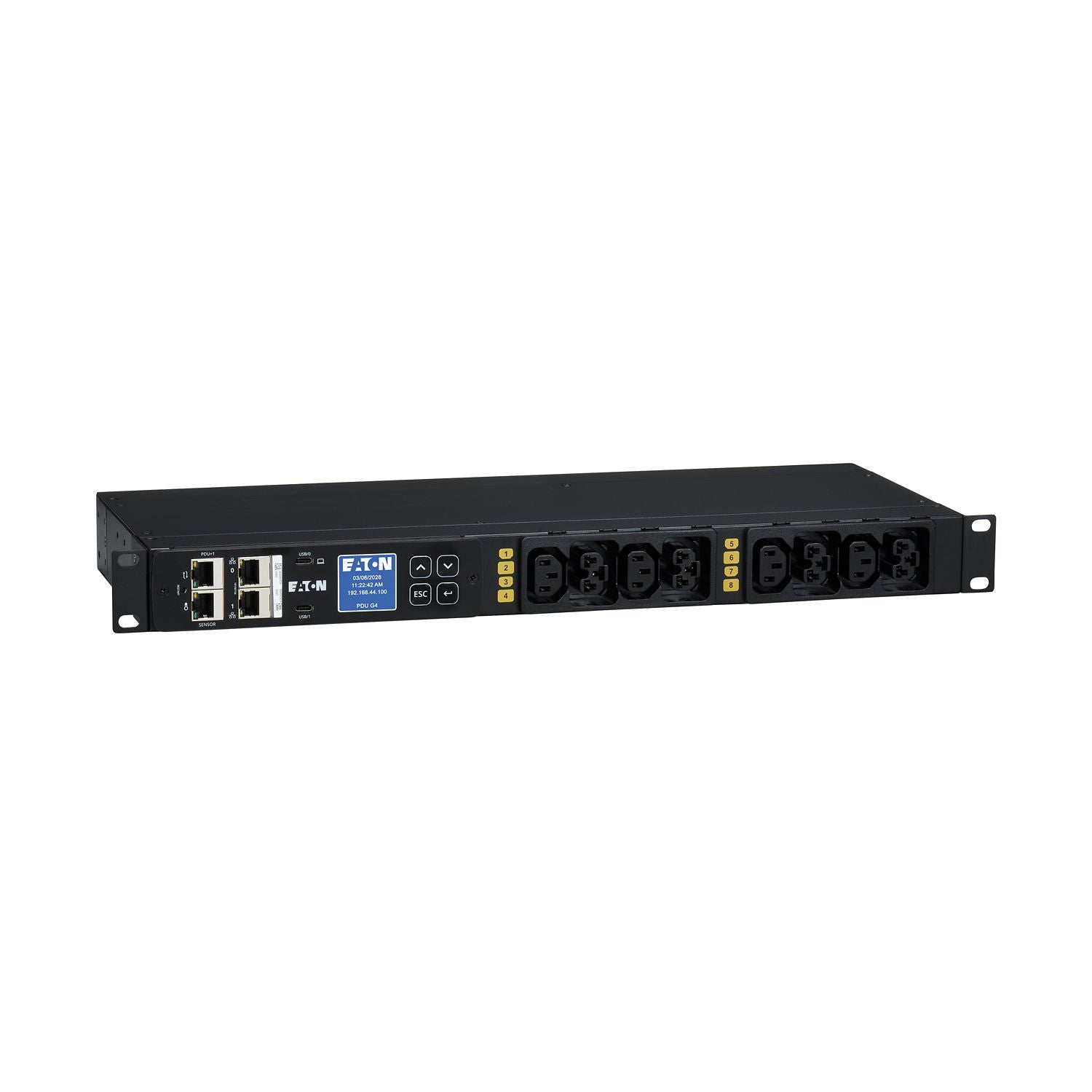

The Eaton EHMIL620N is a Metered Input horizontal rack PDU from Eaton's Rack PDU G4 range. It mounts in 1U of a standard 19-inch rack and feeds 8 outlets (4 x IEC C13 + 4 x IEC C39). Eaton describes Metered Input models as giving bank-level monitoring without outlet-level control — ideal when you need to watch load and capacity remotely without paying for per-outlet switching.
For Singapore IT teams, that means capacity planning from real figures and early warning before a circuit is overloaded.
Compact 1U Horizontal Format

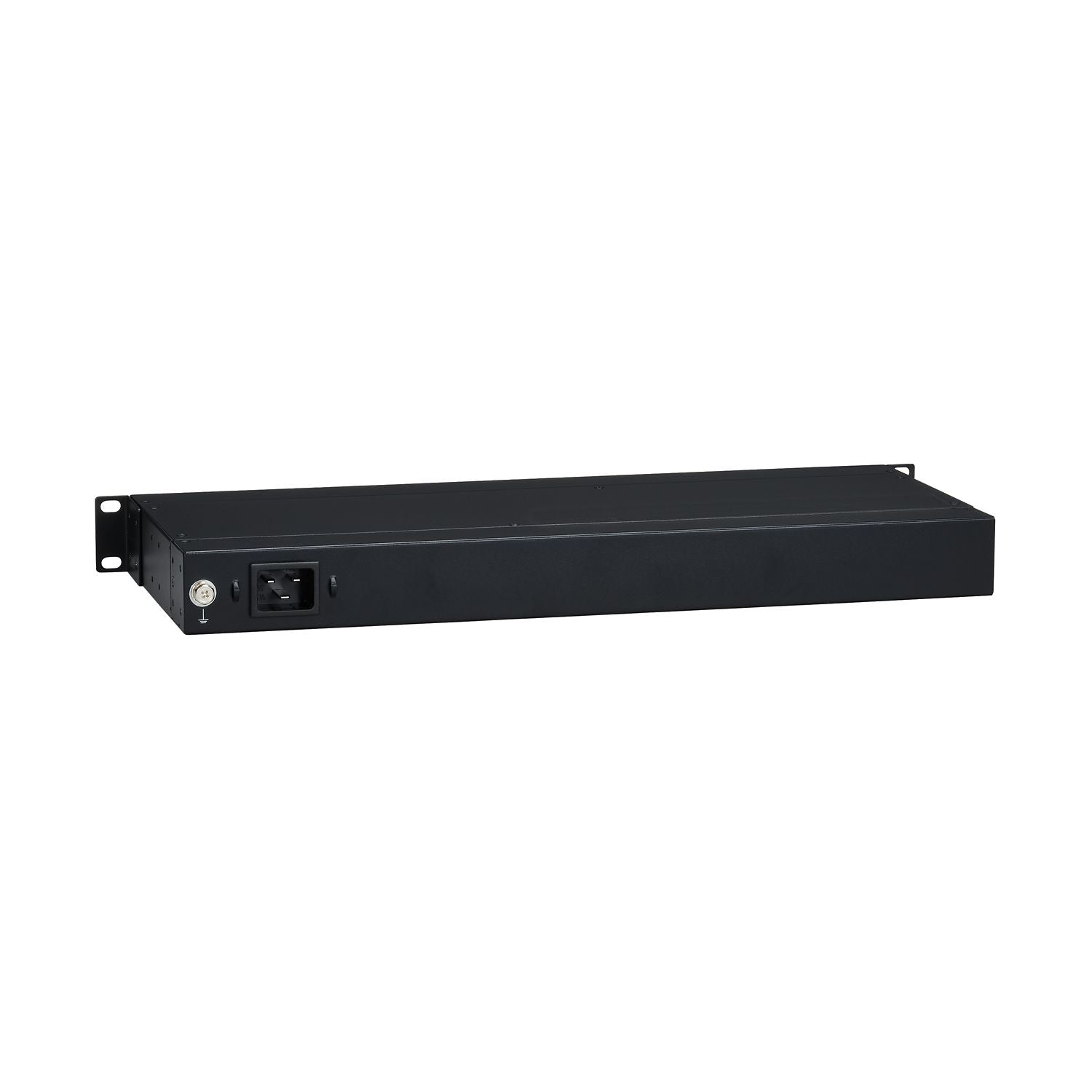

At 1U, this PDU fits where a vertical 0U strip will not — shallow network cabinets, wall-mount racks and open frames. Eaton lists the input as C20 / L6-20P on a 10 ft cord, rated 230 V 16 A (derated) for up to 3.7 kW.
Secure Gigabit Networking
Eaton's Rack PDU G4 range brochure lists gigabit Ethernet, a hot-swappable G4 network module, network cascading of up to 32 PDUs through one Ethernet port, and secure remote access via web browser, SNMP or MQTT plus a RESTful API. Security features include a zero-trust architecture with hardware root of trust and secure boot, a user-configurable firewall with IP whitelisting, and zero-touch provisioning; firmware updates are free without a support contract.
C39 Outlets That Take C14 or C20 Plugs
Eaton's C39 outlet accepts either a C14 or a C20 plug, so you can mix standard servers and switches with higher-power C20-corded equipment. The range is also compatible with P-Lock and P-Lock Lite locking cords.
Supplied Locally with GST Invoice and 2-Year Warranty
SourceIT supplies the Eaton Rack PDU G4 range in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives a 2-year warranty for ePDUs.
Need help choosing an input cable or outlet mix? Email sales@sourceit.com.sg with your rack layout and supply type.
Eaton EHMIL620N Datasheet — Technical Specifications
General
| Product Name | Eaton Rack PDU G4 (horizontal) |
| Catalogue Number | EHMIL620N |
| Part Number (SKU) | 9001-22407 |
| Range | Eaton Horizontal Rack PDU G4 |
| Type | Metered Input Rack PDU |
| Form Factor | 1U (horizontal, 19-inch rack) |
| Local Warranty (Singapore) | 2 years (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Power
| Phase | Single-phase |
| Input Connection | C20 / L6-20P |
| Input Voltage | 230 V (100–240 V) |
| Current Rating | 16 A (derated) |
| Frequency | 50/60 Hz |
| Power Rating | 3.7 kW |
| Cord Length | 10 ft (approx. 3 m) |
Outlets
| Total Outlets | 8 |
| Outlet Types | 4 x IEC C13 + 4 x IEC C39 |
| C39 Outlets | Accept C14 or C20 power cord plugs |
| Locking Cords | Compatible with Eaton P-Lock and P-Lock Lite cords |
Metering & Network
| Monitoring | Bank-level monitoring (no outlet-level control) |
| Network | Gigabit Ethernet |
| Network Module | Hot-swappable G4 network module |
| Access | Web browser, SNMP, MQTT, RESTful API |
| Cascading | Up to 32 PDUs through one Ethernet port |
| Security | Zero-trust architecture, hardware root of trust, secure boot, user-configurable firewall with IP whitelist |
| Provisioning | Zero-touch provisioning |
| Environmental Probes | Optional temperature, humidity and contact-closure probes |
Physical & Environmental
| Dimensions (H x W x D) | 1.7 x 17.5 x 6.9 in (approx. 43 x 445 x 175 mm) |
| Colour | Black |
| Certifications | cTUVus |
Compatibility & Software Support
What It Is Suited To
The EHMIL620N suits IT equipment with IEC C14 or C20 power cords — rack servers, storage, switches, routers and firewalls — in racks where a horizontal PDU is preferred. Keep the total connected load within the PDU's rating and the rating of the circuit that feeds it.
Monitoring and Integration
Manage the PDU from a web browser, or bring it into an existing NMS, BMS or DCIM platform over SNMP, MQTT or the RESTful API. Monitoring is at bank level; there is no outlet-level control.
Input Plug and Supply
Eaton lists the input as C20 / L6-20P on a 10 ft cord, 230 V, 16 A. An L6-20P is a North American NEMA locking plug, and a standard BS 1363 wall socket cannot feed this PDU — please confirm your rack feed with SourceIT before ordering so we can advise the right connection.
Package Contents & Horizontal Rack PDU G4 Ordering Information
In the Box
Eaton lists the package contents as: EHMIL620N Metered-Input Rack PDU G4, rack-mounting hardware, user documentation.
Eaton Horizontal Rack PDU G4 Range — Ordering Information
| EHMIL620N (this listing) | Metered Input, 1U, 1-phase 230V 16A, C20/L6-20P, 3.7 kW | 4 x C13 + 4 x C39 | 9001-22407 |
| EHMAL620N | Managed, 1U, 1-phase 230V 16A, C20/L6-20P, 3.7 kW | 4 x C13 + 4 x C39 | 9001-22408 |
| EHMI5606Q | Metered Input, 2U, 3-phase 240/415V Wye, 560P6W, 34.5 kW | 12 x C39 | 9001-22415 |
| EHMA5606Q | Managed, 2U, 3-phase 240/415V Wye, 560P6W, 34.5 kW | 12 x C39 | 9001-22416 |
| EHMIGU23A | Metered Input, 2U, Universal input, 5–23 kW | 12 x C13 + 12 x C39 | 9001-22417 |
| EHMAGU23A | Managed, 2U, Universal input, 5–23 kW | 12 x C13 + 12 x C39 | 9001-22418 |
| EHMIGU23D | Metered Input, 3U, Universal input, 5–23 kW | 18 x C13 + 18 x C39 | 9001-22419 |
| EHMAGU23D | Managed, 3U, Universal input, 5–23 kW | 18 x C13 + 18 x C39 | 9001-22420 |
| EHBAGU15Q | Basic, 1U, Universal input, 5–23 kW | 12 x C39 | 9001-22421 |
| EHBAGU15A | Basic, 2U, Universal input, 5–23 kW | 12 x C13 + 12 x C39 | 9001-22422 |
Figures from Eaton's Horizontal Rack PDU G4 brochure BR155062EN. Universal-input input cables and environmental probes are available on request.
Datasheet & Downloads
| Eaton specifications | Eaton EHMIL620N Specifications — Eaton Singapore |
| Eaton brochure | Eaton Horizontal Rack PDU G4 Brochure BR155062EN (PDF) |
| Quick guide | Eaton Rack PDU G4 Quick Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting EHMIL620N.
Frequently Asked Questions — Eaton EHMIL620N
What does the EHMIL620N monitor and control?
Eaton describes Metered Input models as giving bank-level monitoring without outlet-level control.
How do I access it remotely?
Over gigabit Ethernet using a web browser, SNMP, MQTT or the RESTful API. Up to 32 PDUs can be cascaded through one Ethernet port.
How many devices can I connect?
8 outlets: 4 x IEC C13 + 4 x IEC C39. C13 outlets take the common C14 cord; Eaton's C39 outlets take either a C14 or a C20 plug.
What supply do I need?
Eaton lists a 230 V 16 A input with a C20 / L6-20P connection on a 10 ft cord. Please confirm your rack feed with SourceIT before ordering.
What warranty do I get?
2 years per Eaton's Singapore price list, supplied by SourceIT with local Singapore support and a GST invoice.
