Eaton Horizontal Rack PDU G4 Managed 1U, Single-phase 230V 16A C20/L6-20P Input, 3.7 kW, 4x C13 + 4x C39, Outlet Control
PRODUCT DESCRIPTION
Eaton Horizontal Rack PDU G4 Managed 1U Single-phase 16A 3.7 kW Rack PDU (EHMAL620N, 9001-22408) - 2 Years Local Warranty
Outlet-Level Monitoring and Remote Outlet Control

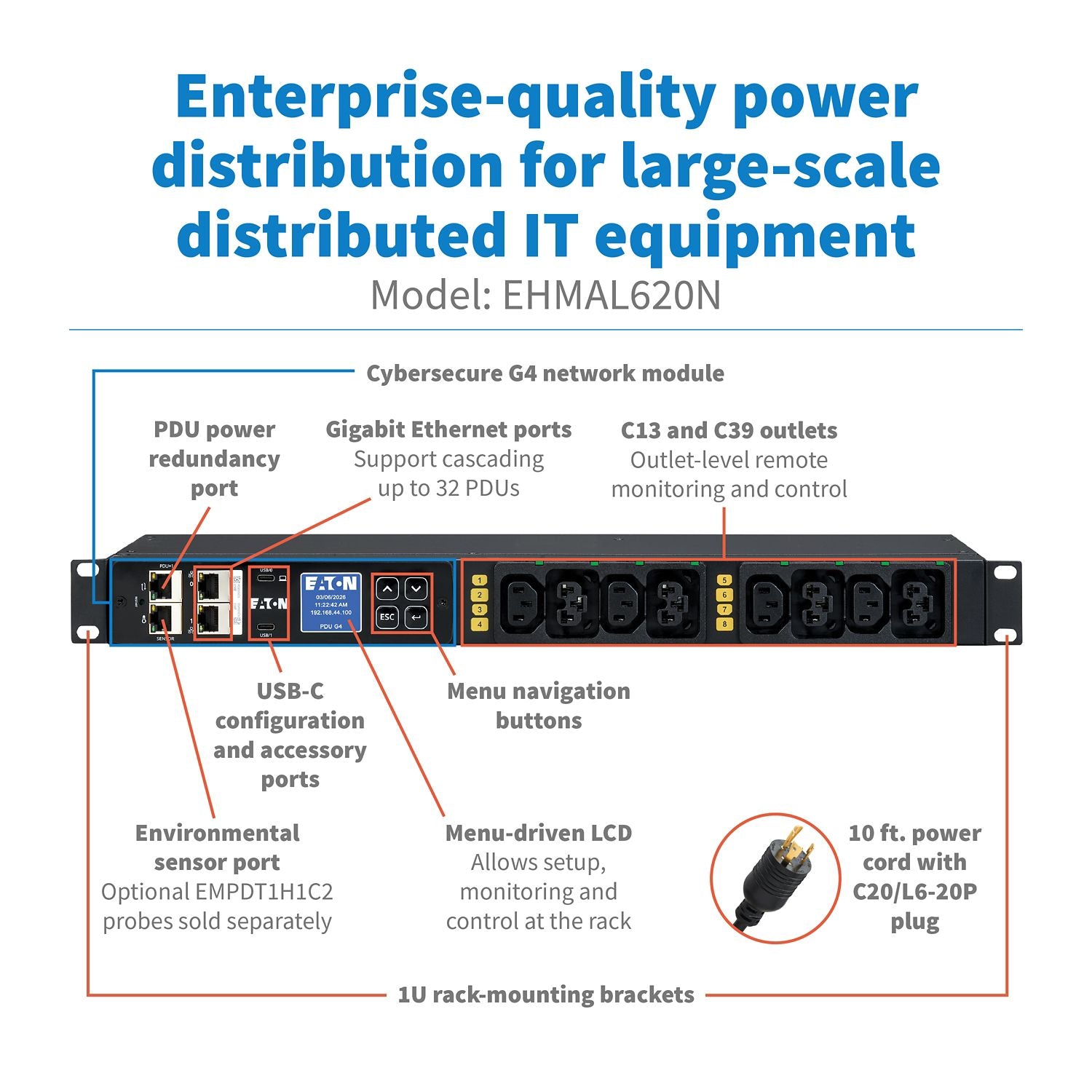

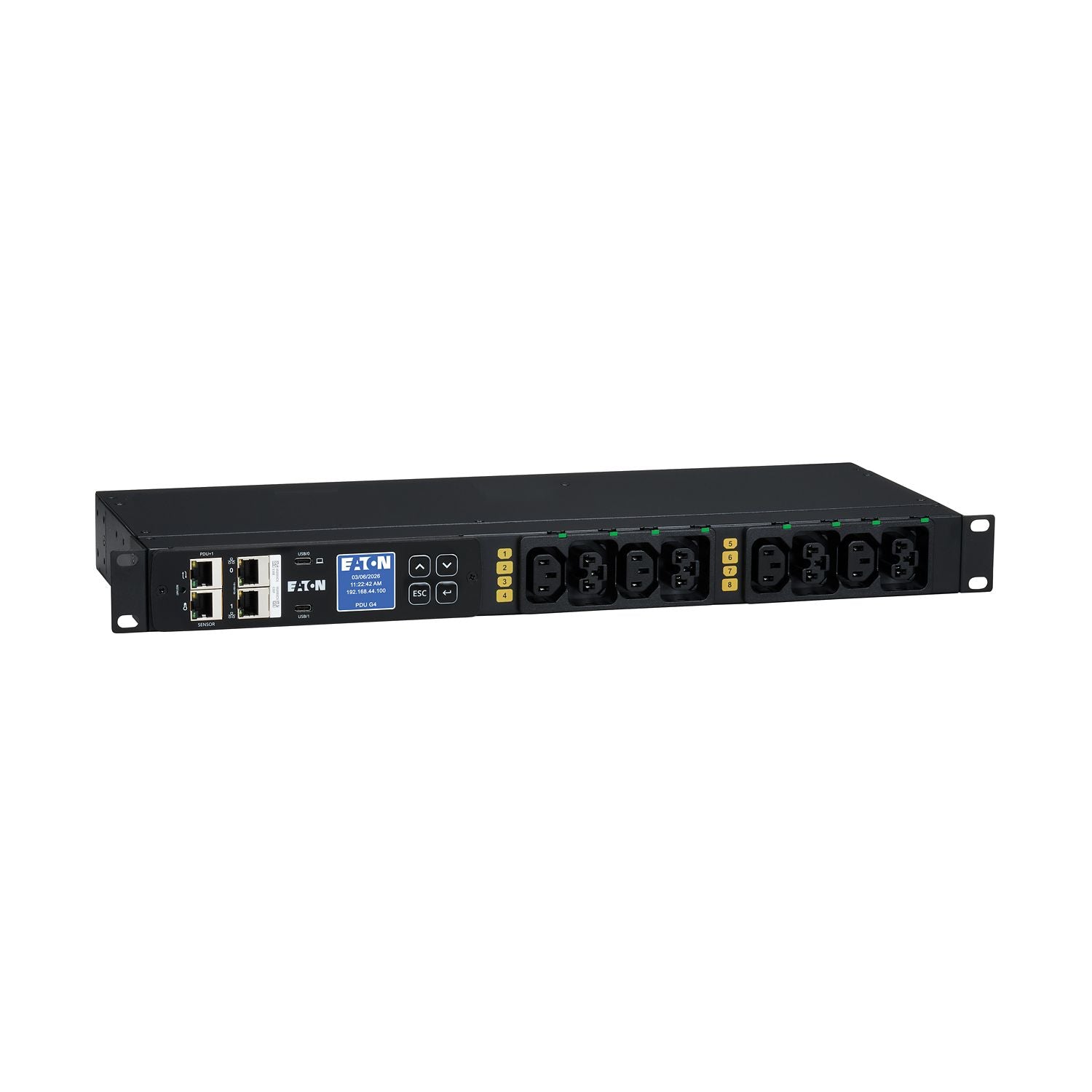

The Eaton EHMAL620N is a Managed horizontal rack PDU from Eaton's Rack PDU G4 range. It mounts in 1U of a standard 19-inch rack and feeds 8 outlets (4 x IEC C13 + 4 x IEC C39). Eaton describes Managed models as giving outlet-level monitoring and outlet-level control, so you can see what each device draws and switch or reboot individual outlets remotely.
For a Singapore server room, colocation cage or branch rack, that means power-cycling a hung server or switch without a site visit, and spotting overloaded circuits before they trip.
Compact 1U Horizontal Format
At 1U, this PDU fits where a vertical 0U strip will not — shallow network cabinets, wall-mount racks and open frames. Eaton lists the input as C20 / L6-20P on a 10 ft cord, rated 230 V 16 A (derated) for up to 3.7 kW.
Secure Gigabit Networking
Eaton's Rack PDU G4 range brochure lists gigabit Ethernet, a hot-swappable G4 network module, network cascading of up to 32 PDUs through one Ethernet port, and secure remote access via web browser, SNMP or MQTT plus a RESTful API. Security features include a zero-trust architecture with hardware root of trust and secure boot, a user-configurable firewall with IP whitelisting, and zero-touch provisioning; firmware updates are free without a support contract.
C39 Outlets That Take C14 or C20 Plugs
Eaton's C39 outlet accepts either a C14 or a C20 plug, so you can mix standard servers and switches with higher-power C20-corded equipment. The range is also compatible with P-Lock and P-Lock Lite locking cords.
Supplied Locally with GST Invoice and 2-Year Warranty
SourceIT supplies the Eaton Rack PDU G4 range in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives a 2-year warranty for ePDUs.
Need help choosing an input cable or outlet mix? Email sales@sourceit.com.sg with your rack layout and supply type.
Eaton EHMAL620N Datasheet — Technical Specifications
General
| Product Name | Eaton Rack PDU G4 (horizontal) |
| Catalogue Number | EHMAL620N |
| Part Number (SKU) | 9001-22408 |
| Range | Eaton Horizontal Rack PDU G4 |
| Type | Managed Rack PDU |
| Form Factor | 1U (horizontal, 19-inch rack) |
| Outlet Control | Yes |
| Local Warranty (Singapore) | 2 years (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Power
| Phase | Single-phase |
| Input Connection | C20 / L6-20P |
| Input Voltage | 230 V (100–240 V) |
| Current Rating | 16 A (derated) |
| Frequency | 50/60 Hz |
| Power Rating | 3.7 kW |
| Cord Length | 10 ft (approx. 3 m) |
| Overload Protection | (2) 2-pole circuit breakers |
Outlets
| Total Outlets | 8 |
| Outlet Types | 4 x IEC C13 + 4 x IEC C39 |
| C39 Outlets | Accept C14 or C20 power cord plugs |
| Locking Cords | Compatible with Eaton P-Lock and P-Lock Lite cords |
| LED Indicators | Green = outlet on; Red = PDU has power but outlet is off |
Metering & Network
| Monitoring | Outlet-level monitoring and outlet-level control |
| Measurement Accuracy | ±1% current, power and voltage |
| Network | Gigabit Ethernet |
| Network Module | Hot-swappable G4 network module |
| Network Ports | Serial/Ethernet ports for environmental monitoring and daisy-chain connections |
| Access | Web browser, SNMP, MQTT, RESTful API |
| Cascading | Up to 32 PDUs through one Ethernet port |
| Security | Zero-trust architecture, hardware root of trust, secure boot, user-configurable firewall with IP whitelist |
| Provisioning | Zero-touch provisioning |
| Environmental Probes | Optional temperature, humidity and contact-closure probes |
Physical & Environmental
| Dimensions (H x W x D) | 1.7 x 17.5 x 6.9 in (approx. 43 x 445 x 175 mm) |
| Colour | Black |
| Operating Temperature | -20 °C to 50 °C |
| Certifications | cTUVus |
Compatibility & Software Support
What It Is Suited To
The EHMAL620N suits IT equipment with IEC C14 or C20 power cords — rack servers, storage, switches, routers and firewalls — in racks where a horizontal PDU is preferred. Keep the total connected load within the PDU's rating and the rating of the circuit that feeds it.
Monitoring and Integration
Manage the PDU from a web browser, or bring it into an existing NMS, BMS or DCIM platform over SNMP, MQTT or the RESTful API. Outlets can be monitored and switched individually.
Input Plug and Supply
Eaton lists the input as C20 / L6-20P on a 10 ft cord, 230 V, 16 A. An L6-20P is a North American NEMA locking plug, and a standard BS 1363 wall socket cannot feed this PDU — please confirm your rack feed with SourceIT before ordering so we can advise the right connection.
Package Contents & Horizontal Rack PDU G4 Ordering Information
In the Box
Eaton lists the package contents as: EHMAL620N Managed Rack PDU G4, rack-mounting hardware, user documentation.
Eaton Horizontal Rack PDU G4 Range — Ordering Information
| EHMIL620N | Metered Input, 1U, 1-phase 230V 16A, C20/L6-20P, 3.7 kW | 4 x C13 + 4 x C39 | 9001-22407 |
| EHMAL620N (this listing) | Managed, 1U, 1-phase 230V 16A, C20/L6-20P, 3.7 kW | 4 x C13 + 4 x C39 | 9001-22408 |
| EHMI5606Q | Metered Input, 2U, 3-phase 240/415V Wye, 560P6W, 34.5 kW | 12 x C39 | 9001-22415 |
| EHMA5606Q | Managed, 2U, 3-phase 240/415V Wye, 560P6W, 34.5 kW | 12 x C39 | 9001-22416 |
| EHMIGU23A | Metered Input, 2U, Universal input, 5–23 kW | 12 x C13 + 12 x C39 | 9001-22417 |
| EHMAGU23A | Managed, 2U, Universal input, 5–23 kW | 12 x C13 + 12 x C39 | 9001-22418 |
| EHMIGU23D | Metered Input, 3U, Universal input, 5–23 kW | 18 x C13 + 18 x C39 | 9001-22419 |
| EHMAGU23D | Managed, 3U, Universal input, 5–23 kW | 18 x C13 + 18 x C39 | 9001-22420 |
| EHBAGU15Q | Basic, 1U, Universal input, 5–23 kW | 12 x C39 | 9001-22421 |
| EHBAGU15A | Basic, 2U, Universal input, 5–23 kW | 12 x C13 + 12 x C39 | 9001-22422 |
Figures from Eaton's Horizontal Rack PDU G4 brochure BR155062EN. Universal-input input cables and environmental probes are available on request.
Datasheet & Downloads
| Eaton specifications | Eaton EHMAL620N Specifications — Eaton Singapore |
| Eaton brochure | Eaton Horizontal Rack PDU G4 Brochure BR155062EN (PDF) |
| Quick guide | Eaton Rack PDU G4 Quick Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting EHMAL620N.
Frequently Asked Questions — Eaton EHMAL620N
What does the EHMAL620N monitor and control?
Eaton describes Managed models as giving outlet-level monitoring and outlet-level control, with ±1% current, power and voltage measurement accuracy.
How do I access it remotely?
Over gigabit Ethernet using a web browser, SNMP, MQTT or the RESTful API. Up to 32 PDUs can be cascaded through one Ethernet port.
How many devices can I connect?
8 outlets: 4 x IEC C13 + 4 x IEC C39. C13 outlets take the common C14 cord; Eaton's C39 outlets take either a C14 or a C20 plug.
What supply do I need?
Eaton lists a 230 V 16 A input with a C20 / L6-20P connection on a 10 ft cord. Please confirm your rack feed with SourceIT before ordering.
What warranty do I get?
2 years per Eaton's Singapore price list, supplied by SourceIT with local Singapore support and a GST invoice.
