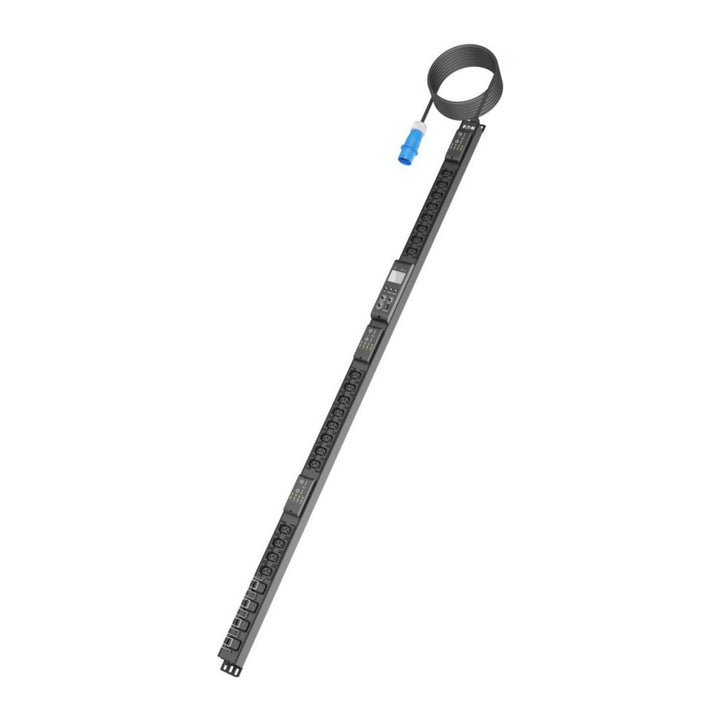

Eaton FlexPDU G2 Managed 0U Vertical Rack PDU, Single-phase 32A IEC 60309 Input, 20x C13 + 4x C19, Per-Outlet Metering & Switching
PRODUCT DESCRIPTION
Eaton FlexPDU G2 Managed 0U Single-phase 32A Rack PDU (FLXTMA132C2, P-FLXTMA132C2) - 2 Years Local Warranty
Control and Measure Every Outlet
The Eaton FlexPDU G2 FLXTMA132C2 is a Managed rack PDU from Eaton's second-generation FlexPDU range. It takes a single-phase 32A IEC 60309 feed and distributes up to 7.4 kW to 24 IEC outlets (20 x IEC C13 + 4 x IEC C19). Eaton's Managed models combine per-outlet measurements with remote on/off outlet switching, user-defined power-on/power-off sequencing and grouped outlet control, on top of whole-PDU metering with ±1% accuracy.
For a Singapore data centre, colocation suite or server room, that means you can see which device is drawing what, power-cycle a hung server remotely instead of sending someone on site, and stagger start-up after an outage so the feed is not overloaded.
Full Network Management, Built for Security
Eaton's FlexPDU G2 Managed models include a hot-swappable network management module with a 10/100 Mbps Ethernet port, full management through a web browser or SNMP, and support for HTTPS, SSH v2, SNMP, SMTP, DHCP, RADIUS, NTP and TELNET over IPv4 and IPv6. Firmware can be upgraded remotely, up to 8 external sensors can be connected, and the range supports cascade (daisy-chain) connection.
Eaton states the FlexPDU G2 network models meet the UL 2900-1 and IEC 62443-4-1 cybersecurity standards, and on 0U models the network management module can be replaced without interrupting power to the connected equipment.
Built for Safety in the Rack
Eaton equips every outlet with an anti-ejection mechanism so power cords are held firmly in place, uses pure copper for the main circuit conductors, and provides additional enclosure grounding points. Models rated 32A and above are fitted with hydraulic-magnetic circuit breakers; this one has 2 x 16A single-pole breakers.
Supplied Locally with GST Invoice and 2-Year Warranty
SourceIT supplies the FlexPDU G2 range in Singapore with a full GST invoice and local warranty support. Eaton's FlexPDU G2 brochure and Eaton's Singapore price list both give a 2-year warranty.
Need help choosing an input plug or outlet mix? Email sales@sourceit.com.sg with your rack layout and supply type.
Eaton FLXTMA132C2 Datasheet — Technical Specifications
General
| Product Name | Eaton FlexPDU G2 |
| Catalogue Number | FLXTMA132C2 |
| Part Number (SKU) | P-FLXTMA132C2 |
| Range | Eaton FlexPDU 2nd Generation (G2) |
| Type | Managed rack PDU (per-outlet metering and switching, network management) |
| Form Factor | 0U vertical (zero-U, mounts in the rack's side channel) |
| Manufacturer Warranty | 2 years (Eaton FlexPDU G2 brochure) |
| Local Warranty (Singapore) | 2 years, supplied by SourceIT with a GST invoice |
Power
| Phase | Single-phase |
| Input Connection | IEC 60309 plug |
| Input Rating | 32 A |
| Nominal Voltage | 230V (Eaton Singapore price list) |
| Nominal Power | 7.4 kW |
| Circuit Breakers | 2 x 16A single-pole, hydraulic-magnetic |
| Input Cord Length | 3.0 m (Eaton brochure) |
Outlets
| Total Outlets | 24 |
| Outlet Types | 20 x IEC C13 + 4 x IEC C19 |
| Outlet Retention | Anti-ejection mechanism on all outlets |
Metering & Network
| Metering | Per-outlet measurements plus full PDU measurements |
| Whole-PDU Measurement Accuracy | ±1% |
| Outlet Switching | Remote on/off switching of individual outlets |
| Power Sequencing | User-defined power-on / power-off sequence |
| Outlet Groups | Grouped outlet control |
| Network Interface | 10/100 Mbps Ethernet; web and SNMP management |
| Protocols | HTTPS, SSH v2, SNMP, SMTP, DHCP, RADIUS, NTP, TELNET; IPv4 and IPv6 |
| Firmware | Remote firmware upgrade |
| External Sensors | Up to 8 |
| Cascade (Daisy-chain) | Supported |
| Network Module | Hot-swappable (0U models) |
| Cybersecurity | Meets UL 2900-1 and IEC 62443-4-1 |
Physical & Environmental
| Main Conductors | Pure copper |
| Maximum Operating Temperature | 50 °C |
| Operating Altitude | 0–3,000 m |
| Certifications | CE; EN 62368-1:2014 |
Compatibility & Software Support
What It Is Suited To
The FLXTMA132C2 suits IT equipment with IEC C14 or C20 power cords — rack servers, storage arrays, switches, routers and firewalls. Keep the total connected load within 7.4 kW and within the rating of the supply that feeds the PDU.
Monitoring and Software
Manage the PDU from any web browser, or bring it into an existing monitoring or DCIM platform over SNMP (Eaton lists SNMP among the supported protocols, along with SMTP for e-mail alerts and RADIUS for central authentication). Outlet-level readings and outlet on/off control are available through the same network interface.
Input Plug and Supply
The input is an IEC 60309 32A single-phase industrial plug. Your rack feed needs the matching IEC 60309 socket, installed by a licensed electrician; a standard BS 1363 wall socket cannot feed this PDU.
Package Contents & FlexPDU G2 Managed Ordering Information
In the Box
Eaton FlexPDU G2 Managed PDU with user documentation. Eaton's brochure does not list the carton contents or mounting hardware, so confirm brackets and accessories with us before ordering if they matter to your installation.
Eaton FlexPDU G2 Managed Range — Ordering Information
| FLXTMA116C2 | 0U, 1-phase, IEC 60309 16A, 3.7 kW | 20 x C13 + 4 x C19 | P-FLXTMA116C2 |
| FLXTMA132C2 (this listing) | 0U, 1-phase, IEC 60309 32A, 7.4 kW | 20 x C13 + 4 x C19 | P-FLXTMA132C2 |
| FLXTMA163C5 | 0U, 1-phase, IEC 60309 63A, 14.5 kW | 36 x C13 + 6 x C19 | P-FLXTMA163C5 |
| FLXTMA316C3 | 0U, 3-phase, IEC 60309 16A, 11.0 kW | 18 x C13 + 6 x C19 | P-FLXTMA316C3 |
| FLXTMA332C3 | 0U, 3-phase, IEC 60309 32A, 22.0 kW | 18 x C13 + 6 x C19 | P-FLXTMA332C3 |
| FLXTMA332C5 | 0U, 3-phase, IEC 60309 32A, 22.0 kW | 36 x C13 + 6 x C19 | P-FLXTMA332C5 |
| FLXTMA363C5 | 0U, 3-phase, IEC 60309 63A, 43.5 kW | 36 x C13 + 6 x C19 | P-FLXTMA363C5 |
Basic, Metered Input and Switched FlexPDU G2 models are also available on request.
Datasheet & Downloads
| Eaton brochure | Eaton FlexPDU G2 Brochure — East Asia (PDF) |
| Eaton datasheet | Eaton FlexPDU G2 Datasheet BR155060EN (PDF) |
| Eaton product page | Eaton FlexPDU G2 — Eaton Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting FLXTMA132C2.
Frequently Asked Questions — Eaton FLXTMA132C2
What is the difference between Managed, Switched and Metered Input?
Per Eaton, Metered Input models measure the whole PDU; Switched models add remote outlet on/off switching, power sequencing and outlet groups; Managed models such as the FLXTMA132C2 add per-outlet measurements on top of all of that.
Can I reboot a server remotely?
Yes. Individual outlets can be switched on and off remotely through the web interface or SNMP, and you can define the power-on/power-off order.
How do I access it remotely?
Through its 10/100 Mbps Ethernet port, using a web browser or SNMP. Supported protocols include HTTPS, SSH v2, SNMP, SMTP, DHCP, RADIUS, NTP and TELNET, over IPv4 and IPv6.
Can I add temperature or humidity sensors?
Yes — Eaton lists an external sensor capacity of 8 for FlexPDU G2 network models. Sensors are sold separately; ask us for a quote.
How many devices can I connect?
24 outlets: 20 x IEC C13 + 4 x IEC C19. C13 outlets take the common IEC C14 server/switch cord; C19 outlets take C20 cords used by higher-power equipment. The total load must stay within 7.4 kW.
What supply do I need?
A single-phase 32A feed matching the IEC 60309 input (230V per Eaton's Singapore price list). An IEC 60309 socket must be installed by a licensed electrician.
What warranty do I get?
2 years from Eaton, supplied by SourceIT with local Singapore support and a GST invoice.
