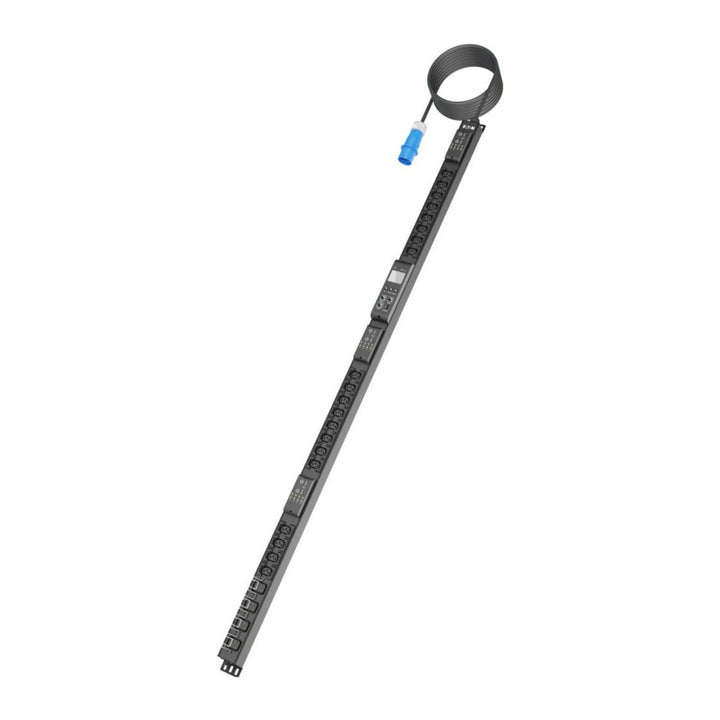

Eaton FlexPDU G2 Basic 0U Vertical Rack PDU, Single-phase 32A IEC 60309 Input, 20x C13 + 4x C19
PRODUCT DESCRIPTION
Eaton FlexPDU G2 Basic 0U Single-phase 32A Rack PDU (FLXTBA132C2, P-FLXTBA132C2) - 2 Years Local Warranty
Simple, Dependable Rack Power Distribution
The Eaton FlexPDU G2 FLXTBA132C2 is a Basic (non-metered, non-networked) rack PDU from Eaton's second-generation FlexPDU range. It takes an IEC 60309 32A single-phase feed and distributes up to 7.4 kW to 24 IEC outlets (20 x IEC C13 + 4 x IEC C19), which makes it a straightforward way to power servers, storage and network switches in a Singapore server room, comms cabinet or colocation rack.
The 0U vertical format mounts in the rear side channel of the rack, so it leaves every U of rack space free for equipment and keeps power cords short and tidy.
Built for Safety in the Rack
Eaton equips every outlet with an anti-ejection mechanism so power cords are held firmly in place, uses pure copper for the main circuit conductors, and provides additional enclosure grounding points. This model is protected by hydraulic-magnetic circuit breakers (2 x 16A single-pole), which split the load into branch circuits.
High-Capacity Single-Phase Feed
The 32A IEC 60309 input delivers up to 7.4 kW on a single-phase supply — useful where the building provides a single-phase commando socket but the rack still carries a heavy load.
Supplied Locally with GST Invoice and 2-Year Warranty
SourceIT supplies the FlexPDU G2 range in Singapore with a full GST invoice and local warranty support. Eaton's FlexPDU G2 brochure and Eaton's Singapore price list both give a 2-year warranty.
Need help choosing an input plug or outlet mix? Email sales@sourceit.com.sg with your rack layout and supply type.
Eaton FLXTBA132C2 Datasheet — Technical Specifications
General
| Product Name | Eaton FlexPDU G2 |
| Catalogue Number | FLXTBA132C2 |
| Part Number (SKU) | P-FLXTBA132C2 |
| Range | Eaton FlexPDU 2nd Generation (G2) |
| Type | Basic rack PDU (no metering, no network interface) |
| Form Factor | 0U vertical (zero-U, mounts in the rack's side channel) |
| Manufacturer Warranty | 2 years (Eaton FlexPDU G2 brochure) |
| Local Warranty (Singapore) | 2 years, supplied by SourceIT with a GST invoice |
Power
| Phase | Single-phase |
| Input Connection | IEC 60309 plug |
| Input Rating | 32 A |
| Nominal Voltage | 230V (Eaton Singapore price list) |
| Nominal Power | 7.4 kW |
| Circuit Breakers | 2 x 16A single-pole |
| Input Cord Length | 3.0 m |
Outlets
| Total Outlets | 24 |
| Outlet Types | 20 x IEC C13 + 4 x IEC C19 |
| Outlet Retention | Anti-ejection mechanism on all outlets |
Physical & Environmental
| Dimensions | 1137 x 52 x 44.4 mm (L x W x D) |
| Main Conductors | Pure copper |
| Maximum Operating Temperature | 50 °C |
| Operating Altitude | 0–3,000 m |
| Certifications | CE; EN 62368-1:2014 |
Compatibility & Software Support
What It Is Suited To
The FLXTBA132C2 suits IT equipment with IEC C14 or C20 power cords — rack servers, storage arrays, switches, routers and firewalls. Keep the total connected load within 7.4 kW and within the rating of the supply that feeds the PDU.
Monitoring and Software
This is a Basic model: it has no display, no metering and no network port, so there is no software to install. If you need to see current draw or manage outlets remotely, the FlexPDU G2 range also includes Metered Input, Switched and Managed models — ask us for the equivalent part.
Input Plug and Supply
The input is an IEC 60309 32A single-phase industrial plug. Your rack feed needs the matching IEC 60309 socket, installed by a licensed electrician; a standard BS 1363 wall socket cannot feed this PDU.
Package Contents & FlexPDU G2 Basic Ordering Information
In the Box
Eaton FlexPDU G2 Basic PDU with user documentation. Eaton's brochure does not list the carton contents or mounting hardware, so confirm brackets and accessories with us before ordering if they matter to your installation.
Eaton FlexPDU G2 Basic Range — Ordering Information
| FLXTBAC14C1 | 1U, 1-phase, IEC C14 10A, 2.3 kW | 8 x C13 | P-FLXTBAC14C1 |
| FLXTBAC20C1 | 1U, 1-phase, IEC C20 16A, 3.7 kW | 8 x C13 | P-FLXTBAC20C1 |
| FLXTBAC20C2 | 0U, 1-phase, IEC C20 16A, 3.7 kW | 20 x C13 + 4 x C19 | P-FLXTBAC20C2 |
| FLXTBA116C2 | 0U, 1-phase, IEC 60309 16A, 3.7 kW | 20 x C13 + 4 x C19 | P-FLXTBA116C2 |
| FLXTBA132C2 (this listing) | 0U, 1-phase, IEC 60309 32A, 7.4 kW | 20 x C13 + 4 x C19 | P-FLXTBA132C2 |
| FLXTBA163C5 | 0U, 1-phase, IEC 60309 63A, 14.5 kW | 36 x C13 + 6 x C19 | P-FLXTBA163C5 |
| FLXTBAT13C2 | 0U, 1-phase, 32A junction box, 7.4 kW | 20 x C13 + 4 x C19 | P-FLXTBAT13C2 |
| FLXTBA316C3 | 0U, 3-phase, IEC 60309 16A, 11.0 kW | 18 x C13 + 6 x C19 | P-FLXTBA316C3 |
| FLXTBA316C5 | 0U, 3-phase, IEC 60309 16A, 11.0 kW | 36 x C13 + 6 x C19 | P-FLXTBA316C5 |
| FLXTBA332C3 | 0U, 3-phase, IEC 60309 32A, 22.0 kW | 18 x C13 + 6 x C19 | P-FLXTBA332C3 |
| FLXTBA332C4 | 0U, 3-phase, IEC 60309 32A, 22.0 kW | 30 x C13 + 6 x C19 | P-FLXTBA332C4 |
| FLXTBA332C5 | 0U, 3-phase, IEC 60309 32A, 22.0 kW | 36 x C13 + 6 x C19 | P-FLXTBA332C5 |
| FLXTBAT33C3 | 0U, 3-phase, 32A junction box, 22.0 kW | 18 x C13 + 6 x C19 | P-FLXTBAT33C3 |
| FLXTBA363C5 | 0U, 3-phase, IEC 60309 63A, 43.5 kW | 36 x C13 + 6 x C19 | P-FLXTBA363C5 |
Metered Input, Switched and Managed FlexPDU G2 models are also available on request.
Datasheet & Downloads
| Eaton brochure | Eaton FlexPDU G2 Brochure — East Asia (PDF) |
| Eaton datasheet | Eaton FlexPDU G2 Datasheet BR155060EN (PDF) |
| Eaton product page | Eaton FlexPDU G2 — Eaton Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting FLXTBA132C2.
Frequently Asked Questions — Eaton FLXTBA132C2
Does the FLXTBA132C2 show power consumption?
No. It is a Basic PDU with no meter or network port. Choose a FlexPDU G2 Metered Input model to see the load, or a Switched / Managed model for per-outlet control.
How many devices can I connect?
24 outlets: 20 x IEC C13 + 4 x IEC C19. C13 outlets take the common IEC C14 server/switch cord; C19 outlets take C20 cords used by higher-power equipment. The total load must stay within 7.4 kW.
What supply do I need?
A single-phase 32A feed matching the IEC 60309 input. An IEC 60309 socket must be installed by a licensed electrician.
What warranty do I get?
2 years from Eaton, supplied by SourceIT with local Singapore support and a GST invoice.
