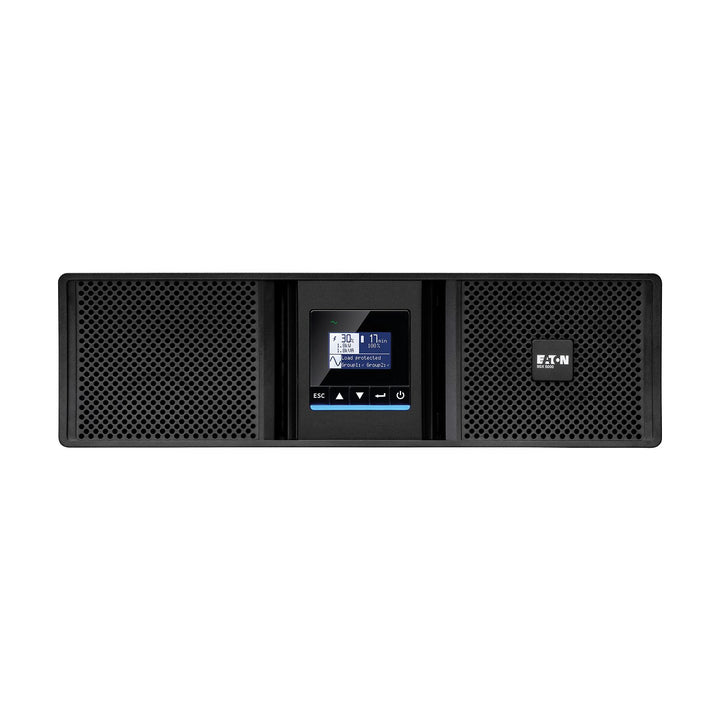

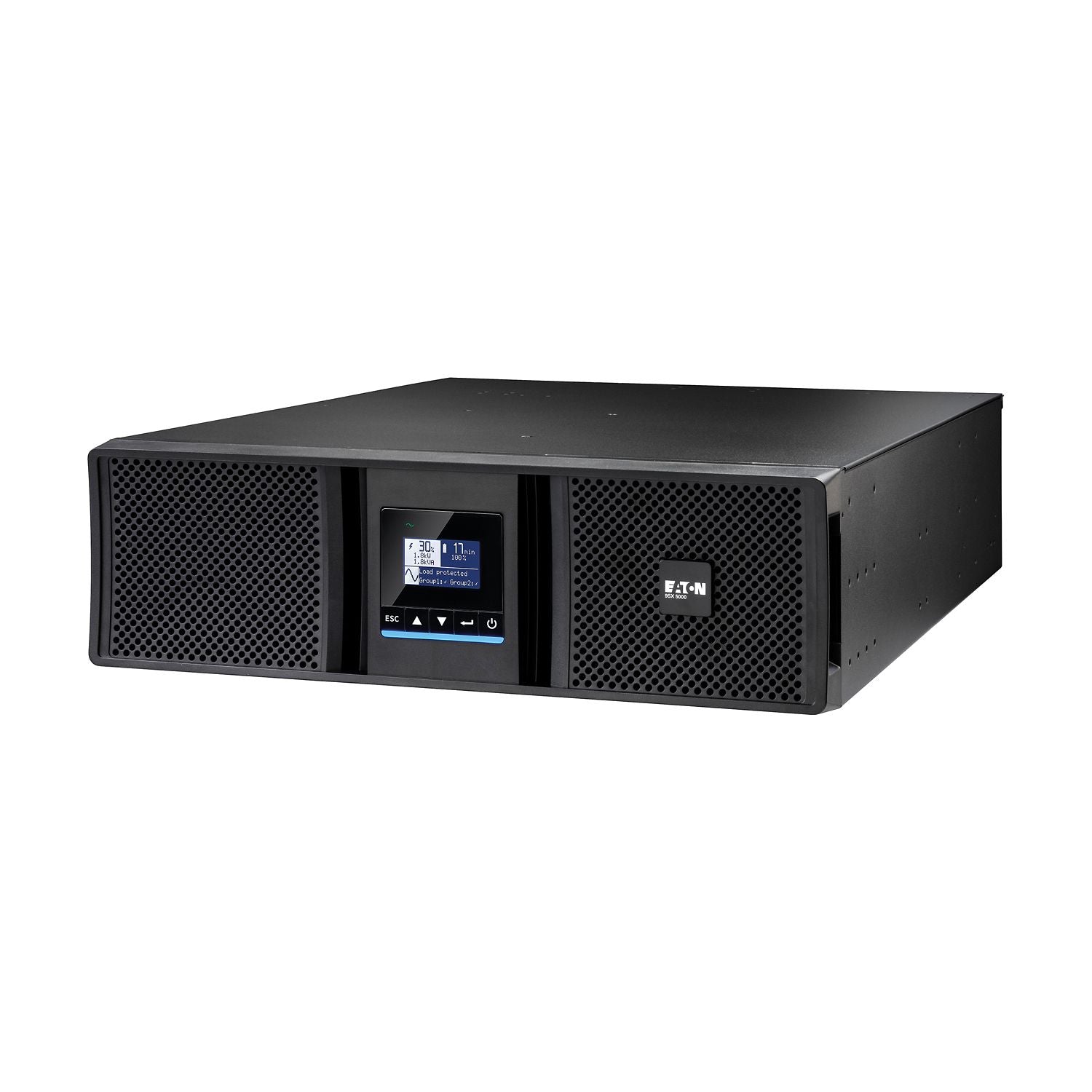

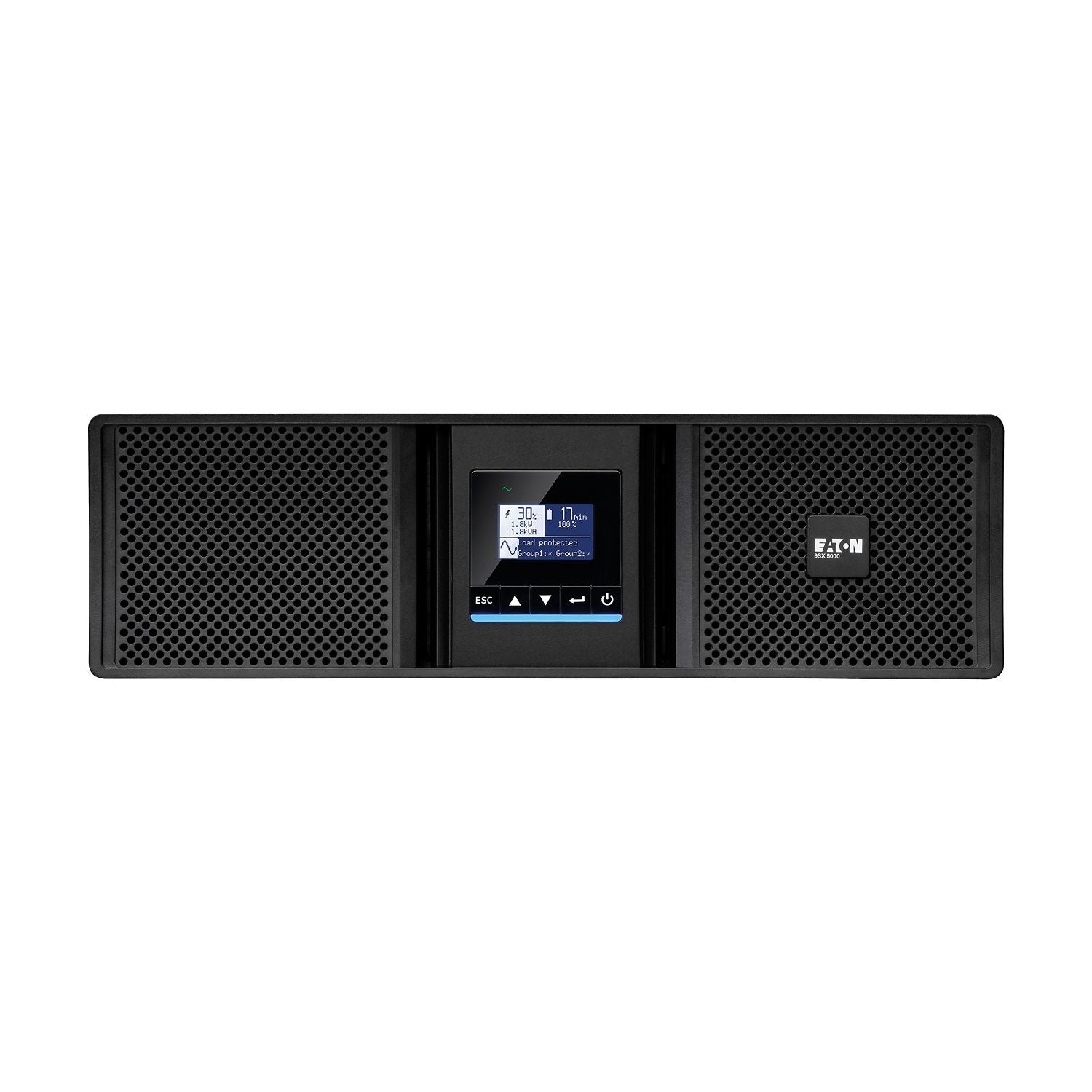

Eaton 9SX Gen2 6000VA 6000W Online Double-Conversion Rack/Tower UPS, 3U, 8x C13 + 3x C19 + Hardwired
PRODUCT DESCRIPTION
Eaton 9SX Gen2 6000VA/6000W Online Rack/Tower UPS (9SX6KIRT3UG2, 9104-12943) - 3 Years Local Warranty
Online Double-Conversion Power for Server Rooms and Edge Sites
The Eaton 9SX Gen2 9SX6KIRT3UG2 is a 6000 VA / 6000 W online double-conversion UPS. The inverter regenerates every watt your equipment draws, so servers, storage, network cores and telecom gear see a clean sine wave (max. 1% distortion on linear loads) regardless of sags, surges or frequency drift on the incoming supply.
For Singapore server rooms, comms rooms and branch sites that cannot tolerate a transfer gap, the 9SX Gen2 rack/tower models give true online protection with a unity (1.0) output power factor, so the kW rating equals the kVA rating.
Unity Power Factor and High Efficiency
With an output power factor of 1, the 9SX6KIRT3UG2 delivers its full 6000 W as real power. Eaton publishes 96.5% efficiency at maximum load, and input power factor above 0.99. The input window is 176–276 V (100–276 V with derating), so routine dips are handled without drawing on the battery.
Hot-Swappable Batteries with ABM+ Predictive Battery Life
The internal battery set (15 x 12 V / 5 Ah, sealed lead-acid) and external battery modules (EBMs) are hot-swappable. Eaton lists ABM+ (predictive battery life) or temperature-compensated charging (user selectable). An internal bypass keeps the load powered while the UPS needs attention.
Graphical LCD, Monitoring Ports and a Card Slot
A multilingual graphical LCD shows status and measurements. Eaton lists USB port (HID compliant), serial port (RS232), mini-terminal block for remote On/Off, plus one expansion slot for an optional network card (not included). The UPS works with the Eaton Brightlayer software suite for monitoring and orderly shutdown.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the Eaton 9SX Gen2 in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives this model 3 years on the UPS and its internal battery.
Need help sizing? Email sales@sourceit.com.sg with your load in watts and the runtime you need.
Eaton 9SX6KIRT3UG2 Datasheet — Technical Specifications
General
| Product Name | Eaton 9SX Gen2 UPS |
| Model Code | Eaton 9SX 6000i RT3U G2 |
| Catalogue Number | 9SX6KIRT3UG2 |
| Part Number (SKU) | 9104-12943 |
| EAN | 3553340710667 |
| Range | Eaton 9SX Gen2 |
| Topology | Online double-conversion |
| Form Factor | Rack/tower convertible, 482.6 mm (19-inch) device, 130 mm high (3U) |
| Rack Mounting Kit | Included (brackets and slides) |
| Colour | Black |
| Local Warranty (Singapore) | 3 years on the UPS and its internal battery (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Power
| Rated Power | 6000 VA / 6000 W |
| Output Power Factor | 1 |
| Input Voltage Range | 176–276 V (100–276 V with derating) |
| Input Frequency Range | 40–70 Hz |
| Nominal Frequency | 50/60 Hz |
| Input Power Factor | >0.99 |
| Output Voltage | 230 V default (200/208/220/230/240 V) |
| Output Waveform | Sine wave (max. 1% distortion, linear load) |
| Output Connections | 8 x IEC C13 + 3 x IEC C19 + hardwired |
| Internal Bypass | Yes |
| Efficiency at Max. Load | 96.5% |
Battery
| Internal Battery | 15 x 12 V / 5 Ah, sealed lead-acid |
| Battery Management | ABM+ (predictive battery life) or temperature-compensated charging |
| Battery Replacement | Hot-swappable internal batteries and extended battery modules (EBMs) |
| Extended Battery Capability | Yes |
Communications
| Communication Ports | USB port (HID compliant), serial port (RS232), mini-terminal block for remote On/Off |
| Potential-Free Switch Contact | Yes |
| Expansion Slot | One slot |
| Network Card Included | No |
| User Interface | Multilingual graphical LCD display |
| Software | Eaton Brightlayer software suite |
| Auto Shutdown | Yes |
Physical & Environmental
| Dimensions (W x H x D) | 440 x 130 x 684 mm |
| Weight | 43.1 kg |
| Noise Level | <40 dB at 1 m |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 0–95% non-condensing |
| Altitude | 3000 m |
| Compliances | LVD Directive (CB), EMC Directive, RoHS Directive, REACH, WEEE Directive, Packaging Directive, Batteries Directive |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, ENERGY STAR certified, CE, cULus, UKCA, Cm, Ukr, RCM, KCC, BSMI |
Compatibility & Software Support
What It Is Suited To
Server racks, storage, core switches, telecom and edge equipment that need a continuously regenerated sine-wave supply. The watt rating (6000 W) is the limit: total the continuous watts of everything you connect and leave headroom for growth.
Operating Systems and Software
The USB port is HID compliant, so common operating systems recognise the UPS as a power source. Eaton's Brightlayer software suite handles monitoring and orderly shutdown; the expansion slot takes an optional Eaton network card for monitoring over the LAN.
Connections and Installation

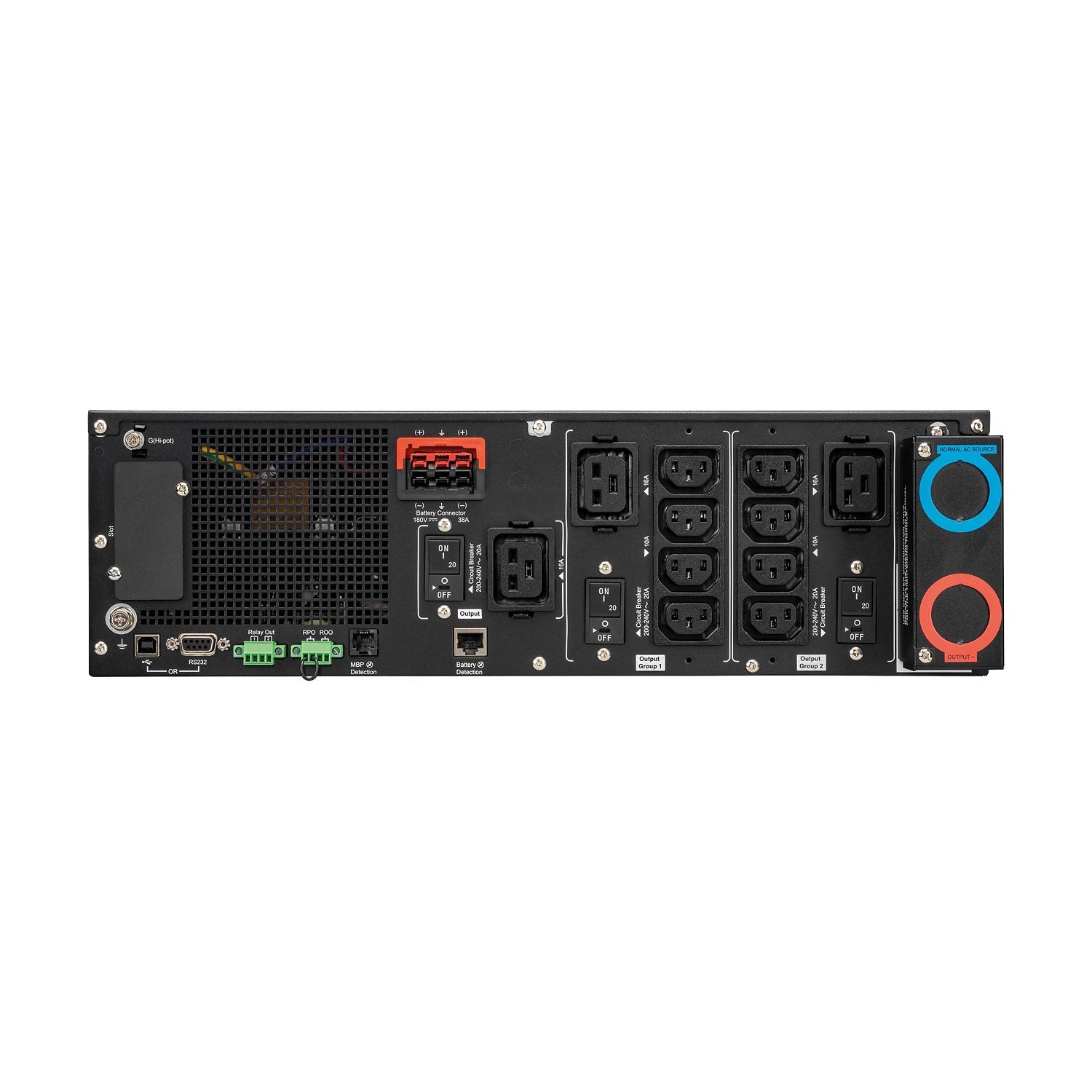

Output is 8 x IEC C13 + 3 x IEC C19 + hardwired. Eaton includes two IEC-IEC output cables (1.2 m) in the box. The hardwired output connection should be made by a licensed electrician; IEC outlets are not BS 1363 (Type G) sockets, so equipment with Type G plugs needs IEC leads or an IEC-input PDU. For maintenance without interrupting the load, pair it with the matching Eaton HotSwap MBP (MBP6KIG2).
Package Contents & 9SX Gen2 Ordering Information
In the Box
Per Eaton: UPS, 2 cable glands, 2 IEC-IEC output cables (1.2 m), USB cable (1.8 m), cable locking systems, supports for tower mounting, rack-mounting kit with brackets and slides, safety instructions and quick start guide.
Eaton 9SX Gen2 5–20 kVA Range — Ordering Information
| 9SX5KIRT3UG2 | 5000 VA / 5000 W | Rack/tower 3U, 8 x IEC C13 + 3 x IEC C19 + hardwired | 9104-52007 |
| 9SX6KIRT3UG2 (this listing) | 6000 VA / 6000 W | Rack/tower 3U, 8 x IEC C13 + 3 x IEC C19 + hardwired | 9104-12943 |
| 9SX8KIG2 | 8 kVA / 8 kW | Free-standing, 8 x IEC C13 + 4 x IEC C19 + hardwired; rail kit 744-A1994 sold separately | 9104-22017 |
| 9SX11KIG2 | 11 kVA / 11 kW | Free-standing, 8 x IEC C13 + 4 x IEC C19 + hardwired; rail kit 744-A1994 sold separately | 9104-32729 |
| 9SX15KPM | 15 kVA | Power module; external battery module purchased separately | 9106-52226EA1 |
| 9SX20KPM | 20 kVA | Power module; external battery module purchased separately | 9106-52217EA1 |
| MBP6KIG2 | HotSwap maintenance bypass | For 9PX Gen2 / 9SX Gen2 5–6 kVA | 9001-2054 |
| MBP11KIG2 | HotSwap maintenance bypass | For 9PX Gen2 / 9SX Gen2 8–11 kVA | 9001-2051 |
Extended Warranty
Ask us about Eaton extended warranty options for this range, purchased together with the UPS.
Datasheet & Downloads
| Eaton specifications | Eaton 9SX6KIRT3UG2 specifications (eaton.com) |
| Eaton spec sheet | Eaton 9SX6KIRT3UG2 product specifications (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9SX6KIRT3UG2.
Frequently Asked Questions — Eaton 9SX6KIRT3UG2
What does online double-conversion mean?
The UPS converts incoming AC to DC and back to AC continuously, so the load always runs from the inverter. There is no transfer gap when the mains fails.
How do I size it — VA or watts?
With a unity power factor both are the same here: 6000 W. Total the continuous watts of your equipment and leave headroom.
How long will it run on battery?
Eaton's specification page for this model does not list runtimes. Runtime depends on load, battery age and temperature, and can be extended with external battery modules — send us your load in watts and we will estimate it.
Can I monitor it over the network?
Yes, with an optional Eaton network card in the expansion slot (not included). USB and RS232 are built in.
Can it be rack-mounted?
Yes. Eaton includes a rack-mounting kit with brackets and slides, and supports for tower mounting.
What warranty do I get?
3 years on the UPS and its internal battery per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
